Direct-Drive Rotary Motor

Model Selector

Series:

M-040-038 M-062-060 M-080-050 M-080-067 M-112-065 M-112-085 M-140-050 TPA-M-140-080 M-170-050 TPA-M-170-095 TPA-M-170-125 TPA-M-170-155 M-224-042 M-224-062 M-263-113 M-263-138 M-263-188 M-280-145 M-280-170 M-280-231 M-325-065

Continuous Torque:

0.13N.m

Maximum Torque:

0.39N.m

Model:

TPA-?

Continuous Torque:

0.40N.m

Maximum Torque:

1.20N.m

Model:

TPA-?

Continuous Torque:

0.6N.m

Maximum Torque:

1.9N.m

Model:

TPA-?

Continuous Torque:

1N.m

Maximum Torque:

3.5N.m

Model:

TPA-?

Continuous Torque:

3N.m

Maximum Torque:

9N.m

Model:

TPA-?

Continuous Torque:

3N.m

Maximum Torque:

9N.m

Model:

TPA-?

Continuous Torque:

6N.m

Continuous Torque:

16N.m

Model:

TPA-?

Continuous Torque:

10.5N.m

Maximum Torque:

30N.m

Model:

TPA-?

Continuous Torque:

4.6N.m

Maximum Torque:

14N.m

Model:

TPA-?

Continuous Torque:

20N.m

Maximum Torque:

65N.m

Model:

TPA-?

Continuous Torque:

40N.m

Continuous Torque:

125N.m

Model:

TPA-?

Continuous Torque:

60N.m

Maximum Torque:

179N.m

Model:

TPA-?

Continuous Torque:

14N.m

Maximum Torque:

42N.m

Model:

TPA-?

Continuous Torque:

35N.m

Maximum Torque:

105N.m

Model:

TPA-?

Continuous Torque:

95N.m

Maximum Torque:

190N.m

Model:

TPA-?

Continuous Torque:

150N.m

Maximum Torque:

300N.m

Model:

TPA-?

Continuous Torque:

250N.m

Maximum Torque:

500N.m

Model:

TPA-?

Continuous Torque:

95N.m

Maximum Torque:

190N.m

Model:

TPA-?

Continuous Torque:

95N.m

Maximum Torque:

190N.m

Model:

TPA-?

Continuous Torque:

250N.m

Maximum Torque:

500N.m

Model:

TPA-?

Continuous Torque:

30N.m

Continuous Torque:

90N.m

Model:

TPA-?

PDF Drawing STP Drawing Enquiry

Product Detail

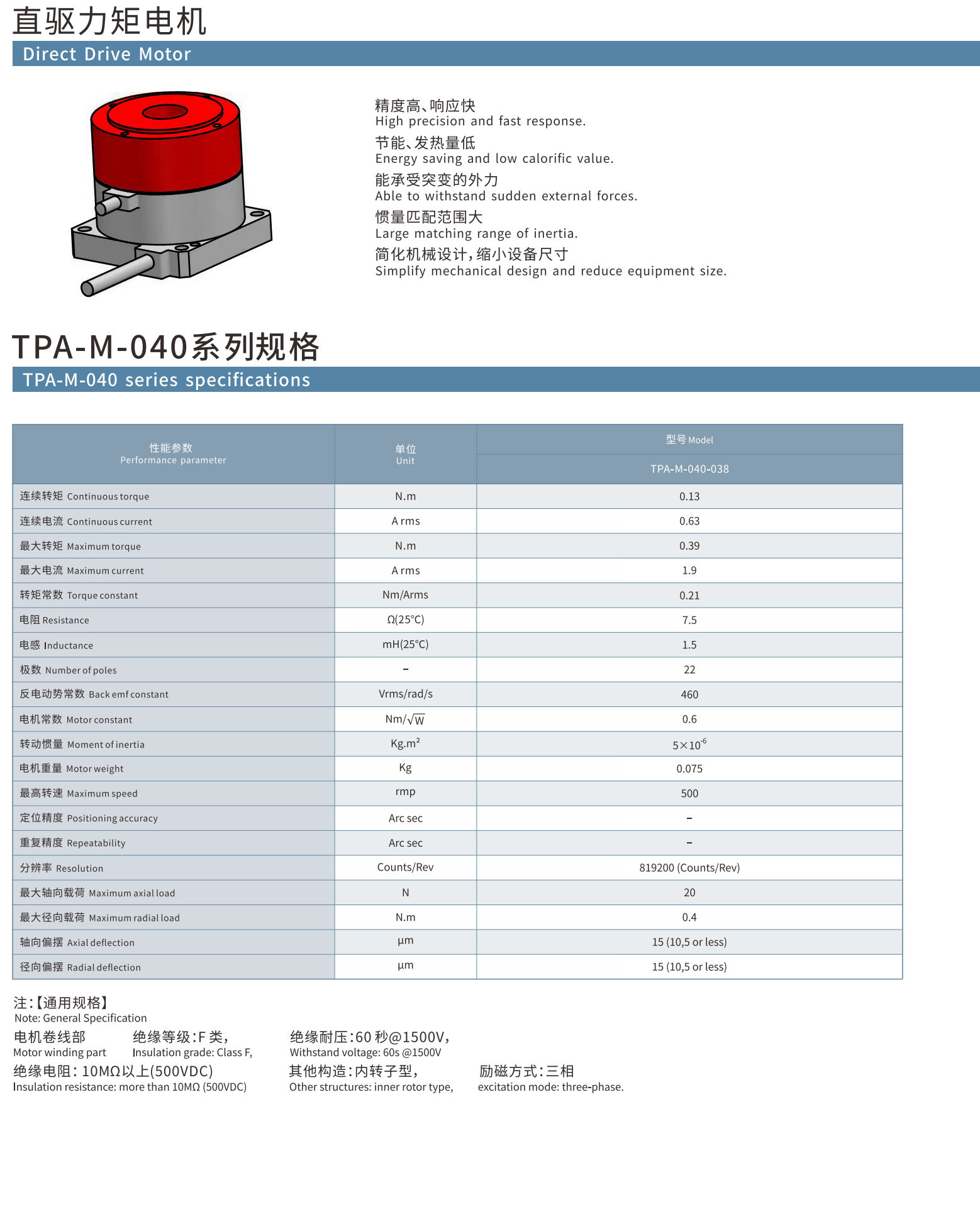

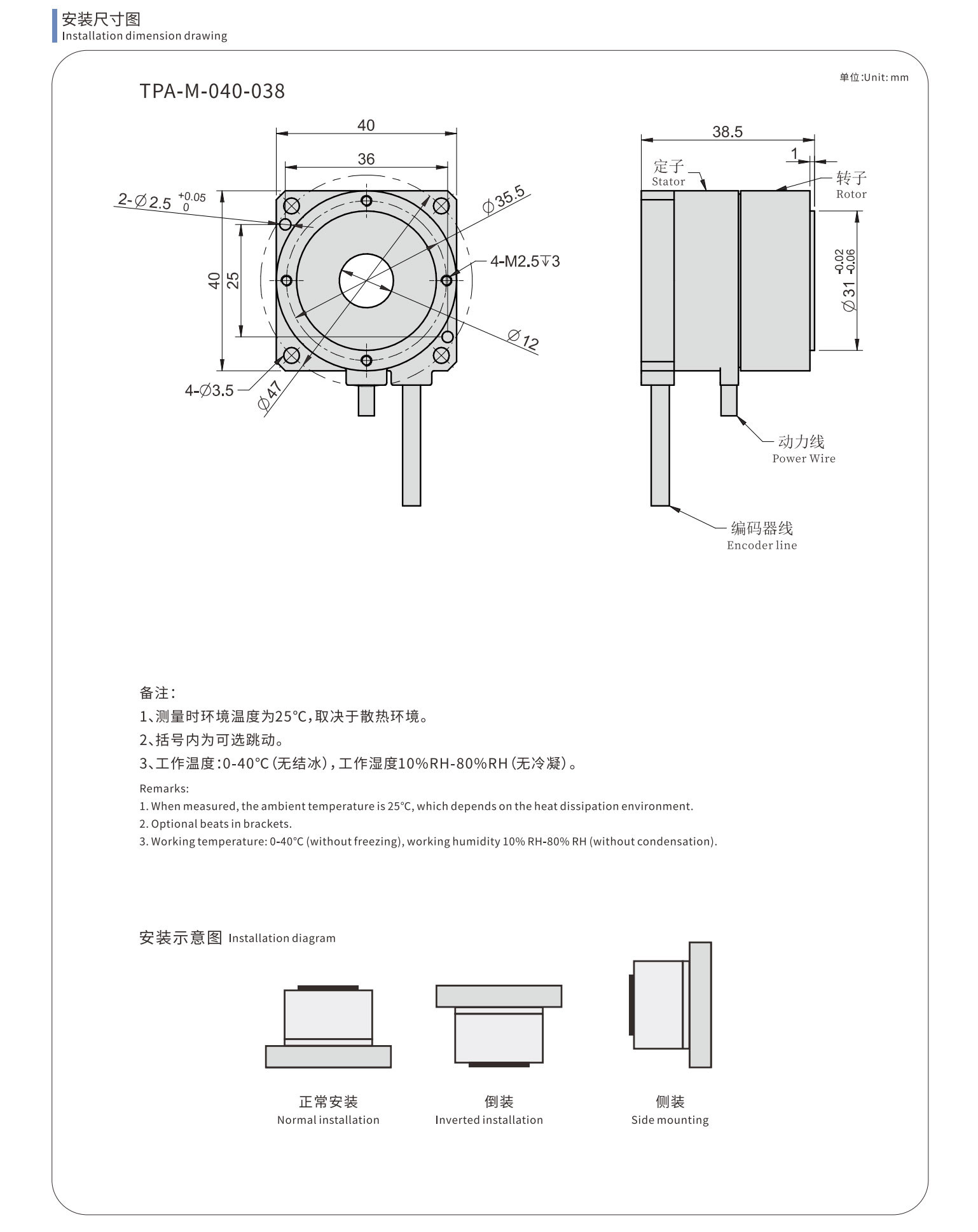

M-040-038

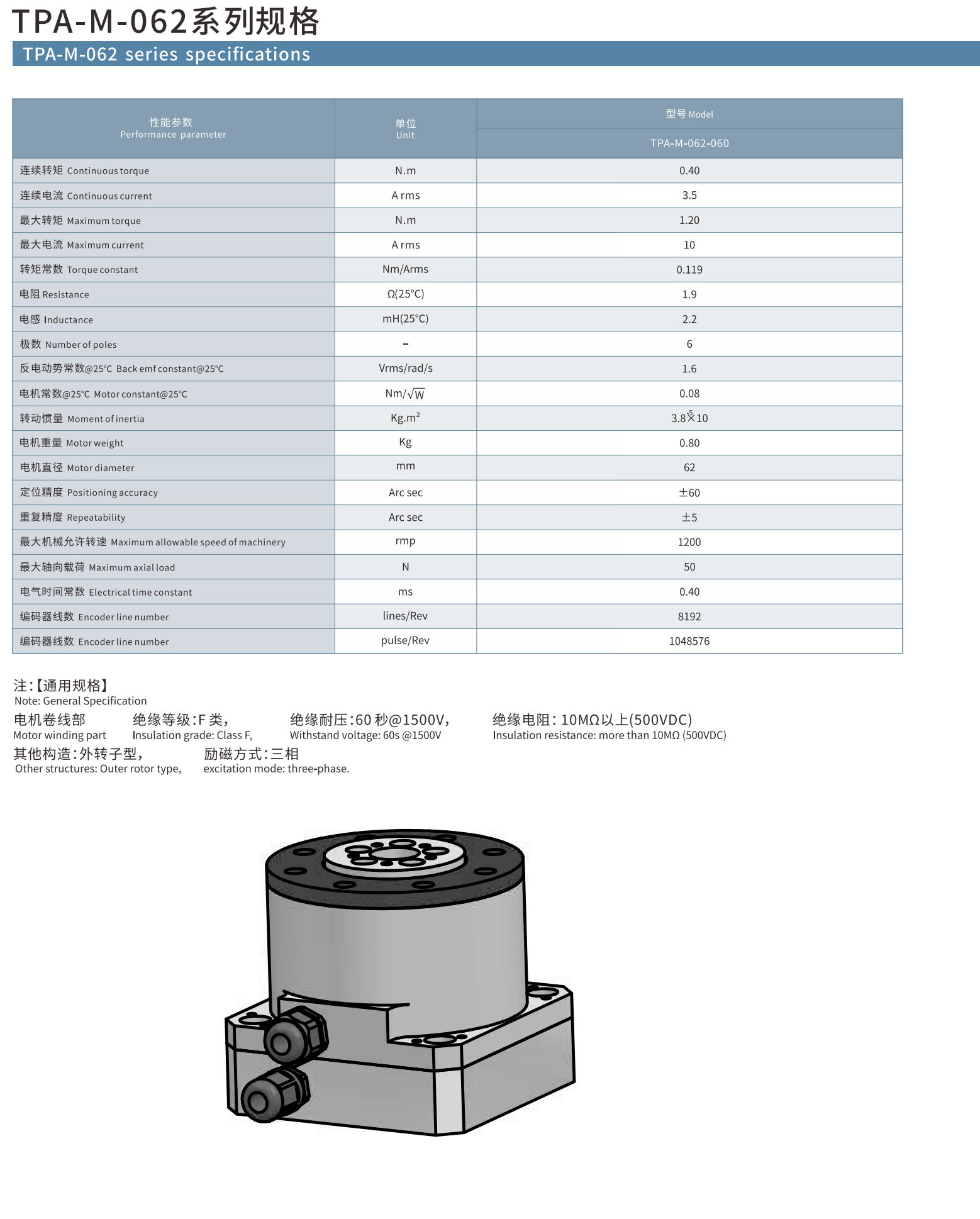

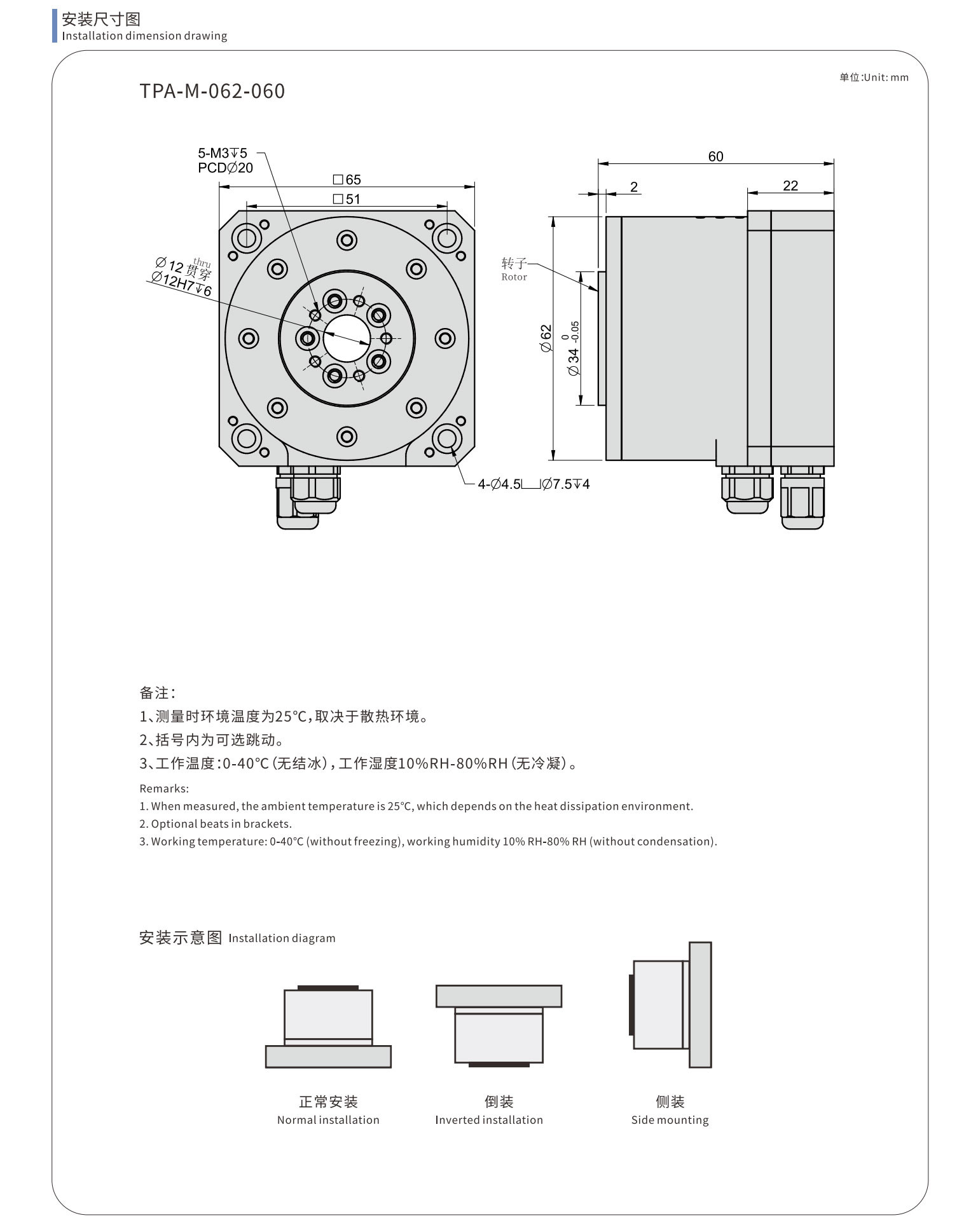

M-062-060

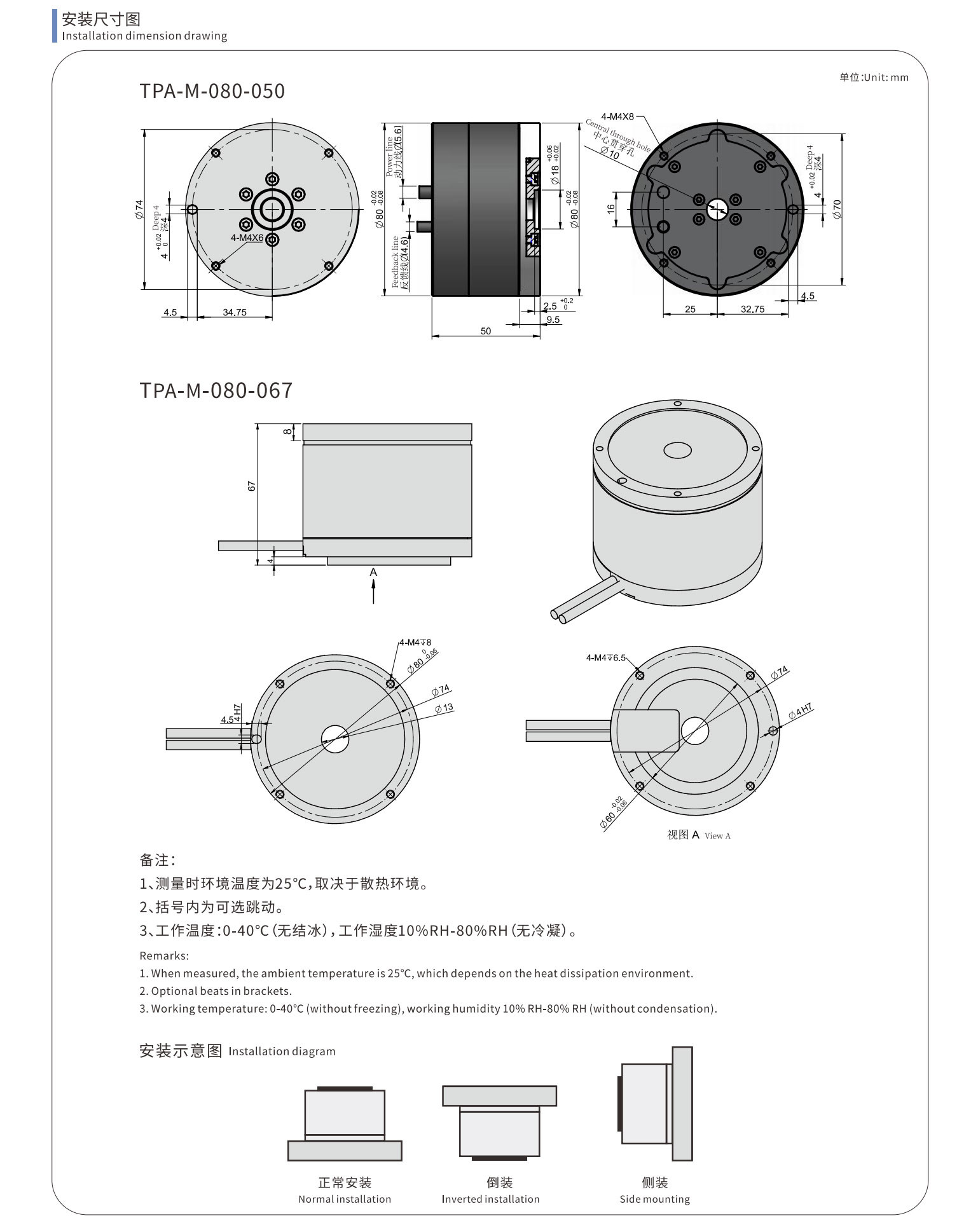

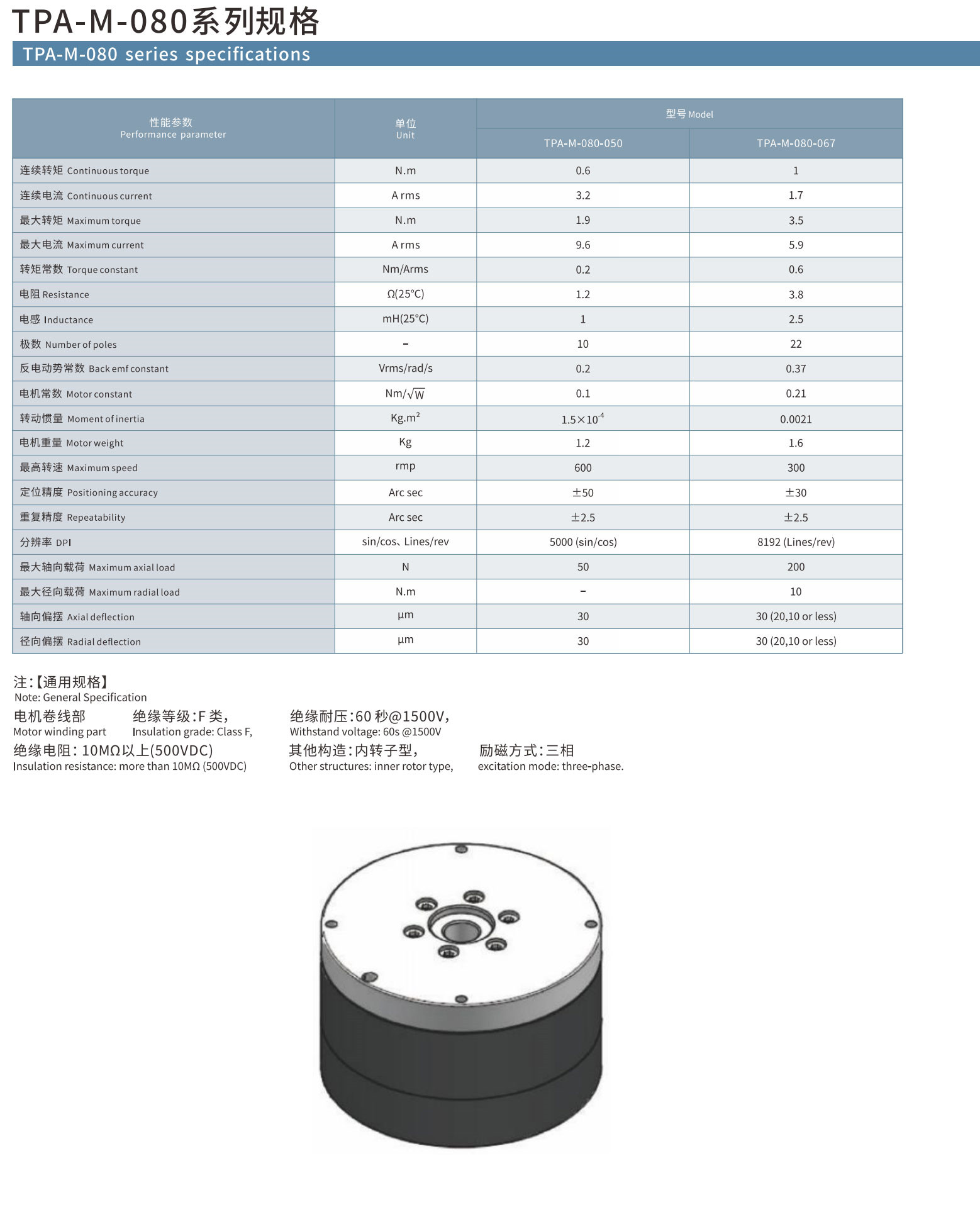

M-080-050

M-080-067

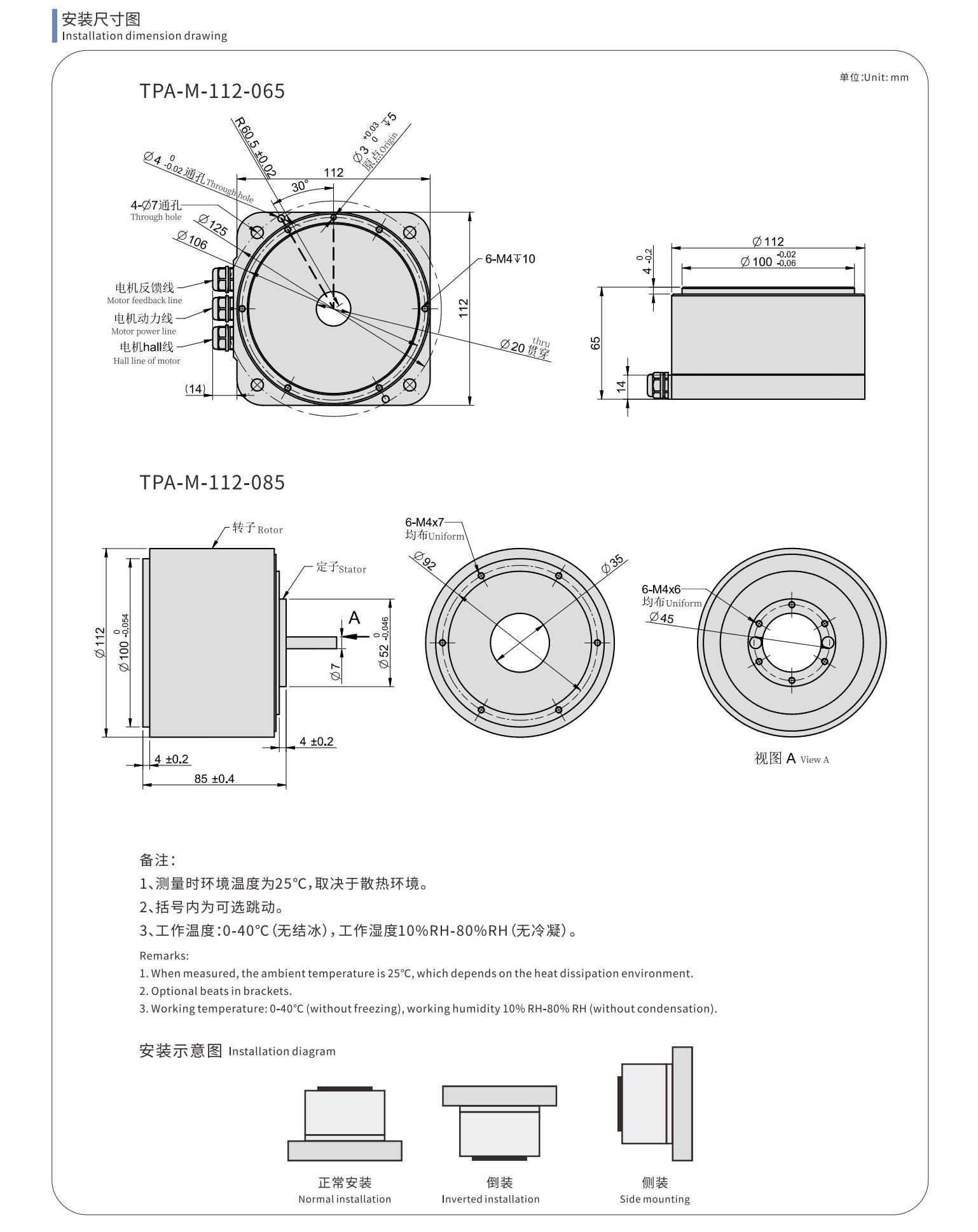

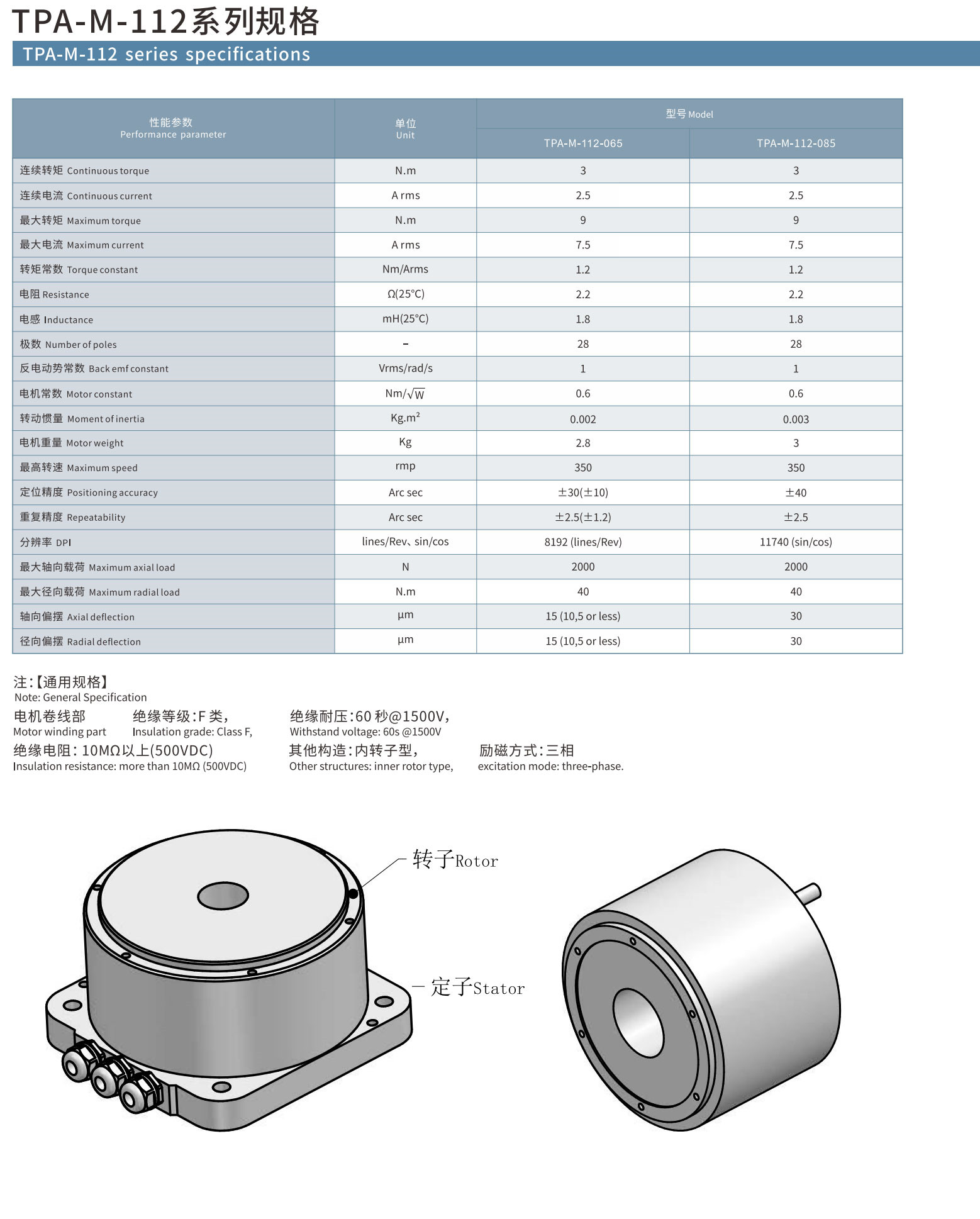

M-112-065

M-112-085

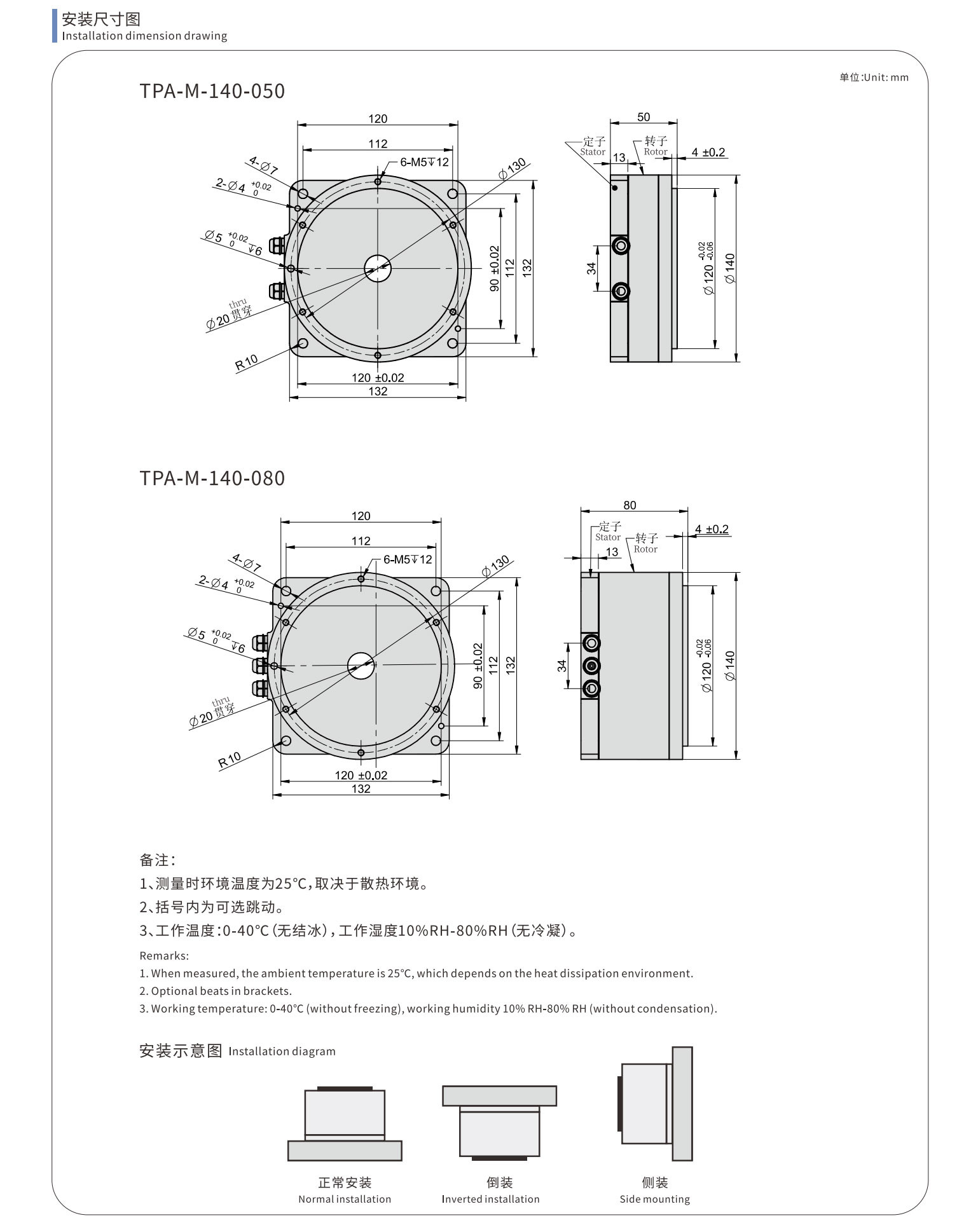

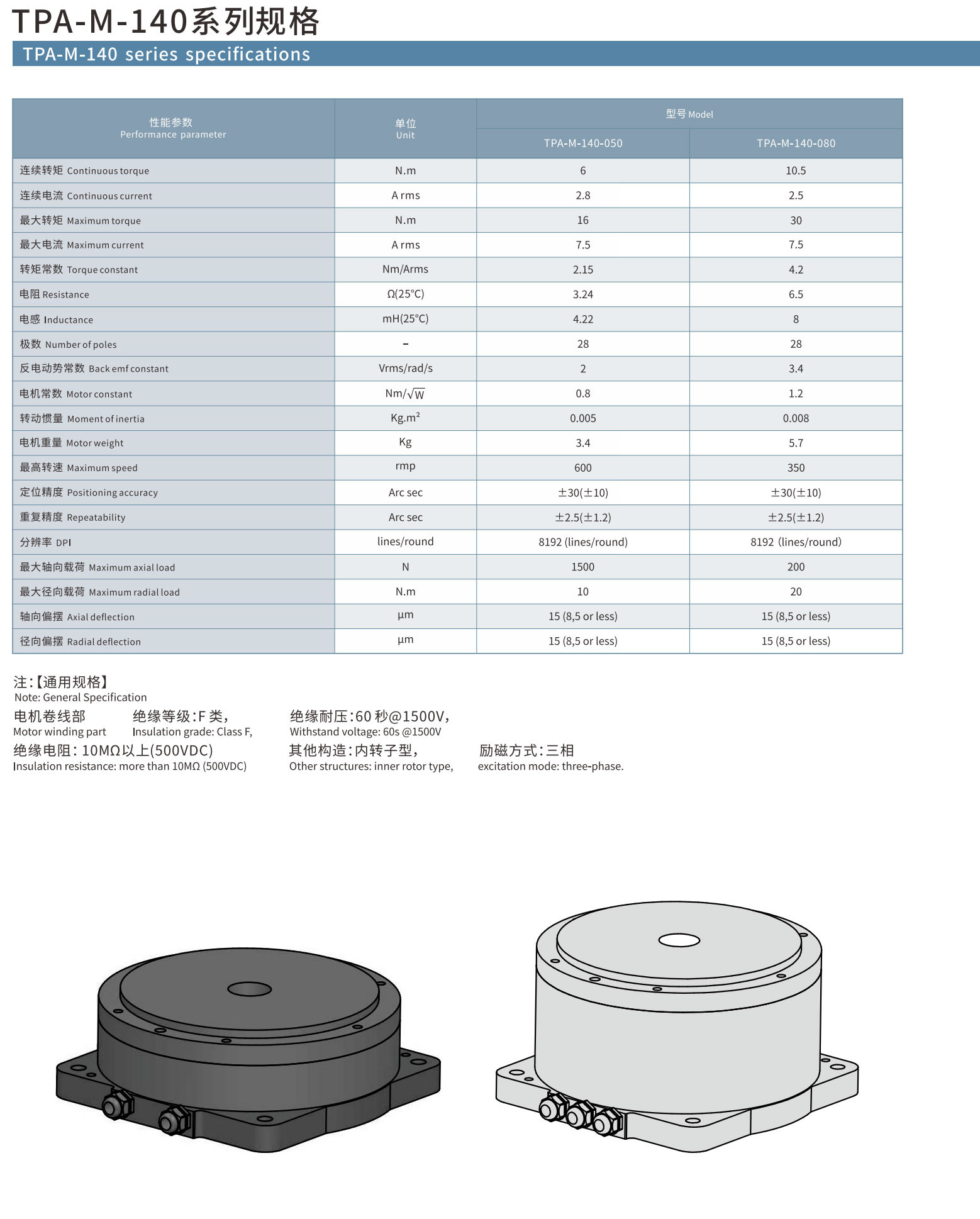

M-140-050

TPA-M-140-080

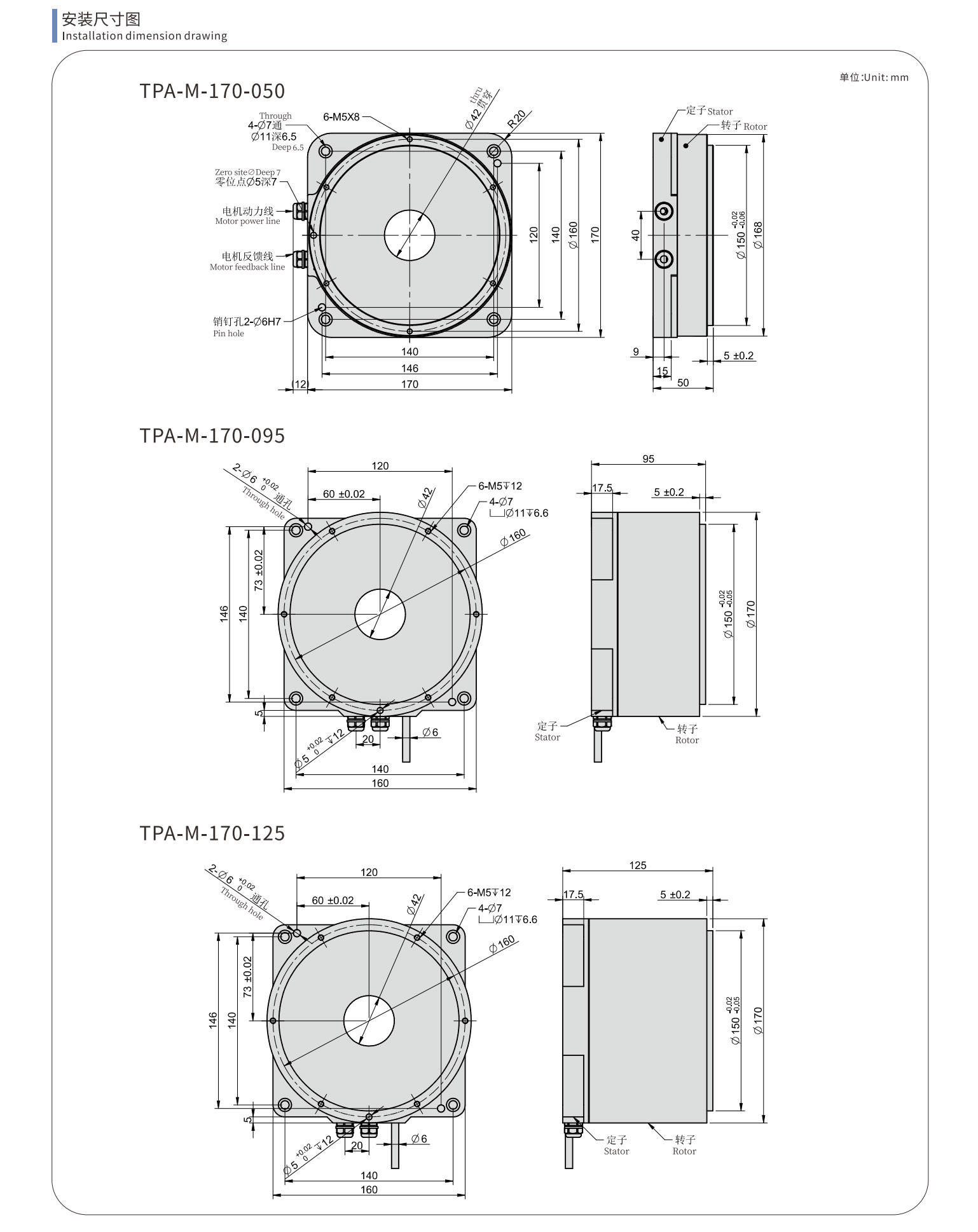

M-170-050

TPA-M-170-095

TPA-M-170-125

TPA-M-170-155

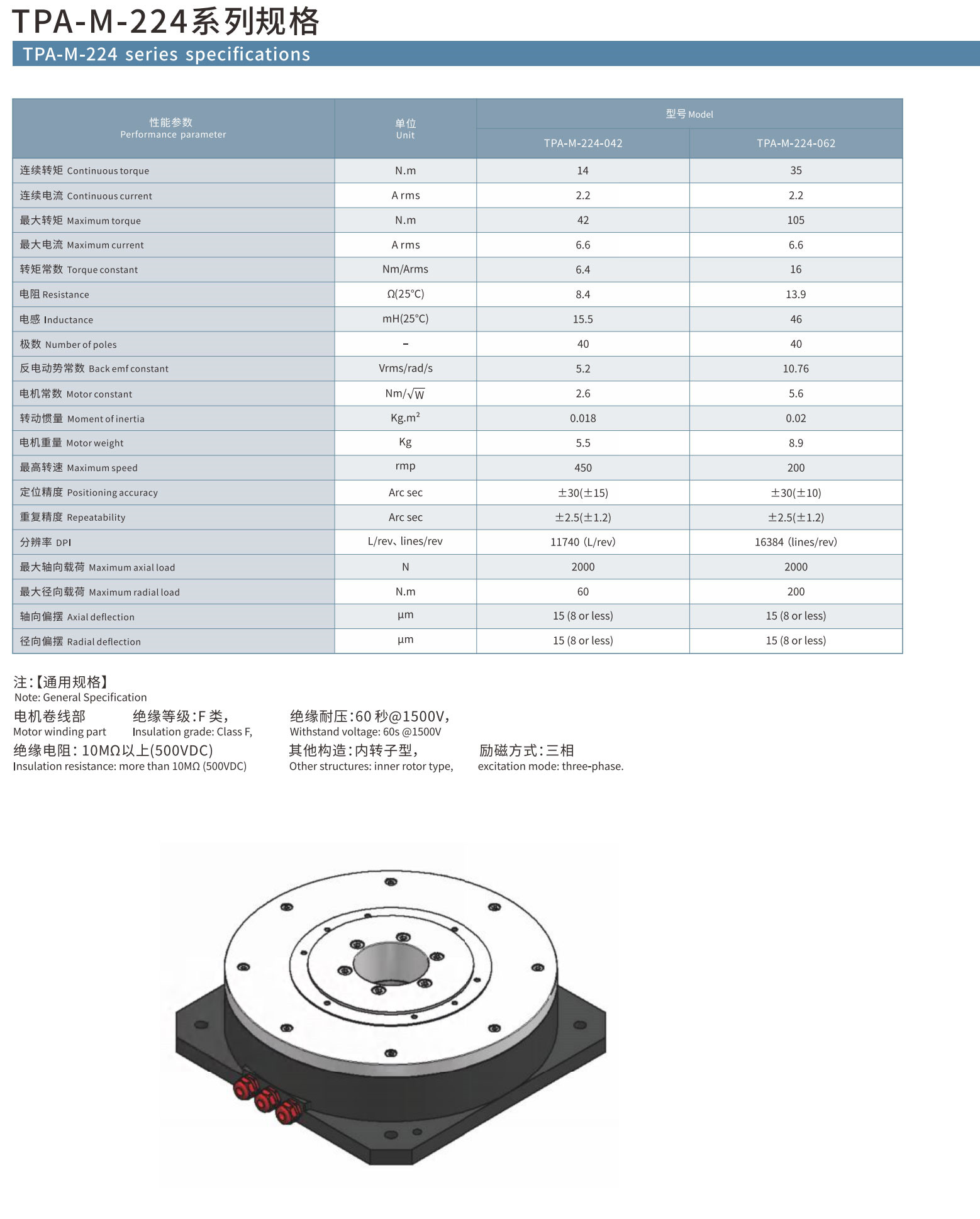

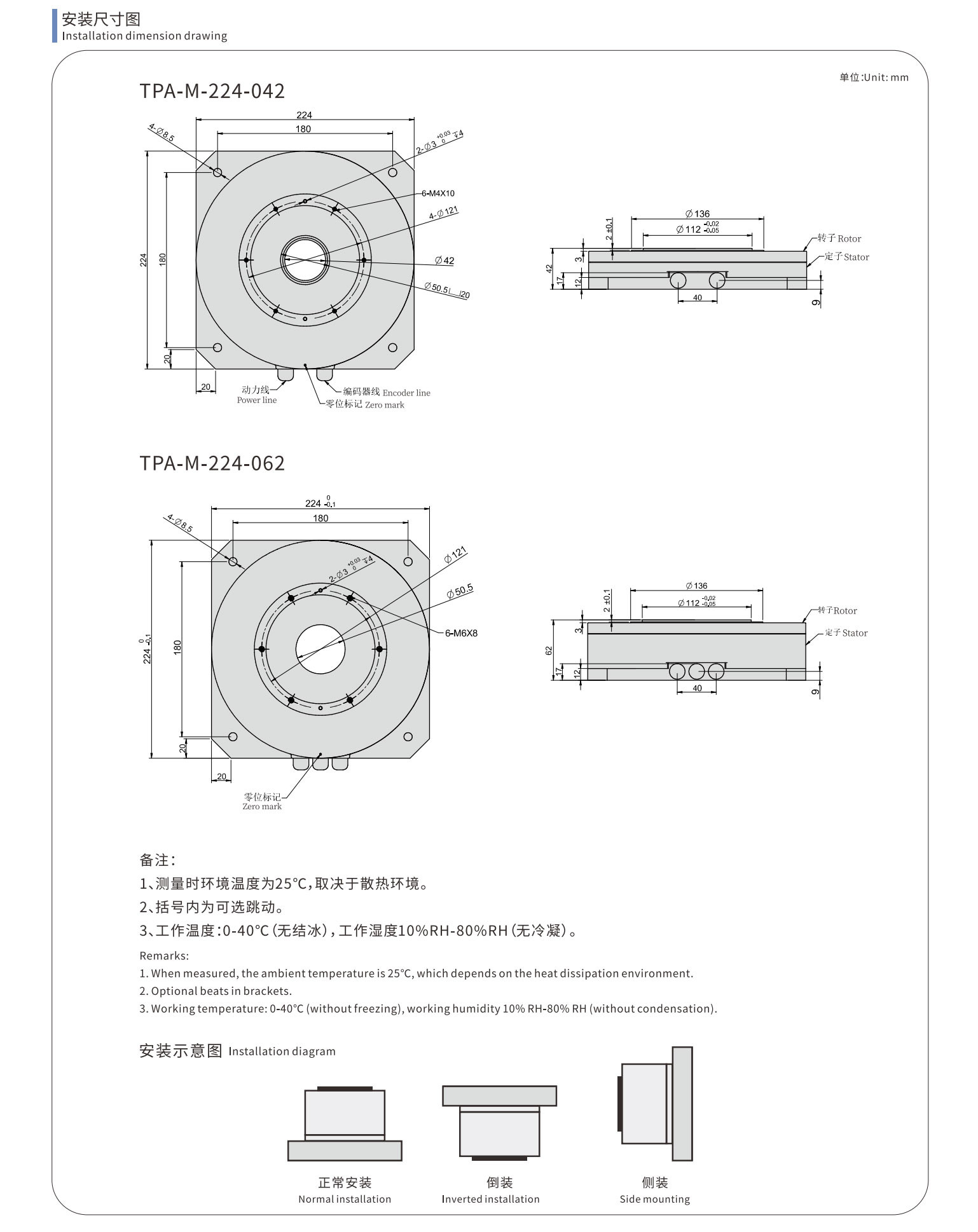

M-224-042

M-224-062

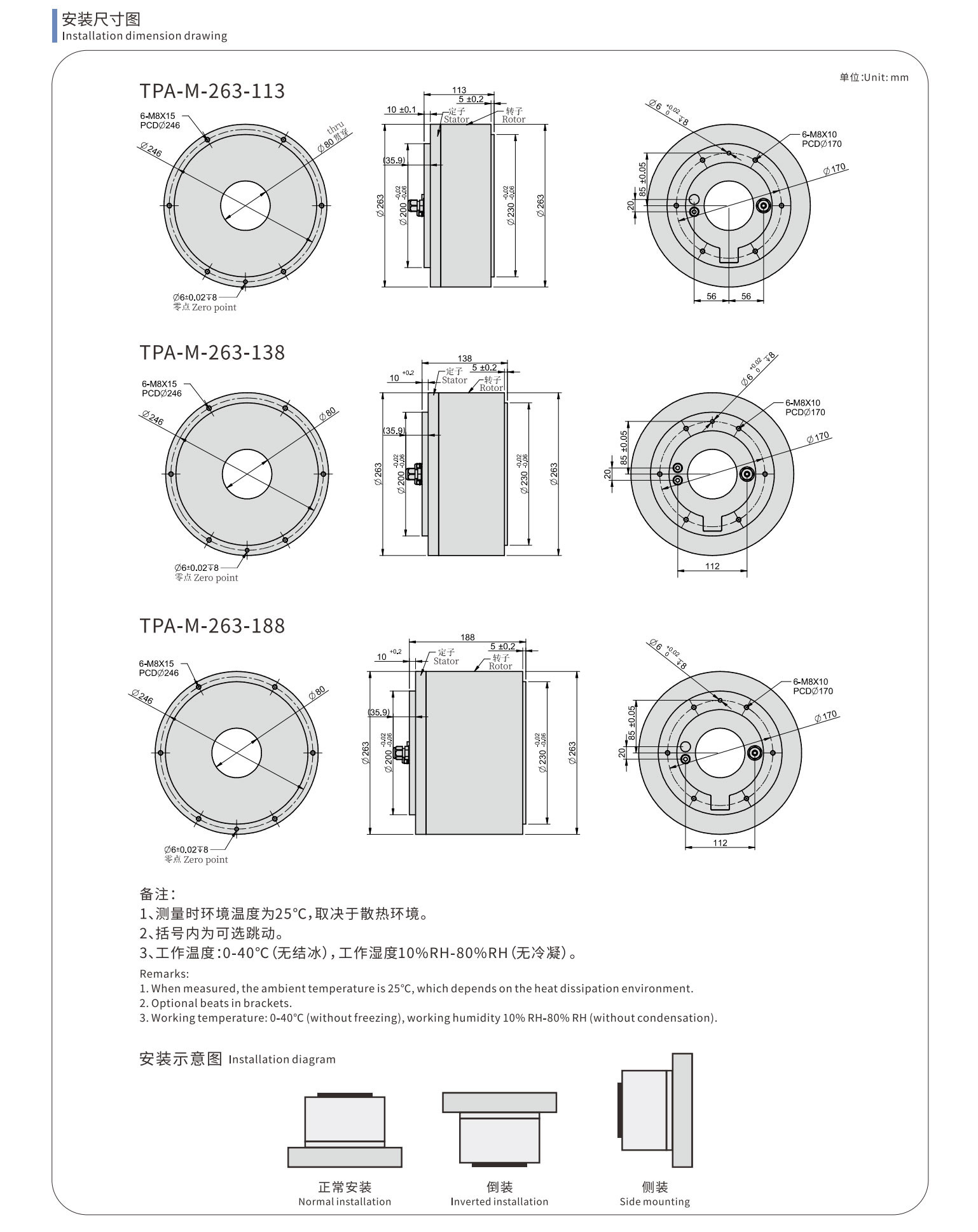

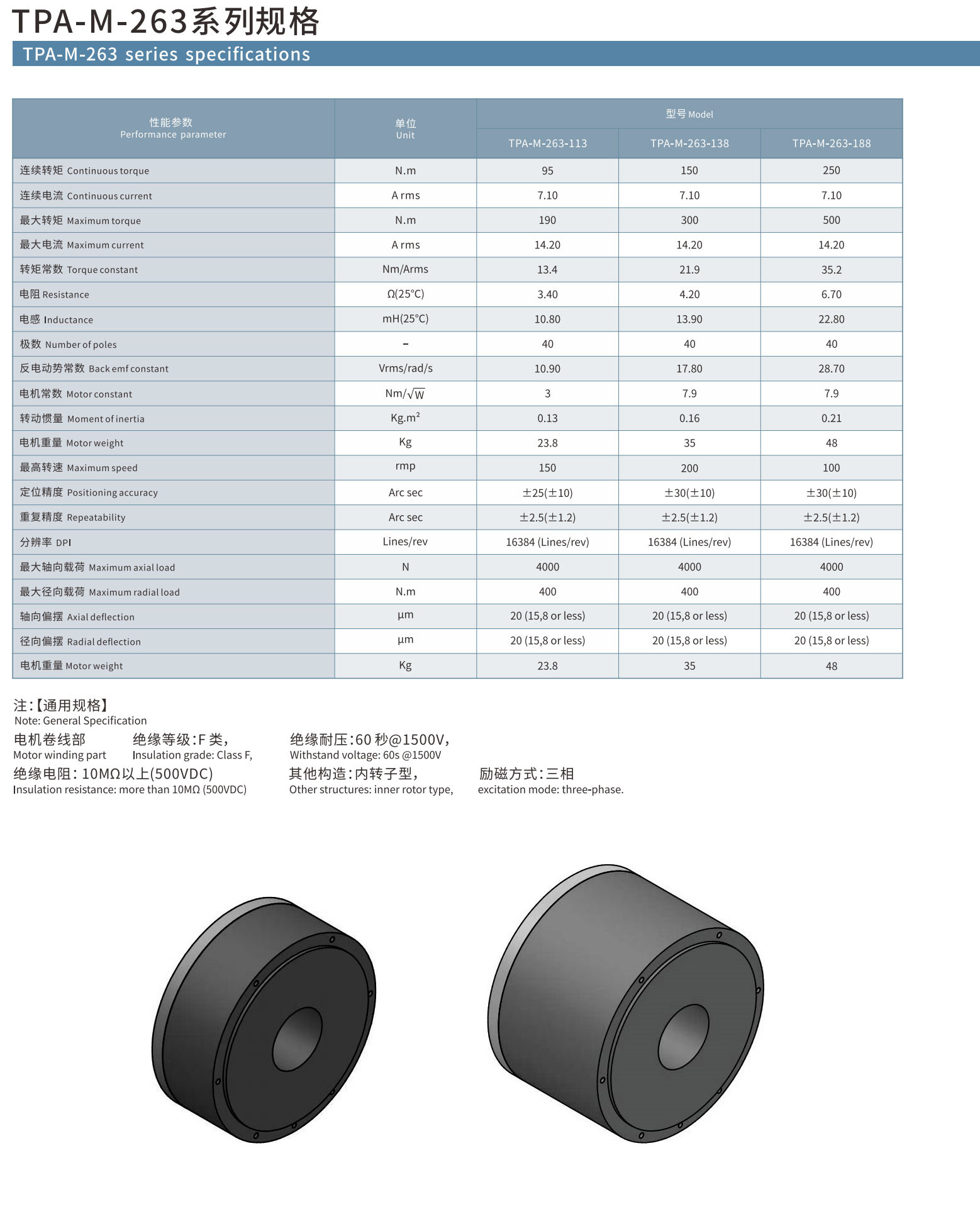

M-263-113

M-263-138

M-263-188

M-280-145

M-280-170

M-280-231

M-325-065

The direct drive rotary table mainly provides a high-torque, high-precision rotary motion stage in the automation field. M-series direct drive rotary stage developed by TPA ROBOT has a maximum torque of 500N.m and a repeated positioning accuracy of ±1.2 arc sec. Built-in high-resolution encoder design can achieve high-performance resolution, repeatability, precise motion profile, directly mount the turntable/load, the combination of threaded mounting holes and hollow through holes allows this motor to be used in a variety of applications requiring direct connection of the load to the motor.

● High precision and fast response

● Energy saving and low calorific value

● Able to withstand sudden external forces

● Large matching range of inertia

● Simplify mechanical design and reduce equipment size

TPA-M-170-050

TPA-M-112-065

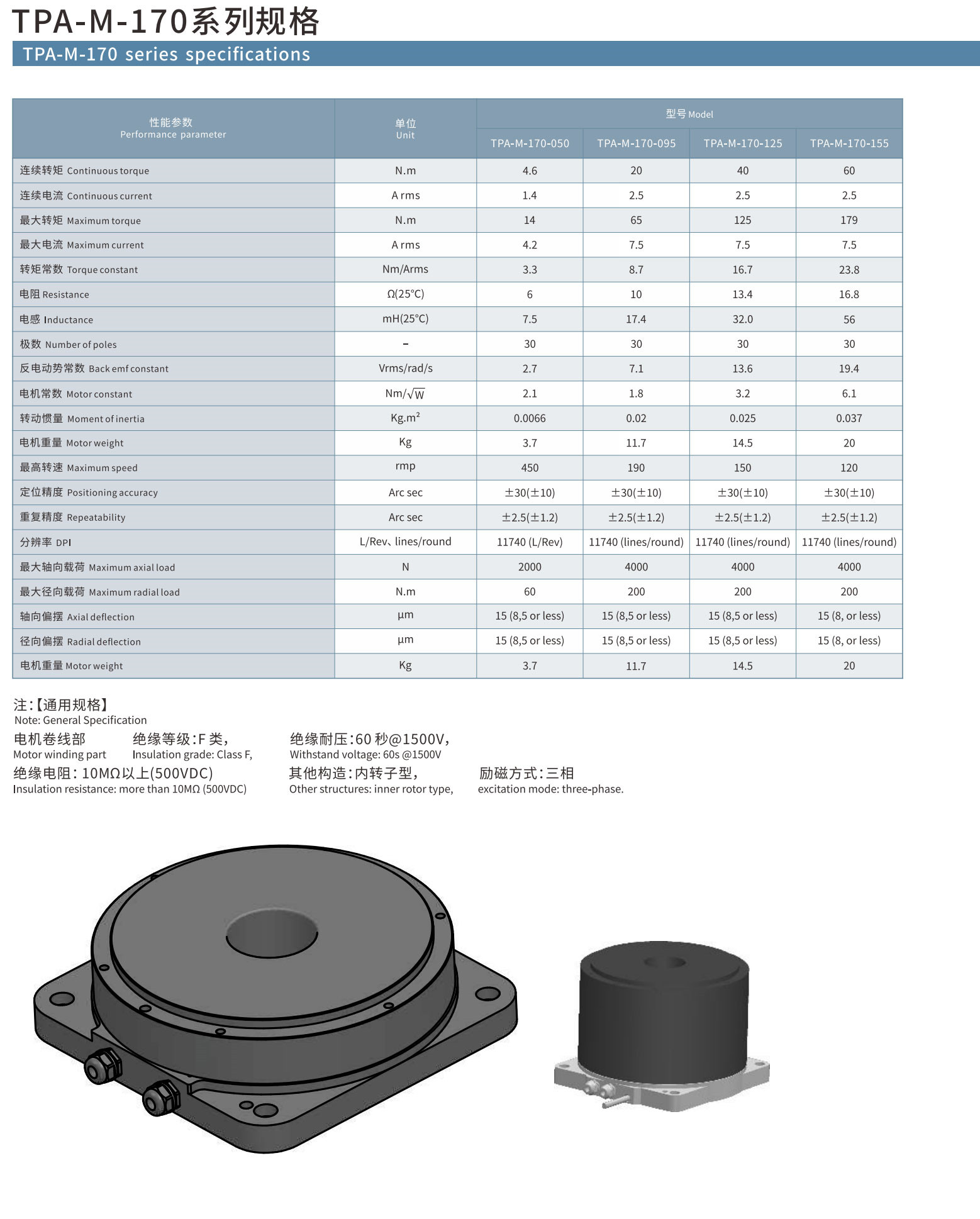

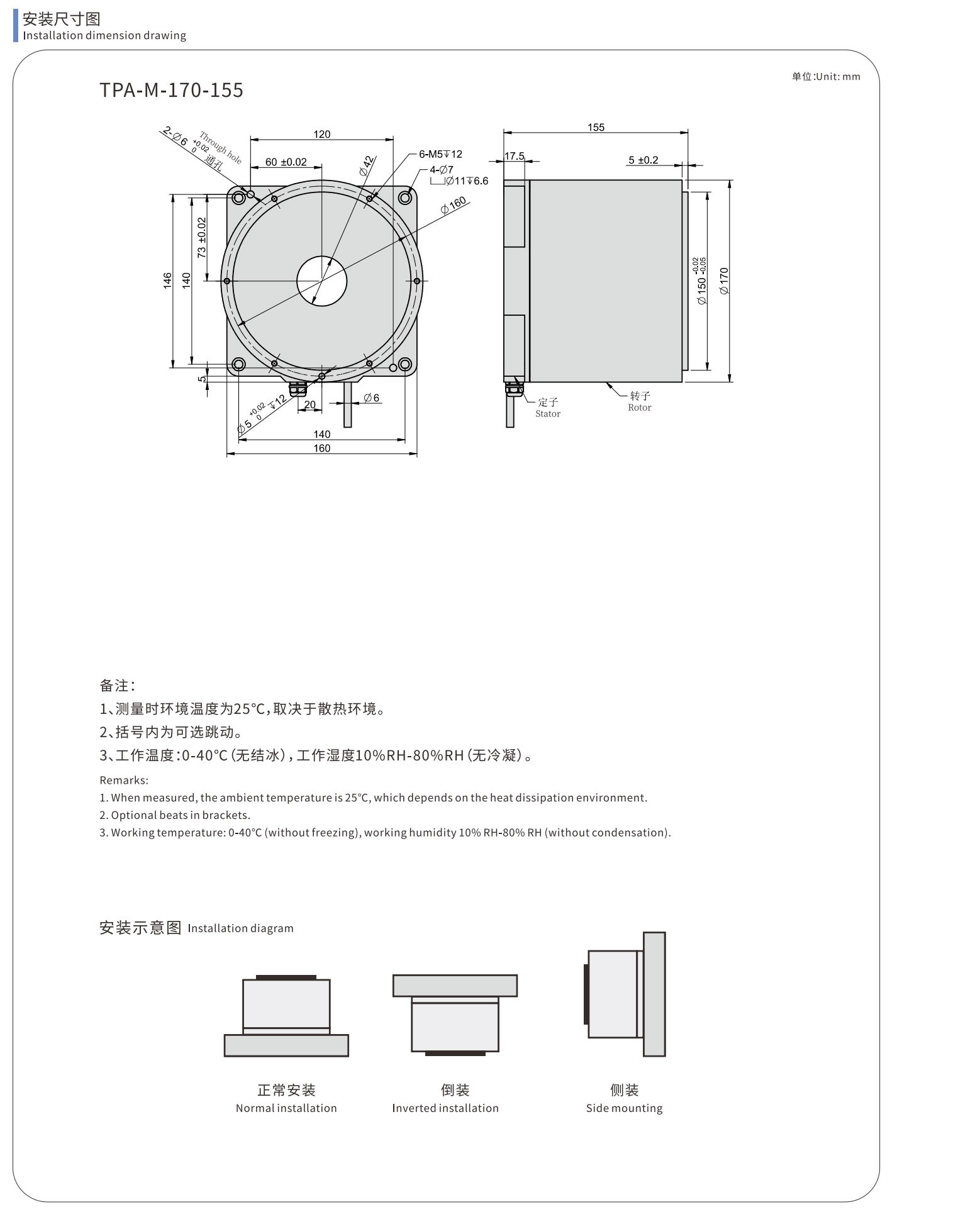

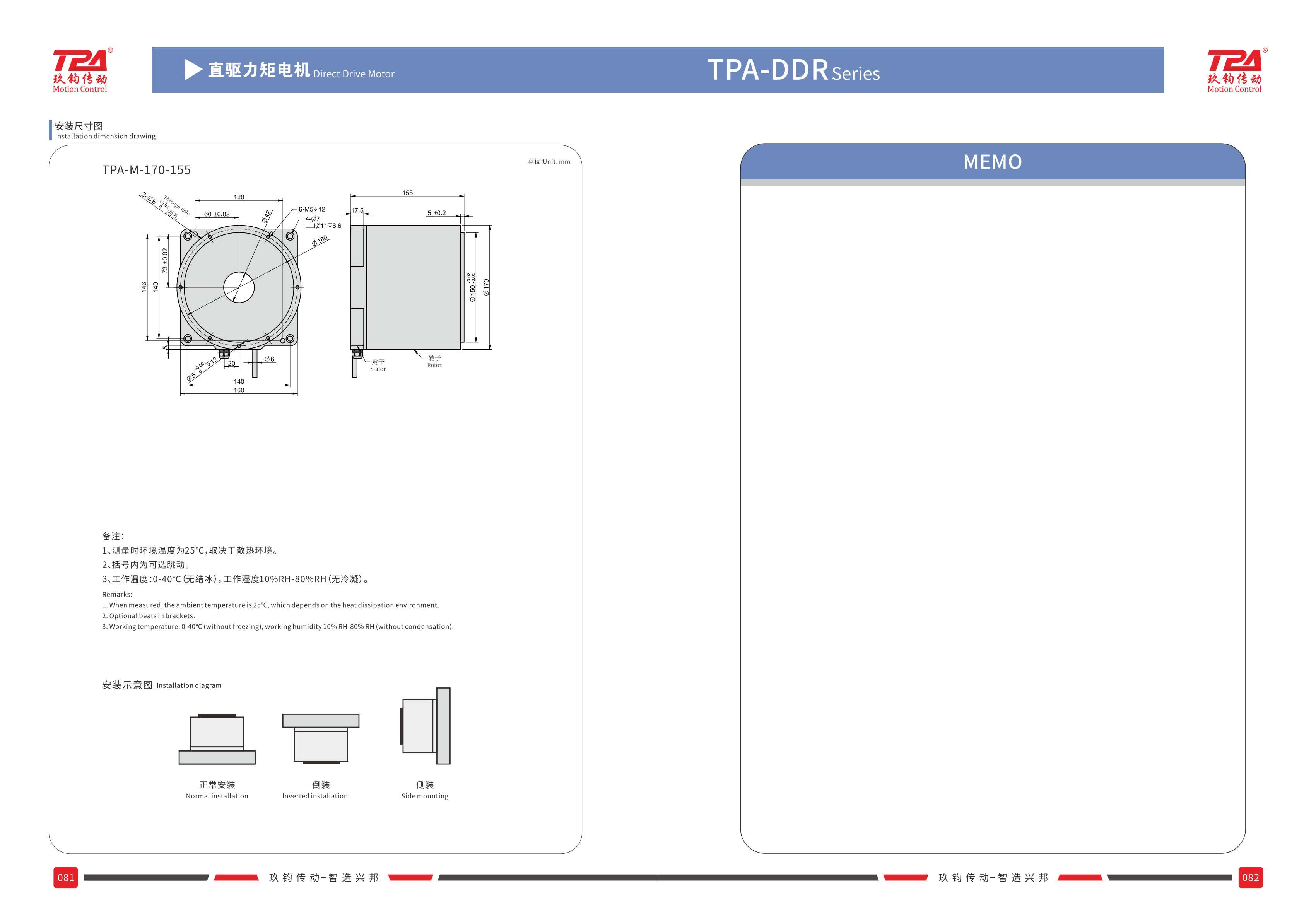

TPA-M-170-155

Features

Repeated Positioning Accuracy: ±1.2 arc sec
Max Torque: 500N·m
Max MOT: 0.21kg·m²
Max Speed: 100rmp
Max Load(axial): 4000N

M Series direct drive rotary stage are commonly used in Radar, Scanners, Rotary Indexing Tables, Robotics, Lathes, Wafer Handling, DVD Processors, Packaging, Turret Inspection Stations, Reversing Conveyors, General Automation System.
