GCR Series Build-in Rail Ball Screw Linear Actuators

GCR Series Build-in Rail Ball Screw Linear Actuators Featured Image
  • GCR Series Build-in Rail Ball Screw Linear Actuators

Model Selector

  • Series:
    GCR-40 GCR-50 GCR-80 GCR-120 GCR-150
  • Screw Diameter:
    Φ12
  • Lead:
    05mm 10mm 20mm
  • Accuracy Level:
    Common Precision
  • Stroke:
    50mm 100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Motor Brand (for flange size only):
    Panasonic Mitsubishi Yaskawa HCFA Delta
  • Motor Power:
    100W
  • Motor Brake:
    Brake
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None

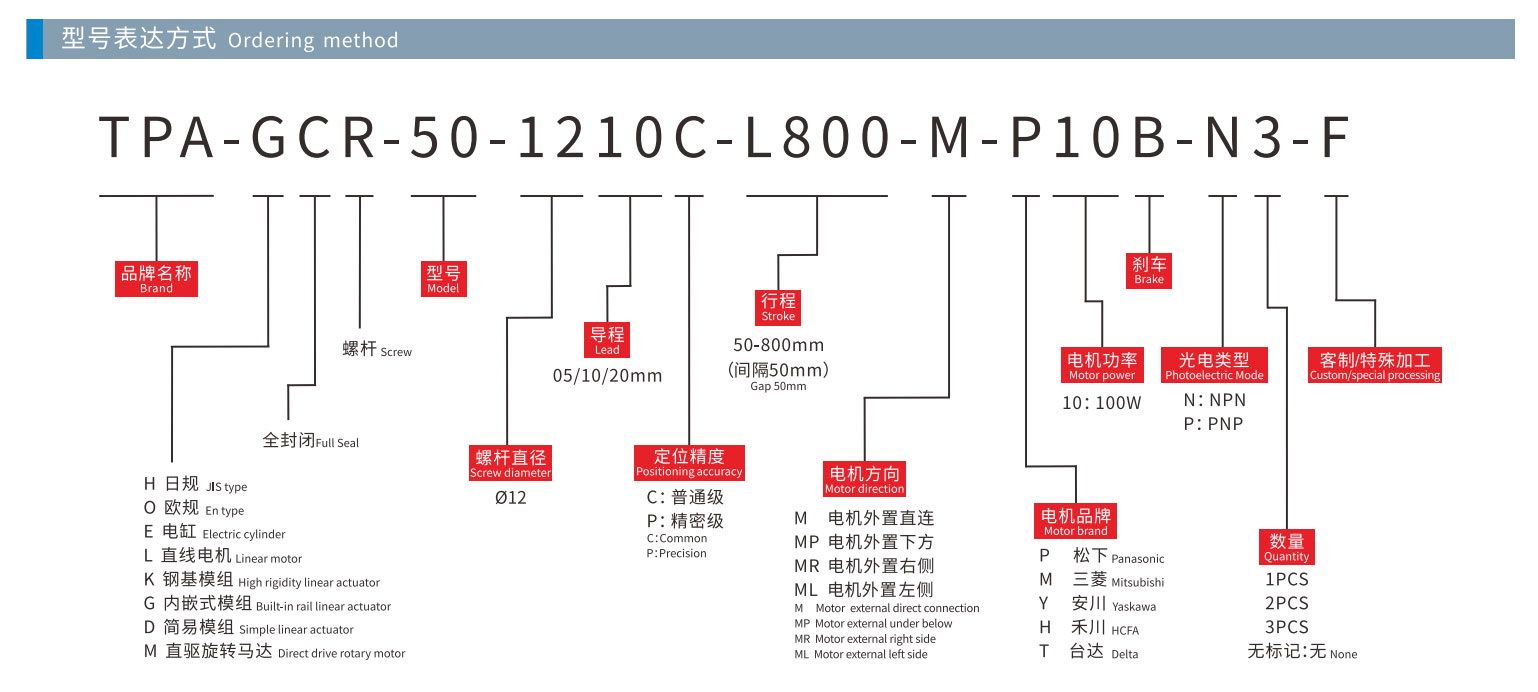

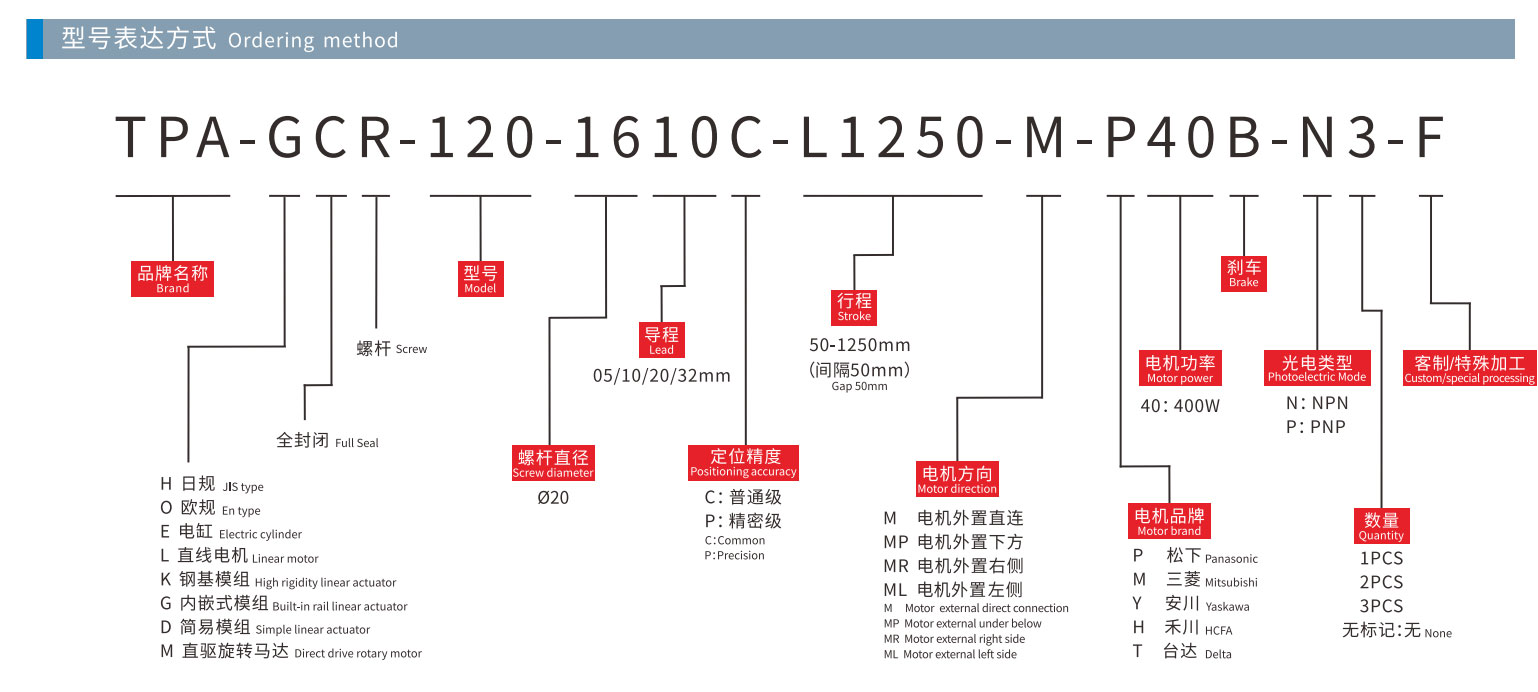

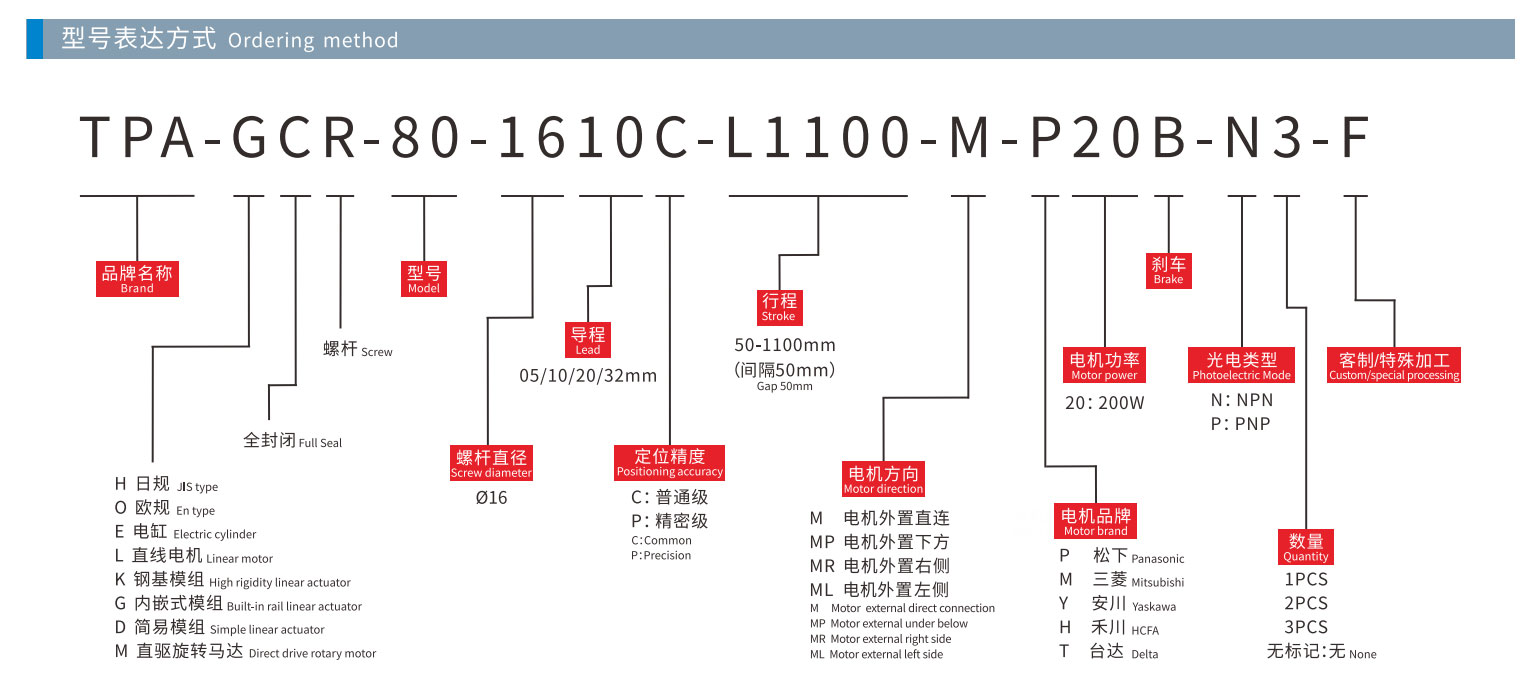

  • Model:

    TPA-?-???-?-?-???-?

  • Screw Diameter:
    Φ12
  • Lead:
    05mm 10mm 20mm
  • Accuracy Level:
    Common Precision
  • Stroke:
    50mm 100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Motor Brand (for flange size only):
    Panasonic Mitsubishi Yaskawa HCFA Delta
  • Motor Power:
    100W
  • Motor Brake:
    Brake
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-???-?-?-???-?

  • Screw Diameter:
    Φ16
  • Lead:
    05mm 10mm 20mm 32mm
  • Accuracy Level:
    Common Precision
  • Stroke:
    50mm 100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 950mm 1000mm 1050mm 1100mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Motor Brand (for flange size only):
    Panasonic Mitsubishi Yaskawa HCFA Delta
  • Motor Power:
    200W
  • Motor Brake:
    Brake
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-???-?-?-???-?

  • Screw Diameter:
    Φ20
  • Lead:
    05mm 10mm 20mm 32mm
  • Accuracy Level:
    Common Precision
  • Stroke:
    50mm 100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 950mm 1000mm 1050mm 1100mm 1150mm 1200mm 1250mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Motor Brand (for flange size only):
    Panasonic Mitsubishi Yaskawa HCFA Delta
  • Motor Power:
    400W
  • Motor Brake:
    Brake
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-???-?-?-???-?

  • Screw Diameter:
    Φ20
  • Lead:
    05mm 10mm 20mm 40mm
  • Accuracy Level:
    Common Precision
  • Stroke:
    50mm 100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 950mm 1000mm 1050mm 1100mm 1150mm 1200mm 1250mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Motor Brand (for flange size only):
    Panasonic Mitsubishi Yaskawa HCFA Delta
  • Motor Power:
    400W 750W
  • Motor Brake:
    Brake
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-???-?-?-???-?

    • single_btn_icon_1PDF Drawing single_btn_icon_2STP Drawing single_btn_icon_3Enquiry

    Product Detail

    GCR-40

    GCR-50

    GCR-80

    GCR-120

    GCR-150

    GCR series linear actuators use the unique structural design(Invention patent number: CN202110971848.9) of TPA ROBOT, which makes the steel bar embedded in the aluminum base module and then grinds out the groove, aluminum base and slider are integrally formed. This unique design enables the module to reduce its weight and volume by 25% while having high rigidity and high precision.

    With TPA’s unique patented structural design, the steel bar is inlaid inside the body, and the groove grinding of the guide rail is completed at one time, which ensures a higher straightness of walking, and repeated positioning accuracy up to ±0.005mm. In addition to that full sealed and special steel belt structure design can reduce the entry of dust and can be used in clean room. So GCR series electric linear actuator is popular in FPD, medical automation industry, semiconductor, precision measuring instruments and other automation industries.

    The GCR series linear actuator offers up to 8 motor mounting options, combined with its smaller size and weight, can be assembled into ideal cartesian robots and gantry robots at will, allowing for endless automation system possibilities. And the GCR series single axis robot can be directly filled with oil from the oil filling nozzles on both sides of the sliding table, without removing the cover.

    GCR-40

    GCR-40

    GCR-50

    GCR-50

    GCR-80

    GCR-80

    GCR-120

    GCR-120

    GCR-150

    GCR-150

  • Features

    Repeated Positioning Accuracy: ±0.005mm
    Max Payload(Horizontal): 120kg
    Max Payload(Vertical): 50kg
    Stroke: 50 – 1350mm
    Max Speed: 2000mm/s

    GCR Series

    Special steel strip cover sealing design can prevent dirt and foreign objects from penetrating inside. Due to its excellent sealing, can be used in Clean Room environment.

    The width is reduced, so that the space required for equipment installation is smaller.

    The steel track is embedded in the aluminum body, after grinding treatment, so the walking height and linear accuracy is also improved to 0.02mm or less.

    Optimal design of the slide base, no need to plug nuts, makes the ball screw pair mechanism and U-shape rail the track pair structure is integrated on a slide base.

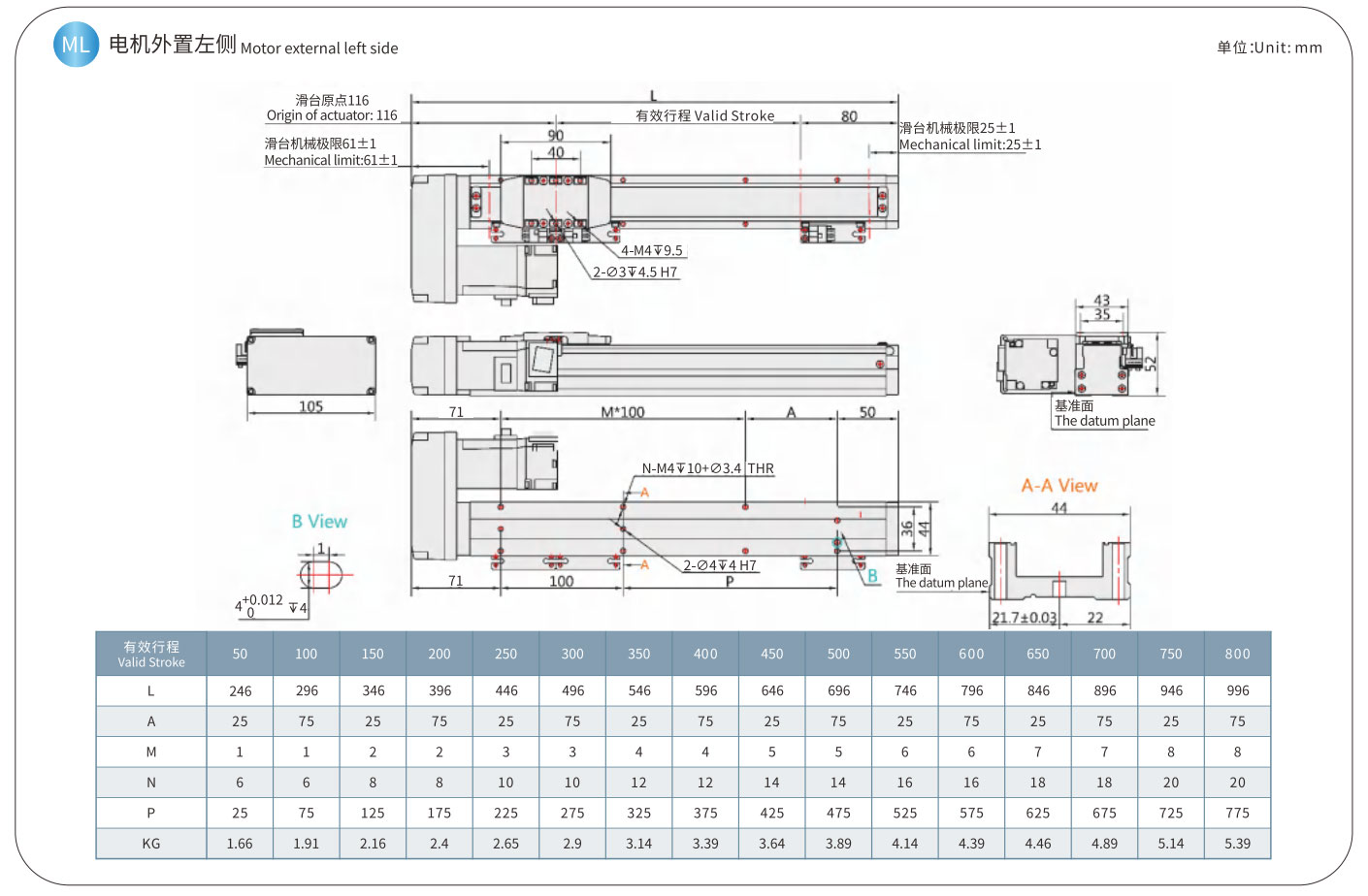

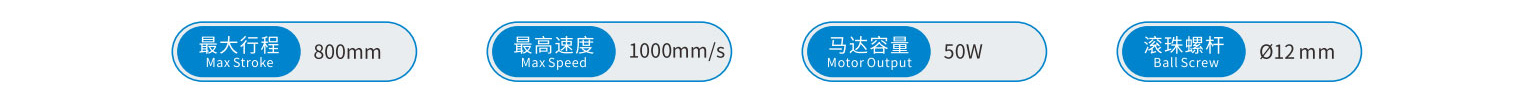

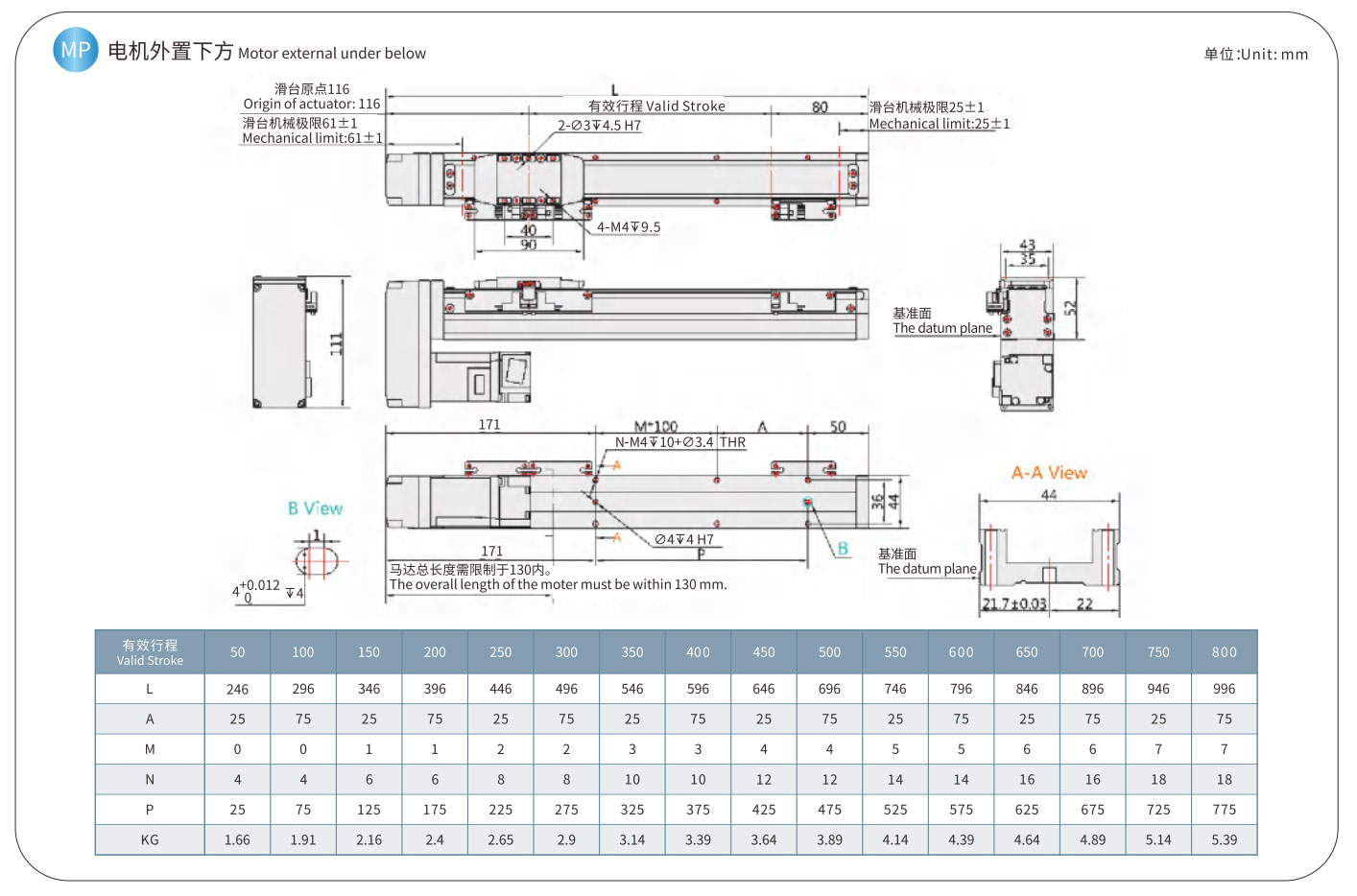

    • Built-in-Rail-Module-2023_06_03Built-in-Rail-Module-2023_06_08 Built-in-Rail-Module-2023_06_05TPA-GCR-40 (1) TPA-GCR-40 (2) TPA-GCR-40 (3) TPA-GCR-40 (4)

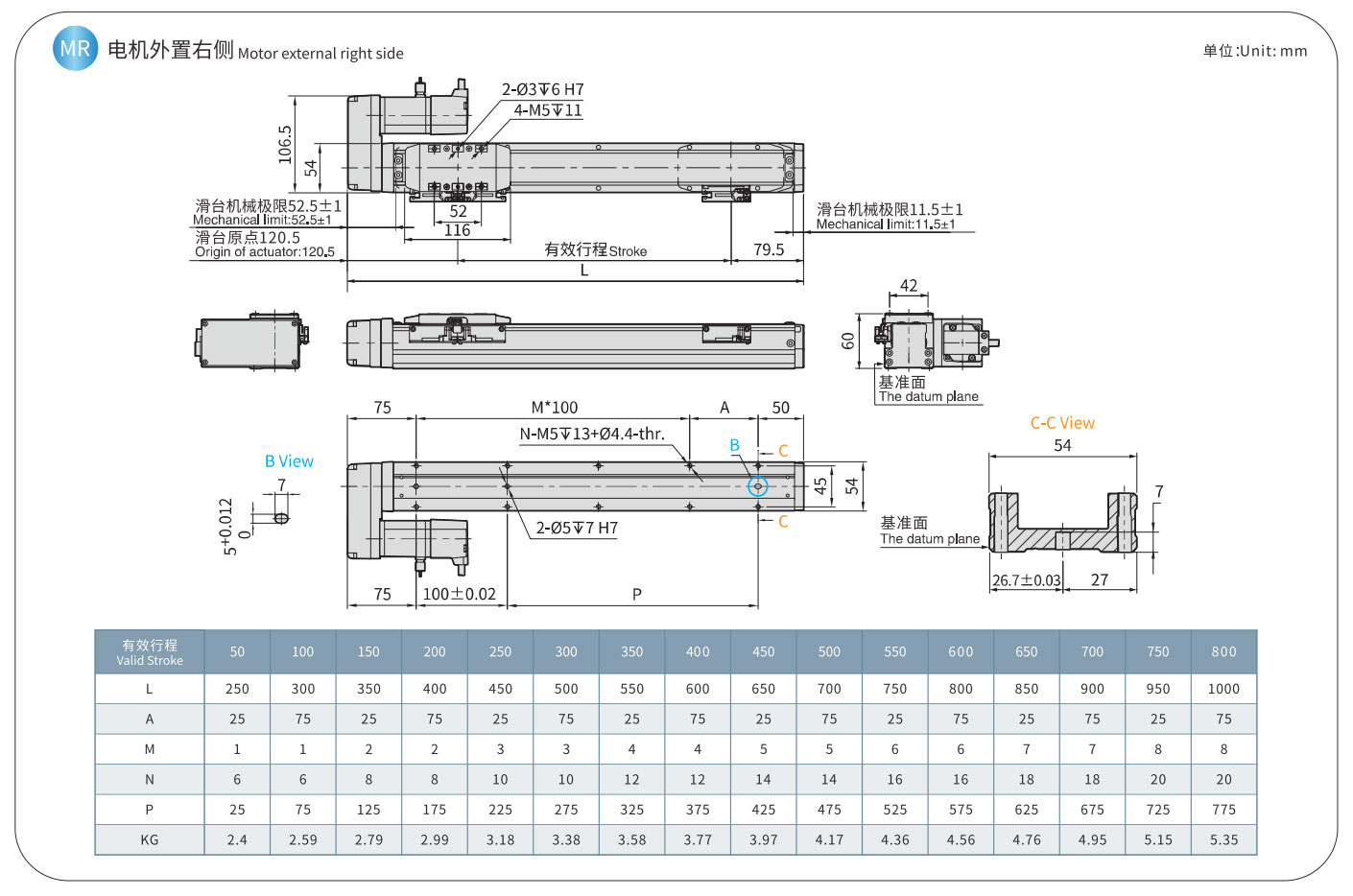

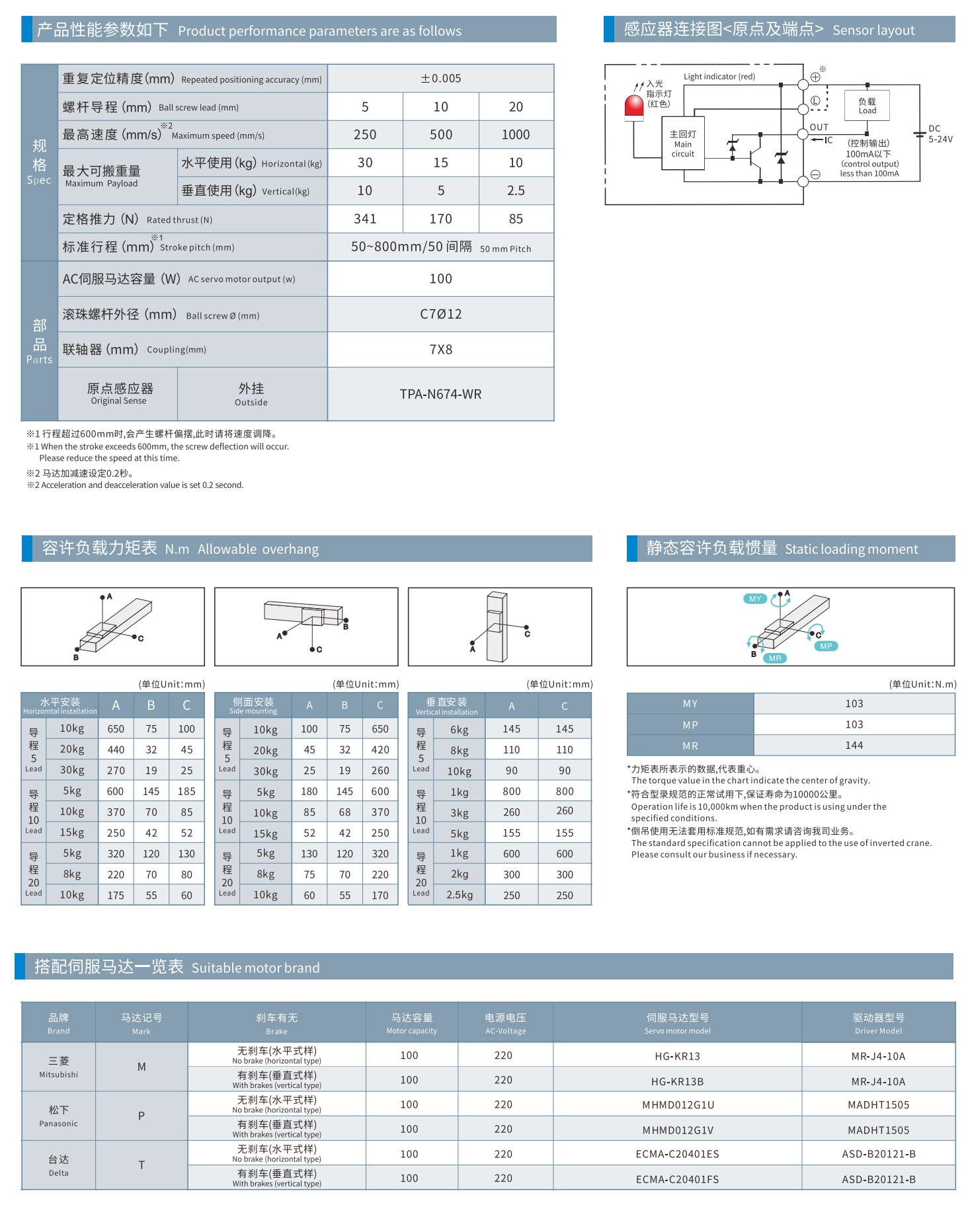

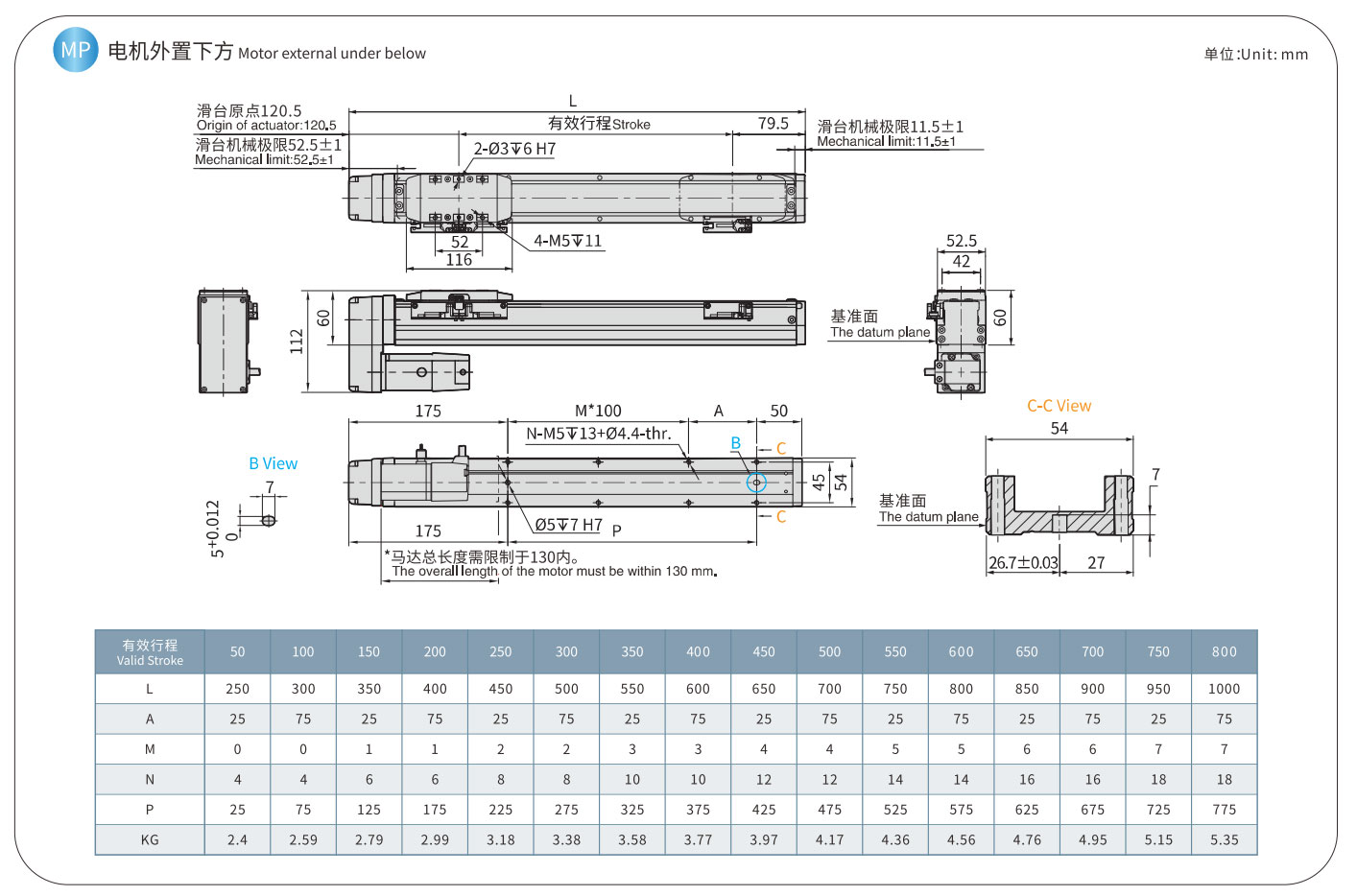

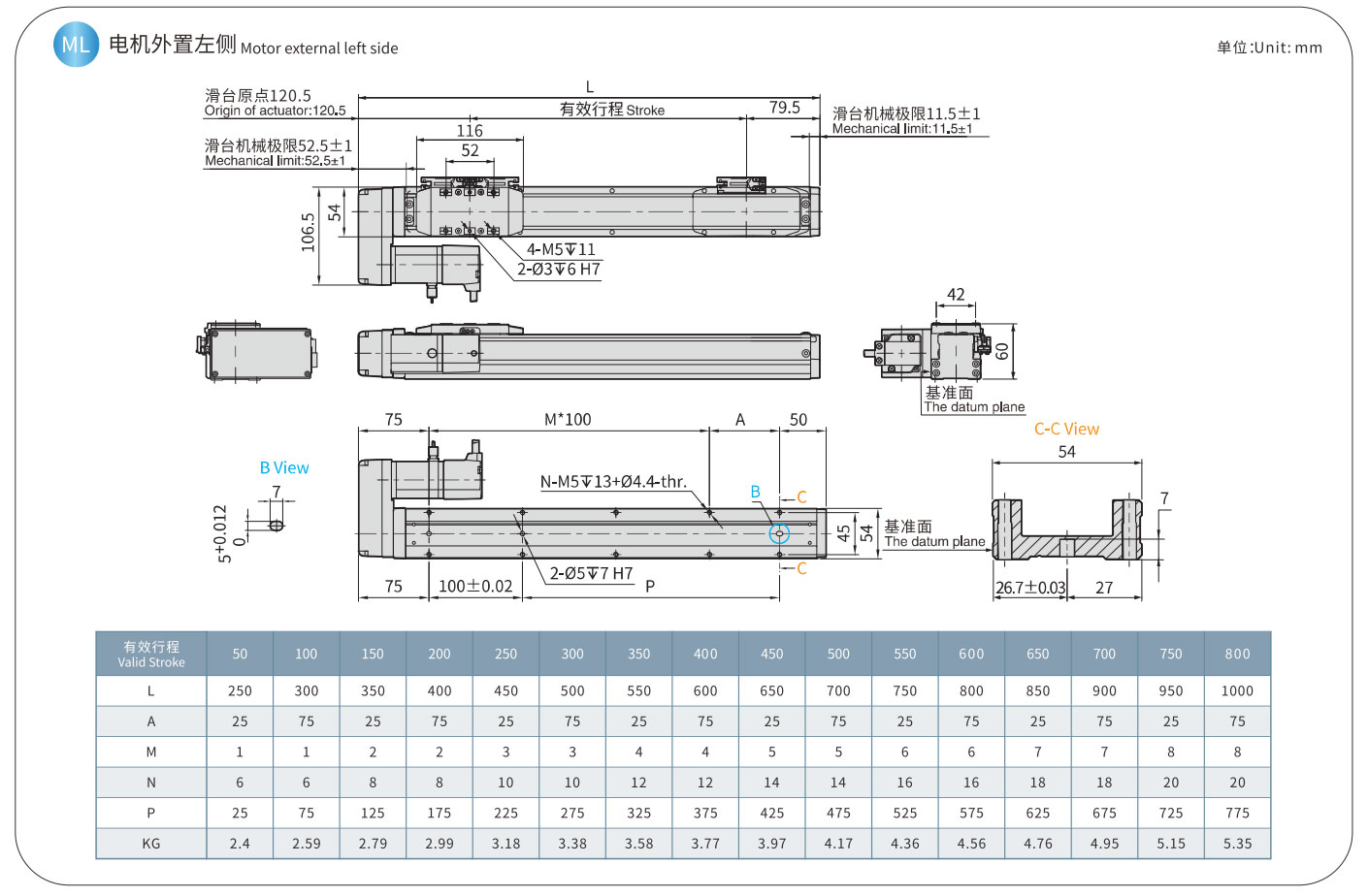

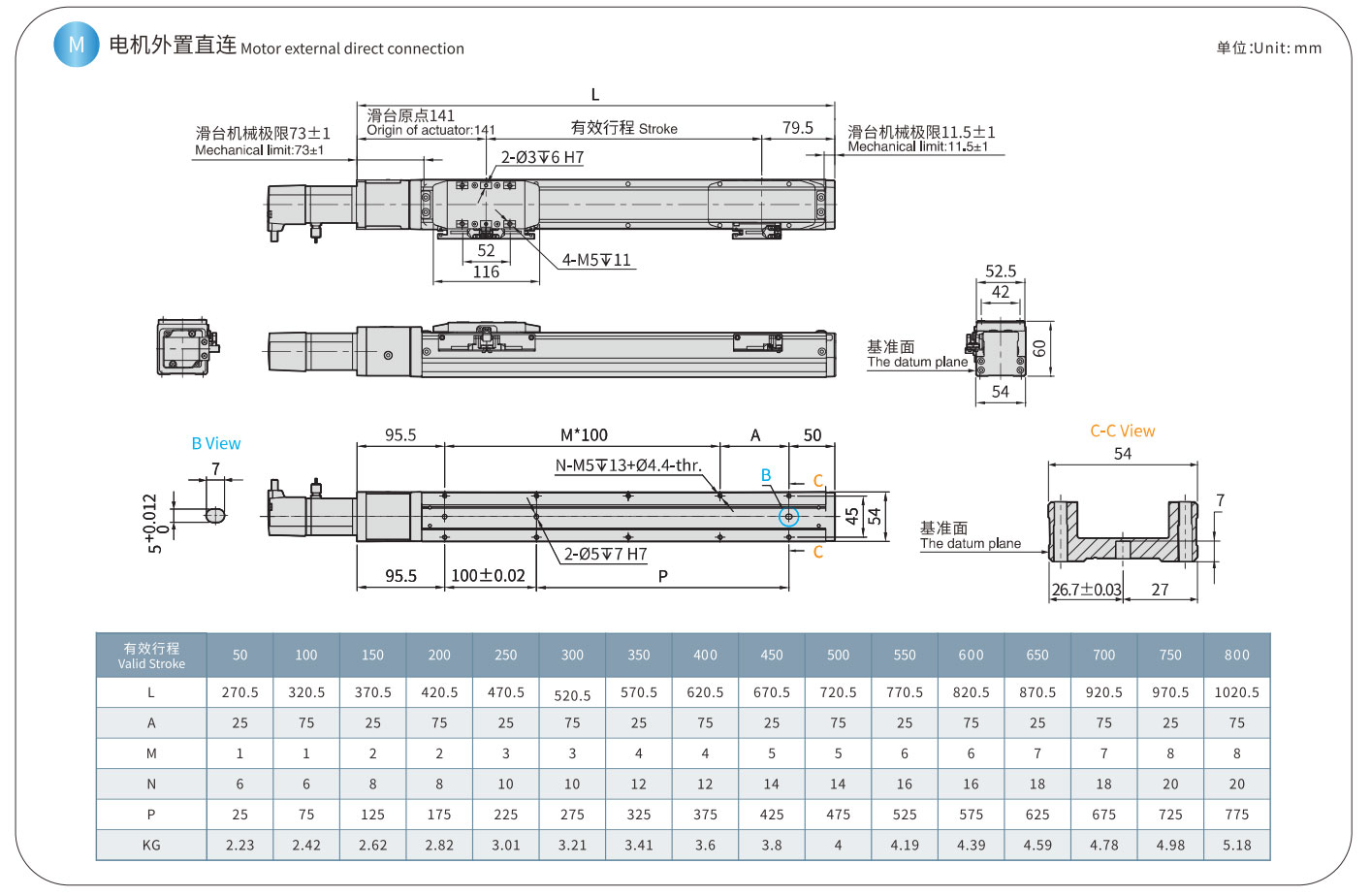

    Built-in-Rail-Module-2023_10_03Built-in-Rail-Module-2023_10_08 Built-in-Rail-Module-2023_10_05TPA-GCR-50 (1) TPA-GCR-50 (2) TPA-GCR-50 (3) TPA-GCR-50 (4)

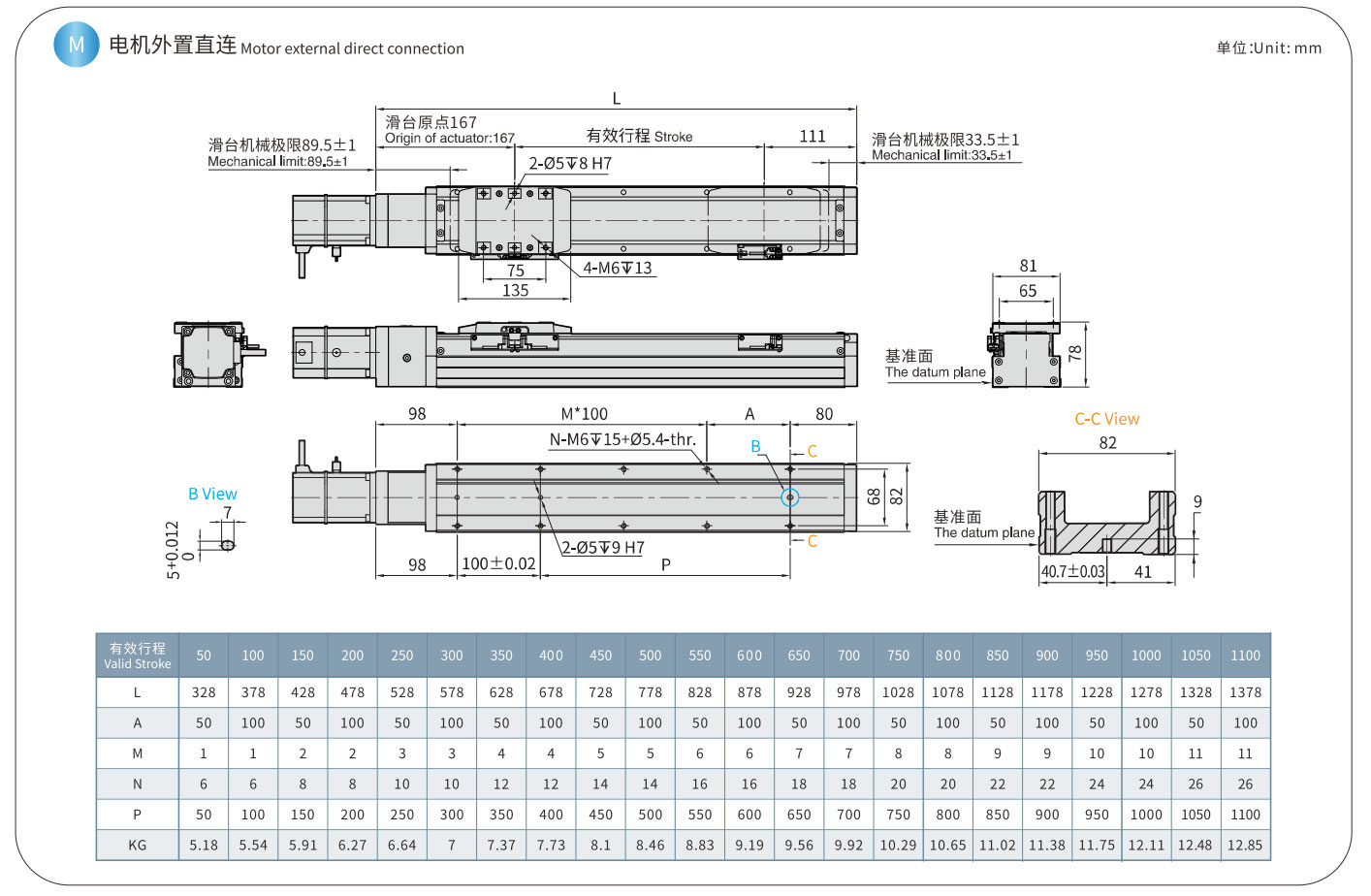

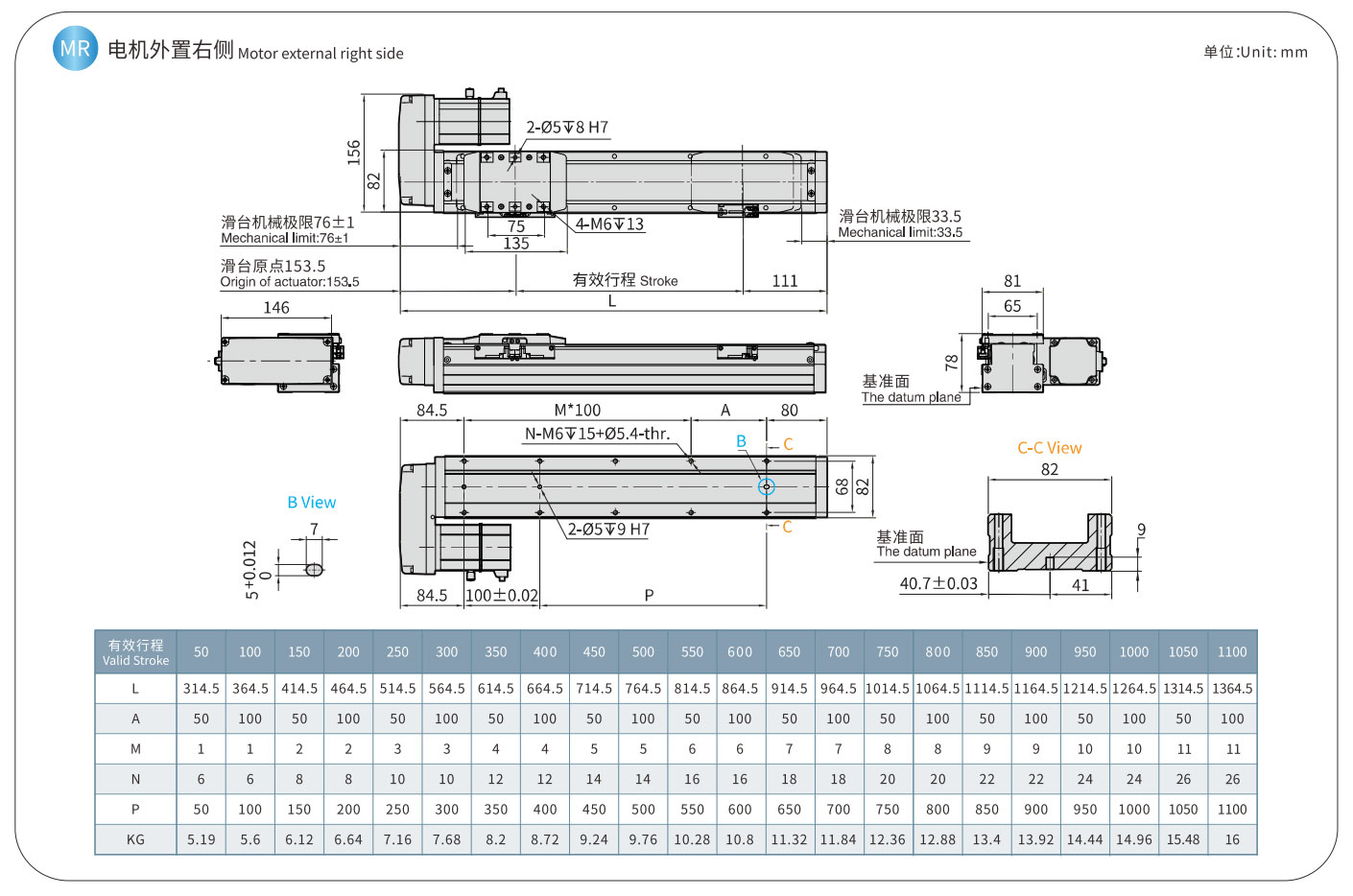

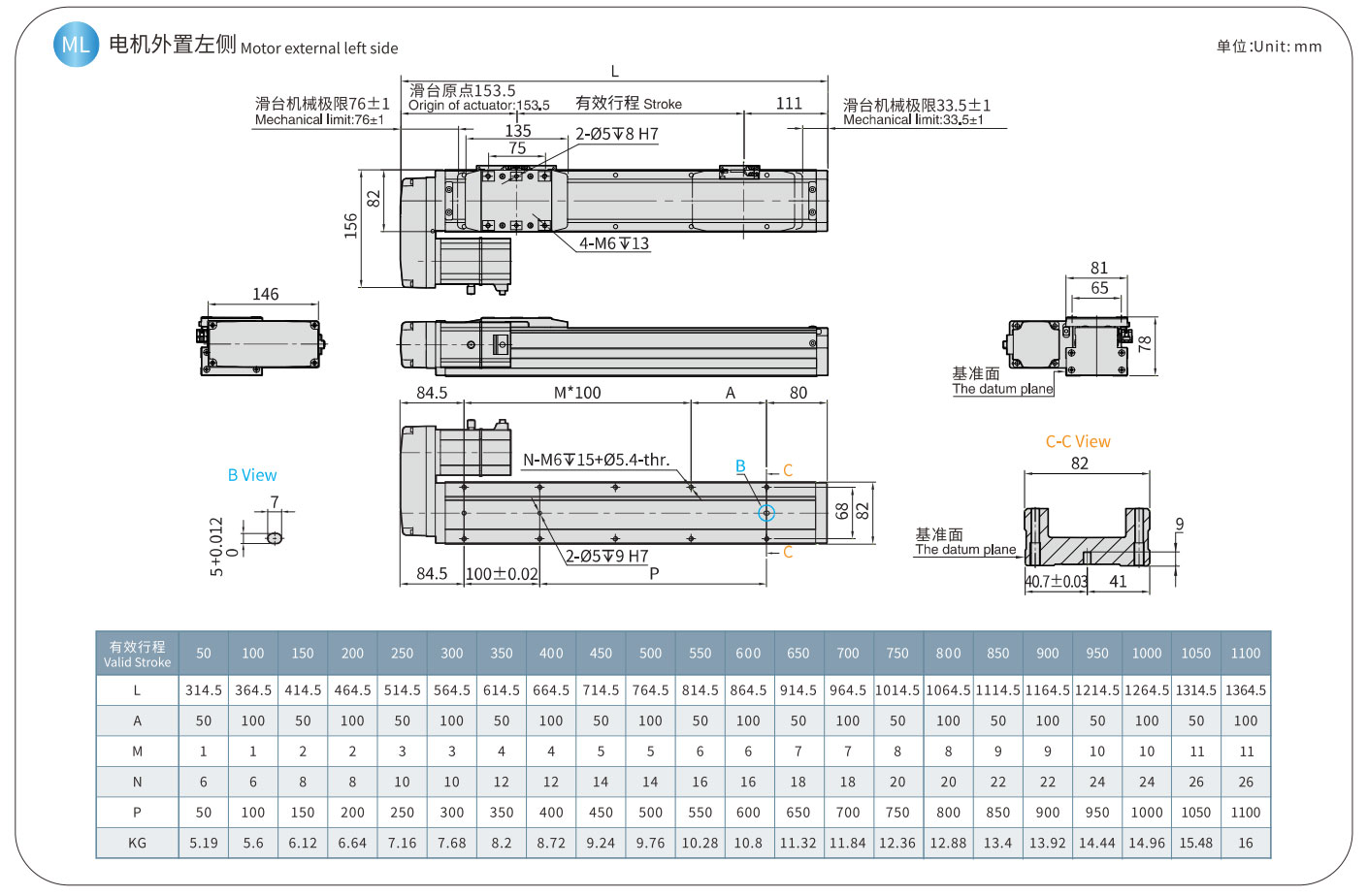

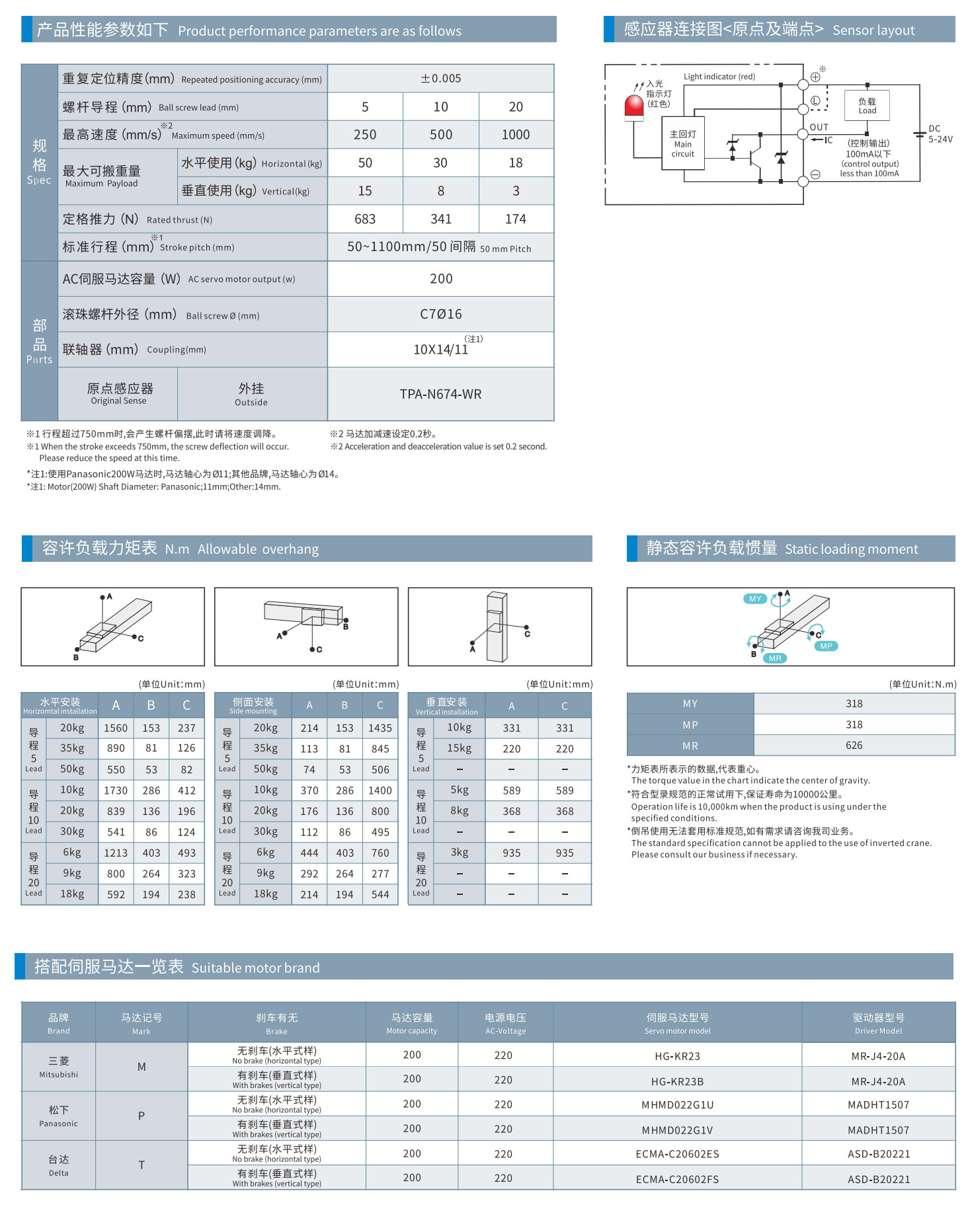

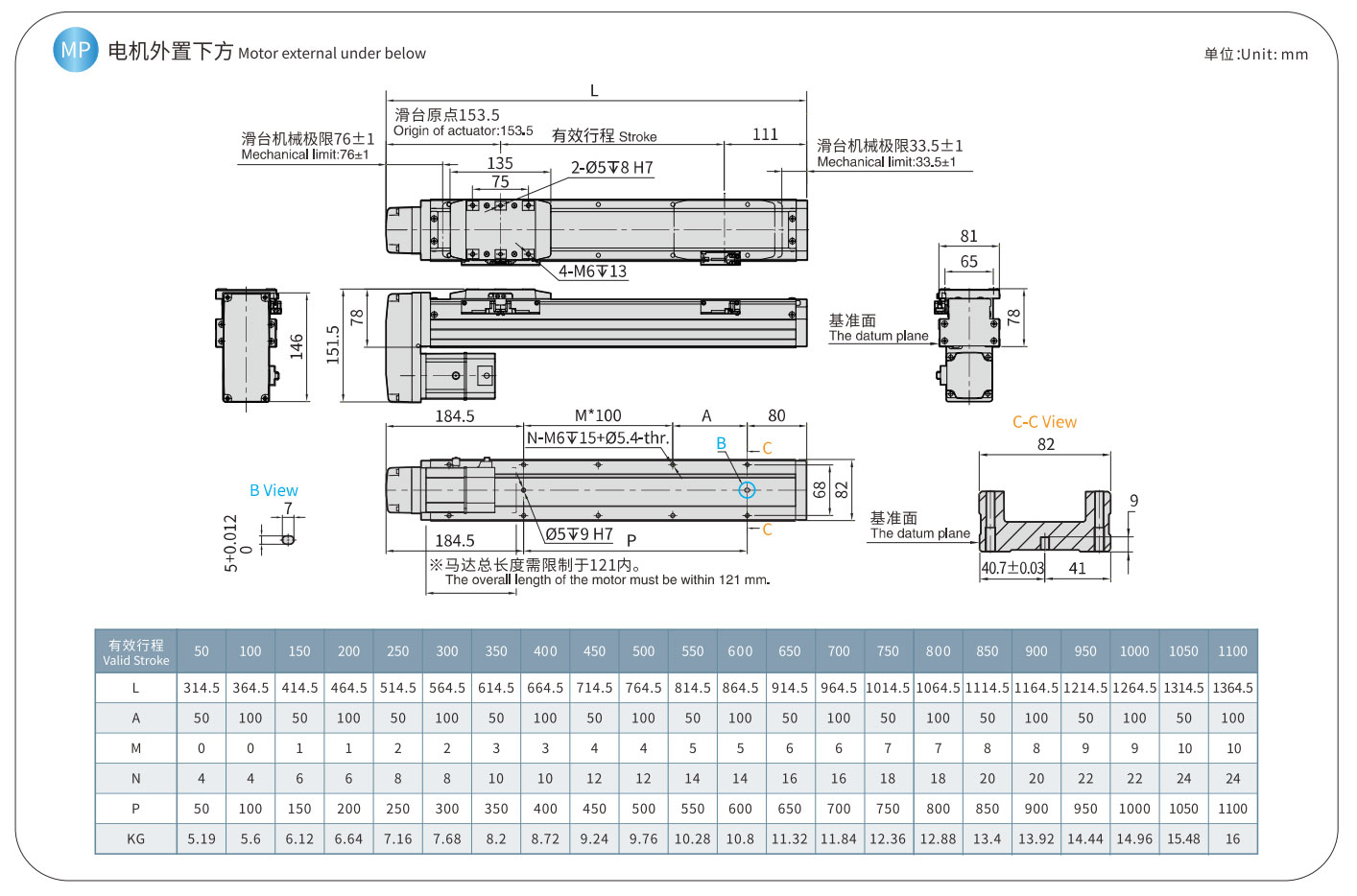

    Built-in-Rail-Module-2023_12_03Built-in-Rail-Module-2023_12_08 Built-in-Rail-Module-2023_12_05TPA-GCR-80 (1) TPA-GCR-80 (2) TPA-GCR-80 (3) TPA-GCR-80 (4)

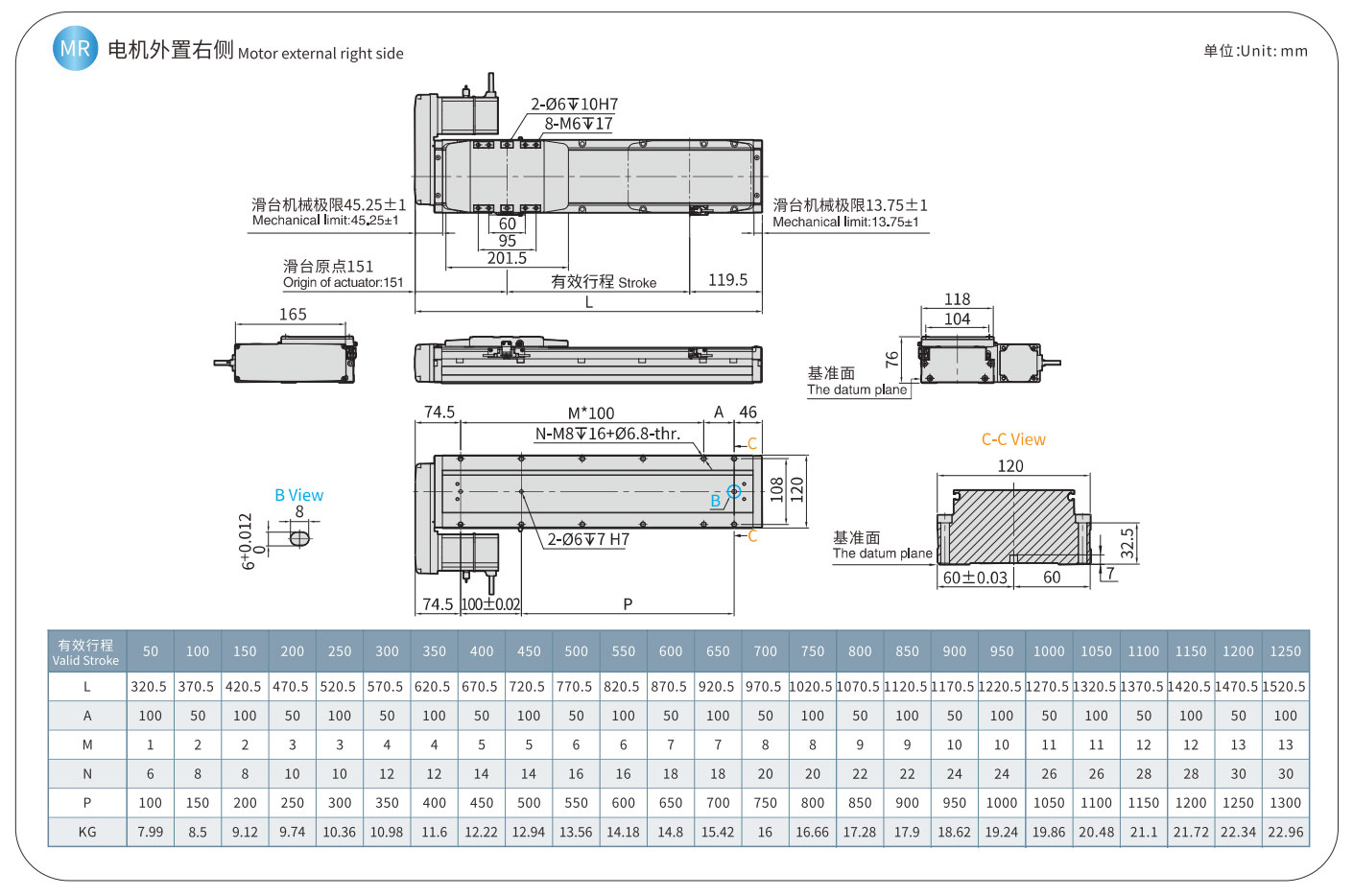

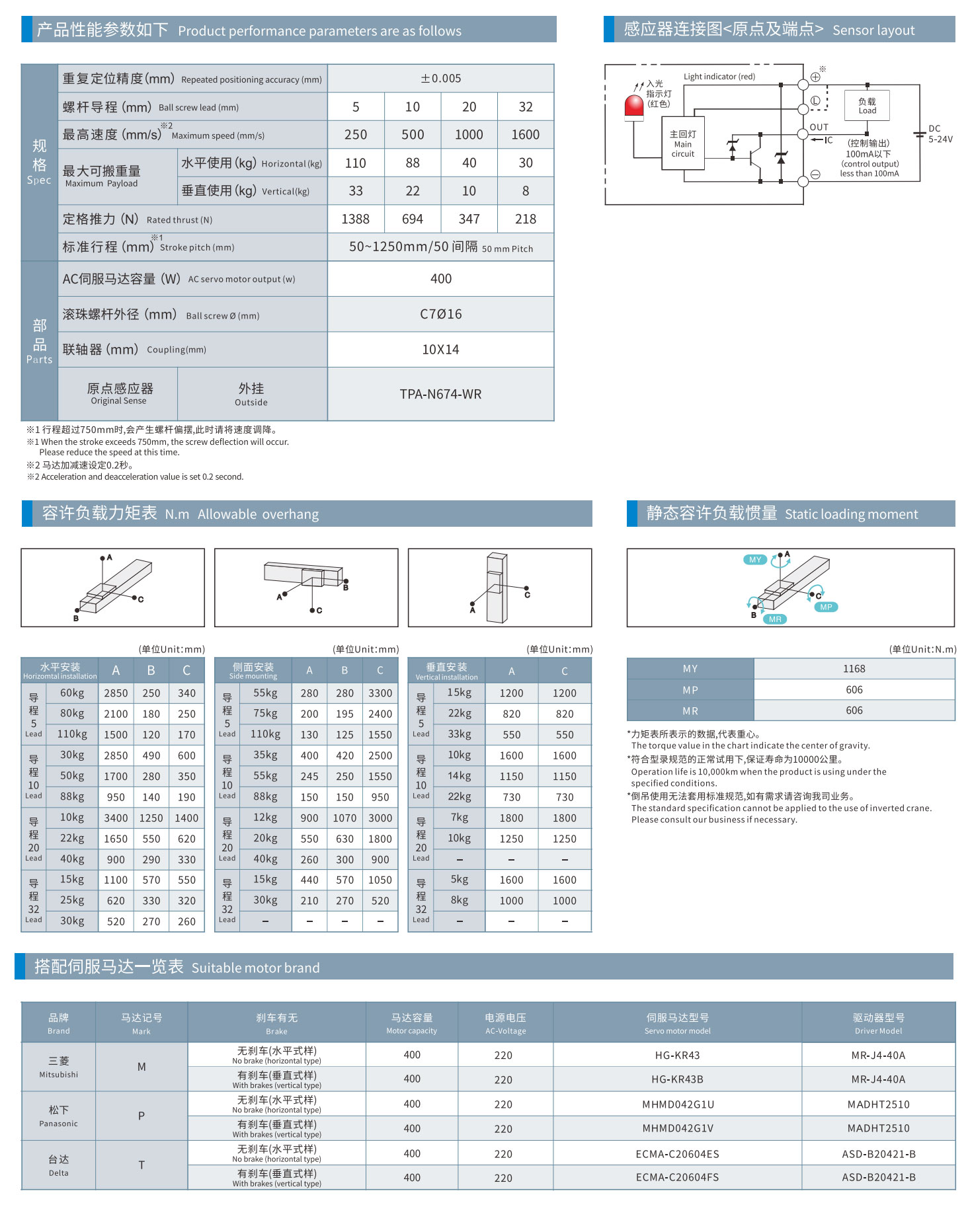

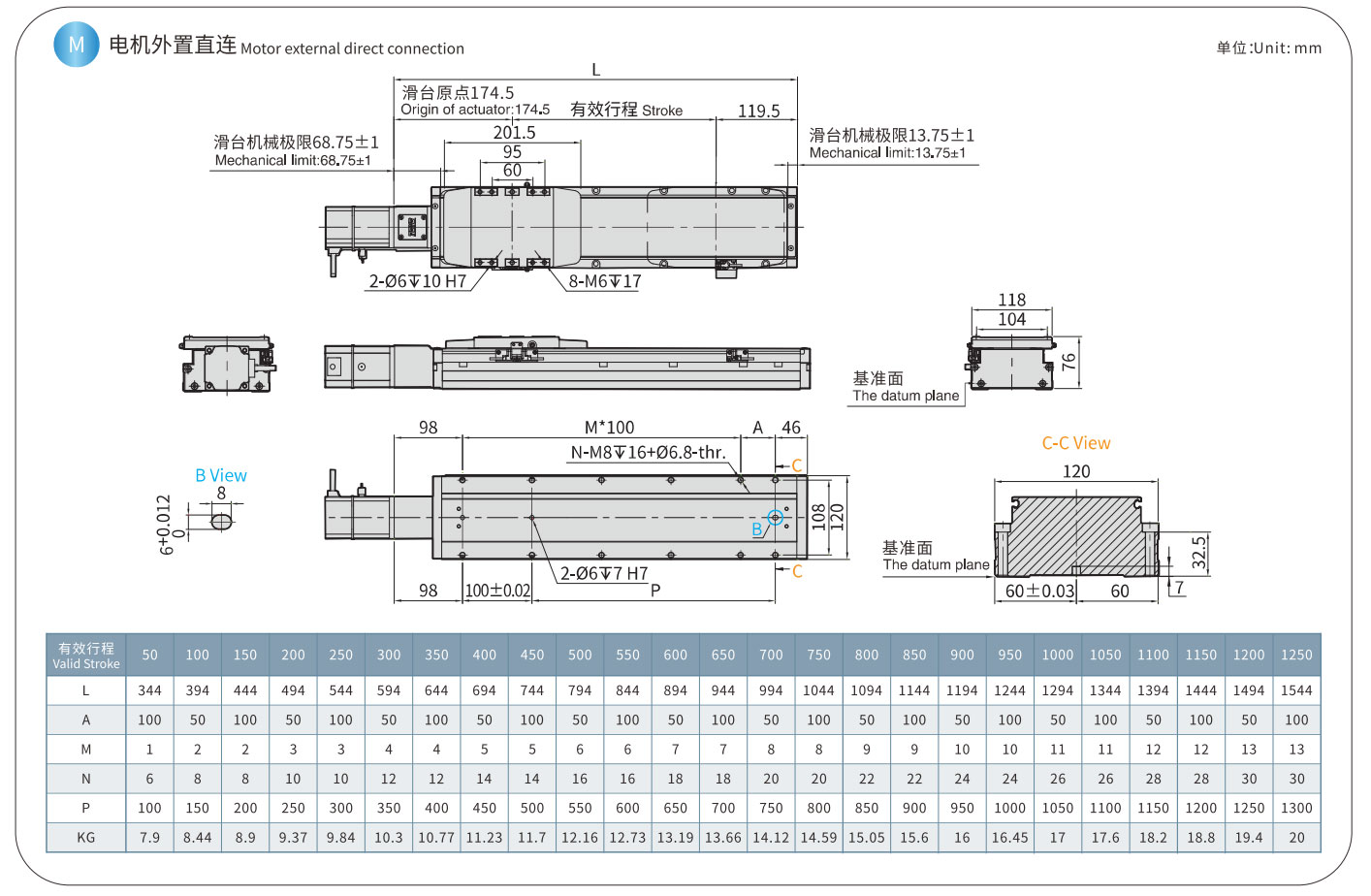

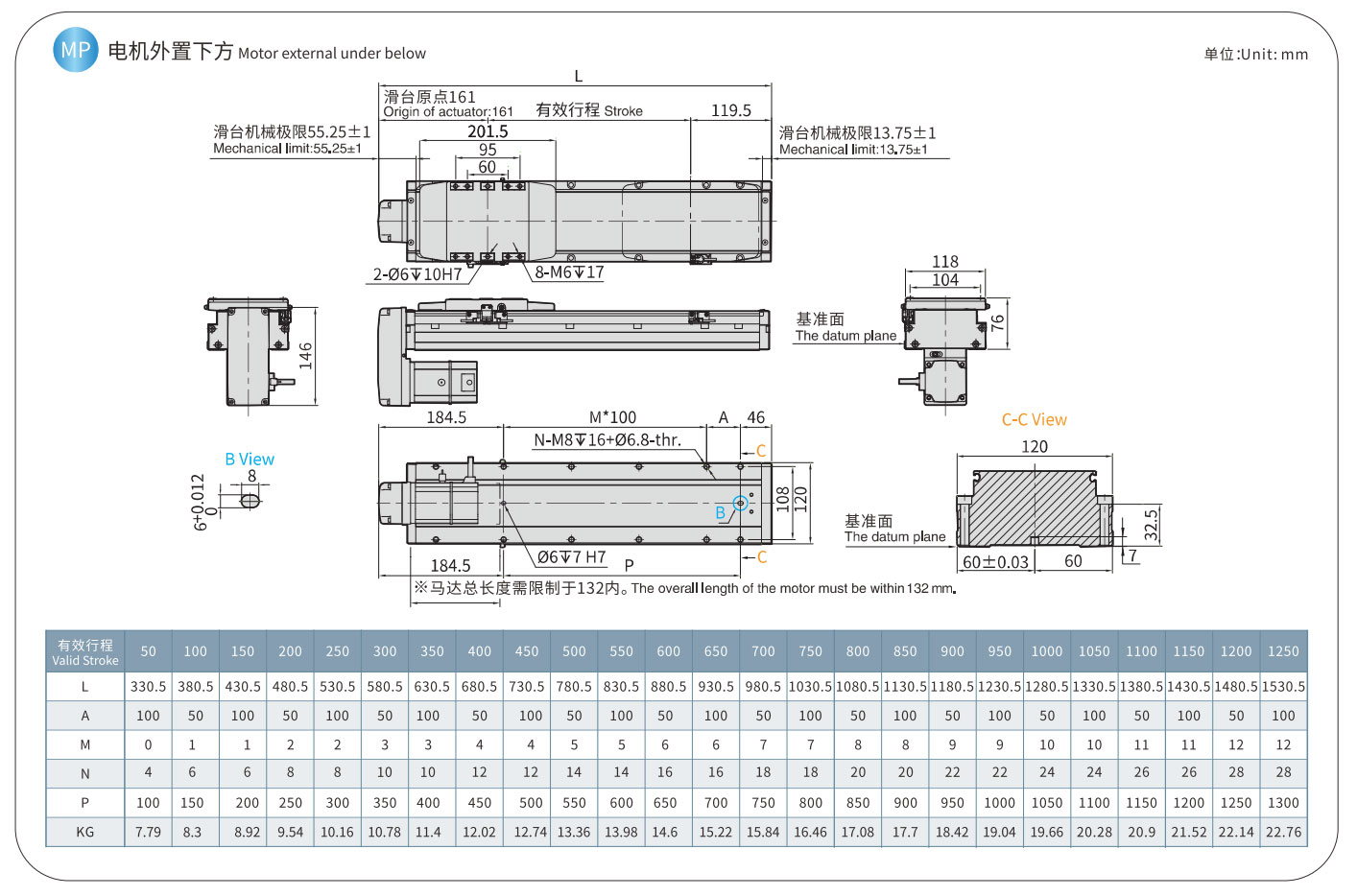

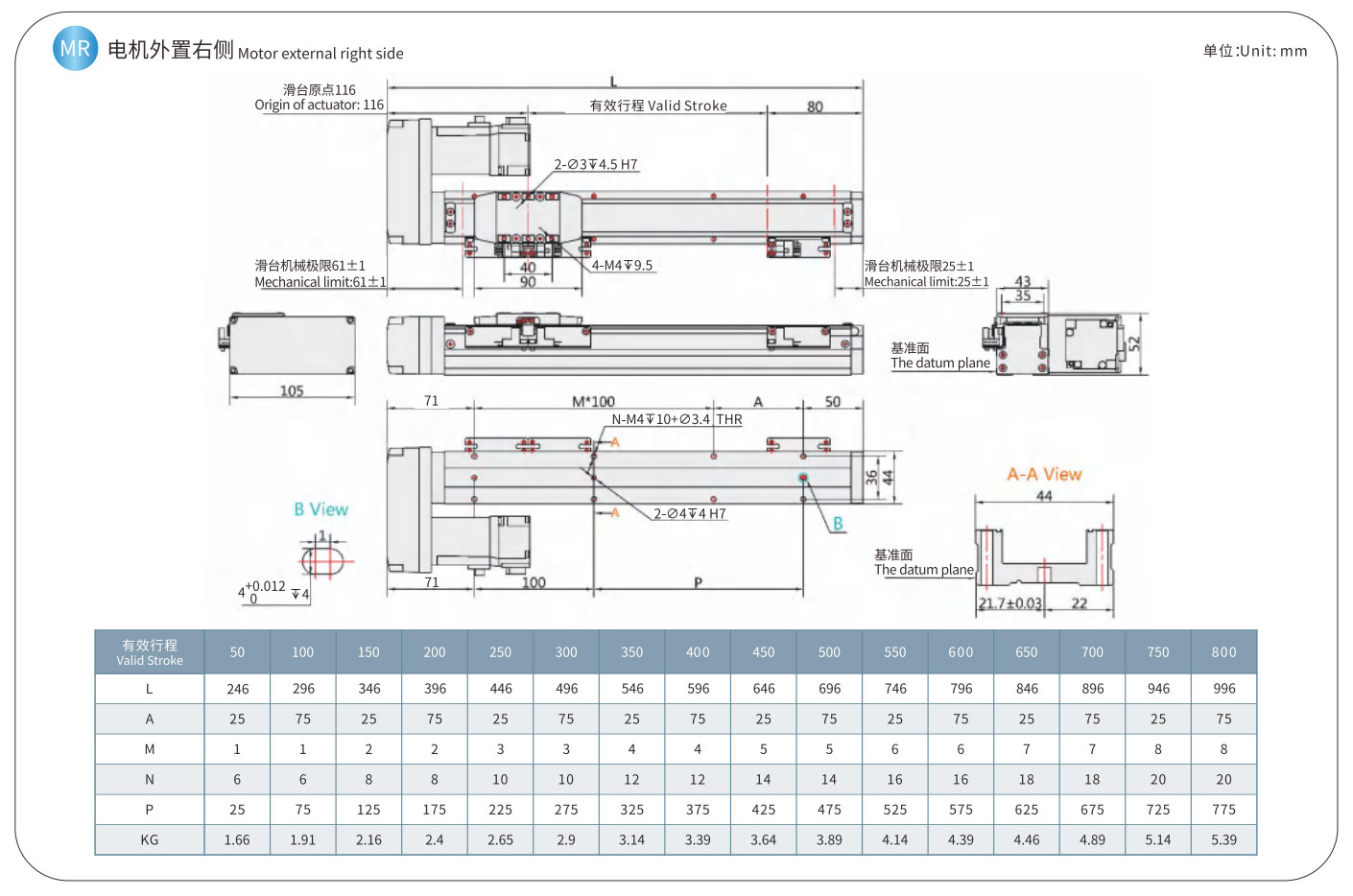

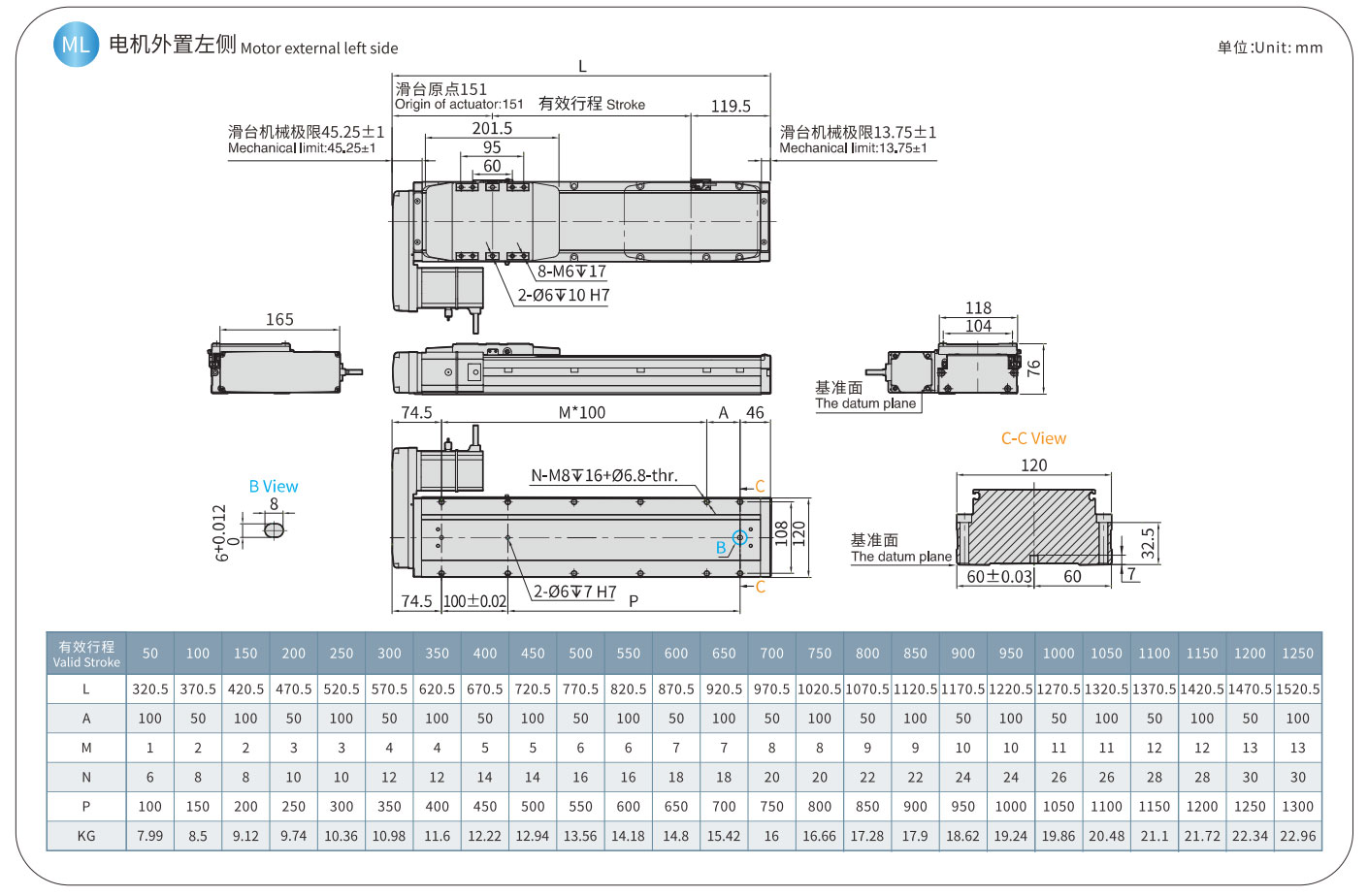

    Built-in-Rail-Module-2023_16_03Built-in-Rail-Module-2023_16_08 Built-in-Rail-Module-2023_16_05TPA-GCR-120 (1) TPA-GCR-120 (2) TPA-GCR-120 (3) TPA-GCR-120 (4)

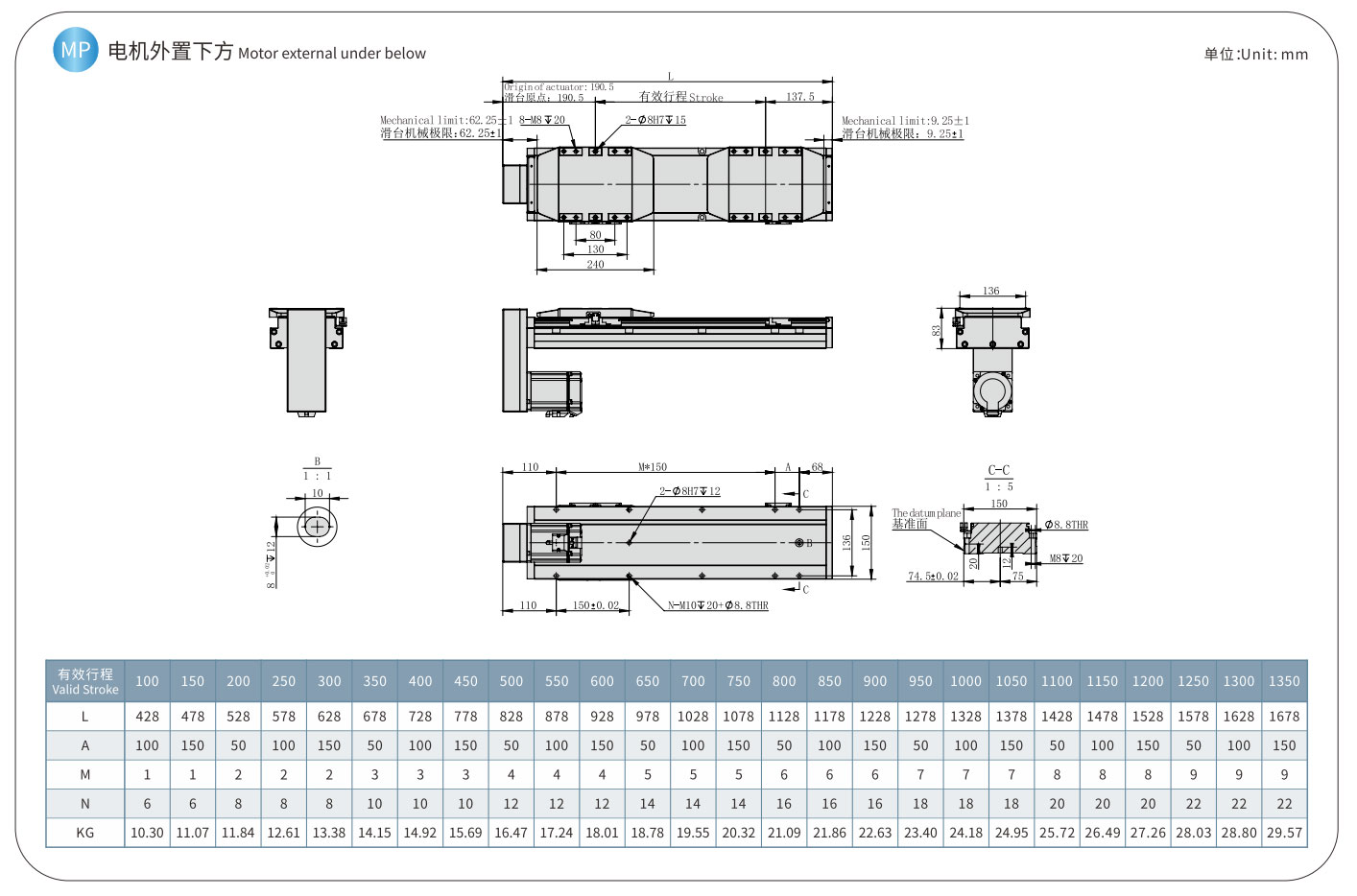

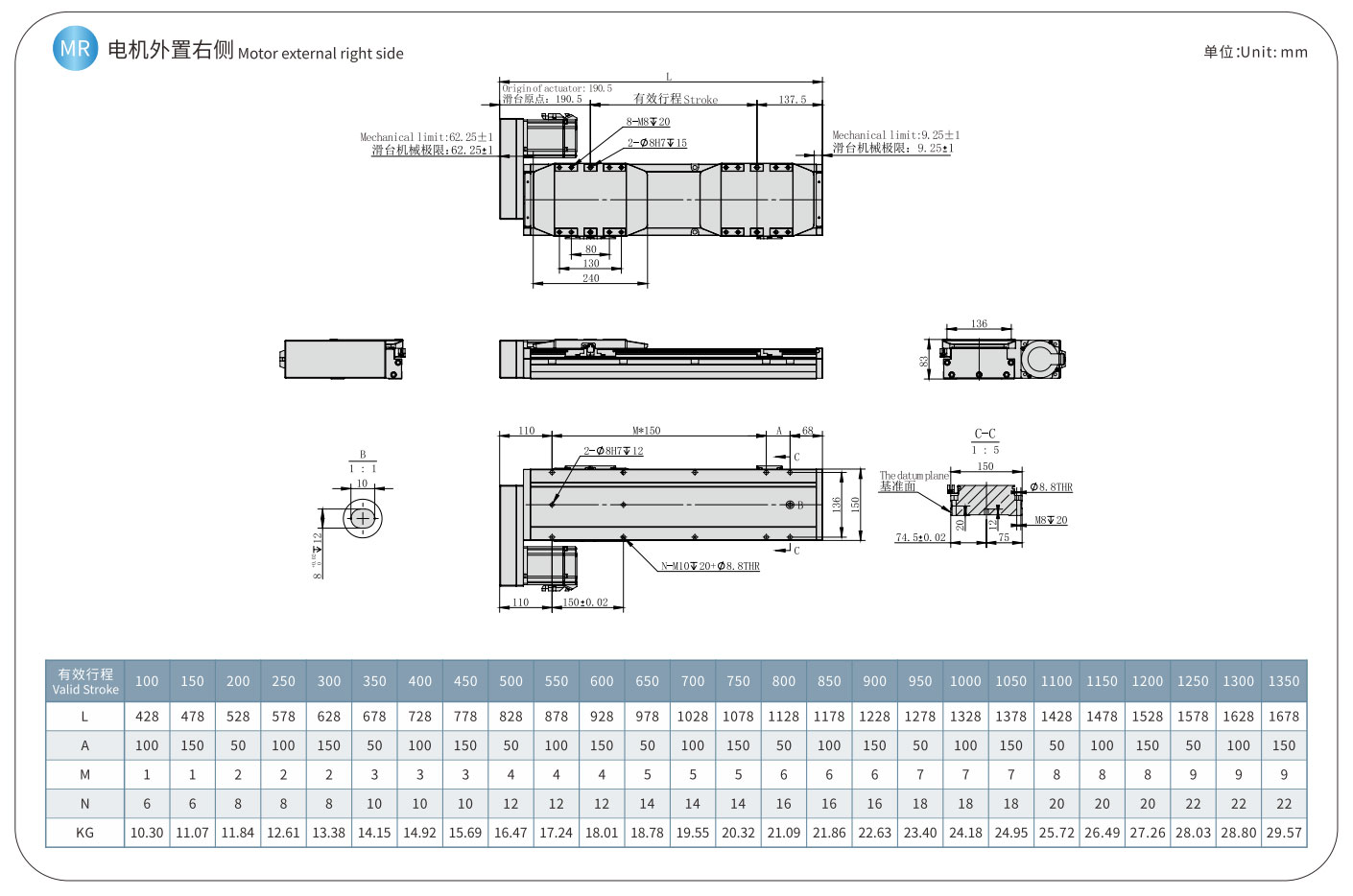

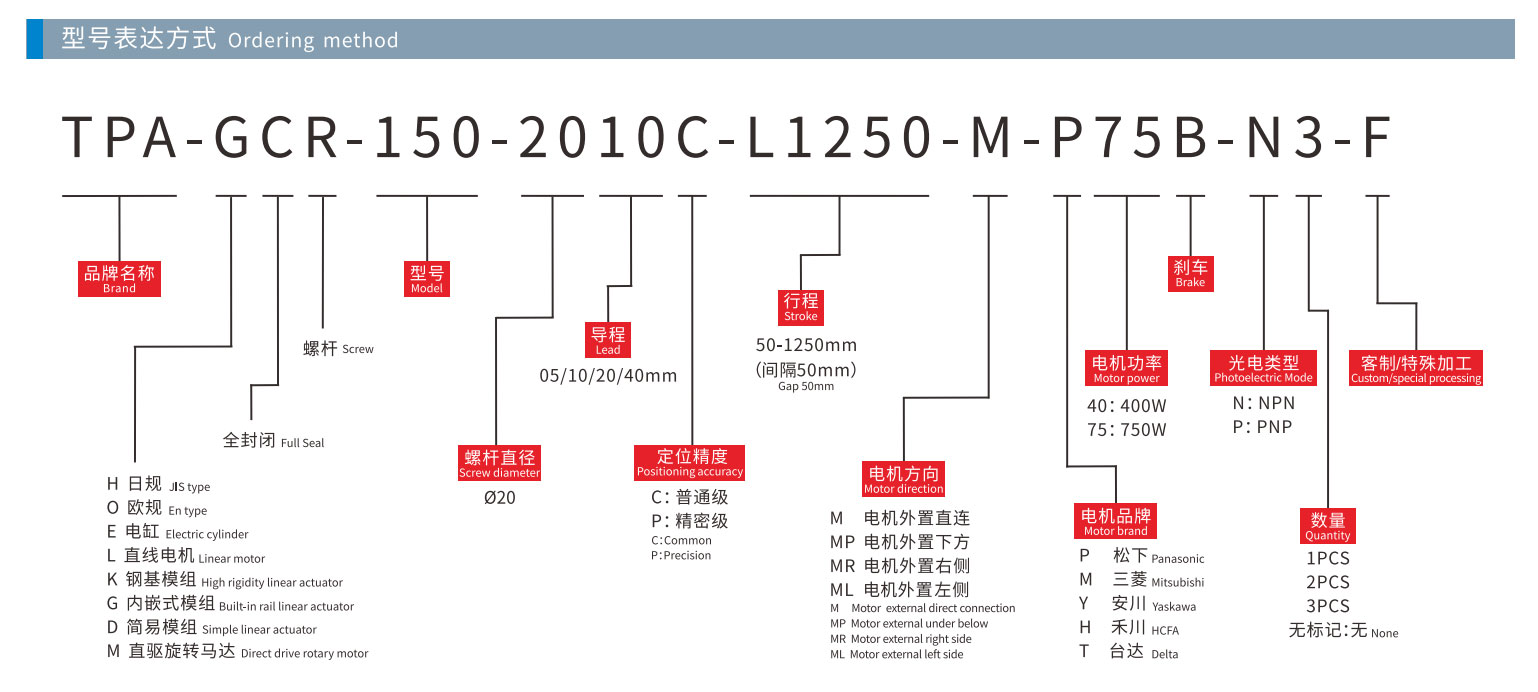

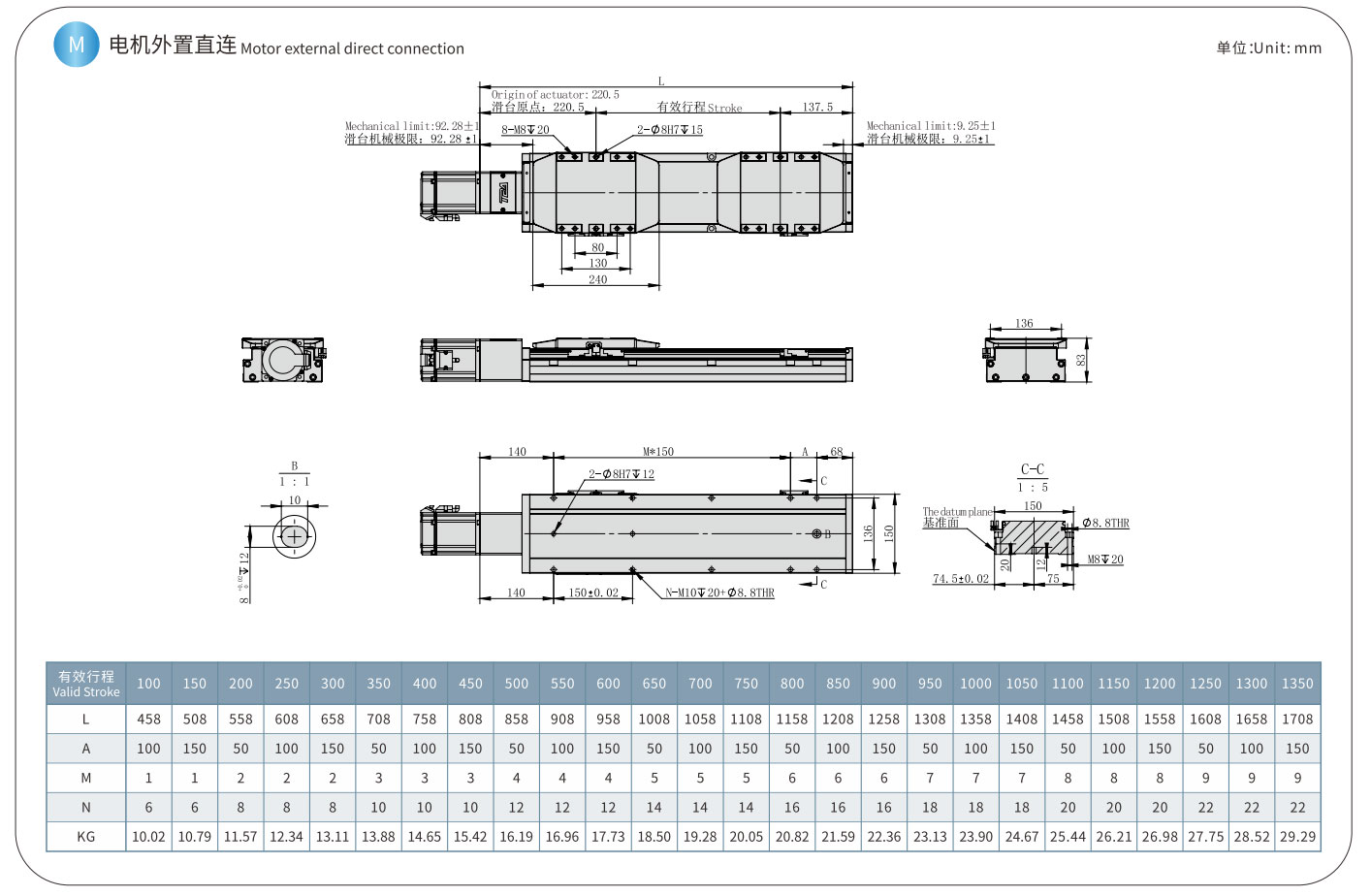

    Built-in-Rail-Module-2023_18_03Built-in-Rail-Module-2023_18_08 Built-in-Rail-Module-2023_18_05TPA-GCR-150 (1) TPA-GCR-150 (2) TPA-GCR-150 (3) TPA-GCR-150 (4)

    ( Unit:mm )
