HNR Series Electric Ball Screw Linear Actuators

HNR Series Electric Ball Screw Linear Actuators Featured Image
  • HNR Series Electric Ball Screw Linear Actuators

Model Selector

  • Series:
    HNR-30S HNR-65S HNR-85D HNR-85S HNR-105D HNR-110D HNR-120D HNR-140D HNR-175D HNR-202D HNR-220D HNR-270D
  • Load Type:
    Single Rail, Single Slider
  • Screw Diameter:
    Φ06
  • Screw Lead:
    01mm 02mm
  • Accuracy Level:
    Common±0.02m Precision ±0.01mm
  • Stroke:
    28mm 58mm 88mm 118mm 148mm
  • Motor Direction:
    Motor external direct connection
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand (for flange size only):
    Stepper motor
  • Motor Power:
    28(Stepper)
  • Model:

    TPA-?-????-?-??-?

  • Load Type:
    Single Rail, Single Slider
  • Screw Diameter:
    Φ16
  • Screw Lead:
    05mm 10mm 16mm 20mm
  • Accuracy Level:
    Common±0.02m Precision ±0.01mm
  • Stroke:
    100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 950mm 1000mm 1050mm 1100mm 1150mm 1200mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Delta
  • Motor Power:
    100W 200W 400W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-????-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Screw Diameter:
    Φ16
  • Screw Lead:
    05mm 10mm 16mm 20mm
  • Accuracy Level:
    Common±0.02m Precision ±0.01mm
  • Stroke:
    100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 900mm 1000mm 1050mm 1100mm 1150mm 1200mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor
  • Motor Power:
    100W 200W 400W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-????-?-?-?-??-?

  • Load Type:
    Single Rail, Single Slider
  • Screw Diameter:
    Φ16
  • Screw Lead:
    05mm 10mm 16mm 20mm
  • Accuracy Level:
    Common±0.02m Precision ±0.01mm
  • Stroke:
    100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 900mm 1000mm 1050mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor
  • Motor Power:
    100W 200W 400W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-????-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Screw Diameter:
    Φ16
  • Screw Lead:
    05mm 10mm 16mm 20mm
  • Accuracy Level:
    Common±0.02m Precision ±0.01mm
  • Stroke:
    100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 950mm 1000mm 1050mm 11001100mm 1150mm 1200mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor
  • Motor Power:
    100W 200W 400W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-????-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Screw Diameter:
    Φ16
  • Screw Lead:
    05mm 10mm 16mm 20mm
  • Accuracy Level:
    Common±0.02m Precision ±0.01mm
  • Stroke:
    100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 950mm 1000mm 1050mm 11001100mm 1150mm 1200mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor
  • Motor Power:
    100W 200W 400W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-????-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Screw Diameter:
    Φ16
  • Screw Lead:
    05mm 10mm 16mm 20mm
  • Accuracy Level:
    Common±0.02m Precision ±0.01mm
  • Stroke:
    100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 950mm 1000mm 1050mm 11001100mm 1150mm 1200mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor
  • Motor Power:
    100W 200W 400W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-????-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Screw Diameter:
    Φ16 Φ20
  • Screw Lead:
    05mm 10mm 20mm
  • Accuracy Level:
    Common±0.02m Precision ±0.01mm
  • Stroke:
    100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 950mm 1000mm 1050mm 11001100mm 1150mm 1200mm 1250mm 1300mm 1350mm 1400mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor
  • Motor Power:
    100W 200W 400W 750W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-????-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Screw Diameter:
    Φ25 Φ32
  • Screw Lead:
    05mm 10mm 20mm
  • Accuracy Level:
    Common±0.02m Precision ±0.01mm
  • Stroke:
    100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 950mm 1000mm 1050mm 11001100mm 1150mm 1200mm 1250mm 1300mm 1350mm 1400mm 1450mm 1500mm 1550mm 1600mm 1650mm 1700mm 1750mm 1800mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor
  • Motor Power:
    400W 750W 1000W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-????-?-?-?-??-?

  • Load Type:
    Double Rail, Double Sliders
  • Screw Diameter:
    Φ25 Φ32
  • Screw Lead:
    05mm 10mm 25mm
  • Accuracy Level:
    Common+0.02m Precision ±0.01mm
  • Stroke:
    100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 950mm 1000mm 1150mm 1200mm 1250mm 1300mm 1350mm 1400mm 1450mm 1500mm 1550mm 1600mm 1650mm 1700mm 1750mm 1800mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor
  • Motor Power:
    400W 750W 1000W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-????-?-?-?-??-?

  • Load Type:
    Double Rail, Double Sliders
  • Screw Diameter:
    Φ25 Φ32 Φ40
  • Screw Lead:
    05mm 10mm 20mm 32mm
  • Accuracy Level:
    Common+0.02m Precision ±0.01mm
  • Stroke:
    100mm 200mm 300mm 400mm 500mm 600mm 700mm 800mm 900mm 1000mm 1100mm 1200mm 1300mm 1400mm 1500mm 1600mm 1700mm 1800mm 1900mm 2000mm 2100mm 2200mm 2300mm 2400mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor
  • Motor Power:
    400W 750W 1000W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-????-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Screw Diameter:
    Φ32 Φ40
  • Screw Lead:
    05mm 10mm 32mm 40mm
  • Accuracy Level:
    Common±0.02m Precision ±0.01mm
  • Stroke:
    100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 950mm 1000mm 1050mm 1100mm 1150mm 1200mm 1250mm 1300mm 1350mm 1400mm 1450mm 1500mm 1550mm 1600mm 1650mm 1700mm 1750mm 1800mm 1850mm 1900mm 1950mm 2000mm 2050mm 2100mm 2150mm 2200mm 2350mm 2400mm 2450mm 2500mm 2550mm-2 2600mm 2650mm 2700mm 2750mm 2800mm 2850mm 2900mm 2950mm 3000mm
  • Motor Direction:
    Motor External Direct Connection Motor External Under Below Motor External Right Side Motor External Left Side
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor
  • Motor Power:
    750W 1000W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-????-?-?-?-??-?

    • single_btn_icon_1PDF Drawing single_btn_icon_2STP Drawing single_btn_icon_3Enquiry

    Product Detail

    HNR-30S

    HNR-65S

    HNR-85D

    HNR-85S

    HNR-105D

    HNR-110D

    HNR-120D

    HNR-140D

    HNR-175D

    HNR-202D

    HNR-220D

    HNR-270D

    Product Tags

    Ball screw linear actuator is a kind of small equipment which combines servo motor, ball screw and guide rail. The transmission structure is converted into linear motion through the rotary motion of the motoro as to realize high-precision, high-speed and high-load linear operation.

    HNR series ball screw linear actuator adopts flat design, the overall weight is lighter, and it adopts high-rigidity one-piece aluminum material, which has a stable and durable structure.

    At the same time, in order to meet the requirements of various automation equipment for payload, speed, stroke, and accuracy, TPA MOTION CONTROL provides up to 20 options on the HNR series. (Please contact our sales if you have problems with model selection of linear actuators)

    Do you have troubles with linear actuators maintenance?

    The maintenance of the HNR series linear modules is very simple. There are oil injection holes on both sides of the actuator. You just need to inject lubricating oil regularly according to the usage scenario without disassembling the actuator.





    HNR-30S

    HNR-30S

    HNR-65S

    HNR-65S

    HNR-85D

    HNR-85D

    HNR-85S

    HNR-85S

    HNR-105D

    HNR-105D

    HNR-110D

    HNR-110D

    HNR-120D

    HNR-120D

    HNR-140D

    HNR-140D

    HNR-175D

    HNR-175D

    HNR-202D

    HNR-202D

    HNR-220D

    HNR-220D

    HNR-270D

    HNR-270D

  • Features

    ● Repeated Positioning Accuracy: ±0.02mm
    ● Max Payload(Horizontal.): 230kg
    ● Max Payload(Vertiacal): 115kg
    ● Stroke: 60 – 3000mm
    ● Max Speed: 2000mm/s

    Features

    1. Flat design, lighter overall weight, lower combination height and better rigidity.

    2. The structure is optimized, the precision is better, and the error caused by assembling multiple accessories is reduced.

    3. The assembly is time-saving, labor-saving and convenient. There is no need to remove the aluminum cover to install the coupling or module.

    4. Maintenance is simple, both sides of the module are equipped with oil injection holes, and the cover does not need to be removed.




    • Maintenance and Troubleshooting

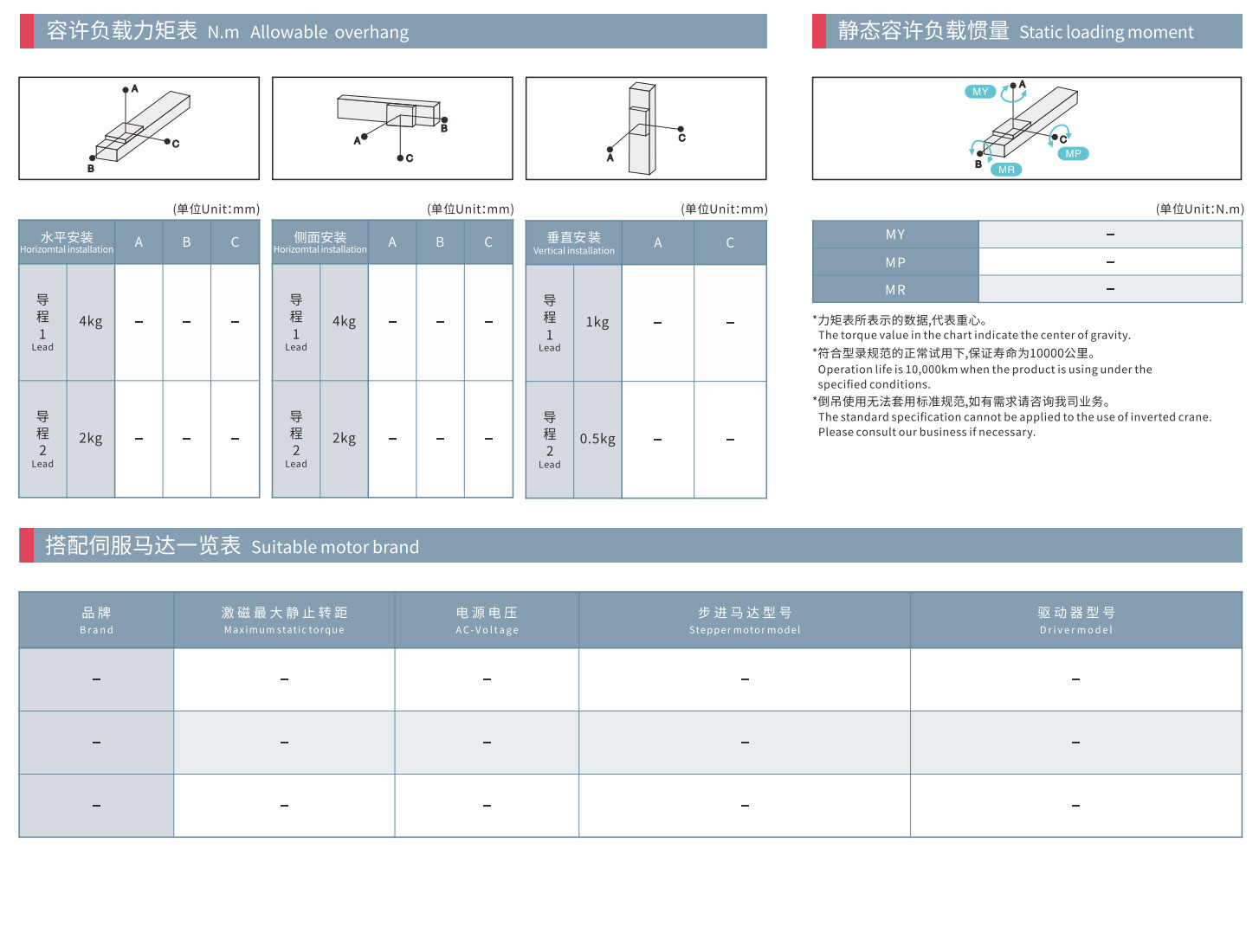

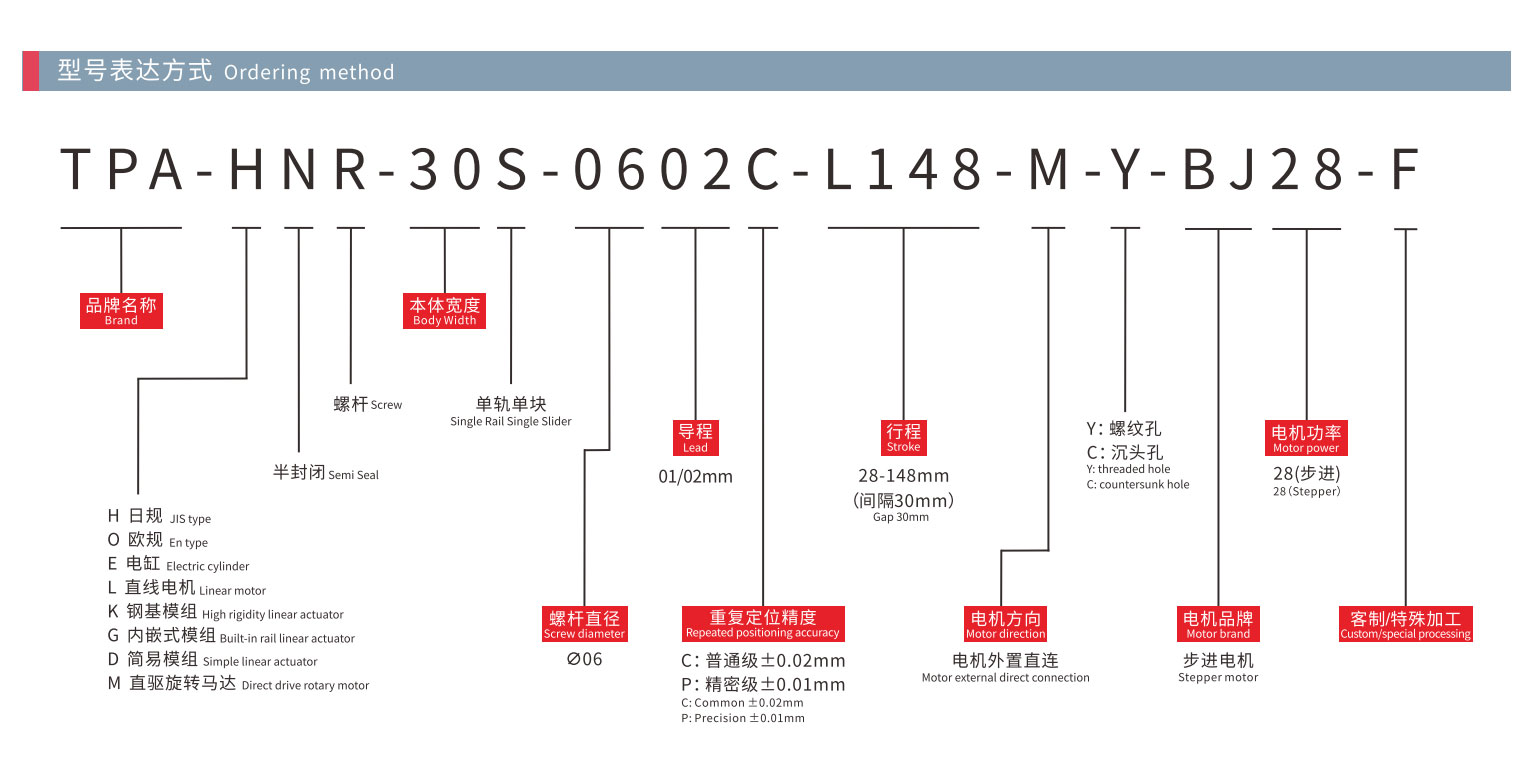

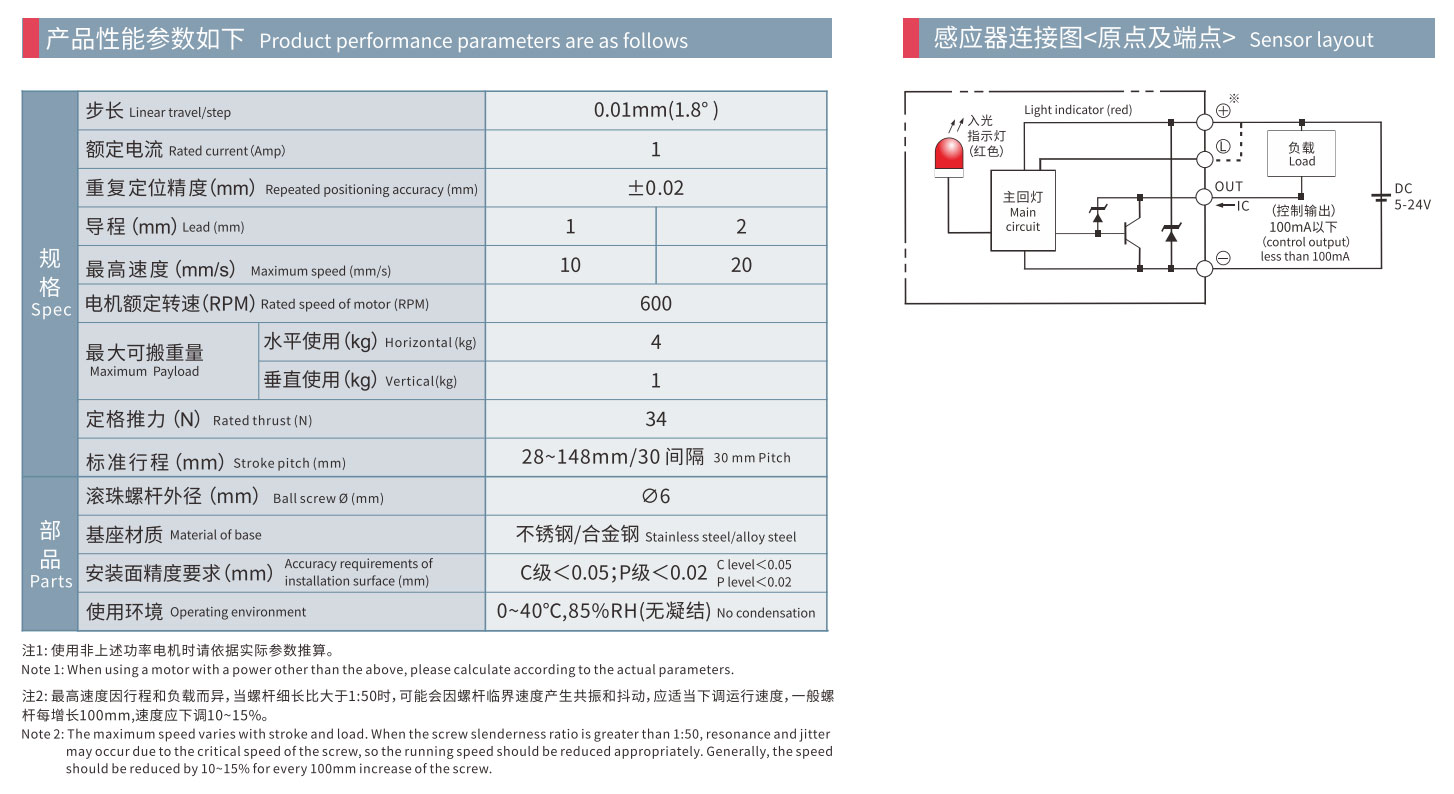

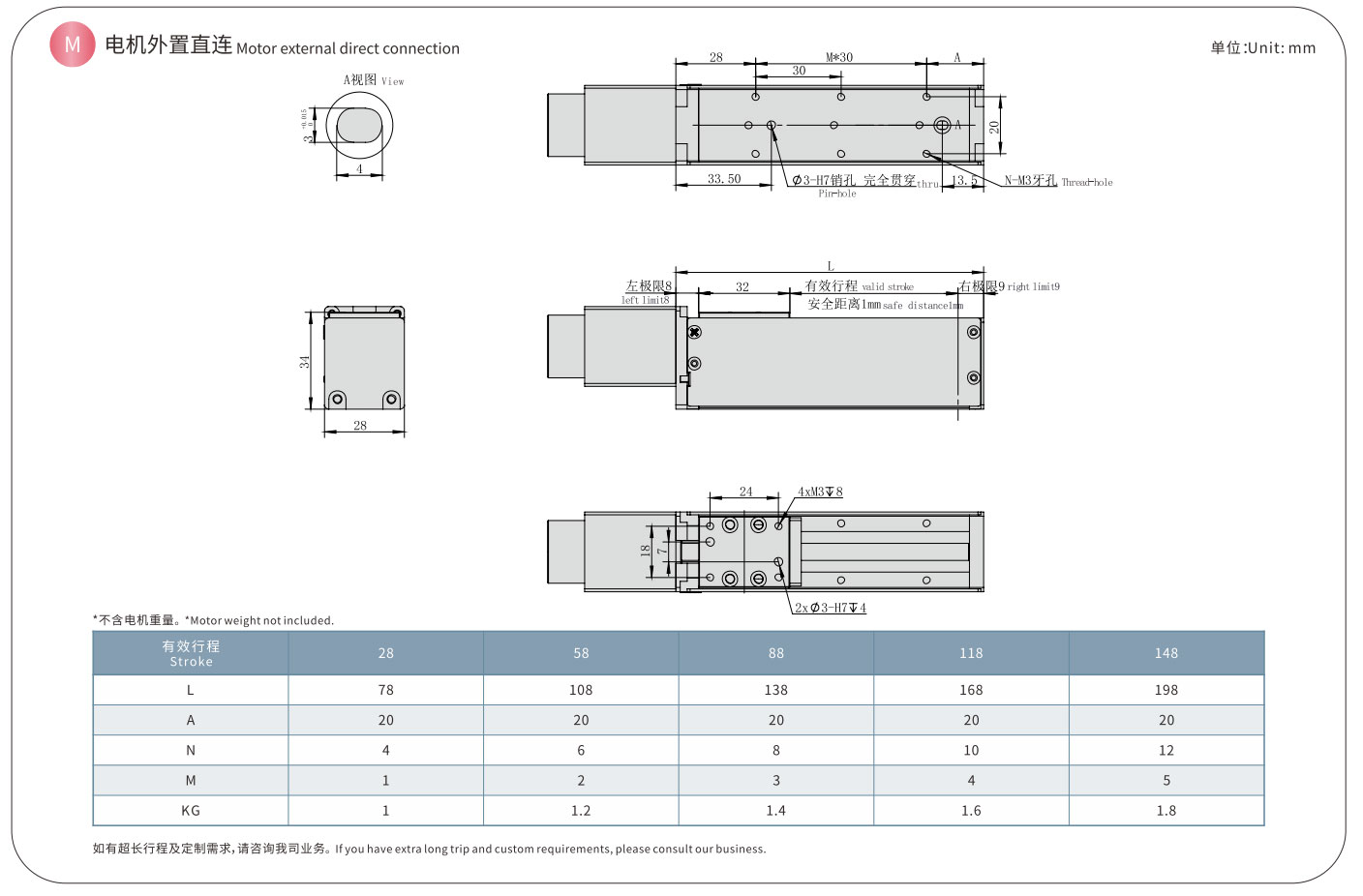

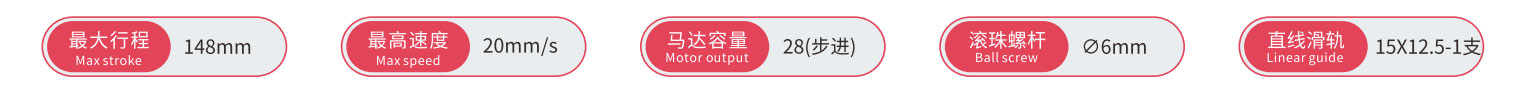

    General-module-Asia-Standard-&-Multi-axis-series-2023_08_07 General-module-Asia-Standard-&-Multi-axis-series-2023_08_09 General-module-Asia-Standard-&-Multi-axis-series-2023_08_03 General-module-Asia-Standard-&-Multi-axis-series-2023_08_05 General-module-Asia-Standard-&-Multi-axis-series-2023_09_03






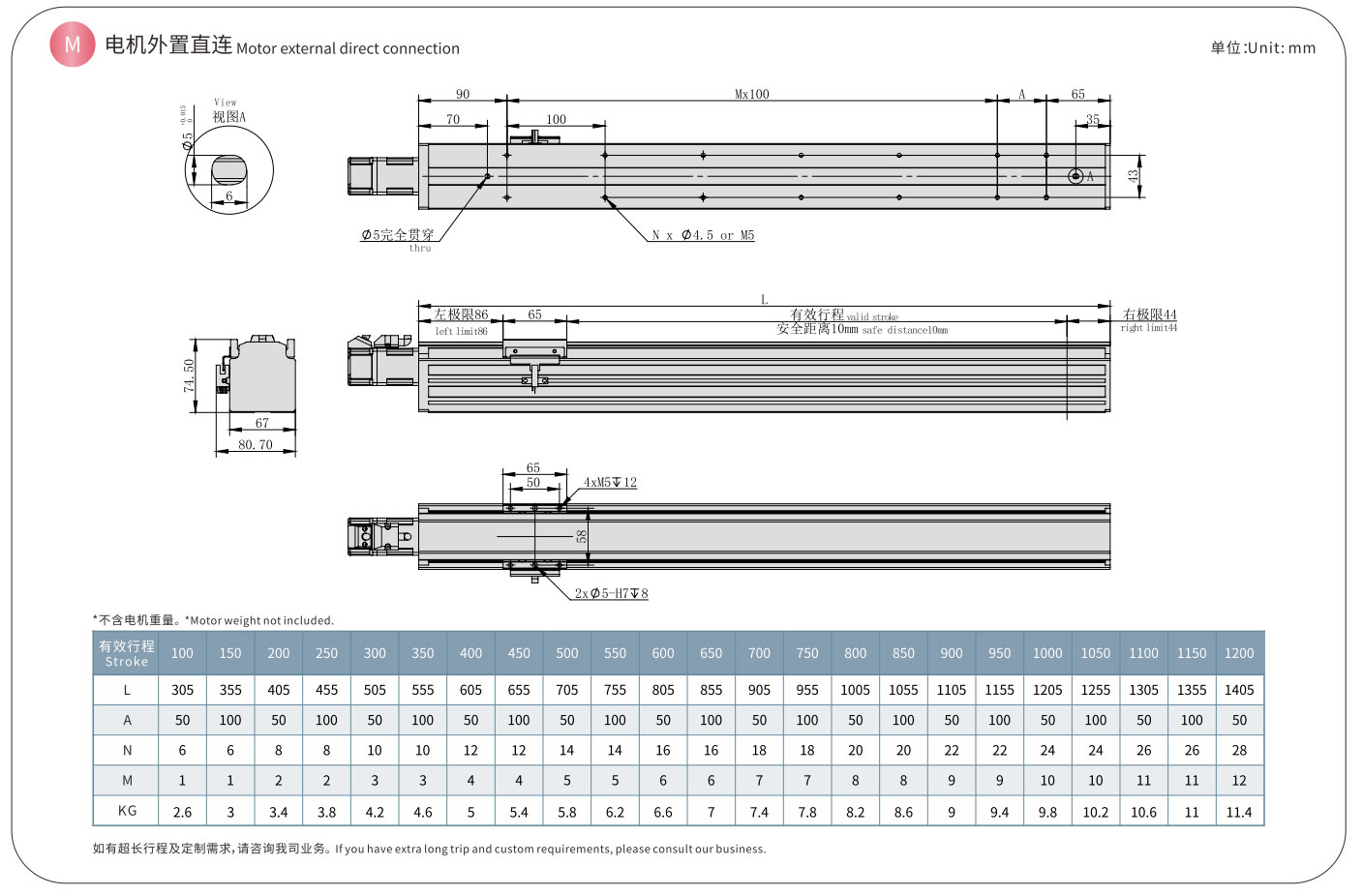

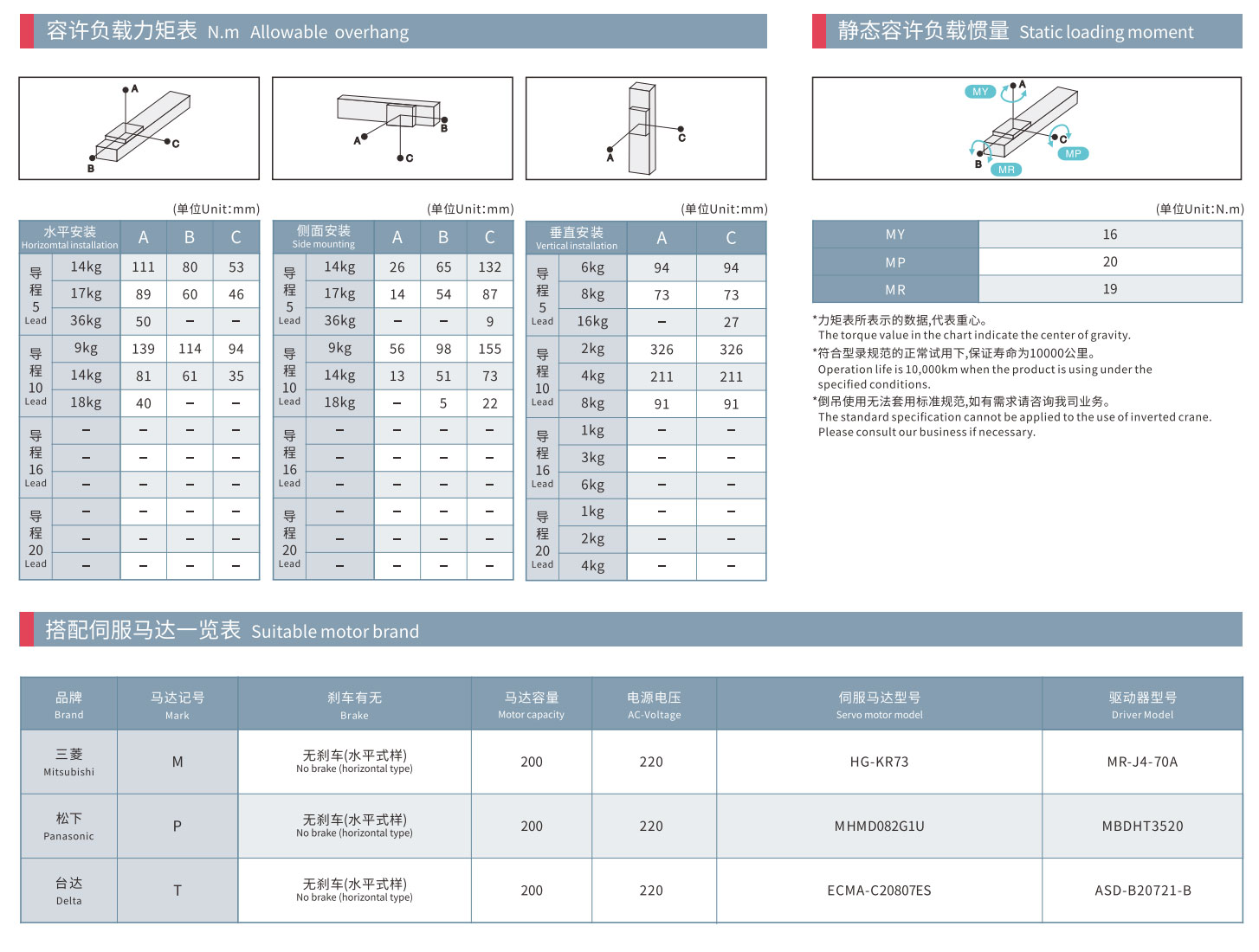

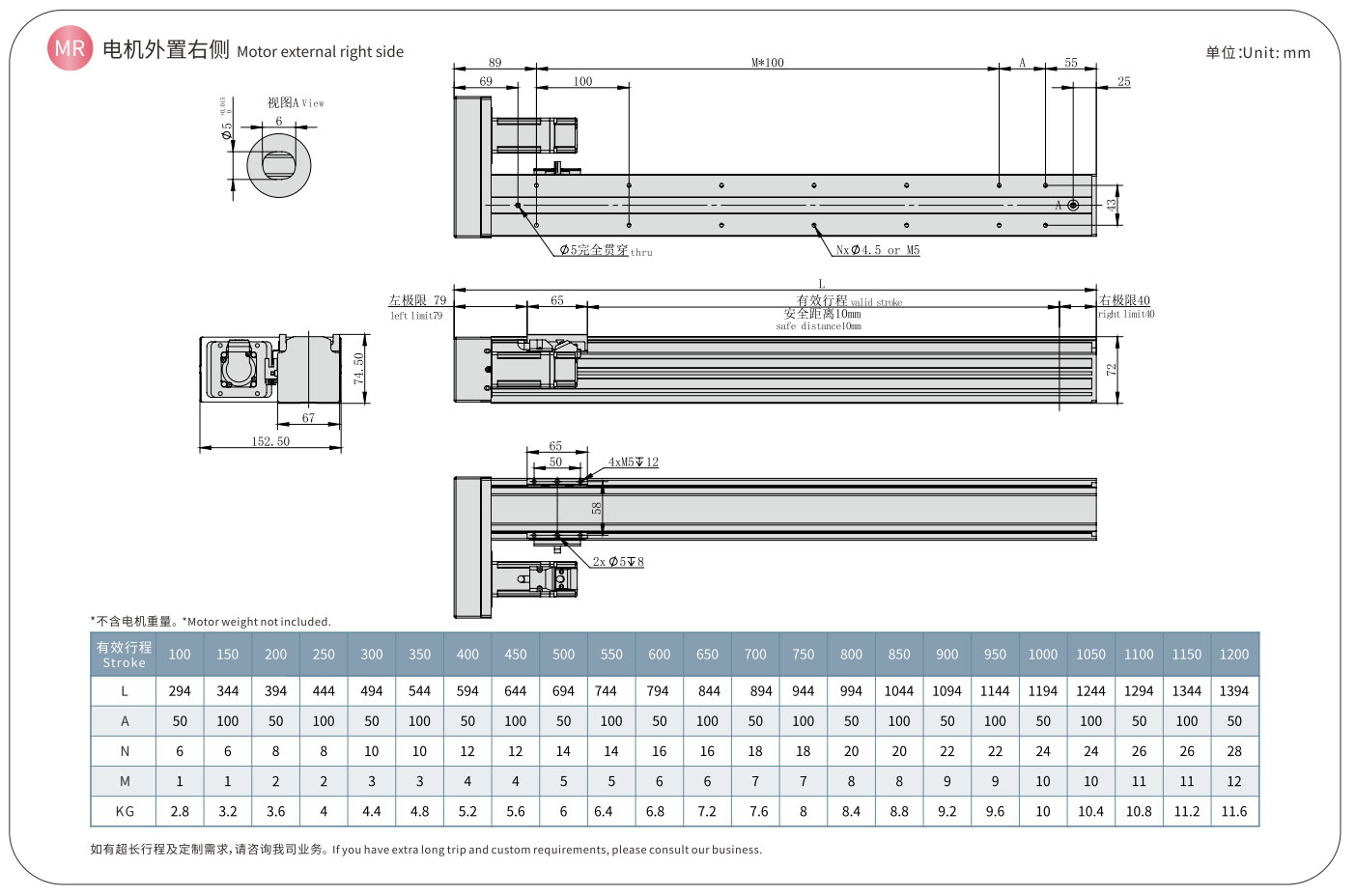

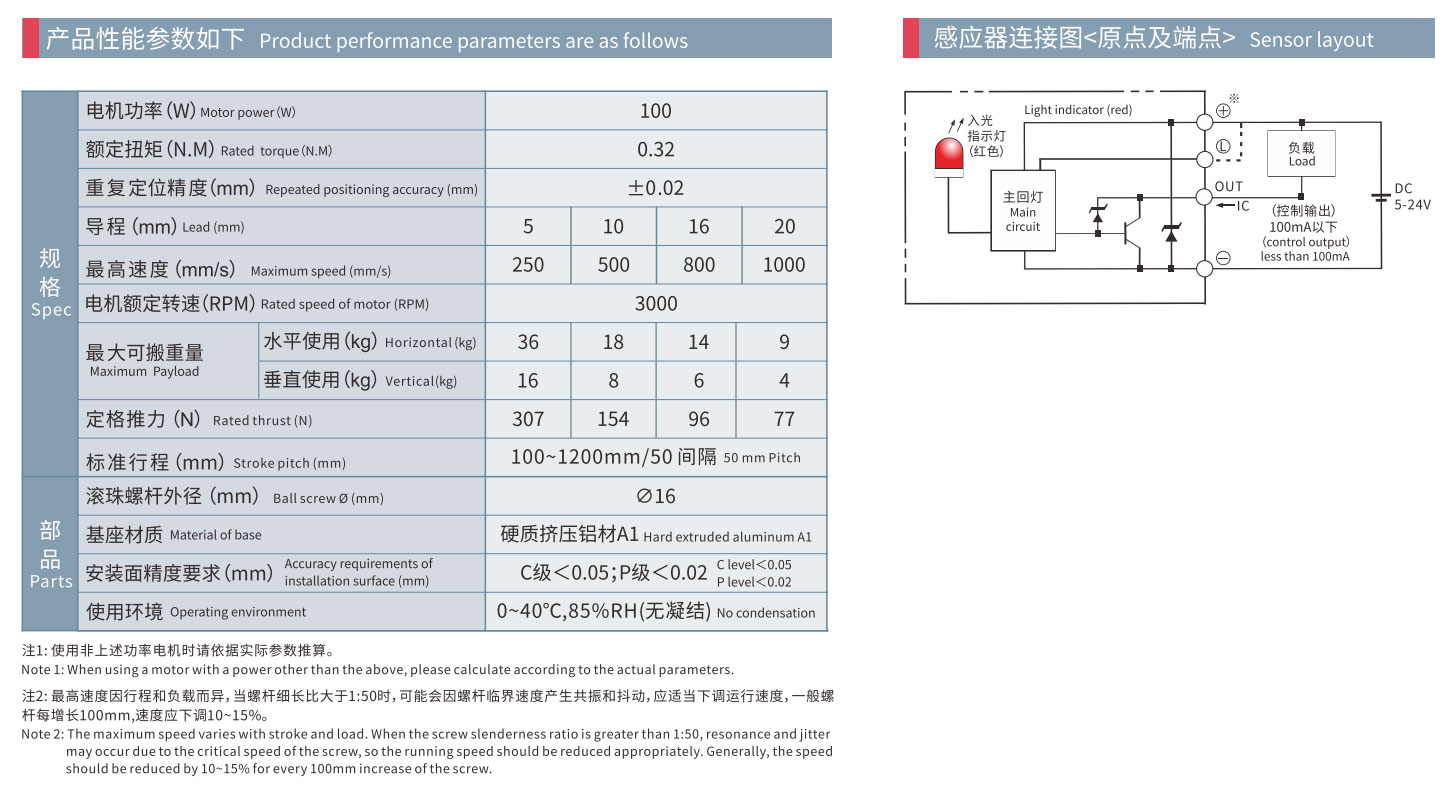

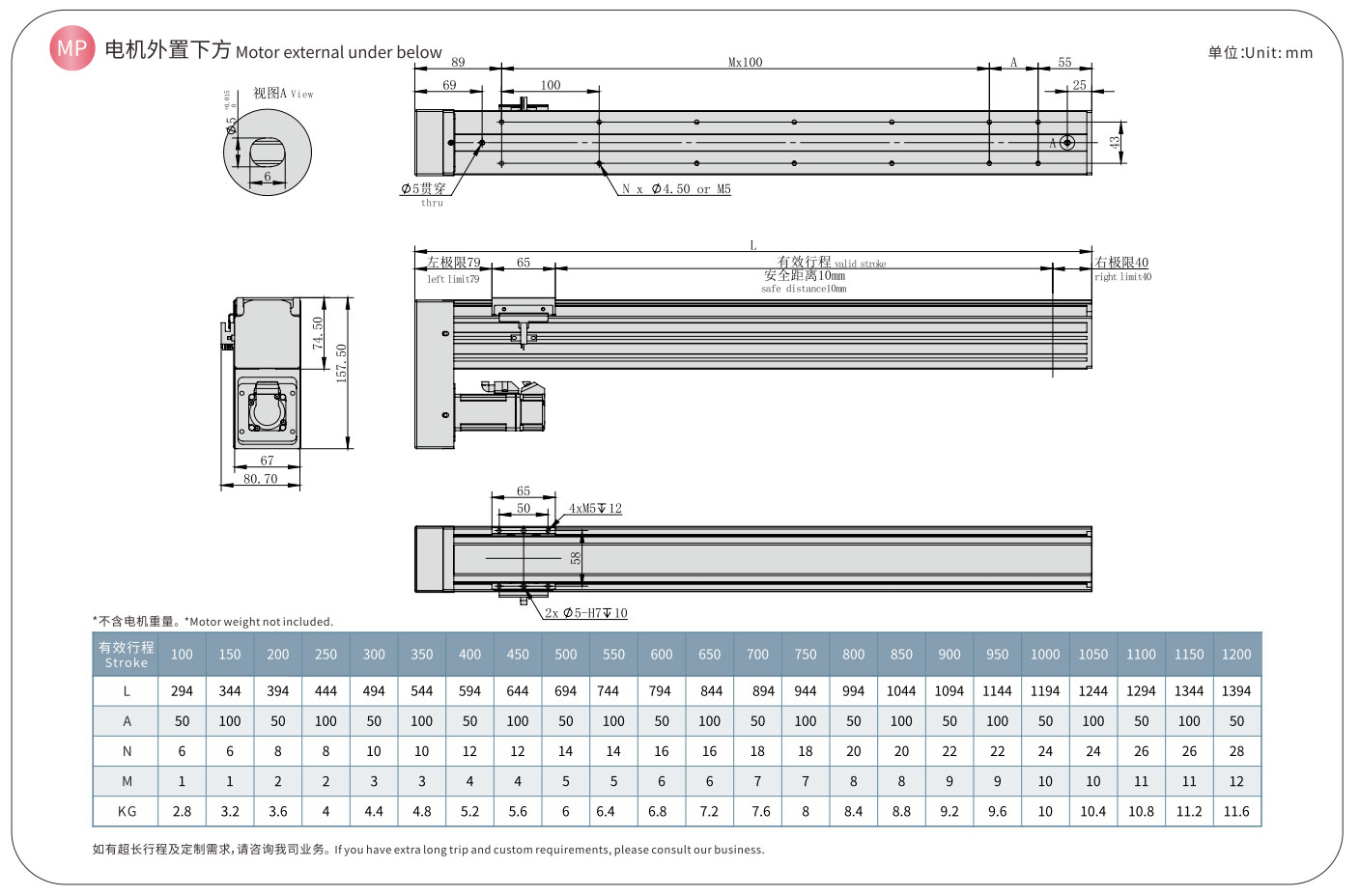

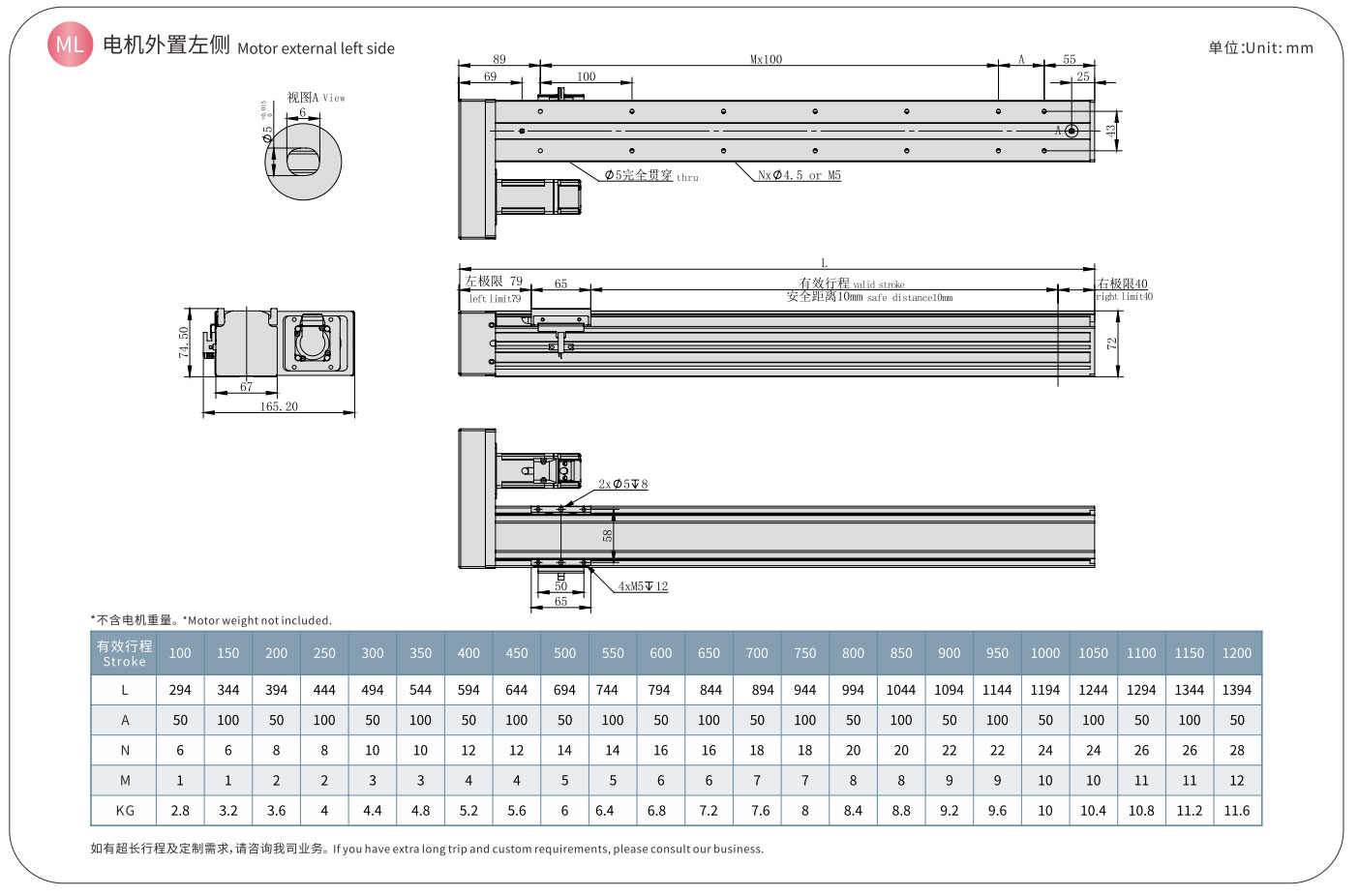

    General-module-Asia-Standard-&-Multi-axis-series-2023_10_07 General-module-Asia-Standard-&-Multi-axis-series-2023_10_09 General-module-Asia-Standard-&-Multi-axis-series-2023_10_03 General-module-Asia-Standard-&-Multi-axis-series-2023_10_05 TPA-HNR-65S (6) TPA-HNR-65S (7) TPA-HNR-65S (8)TPA-HNR-65S (1)

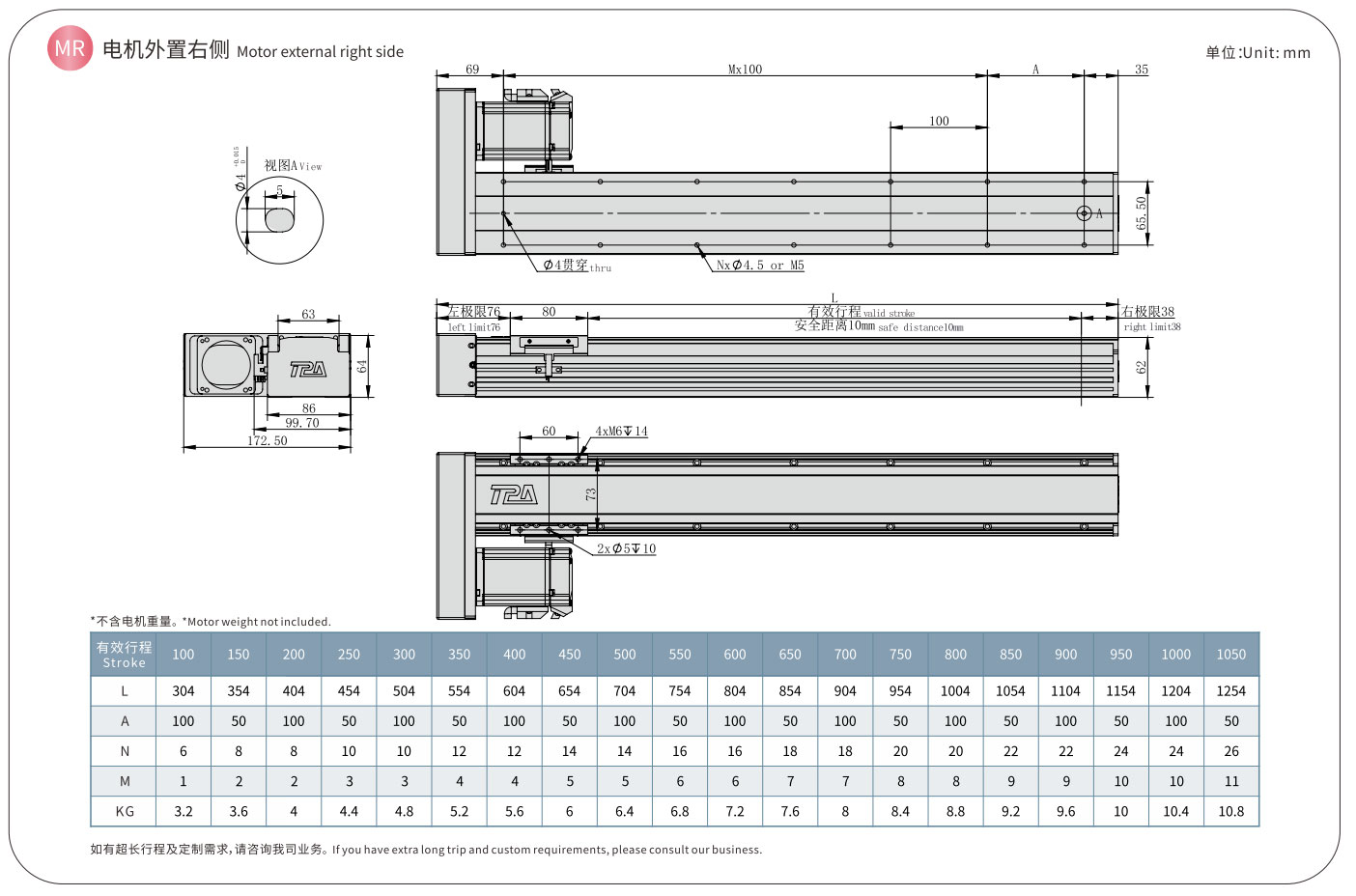

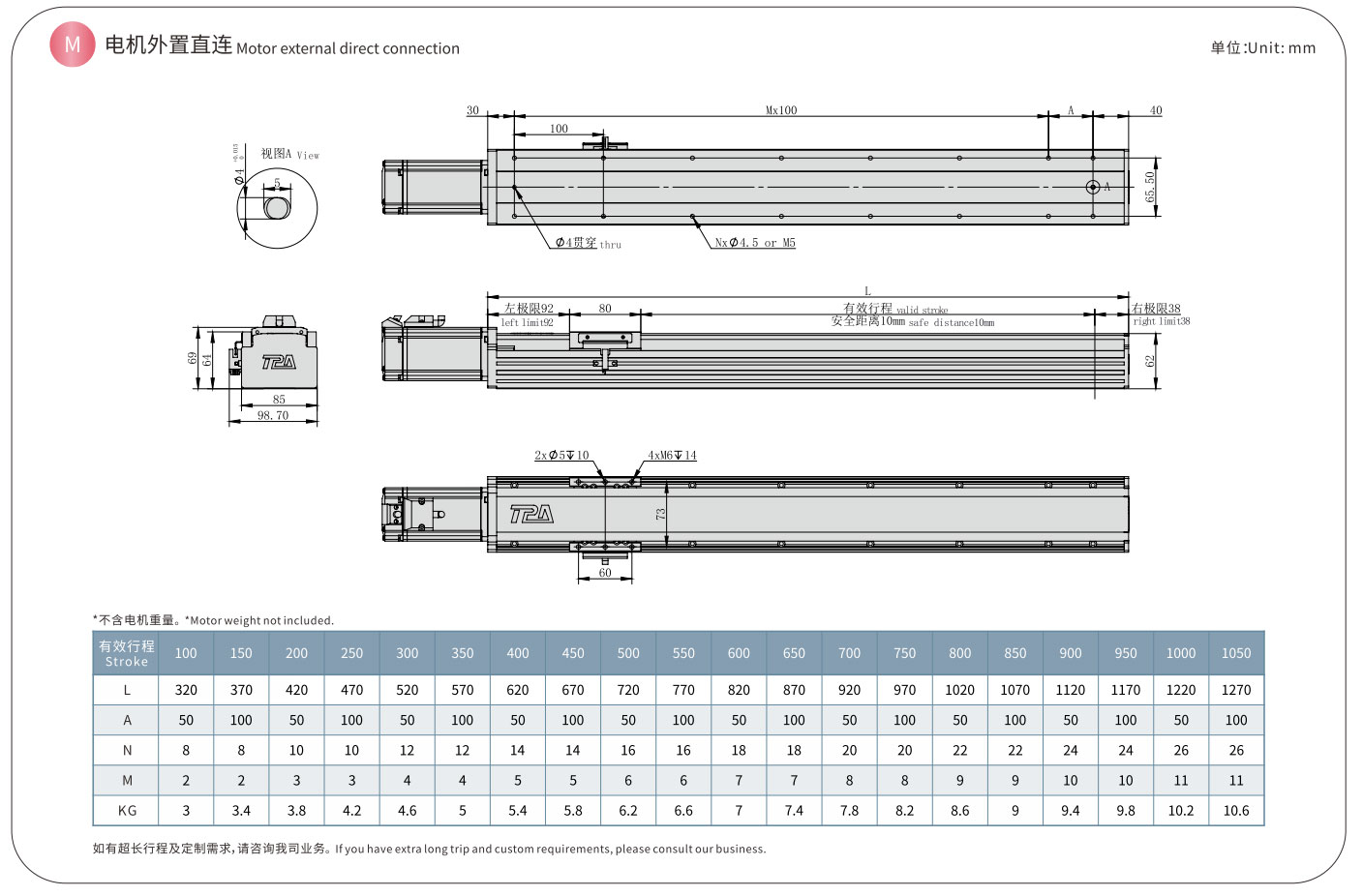

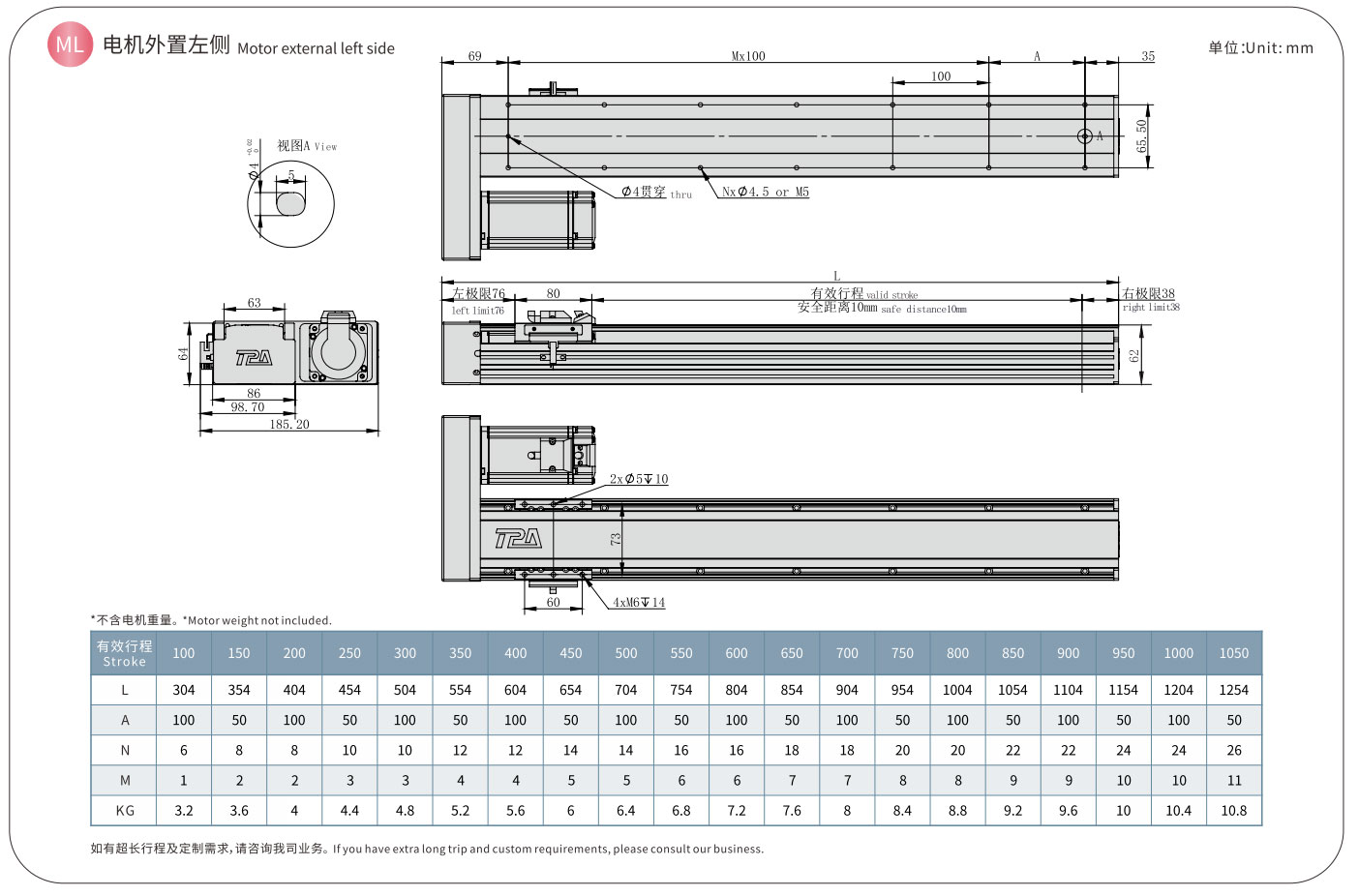

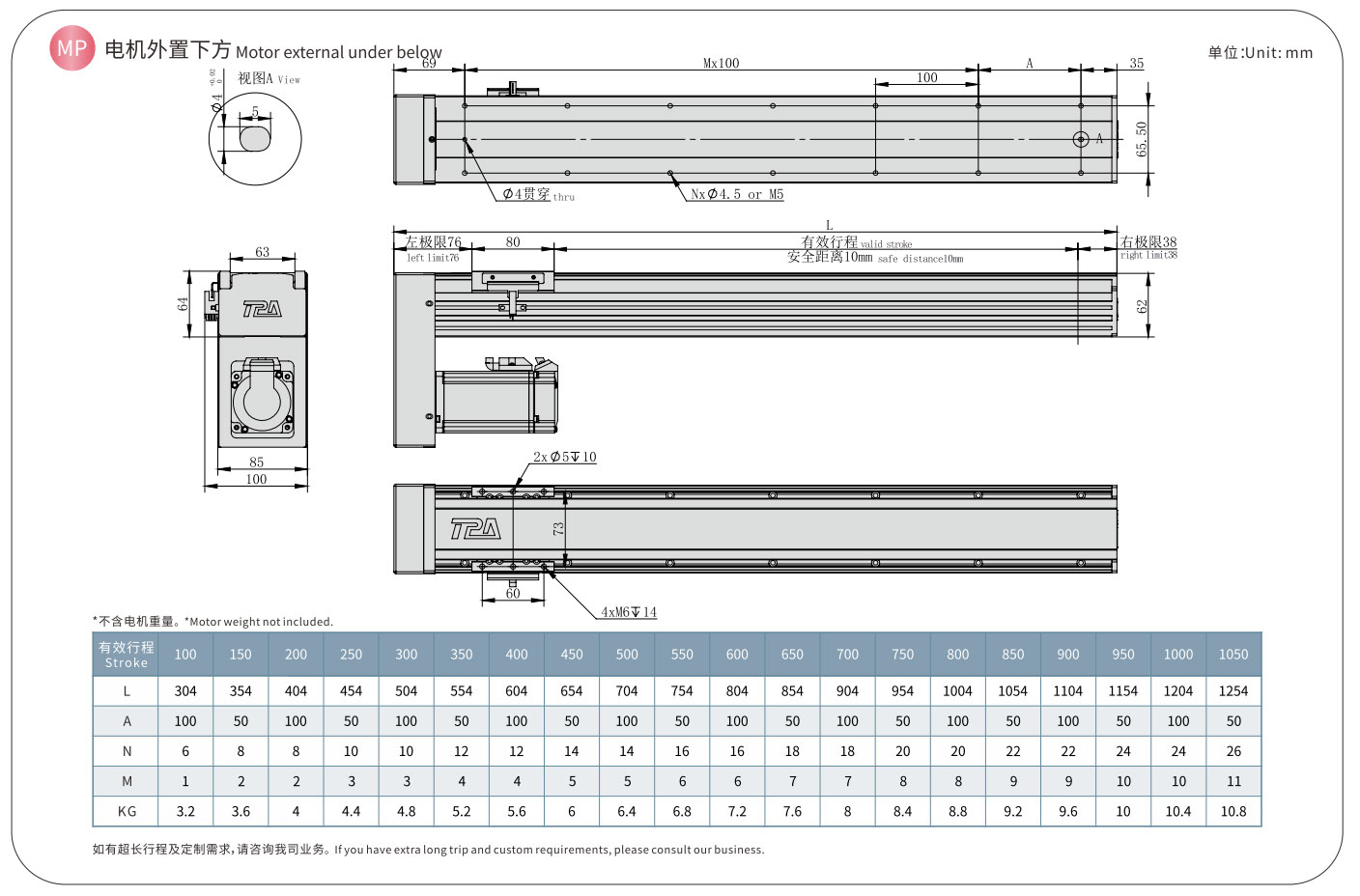

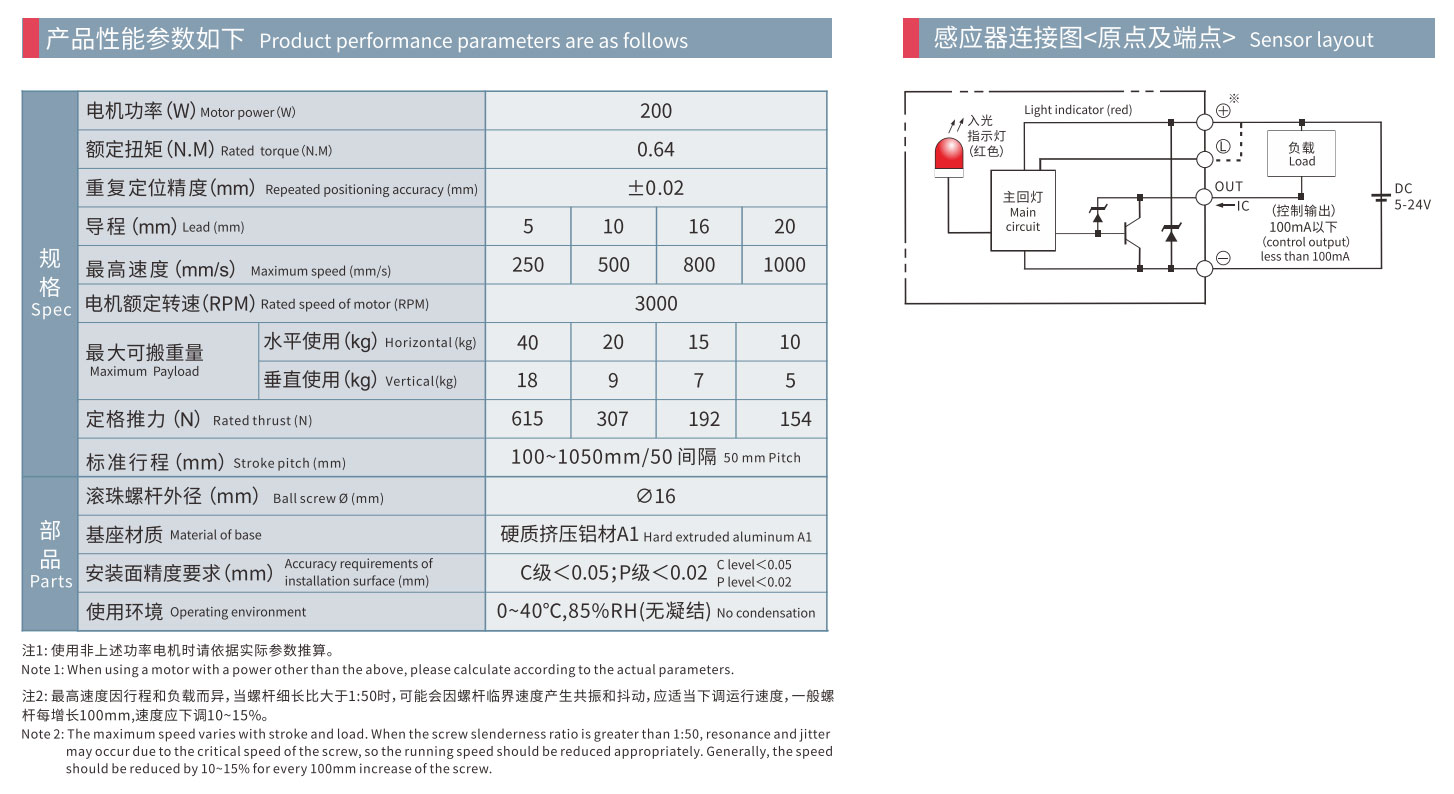

    General-module-Asia-Standard-&-Multi-axis-series-2023_14_07 General-module-Asia-Standard-&-Multi-axis-series-2023_14_09 General-module-Asia-Standard-&-Multi-axis-series-2023_14_03 General-module-Asia-Standard-&-Multi-axis-series-2023_14_05 TPA-HNR-85D (6) TPA-HNR-85D (7) TPA-HNR-85D (8)TPA-HNR-85D (1)

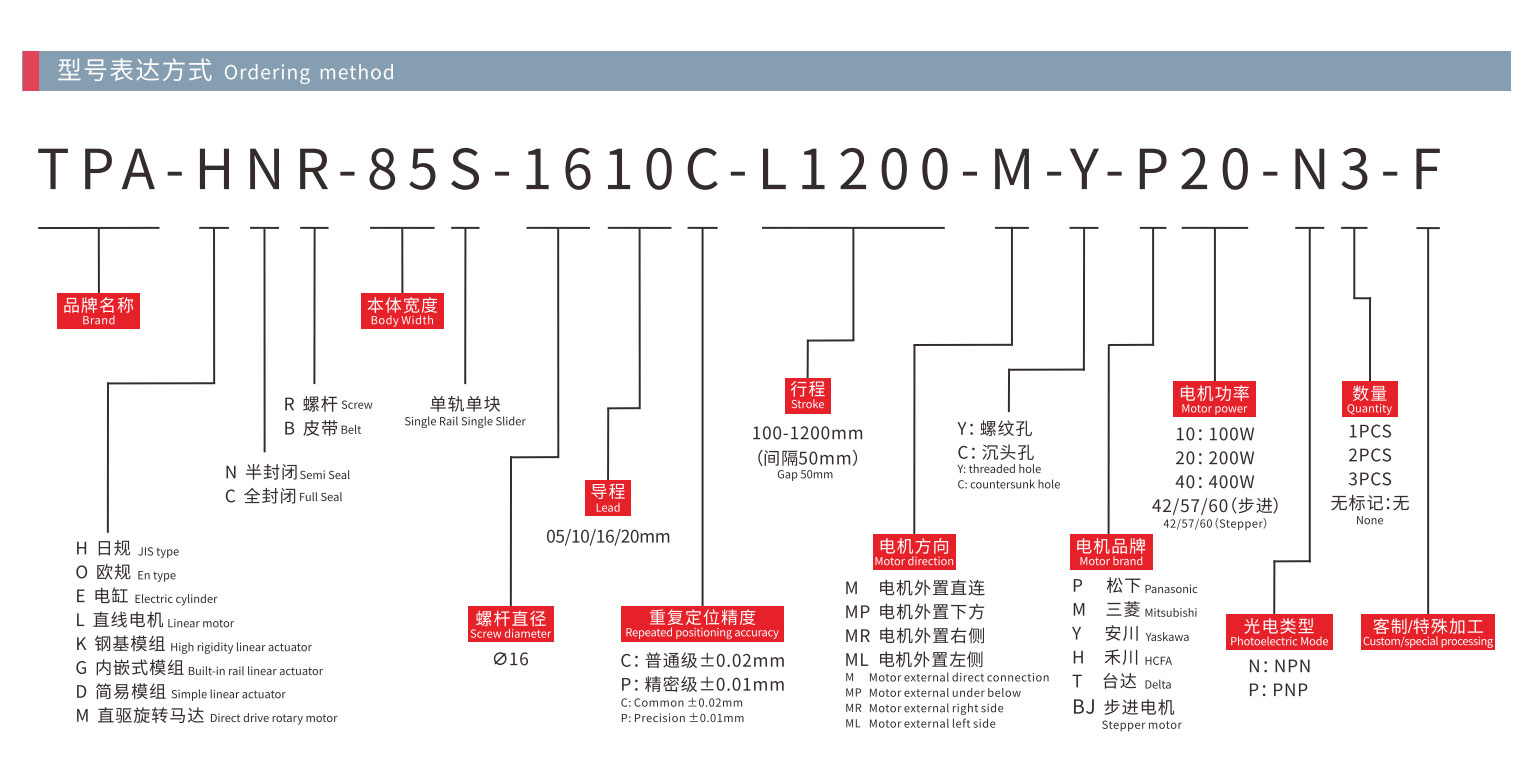

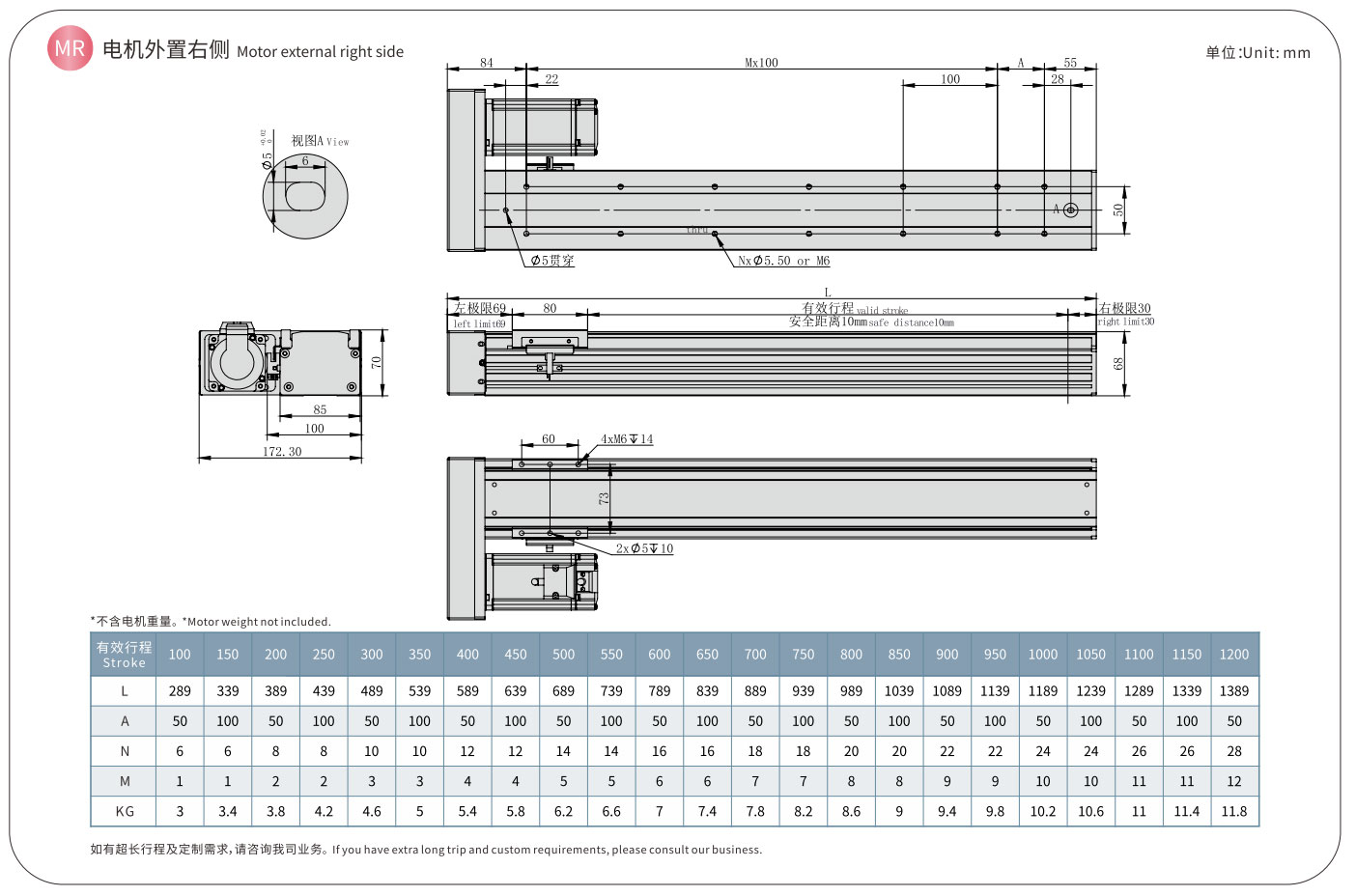

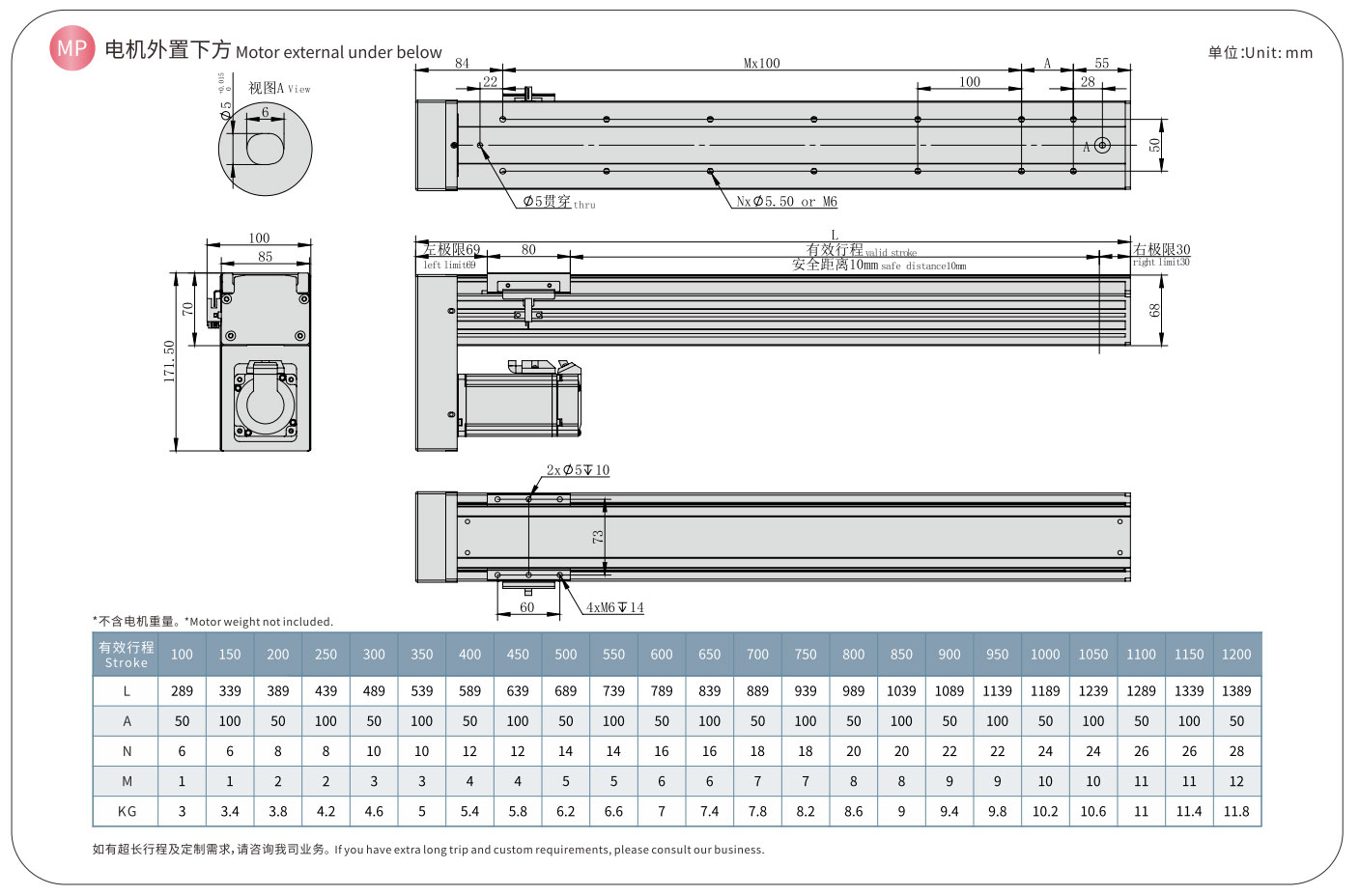

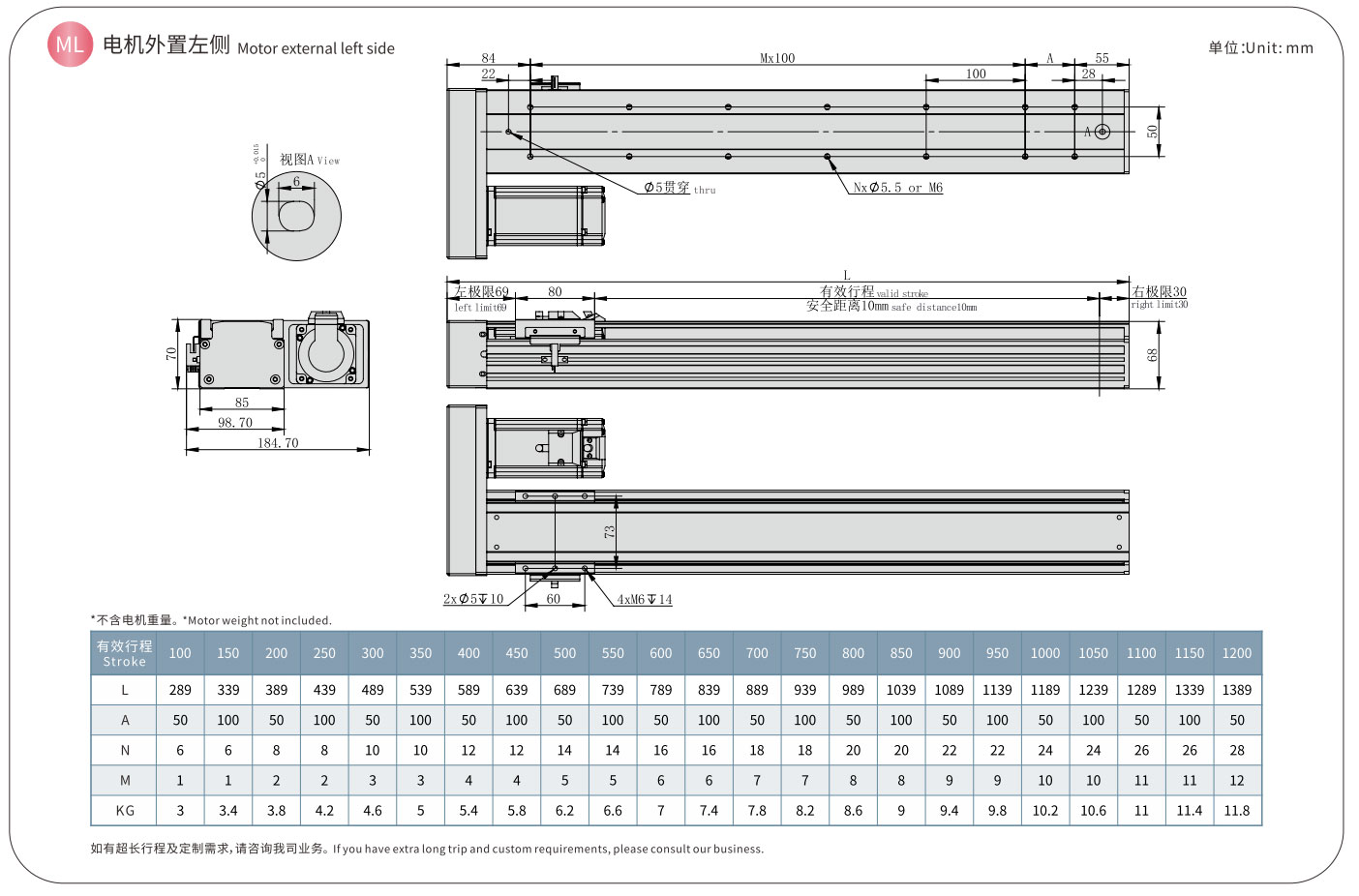

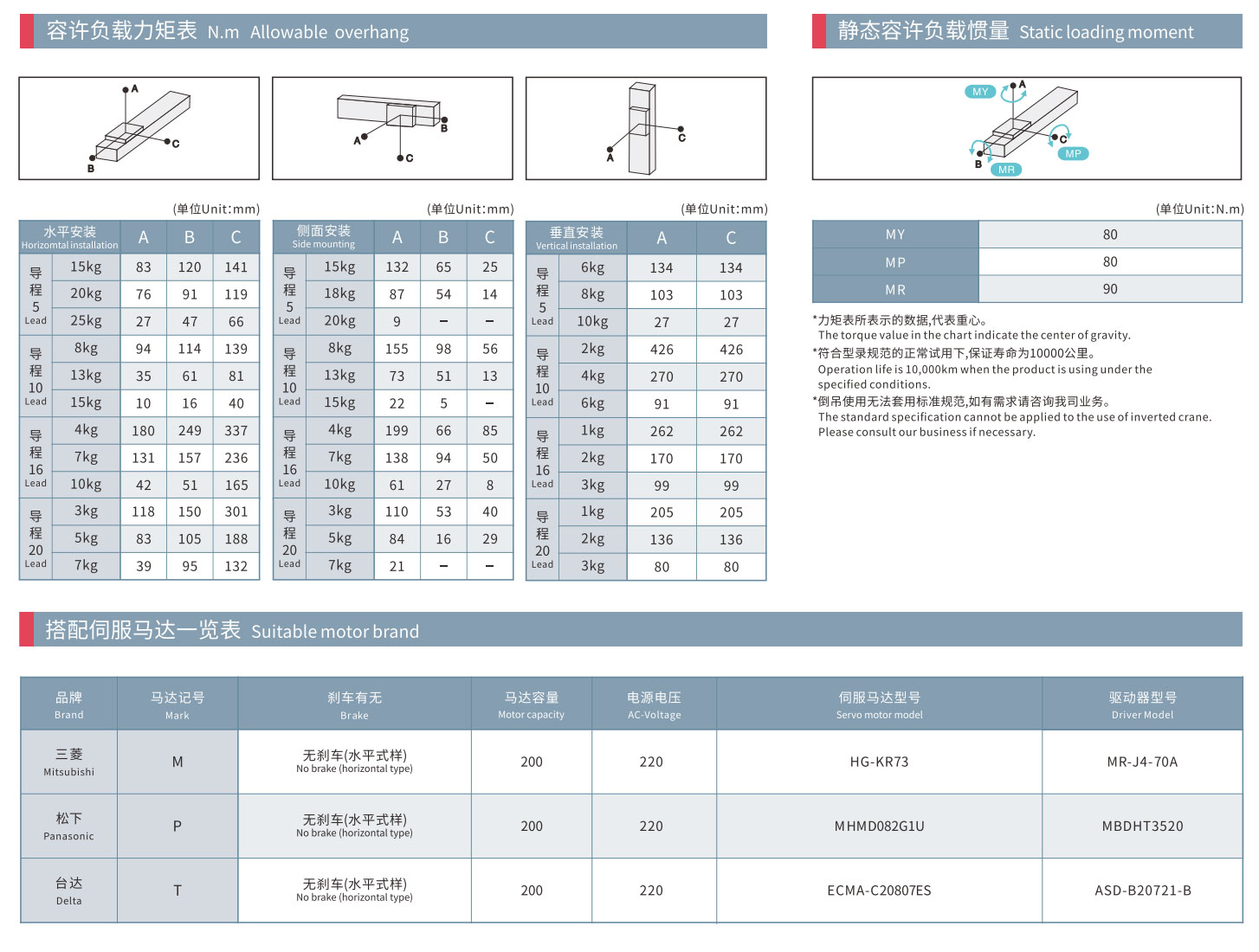

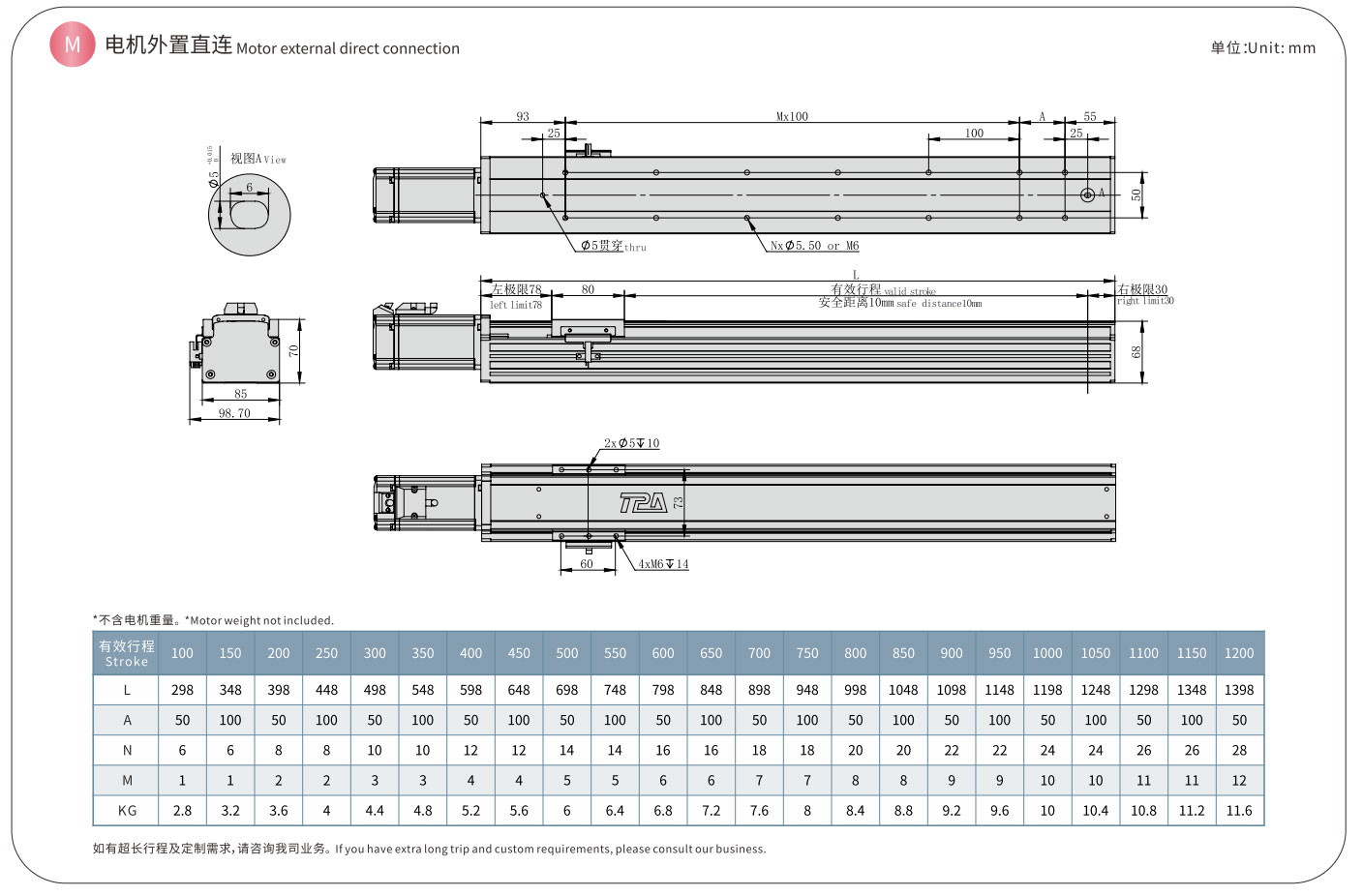

    General-module-Asia-Standard-&-Multi-axis-series-2023_12_07 General-module-Asia-Standard-&-Multi-axis-series-2023_12_09 General-module-Asia-Standard-&-Multi-axis-series-2023_12_03 General-module-Asia-Standard-&-Multi-axis-series-2023_12_05TPA-HNR-85S (6) TPA-HNR-85S (7) TPA-HNR-85S (8)TPA-HNR-85S (1)

    General-module-Asia-Standard-&-Multi-axis-series-2023_16_07 General-module-Asia-Standard-&-Multi-axis-series-2023_16_09 General-module-Asia-Standard-&-Multi-axis-series-2023_16_03 General-module-Asia-Standard-&-Multi-axis-series-2023_16_05TPA-HNR-105D (6) TPA-HNR-105D (7) TPA-HNR-105D (8)TPA-HNR-105D (1)

    General-module-Asia-Standard-&-Multi-axis-series-2023_18_07 General-module-Asia-Standard-&-Multi-axis-series-2023_18_09 General-module-Asia-Standard-&-Multi-axis-series-2023_18_03 General-module-Asia-Standard-&-Multi-axis-series-2023_18_05TPA-HNR-110D (6) TPA-HNR-110D (7) TPA-HNR-110D (8)TPA-HNR-110D (1)

    General-module-Asia-Standard-&-Multi-axis-series-2023_20_07 General-module-Asia-Standard-&-Multi-axis-series-2023_20_09 General-module-Asia-Standard-&-Multi-axis-series-2023_20_03 General-module-Asia-Standard-&-Multi-axis-series-2023_20_05TPA-HNR-120D (6) TPA-HNR-120D (7) TPA-HNR-120D (8)TPA-HNR-120D (1)

    General-module-Asia-Standard-&-Multi-axis-series-2023_22_07 General-module-Asia-Standard-&-Multi-axis-series-2023_22_09 General-module-Asia-Standard-&-Multi-axis-series-2023_22_03 General-module-Asia-Standard-&-Multi-axis-series-2023_22_05TPA-HNR-140D (8)TPA-HNR-140D (6) TPA-HNR-140D (7)  TPA-HNR-140D (9) TPA-HNR-140D (10)

    General-module-Asia-Standard-&-Multi-axis-series-2023_25_07 General-module-Asia-Standard-&-Multi-axis-series-2023_25_09 General-module-Asia-Standard-&-Multi-axis-series-2023_25_03 General-module-Asia-Standard-&-Multi-axis-series-2023_25_05TPA-HNR-175D (6)TPA-HNR-175D (4) TPA-HNR-175D (5) TPA-HNR-175D (7)TPA-HNR-175D (1)

    General-module-Asia-Standard-&-Multi-axis-series-2023_28_07 General-module-Asia-Standard-&-Multi-axis-series-2023_28_09 General-module-Asia-Standard-&-Multi-axis-series-2023_28_03 General-module-Asia-Standard-&-Multi-axis-series-2023_28_05TPA-HNR-202D (6)TPA-HNR-202D (4) TPA-HNR-202D (5) TPA-HNR-202D (7)TPA-HNR-202D (1)

    General-module-Asia-Standard-&-Multi-axis-series-2023_31_07 General-module-Asia-Standard-&-Multi-axis-series-2023_31_09 General-module-Asia-Standard-&-Multi-axis-series-2023_31_03 General-module-Asia-Standard-&-Multi-axis-series-2023_31_05TPA-HNR-220D (6) TPA-HNR-220D (7) TPA-HNR-220D (8) TPA-HNR-220D (9)

    General-module-Asia-Standard-&-Multi-axis-series-2023_33_07 General-module-Asia-Standard-&-Multi-axis-series-2023_33_09 General-module-Asia-Standard-&-Multi-axis-series-2023_33_03 General-module-Asia-Standard-&-Multi-axis-series-2023_33_05TPA-HNR-270D (4) TPA-HNR-270D (5) TPA-HNR-270D (6) TPA-HNR-270D (7)

    •






    ( Unit:mm )
