HCB Series Belt Driven Linear Actuators

HCB Series Belt Driven Linear Actuators Featured Image
  • HCB Series Belt Driven Linear Actuators

Model Selector

  • Series:
    HCB-65S HCB-85D HCB-105D HCB-110D HCB-120D HCB-140D HCB-175D HCB-202D HCB-220D HCB-270D
  • Load Type:
    Single Rail, Single Slider
  • Lead:
    45mm 90mm
  • Repeated positioning accuracy:
    ±0.04mm
  • Stroke:
    100mm 200mm 300mm 400mm 500mm 600mm 700mm 800mm 900mm 1000mm 1100mm 1200mm 1300mm 1400mm 1500mm 1600mm 1700mm 1800mm
  • Motor Direction:
    Motor External Direct Connection Motor External Right Side Motor External Left Side
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasoni Mitsubishi Yaskawa HCFA Delta Stepper motor Reduction box
  • Motor Power:
    100W 200W 400W 750W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

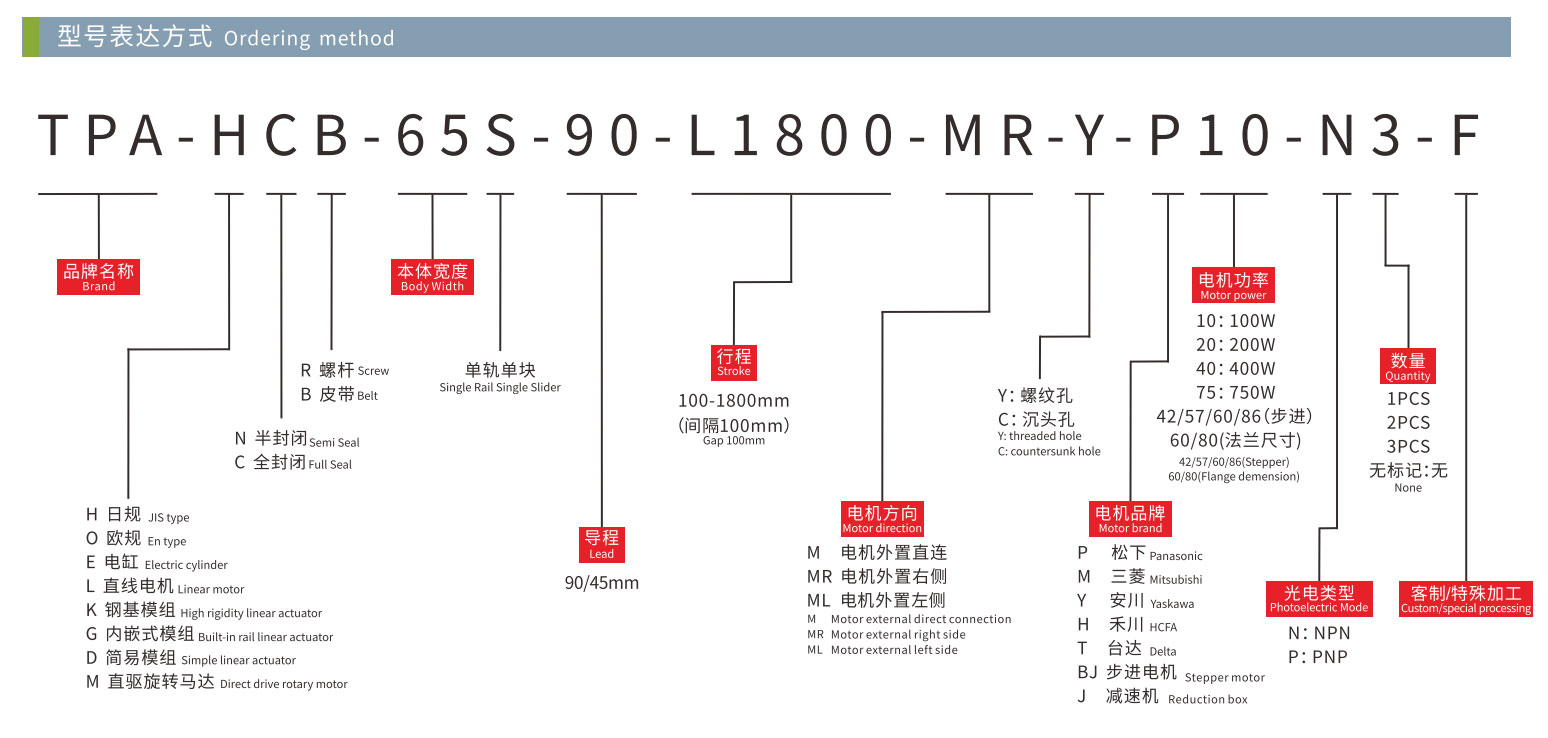

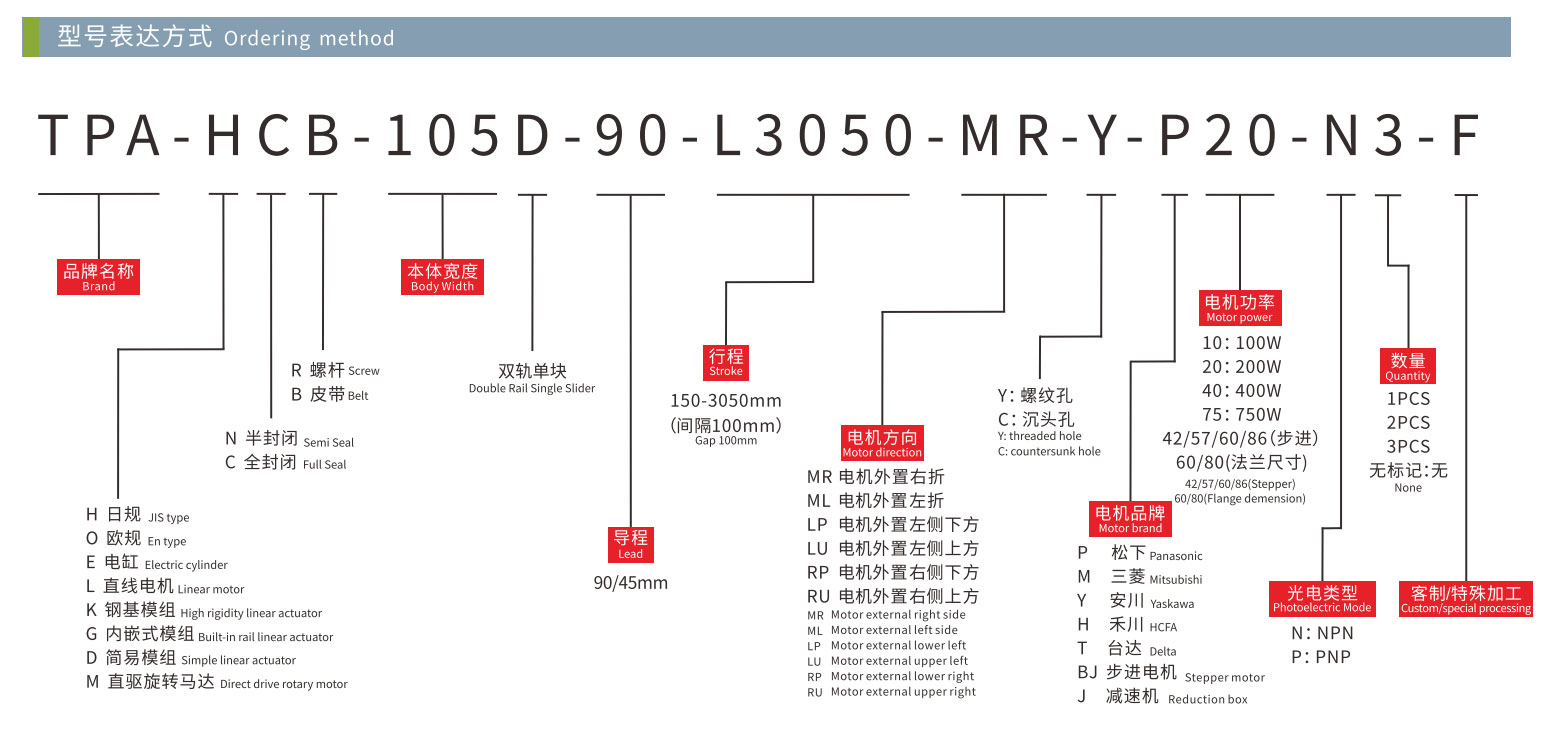

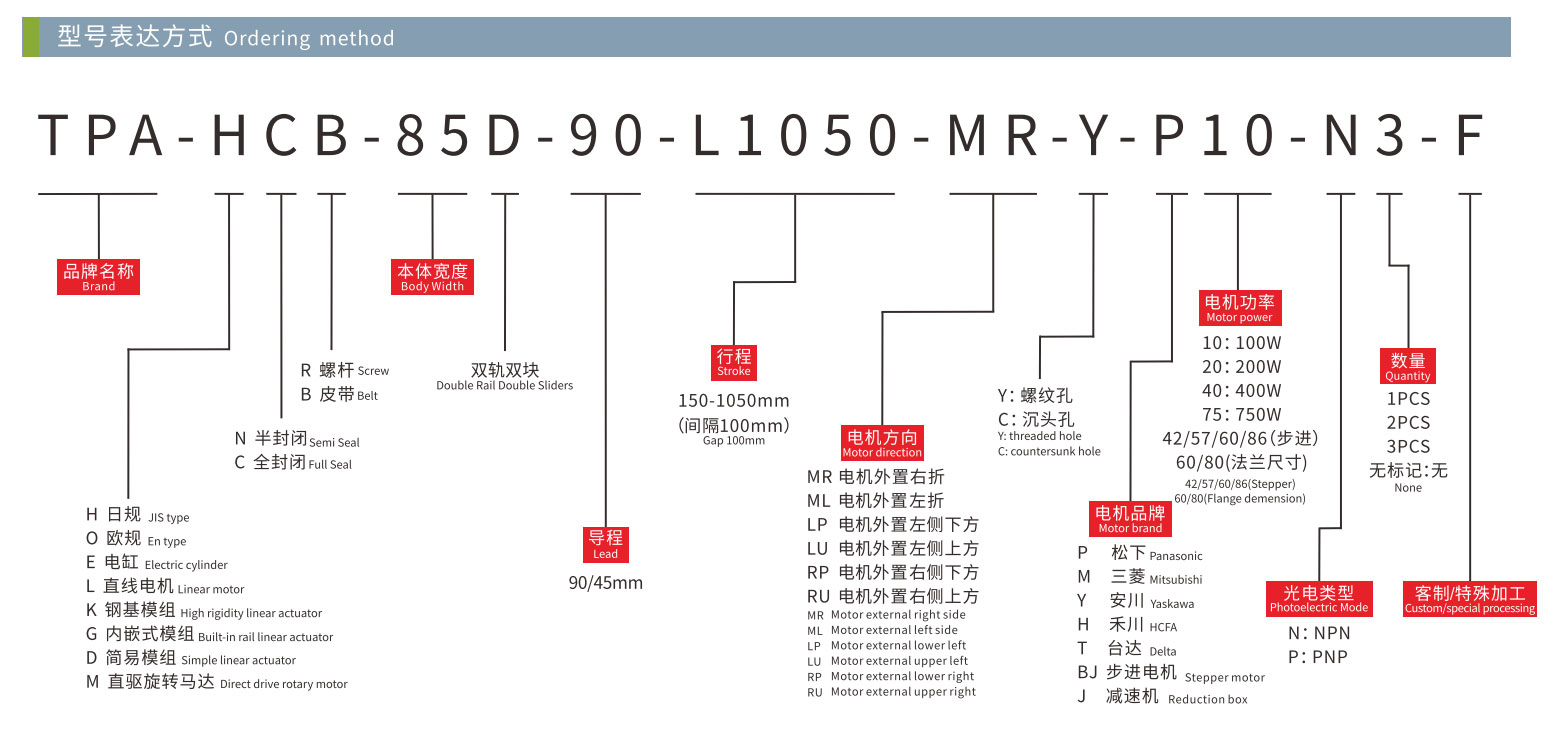

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail, Double Sliders
  • Lead:
    45mm 90mm
  • Repeated positioning accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor Reduction box
  • Motor Power:
    100W 200W 400W 750W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail, Double Sliders
  • Lead:
    45mm 90mm
  • Repeated positioning accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor Reduction box
  • Motor Power:
    100W 200W 400W 750W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail, Double Sliders
  • Lead:
    45mm 90mm
  • Repeated positioning accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm
  • Motor Direction:

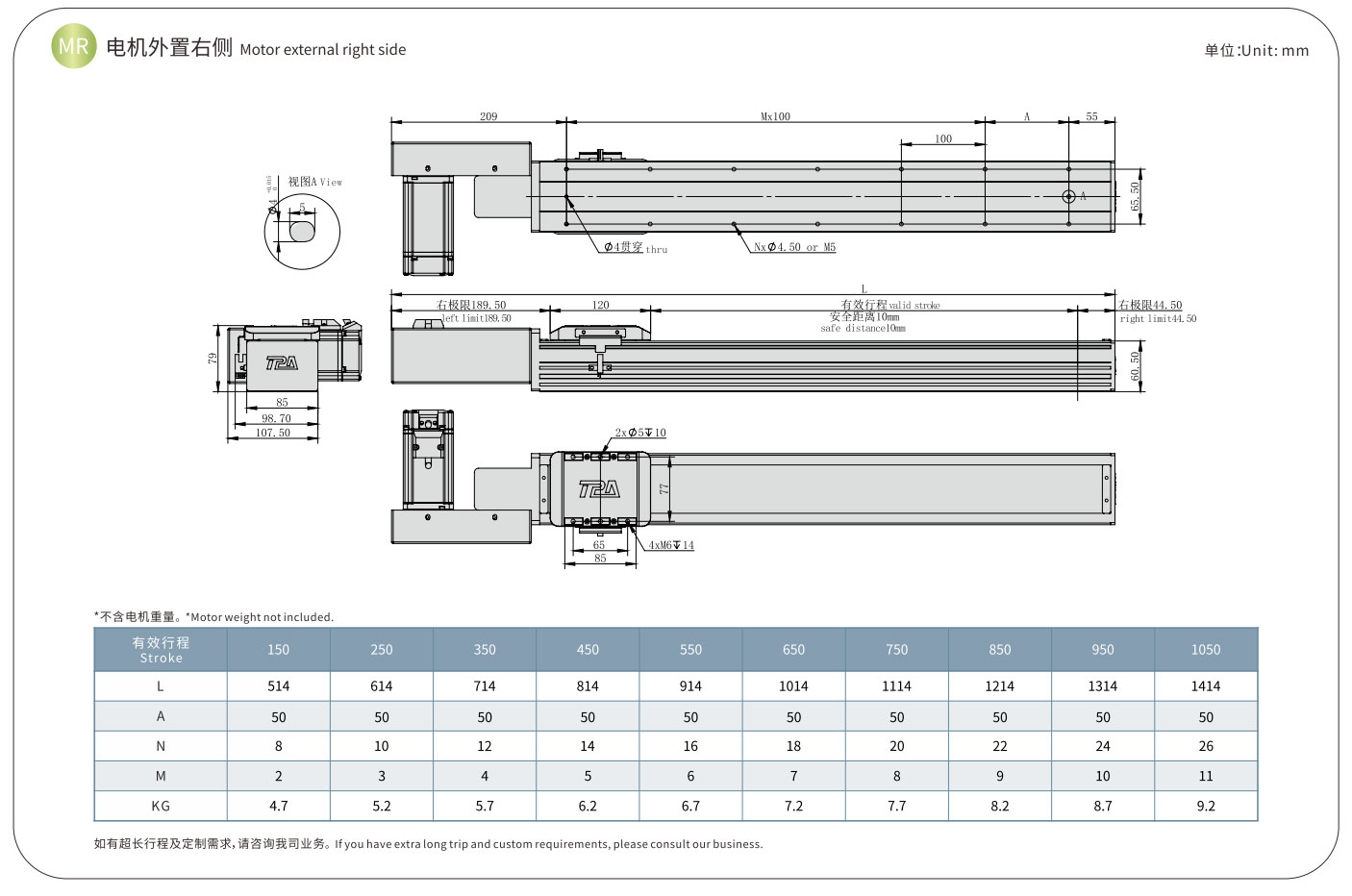

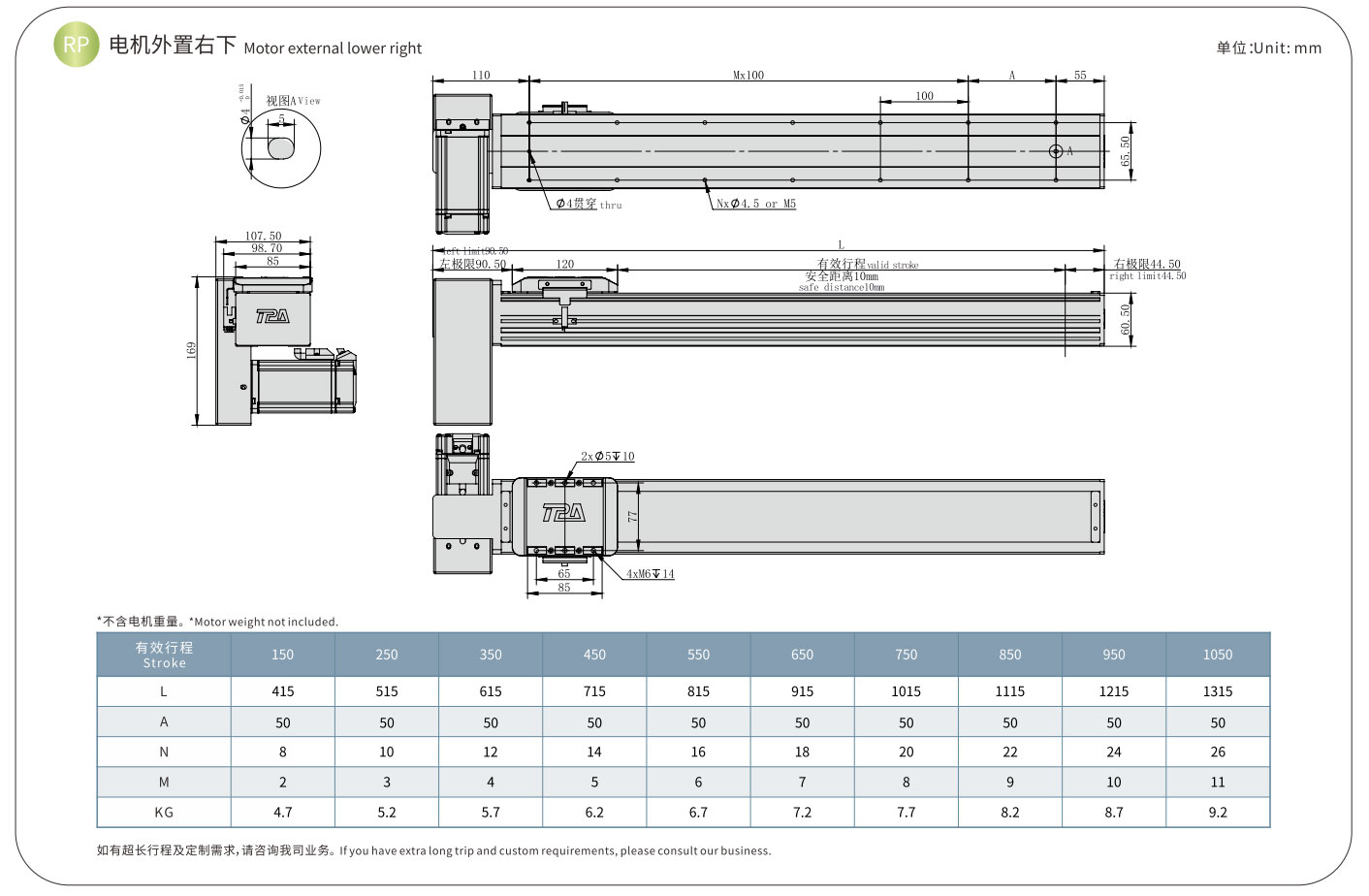

    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor Reduction box
  • Motor Power:
    100W 200W 400W 750W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail, Double Sliders
  • Lead:
    45mm 90mm
  • Repeated positioning accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3000mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor Reduction box
  • Motor Power:
    100W 200W 400W 750W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail, Double Sliders
  • Lead:
    60mm 120mm
  • Repeated positioning accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3000mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor Reduction box
  • Motor Power:
    100W 200W 400W 750W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail, Double Sliders
  • Lead:
    70mm 140mm
  • Repeated positioning accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3000mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor Reduction box
  • Motor Power:
    400W 750W 1000W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail, Double Sliders
  • Lead:
    70mm 140mm
  • Repeated positioning accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3000mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor Reduction box
  • Motor Power:
    400W 750W 1000W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail, Double Sliders
  • Lead:
    70mm 140mm
  • Repeated positioning accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3000mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor Reduction box
  • Motor Power:
    400W 750W 1000W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail, Double Sliders
  • Lead:
    70mm 140mm
  • Repeated positioning accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3000mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper motor Reduction box
  • Motor Power:
    400W 750W 1000W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

    • single_btn_icon_1PDF Drawing single_btn_icon_2STP Drawing single_btn_icon_3Enquiry

    Product Detail

    HCB-65S

    HCB-85D

    HCB-105D

    HCB-110D

    HCB-120D

    HCB-140D

    HCB-175D

    HCB-202D

    HCB-220D

    HCB-270D

    As a classic belt driven linear actuator of TPA ROBOT, compared with the HCR series, the HCB series driven slider with timing belt, which means that the HCB series has a longer stroke and a higher speed. It driven by servo motor, it not only has the high precision of servo motor, but also has the advantages of high speed and high rigidity of sliding stage itself. It is easy to control and can be easily connected with PLC and other systems. The slide actuator is made of integrally extruded aluminum profile, with light weight, small size and strong rigidity. The installation size and stroke can be customized according to the requirements, and the installation can be fixed by bolts. Through the combination of multiple directions, it can be formed into a linear motion systems of various automation equipment, with mechanical grippers, air grippers and other fixtures, it can become an exclusive Cartesian robots or gantry robots.

    HCB65S

    HCB65S

    HCB-85D

    HCB-85D

    HCB-105D

    HCB-105D

    HCB-110D

    HCB-110D

    HCB-120D

    HCB-120D

    HCB-140D

    HCB-140D

    HCB-175D

    HCB-175D

    HCB-202D

    HCB-202D

    HCB-220D

    HCB-220D

    HCB-270D

    HCB-270D

  • Features

    Repeated Positioning Accuracy: ±0.04mm

    Max Payload: 140kg

    Stroke: 100 – 3050mm

    Max Speed: 7000mm/s

    kk1617

    1. Flat design, lighter overall weight, lower combination height and better rigidity.

    2. The structure is optimized, the precision is better, and the error caused by assembling multiple accessories is reduced.

    3. The assembly is time-saving, labor-saving and convenient. There is no need to remove the aluminum cover to install the coupling or module.

    4. Maintenance is simple, both sides of the module are equipped with oil injection holes, and the cover does not need to be removed.

    • Maintenance and Troubleshooting

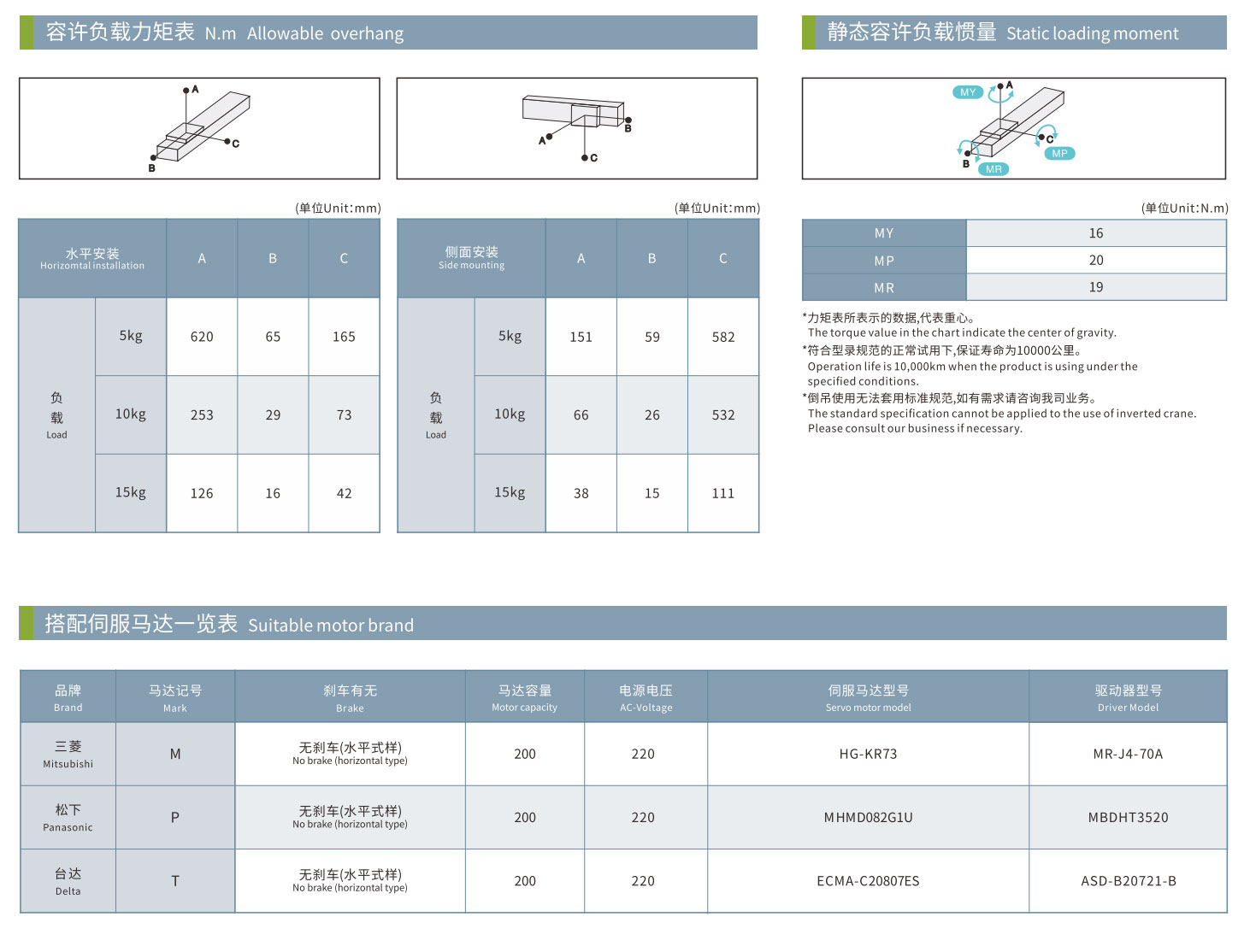

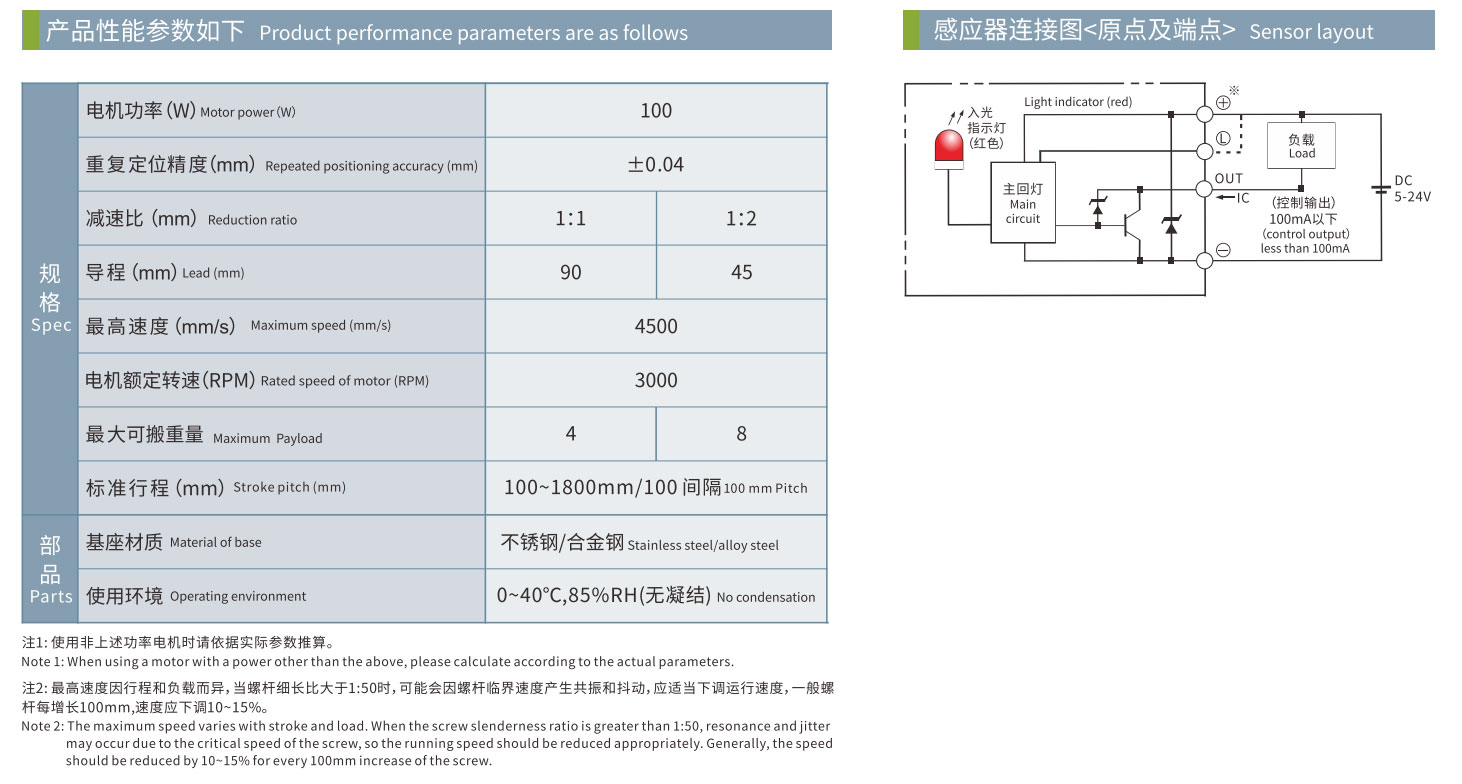

    General-module-Asia-Standard-&-Multi-axis-series-2023_92_07 General-module-Asia-Standard-&-Multi-axis-series-2023_92_10 General-module-Asia-Standard-&-Multi-axis-series-2023_92_03 General-module-Asia-Standard-&-Multi-axis-series-2023_92_05TPA-HCB-65S (6) TPA-HCB-65S (1)TPA-HCB-65S (7)

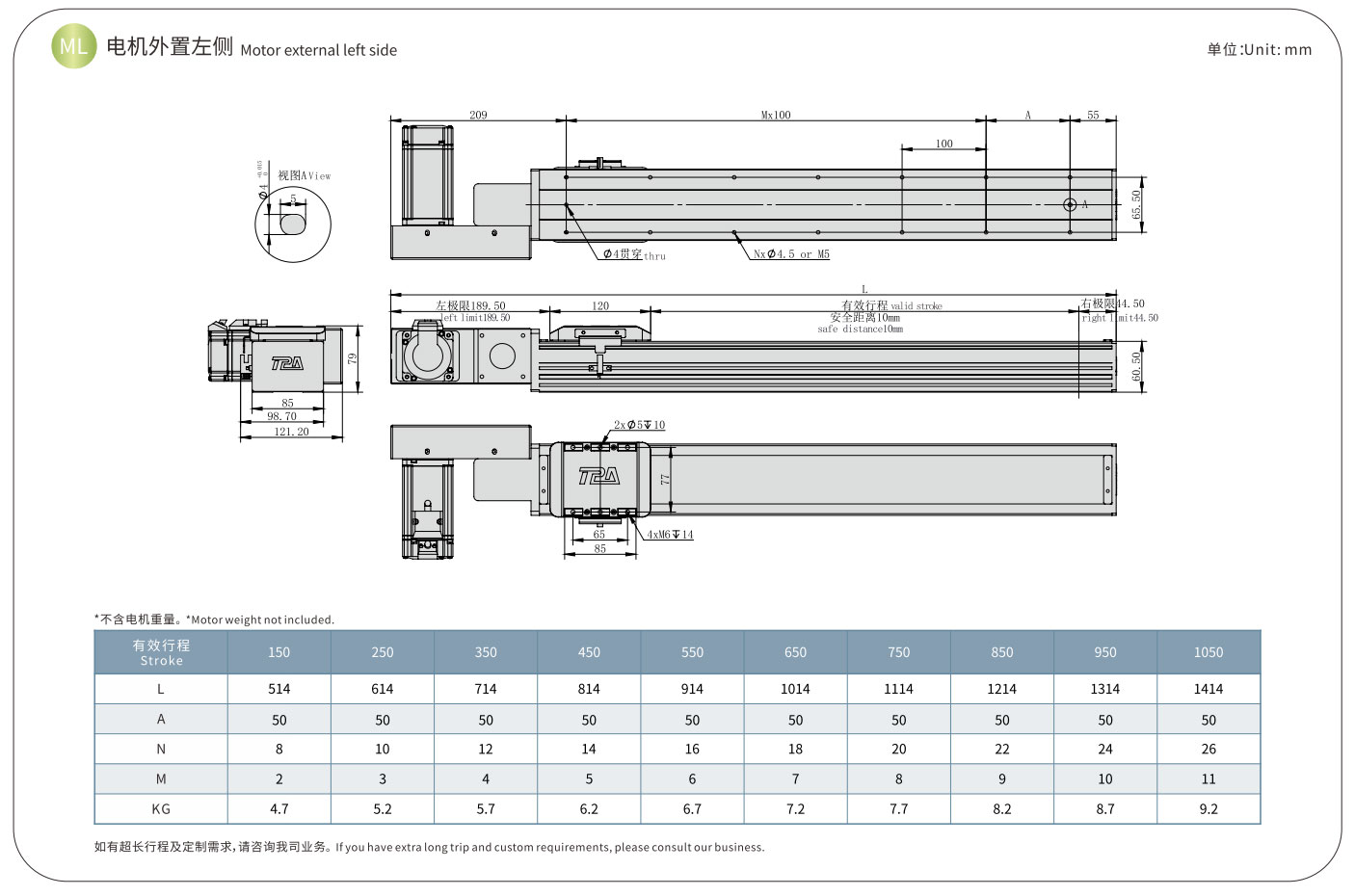

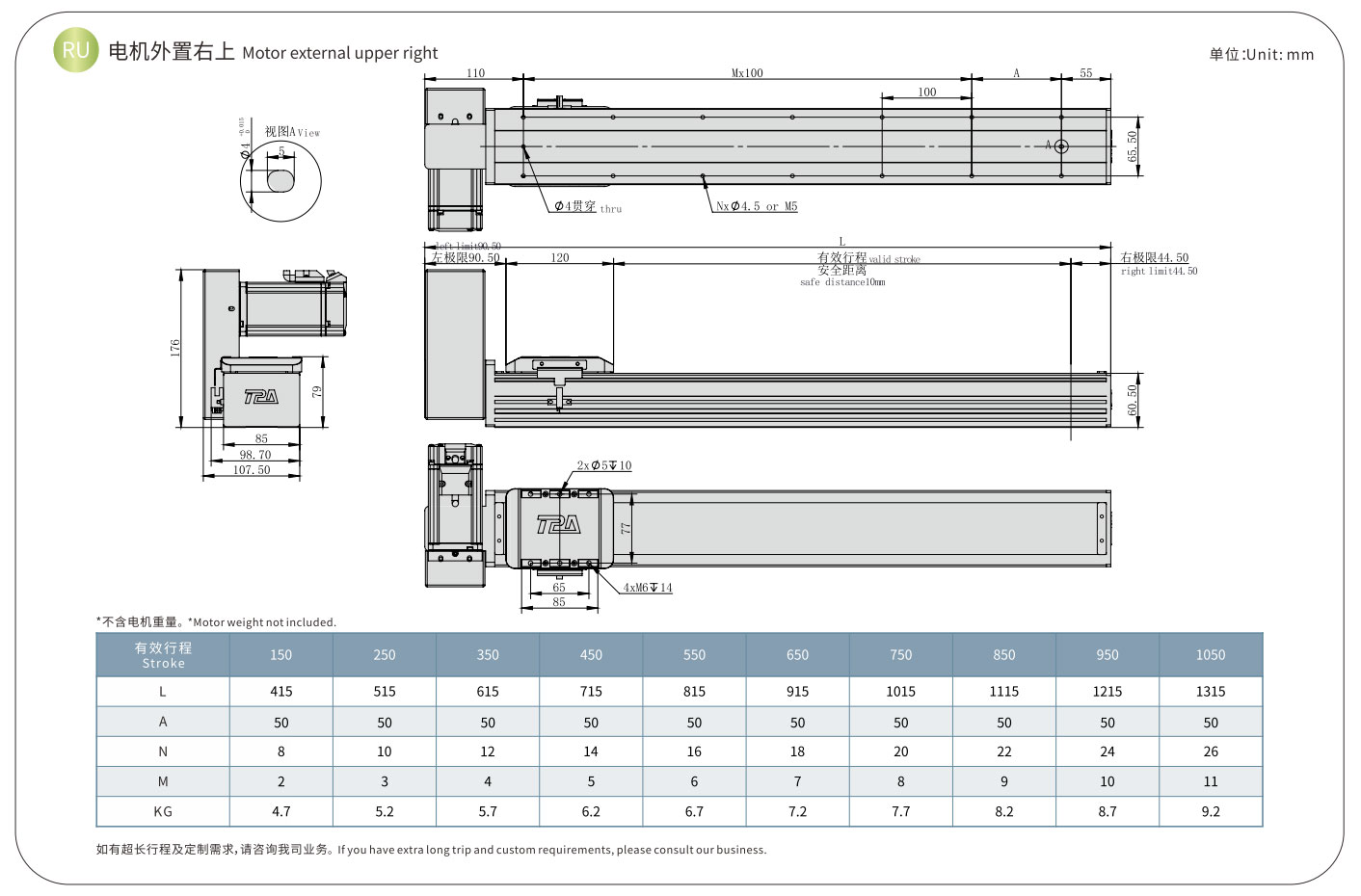

    General-module-Asia-Standard-&-Multi-axis-series-2023_94_07 General-module-Asia-Standard-&-Multi-axis-series-2023_94_10 General-module-Asia-Standard-&-Multi-axis-series-2023_94_03 General-module-Asia-Standard-&-Multi-axis-series-2023_94_05TPA-HCB-85D (3)  TPA-HCB-85D (4)TPA-HCB-85D (6) TPA-HCB-85D (5)TPA-HCB-85D (7) TPA-HCB-85D (8)

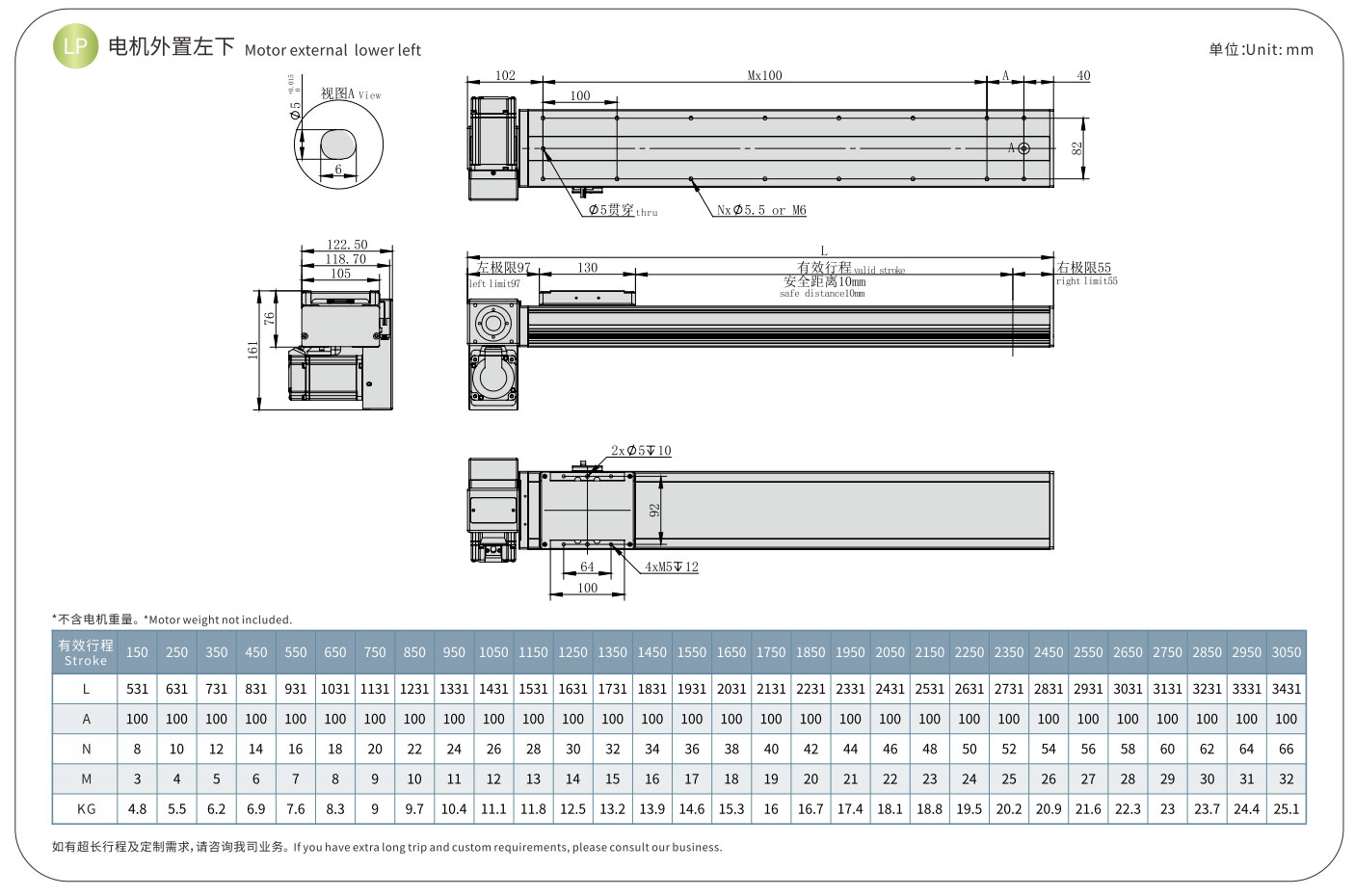

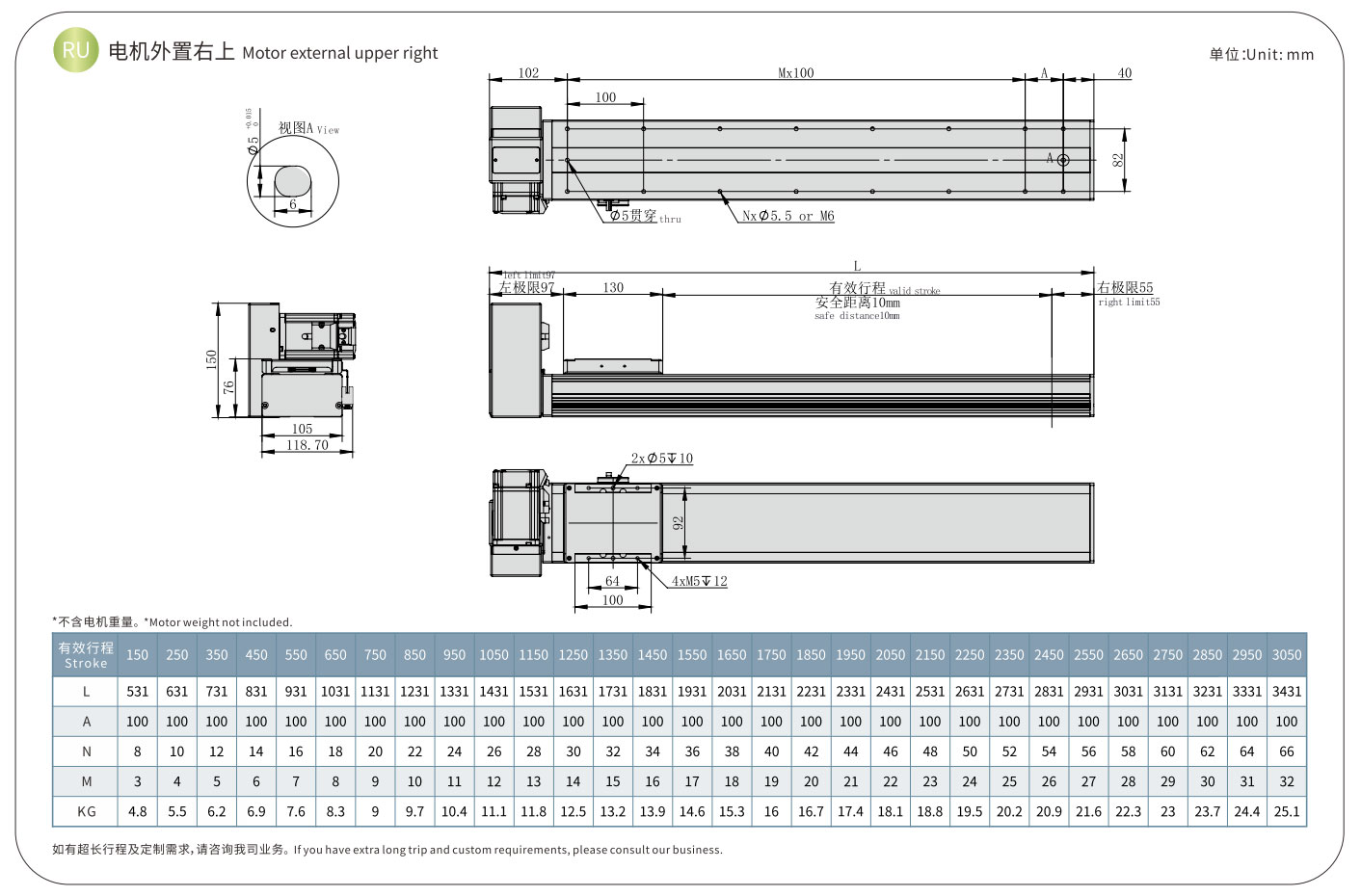

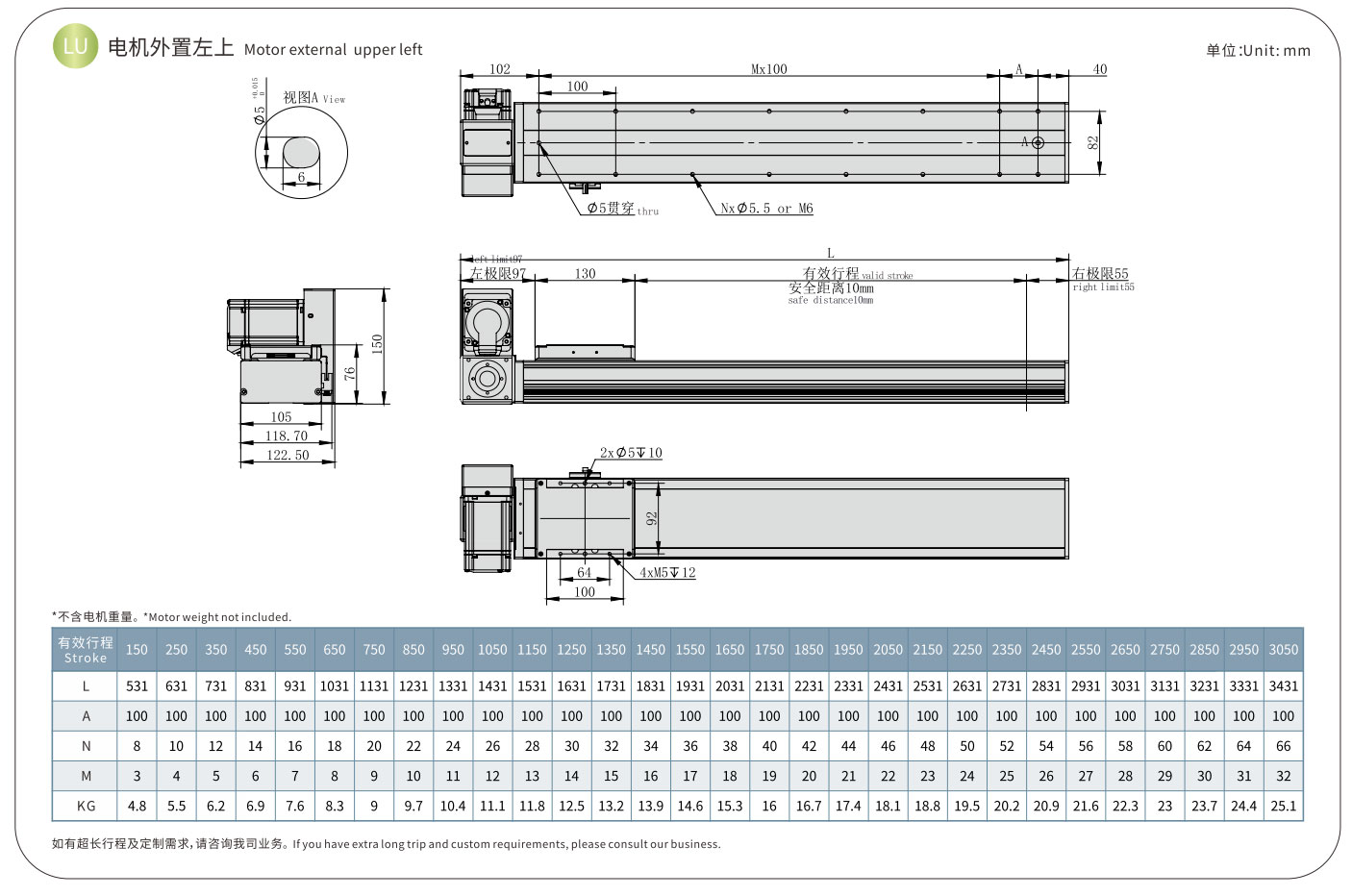

    General-module-Asia-Standard-&-Multi-axis-series-2023_97_07 General-module-Asia-Standard-&-Multi-axis-series-2023_97_10 General-module-Asia-Standard-&-Multi-axis-series-2023_97_03 General-module-Asia-Standard-&-Multi-axis-series-2023_97_05TPA-HCB-105d (3) TPA-HCB-105d (4)  TPA-HCB-105d (6) TPA-HCB-105d (5)TPA-HCB-105d (7) TPA-HCB-105d (8)

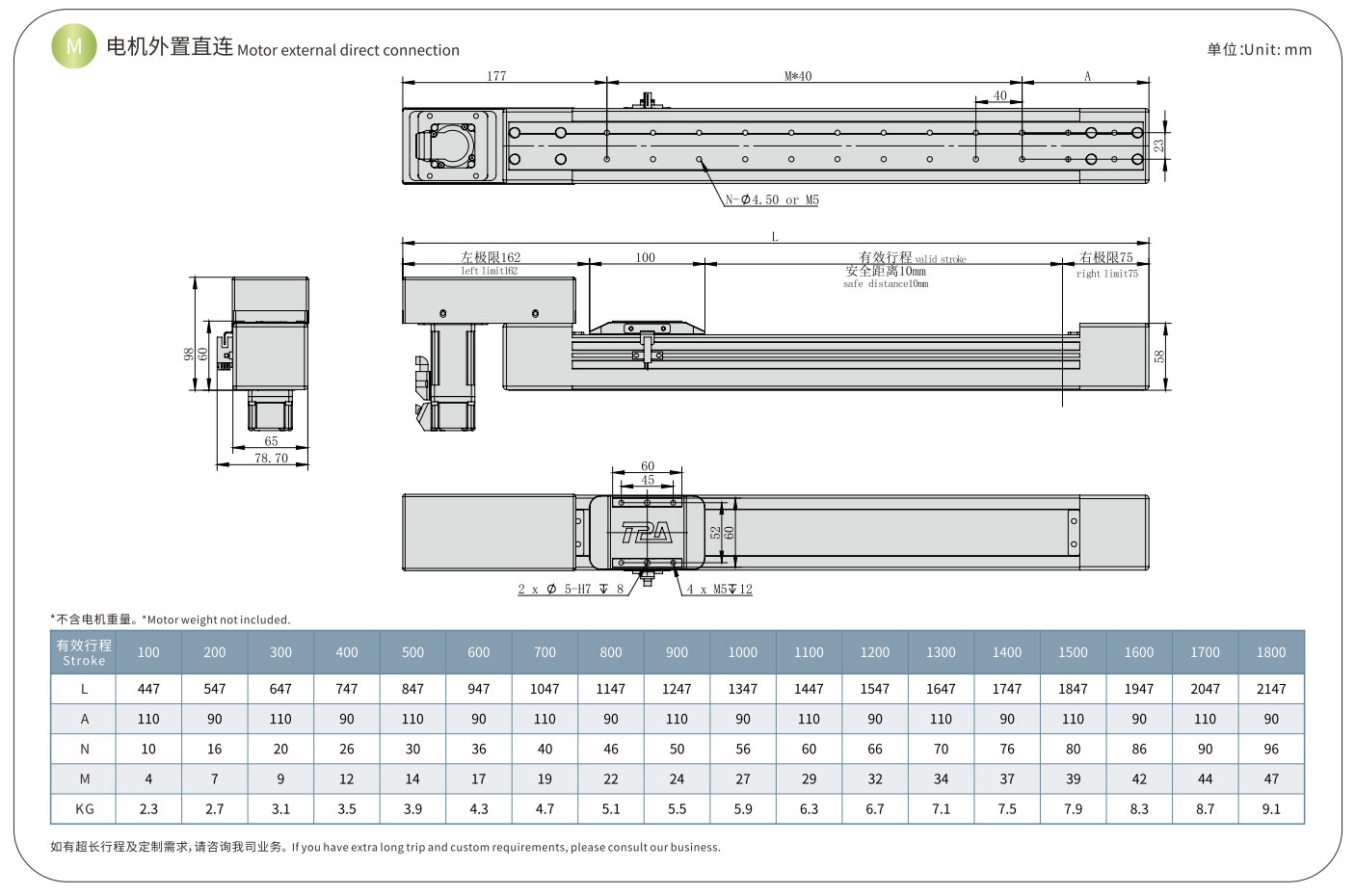

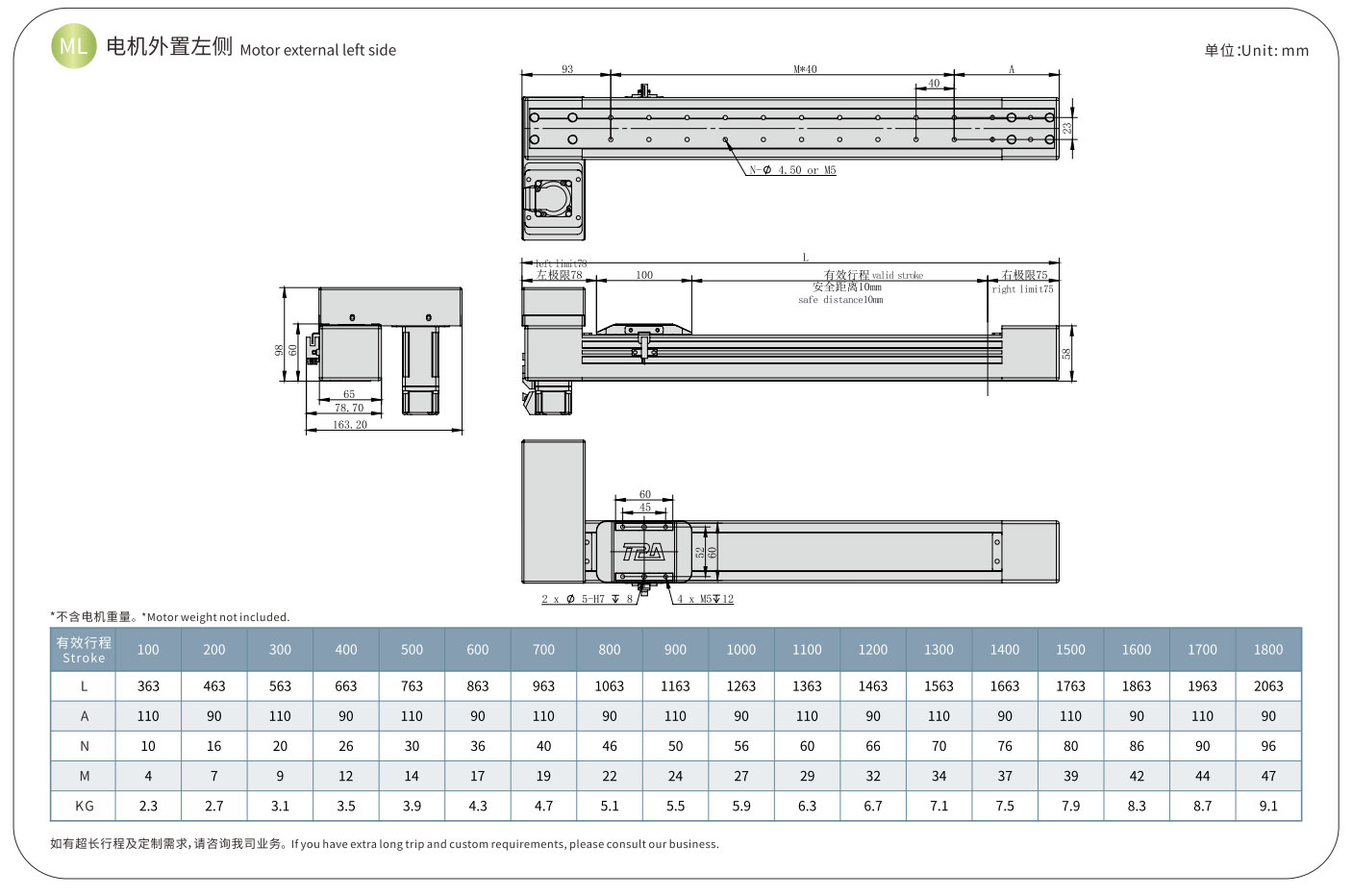

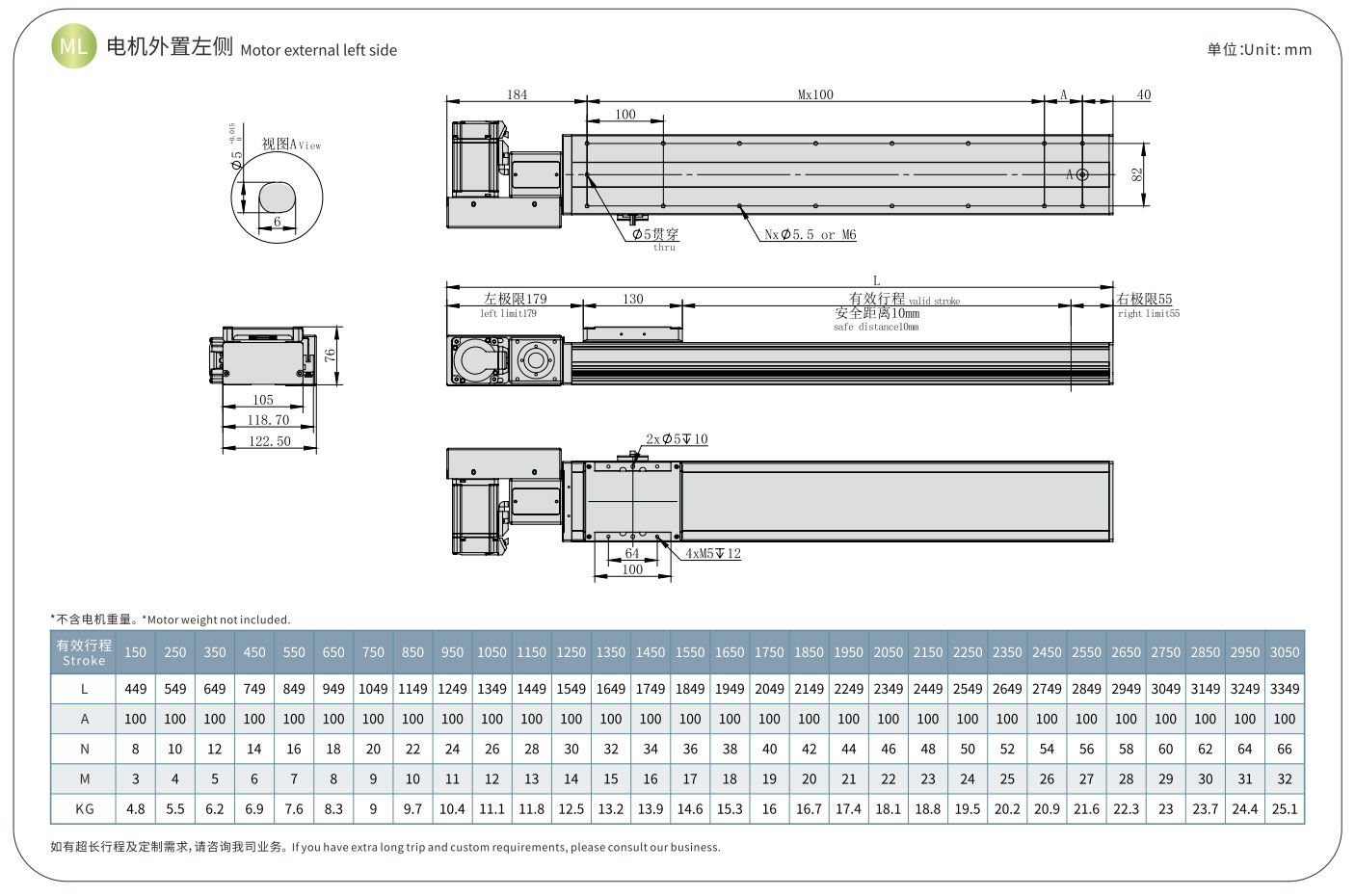

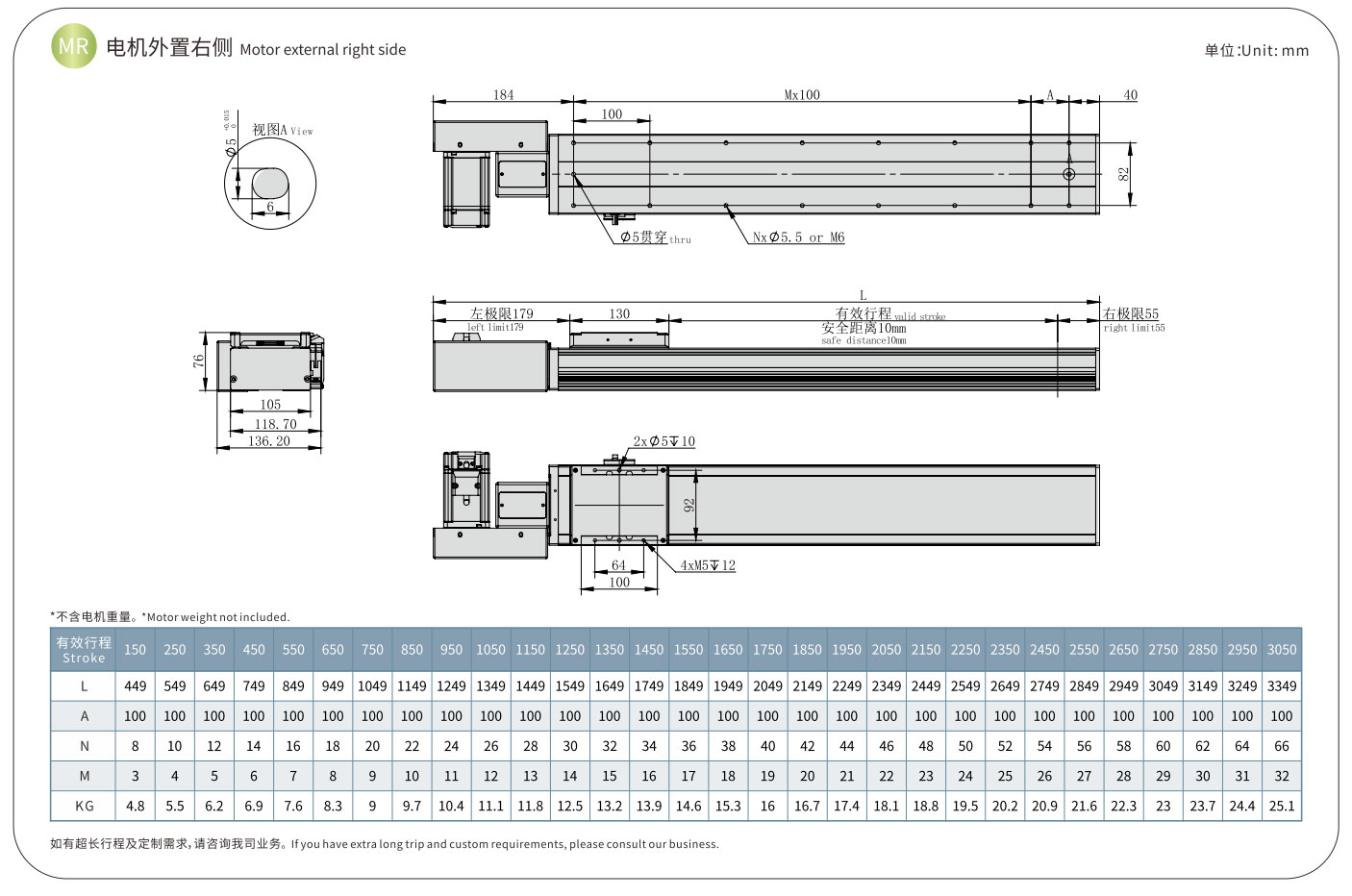

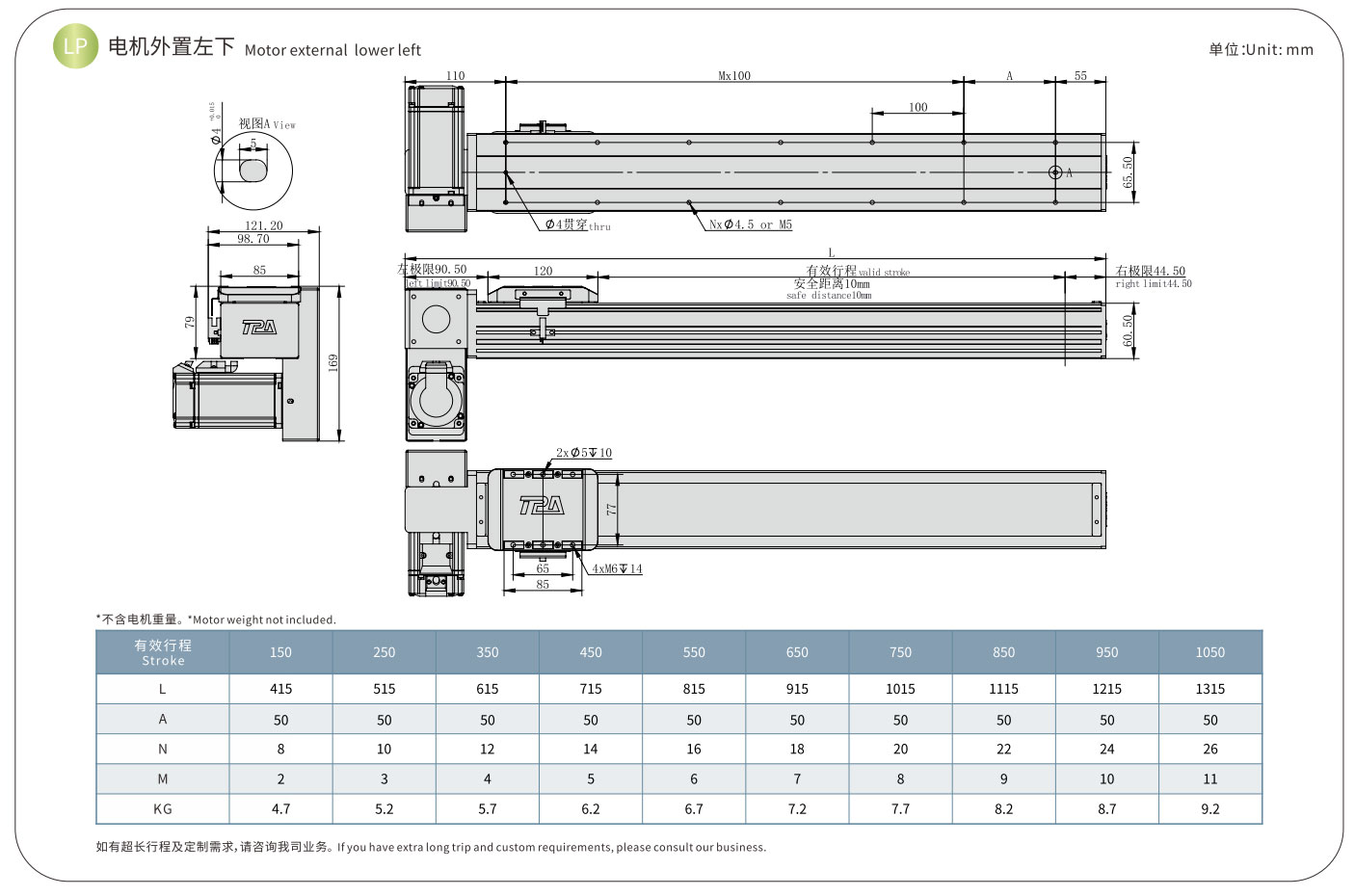

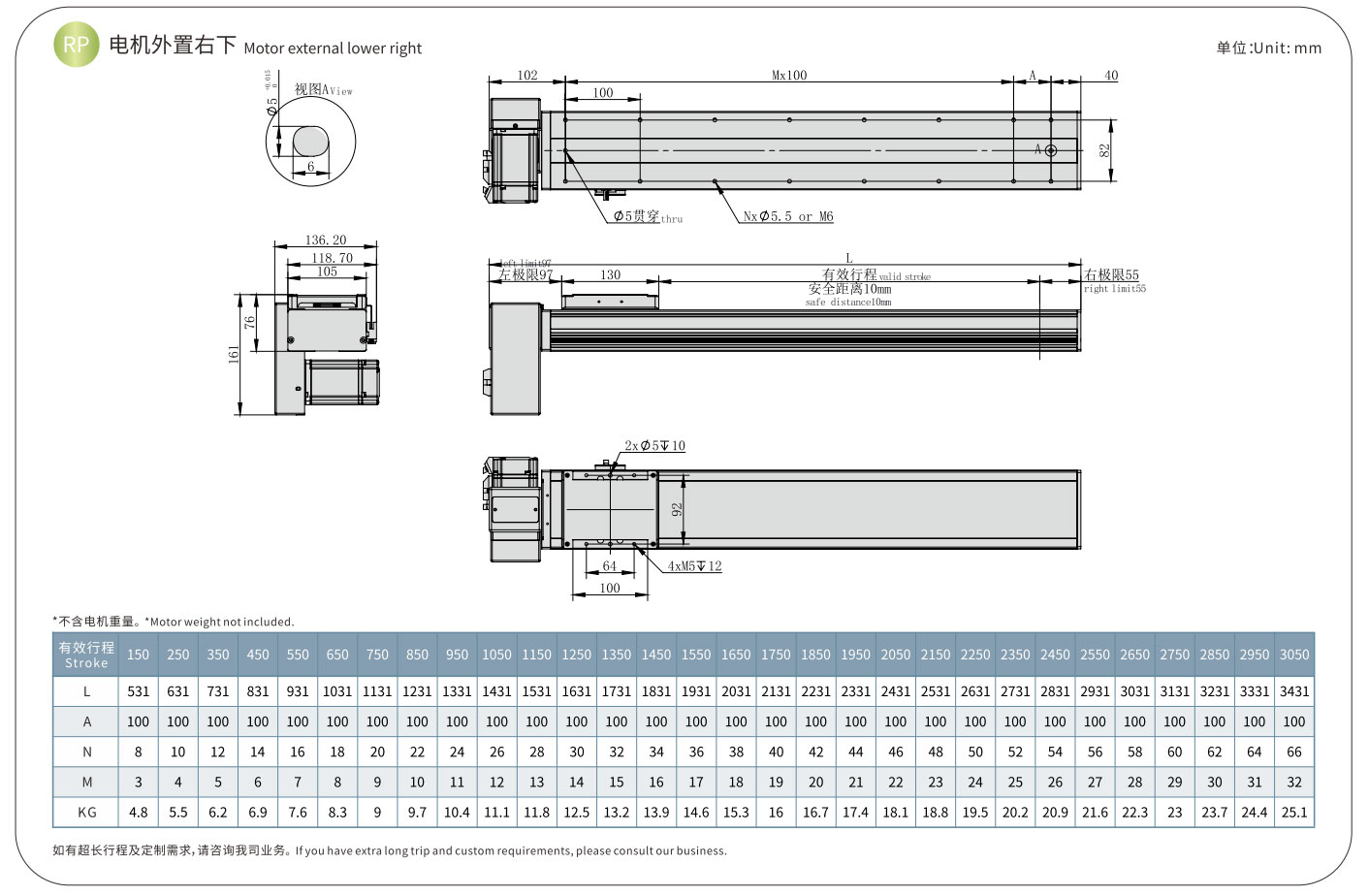

    TPA-HCB-110D (1) TPA-HCB-110D (2)TPA-HCB-110D (9) TPA-HCB-110D (10)TPA-HCB-110D (3) TPA-HCB-110D (4) TPA-HCB-110D (6)TPA-HCB-110D (5) TPA-HCB-110D (7) TPA-HCB-110D (8)

    TPA-HCB-120d (1) TPA-HCB-120d (2)TPA-HCB-120d (9) TPA-HCB-120d (10)TPA-HCB-120d (3) TPA-HCB-120d (4) TPA-HCB-120d (6)TPA-HCB-120d (5) TPA-HCB-120d (7) TPA-HCB-120d (8)

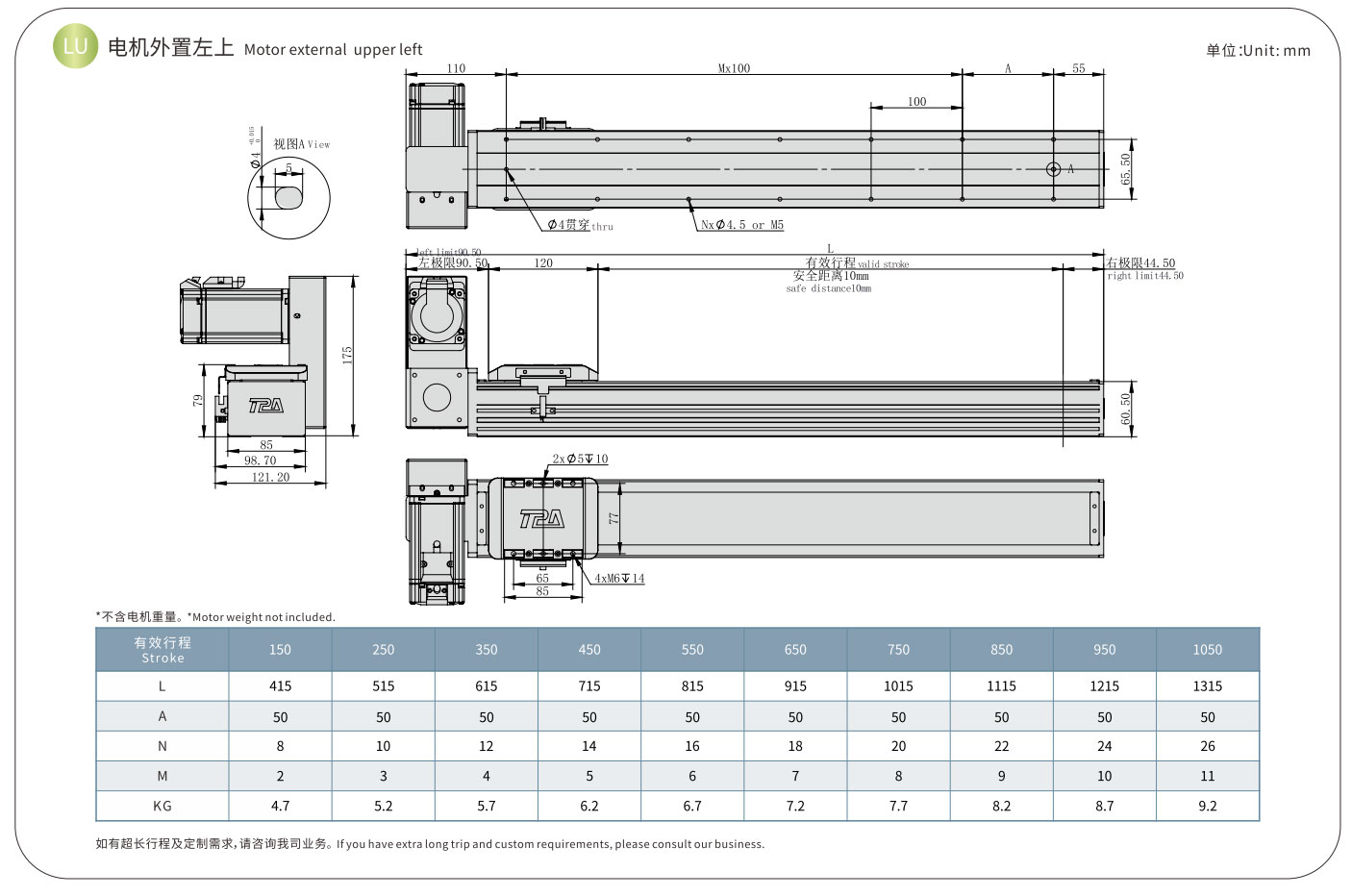

    TPA-HCB-140D (1) TPA-HCB-140D (2) TPA-HCB-140D (9) TPA-HCB-140D (10)TPA-HCB-140D (3) TPA-HCB-140D (4) TPA-HCB-140D (6)TPA-HCB-140D (5) TPA-HCB-140D (7) TPA-HCB-140D (8)

    TPA-HCB-175D (1) TPA-HCB-175D (2) TPA-HCB-175D (9) TPA-HCB-175D (10)TPA-HCB-175D (3) TPA-HCB-175D (4) TPA-HCB-175D (6)TPA-HCB-175D (5) TPA-HCB-175D (7) TPA-HCB-175D (8)

    TPA-HCB-202D (1) TPA-HCB-202D (2) TPA-HCB-202D (9) TPA-HCB-202D (10)TPA-HCB-202D (3) TPA-HCB-202D (4) TPA-HCB-202D (6)TPA-HCB-202D (5) TPA-HCB-202D (7) TPA-HCB-202D (8)

    TPA-HCB-220D (1) TPA-HCB-220D (2) TPA-HCB-220D (9) TPA-HCB-220D (10)TPA-HCB-220D (3) TPA-HCB-220D (4) TPA-HCB-220D (6)TPA-HCB-220D (5) TPA-HCB-220D (7) TPA-HCB-220D (8)

    TPA-HCB-270D (1) TPA-HCB-270D (2) TPA-HCB-270D (9) TPA-HCB-270D (10)TPA-HCB-270D (3) TPA-HCB-270D (4) TPA-HCB-270D (6)TPA-HCB-270D (5) TPA-HCB-270D (7) TPA-HCB-270D (8)

    ( Unit:mm )
