ONB Series Servo Motor Integrated Belt Drive Linear Actuators

Model Selector

  • Series:
    ONB-60 ONB-80 ONB-100 ONB-120 ONB-120F ONB-140
  • Belt Lead:
    256MM
  • Repeated positioning accuracy:
    ±0.05mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor Left Side Motor Right Side Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Reduction box
  • Motor Power:
    200W 400W 750W 1000W
  • Motor Brake:
    Brake
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

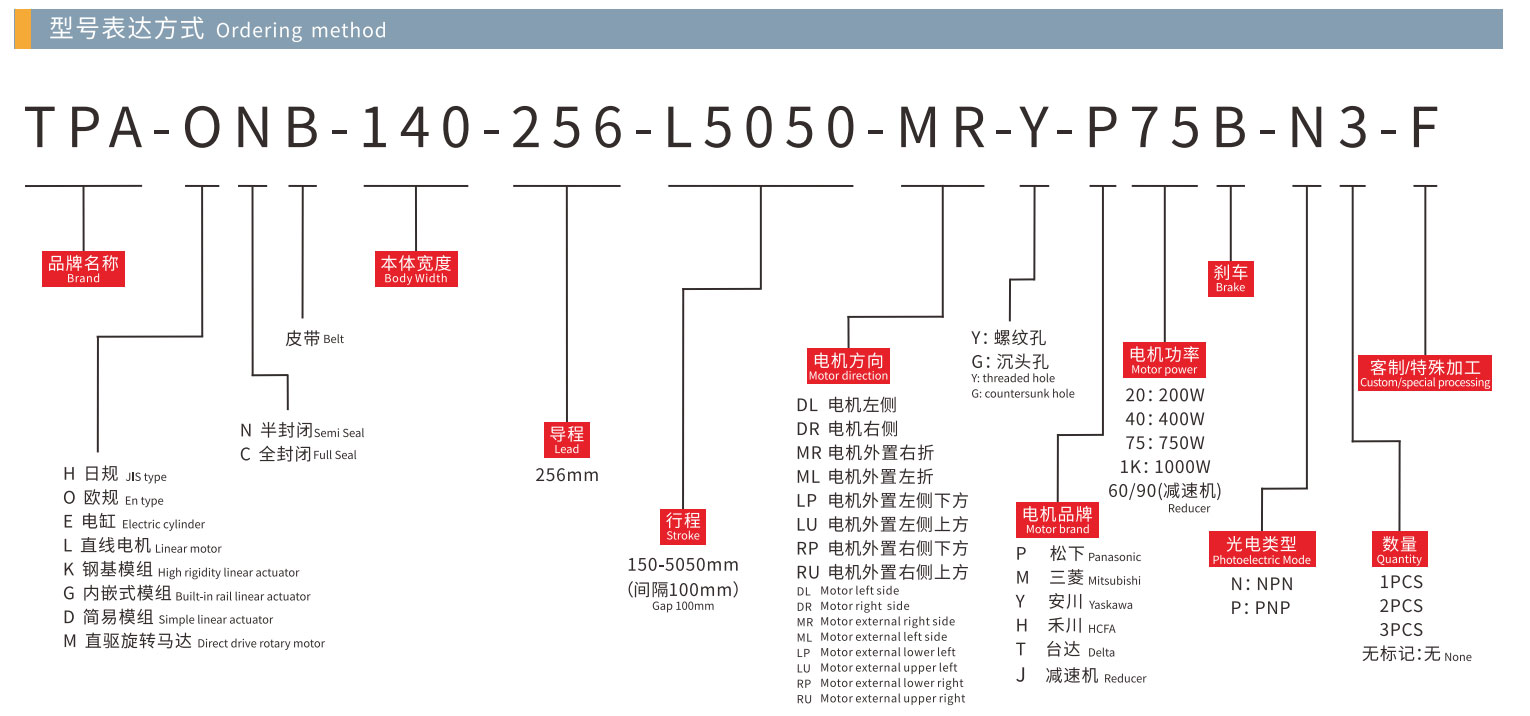

    TPA-?-?-?-?-?-???-?

  • Belt Lead:
    256MM
  • Repeated positioning accuracy:
    ±0.05mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor Left Side Motor Right Side Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole countersunk Hole
  • Motor Brand:
    Panasonic Mitsubishi Yaskawa HCFA Delta Reduction box
  • Motor Power:
    200W 400W 750W 1000W
  • Motor Brake:
    Brake
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-?-?-?-?-???-?

  • Belt Lead:
    232MM
  • Repeated positioning accuracy:
    ±0.05mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor Left Side Motor Right Side Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Reduction box
  • Motor Power:
    200W 400W 750W 1000W
  • Motor Brake:
    Brake
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-?-?-?-?-???-?

  • Belt Lead:
    256MM
  • Repeated positioning accuracy:
    ±0.05mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor Left Side Motor Right Side Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Reduction box
  • Motor Power:
    200W 400W 750W 1000W
  • Motor Brake:
    Brake
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-?-?-?-?-???-?

  • Belt Lead:
    90MM
  • Repeated positioning accuracy:
    ±0.05mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor Left Side Motor Right Side Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Reduction box
  • Motor Power:
    200W 400W 750W 1000W
  • Motor Brake:
    Brake
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-?-?-?-?-???-?

  • Belt Lead:
    256MM
  • Repeated positioning accuracy:
    ±0.05mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm 3150mm 3250mm 3350mm 3450mm 3550mm 3650mm 3750mm 3850mm 2950mm 4050mm 4150mm 4250mm 4450mm 4550mm 4650mm 4750mm 4850mm 4950mm 5050mm
  • Motor Direction:
    Motor Left Side Motor Right Side Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Lower Right
  • Mounting Hole:
    Threaded Hole countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Reduction box
  • Motor Power:
    200W 400W 750W 1000W
  • Motor Brake:
    Brake
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-?-?-?-?-???-?

  • Product Detail

    ONB-60

    ONB-80

    ONB-100

    ONB-120

    ONB-120F

    ONB-140

    TPA ONB series belt driven linear module adopts an integrated design combining servo motor and belt with semi-closed design, which converts the rotary motion of the servo motor into linear motion, precisely controls the speed, position, and thrust of the slider, and realizes high precision automatic control.

    The semi-closed belt-drives linear actuator, and the belt width is large and the profile is open. To some extent, the belt is used instead of the cover plate to prevent foreign objects from entering the module.

    ONB-60

    ONB-60

    ONB-80

    ONB-80

    ONB-100

    ONB-100

    ONB-120

    ONB-120

    ONB-120F

    ONB-120F

    ONB-140

    ONB-140

  • Features

    Repeated Positioning Accuracy: ±0.05mm
    Max Payload(Horizontal): 230kg
    Max Payload(Vertical): 90kg
    Stroke: 150 – 5050mm
    Max Speed: 2300mm/s

    ONB Series

    The profile design uses finite element stress analysis to simulate the rigidity and structural stability of the profile, reducing the volume and improving the load capacity.

    S5M and S8M series are used for the synchronous belt and synchronous wheel, with overload, super torque and super precision. The customer chooses circular arc tooth type for vertical use, T-shaped tooth type for horizontal high-speed running, and rubber open belt for high temperature, which can meet various applications of customers.

    When the vertical and side loads are large, you can choose to install an auxiliary guide rail on the side of the profile to strengthen the lateral moment of the module, and can also increase the strength of the module and the stability of the module in use and operation.

    Easy installation, the three sides of the profile are designed with slider nut grooves, and any three sides can be installed

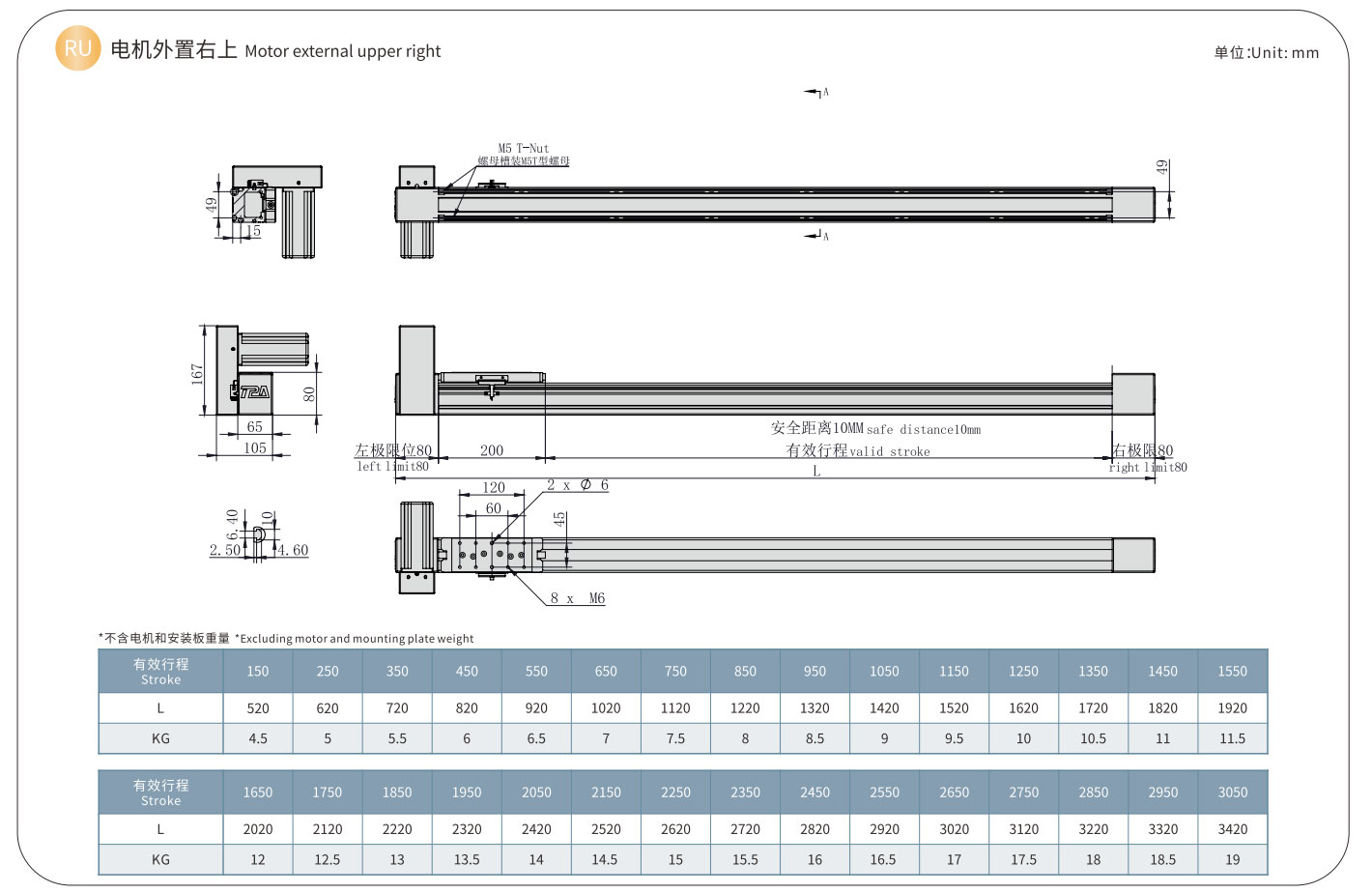

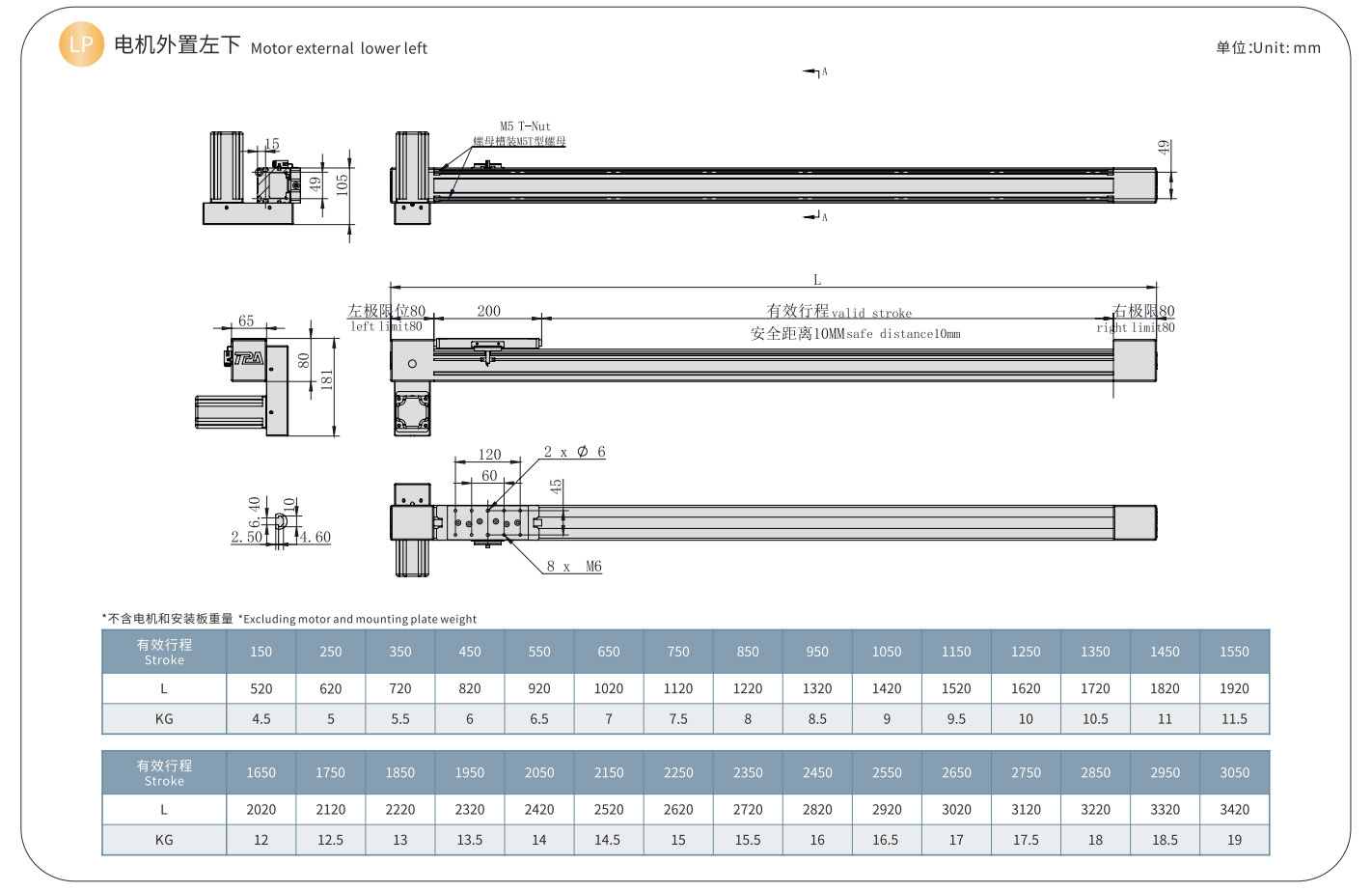

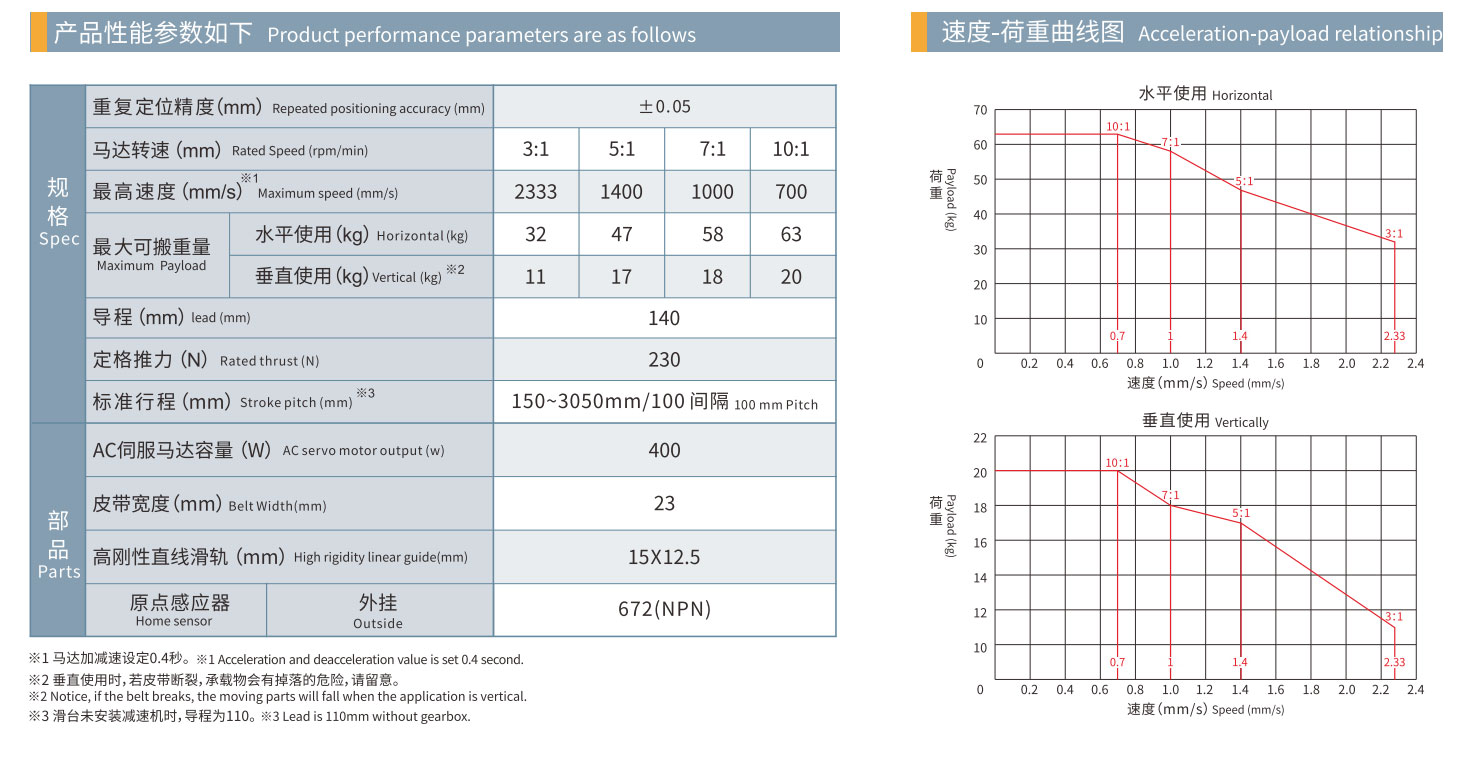

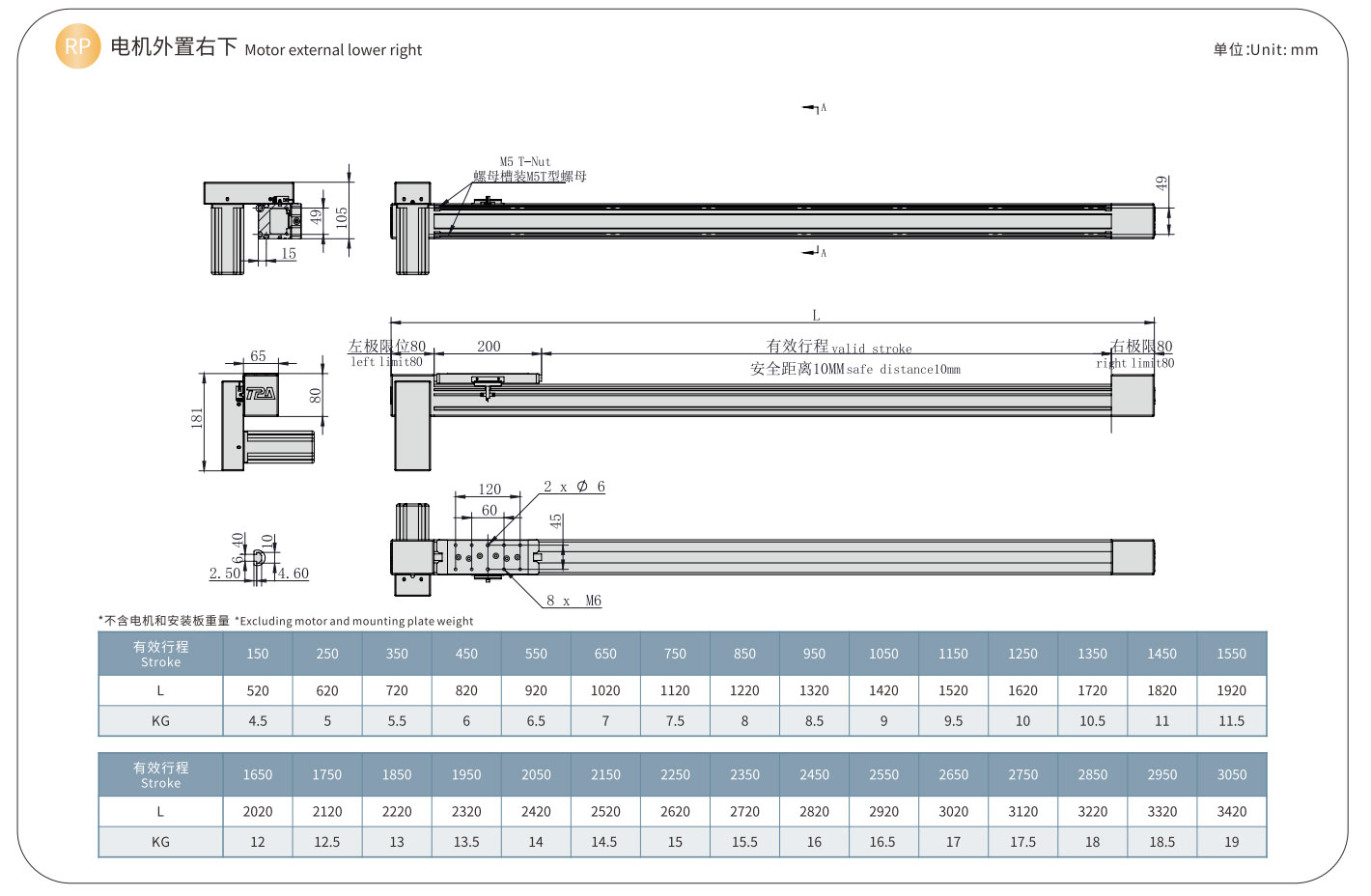

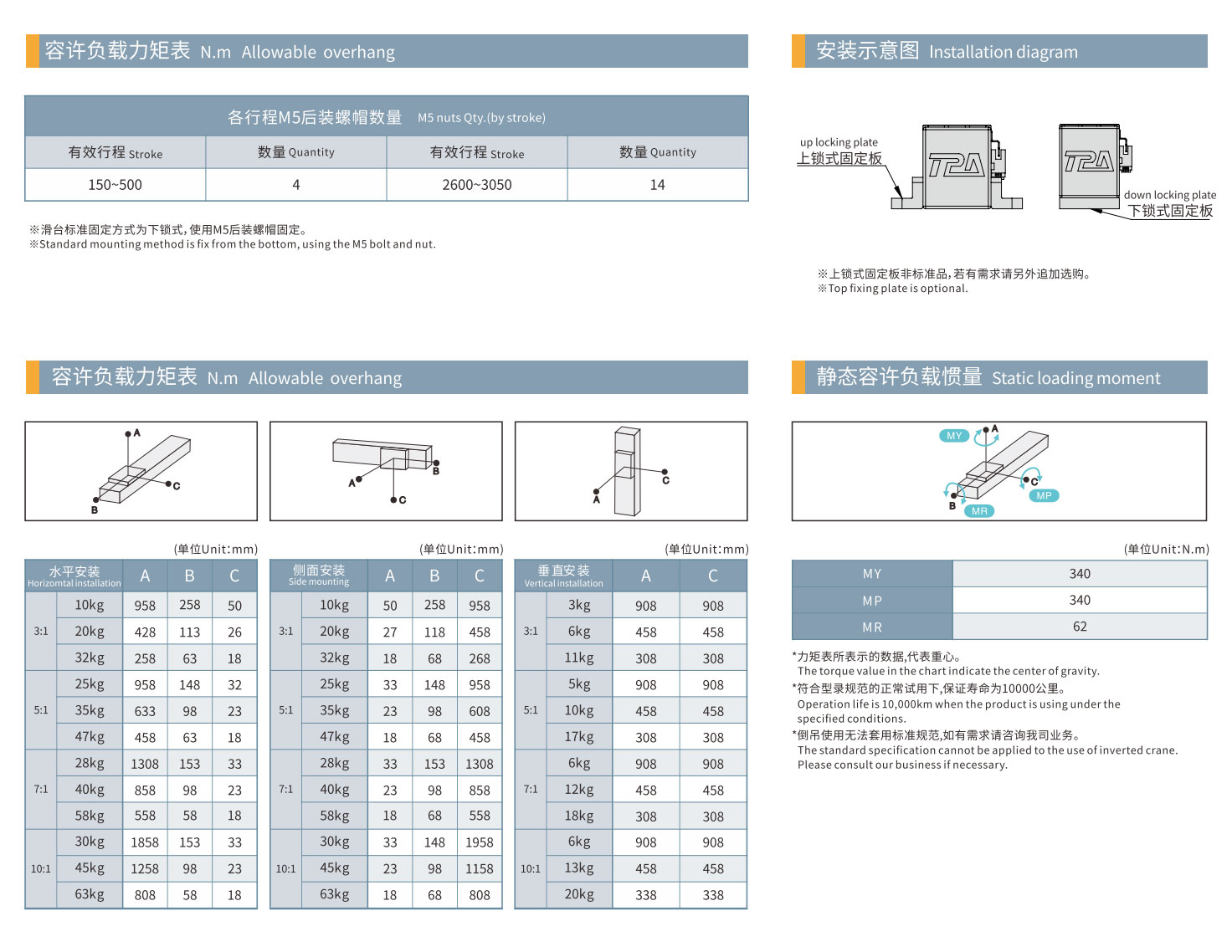

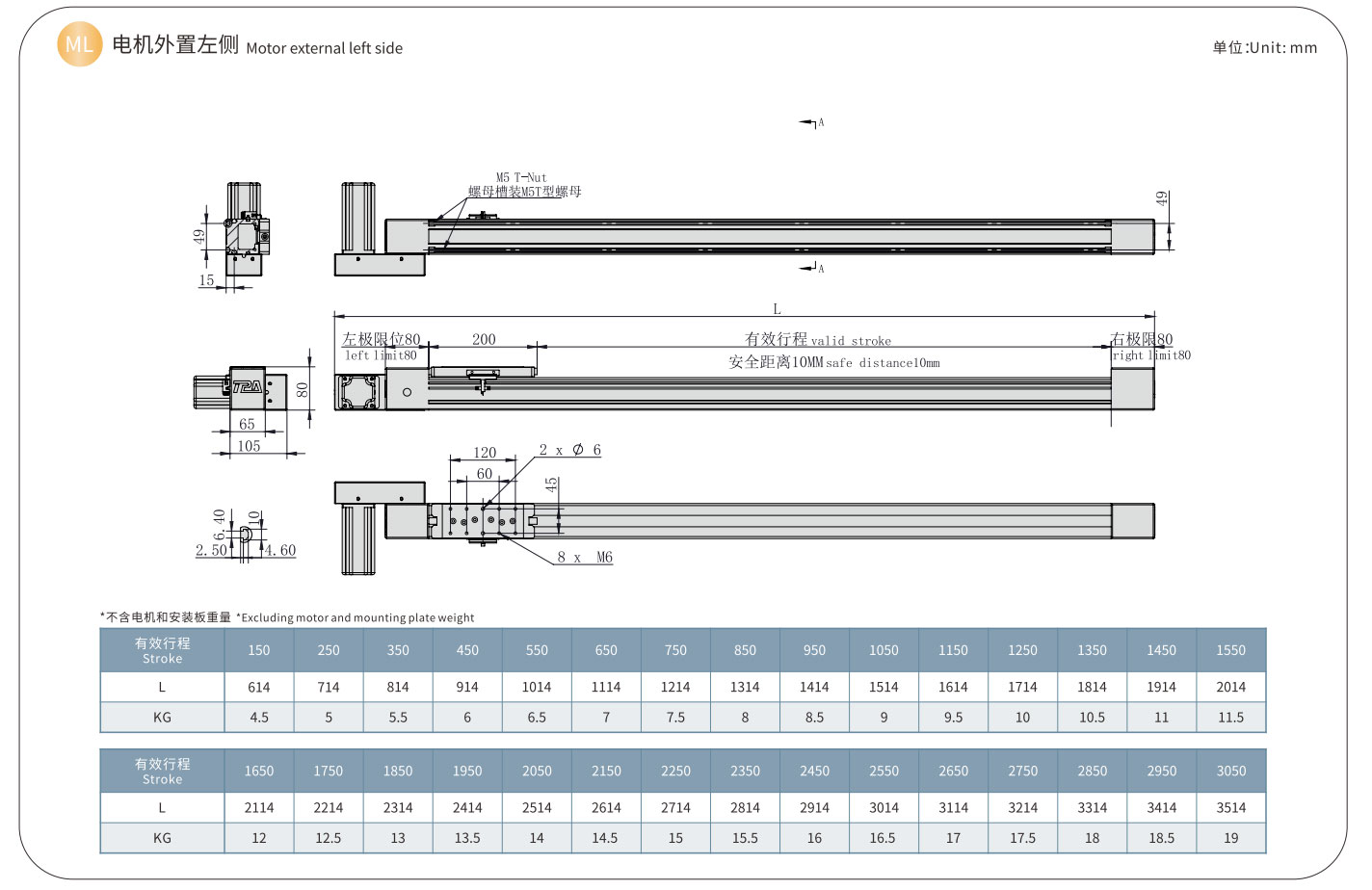

  • Belt-Driven-Module-Europe-standard2023_17_07 Belt-Driven-Module-Europe-standard2023_17_10 Belt-Driven-Module-Europe-standard2023_17_03 Belt-Driven-Module-Europe-standard2023_17_05TPA-ONB-60 (1) TPA-ONB-60 (3)TPA-ONB-60 (2) TPA-ONB-60 (4) TPA-ONB-60 (5) TPA-ONB-60 (6)

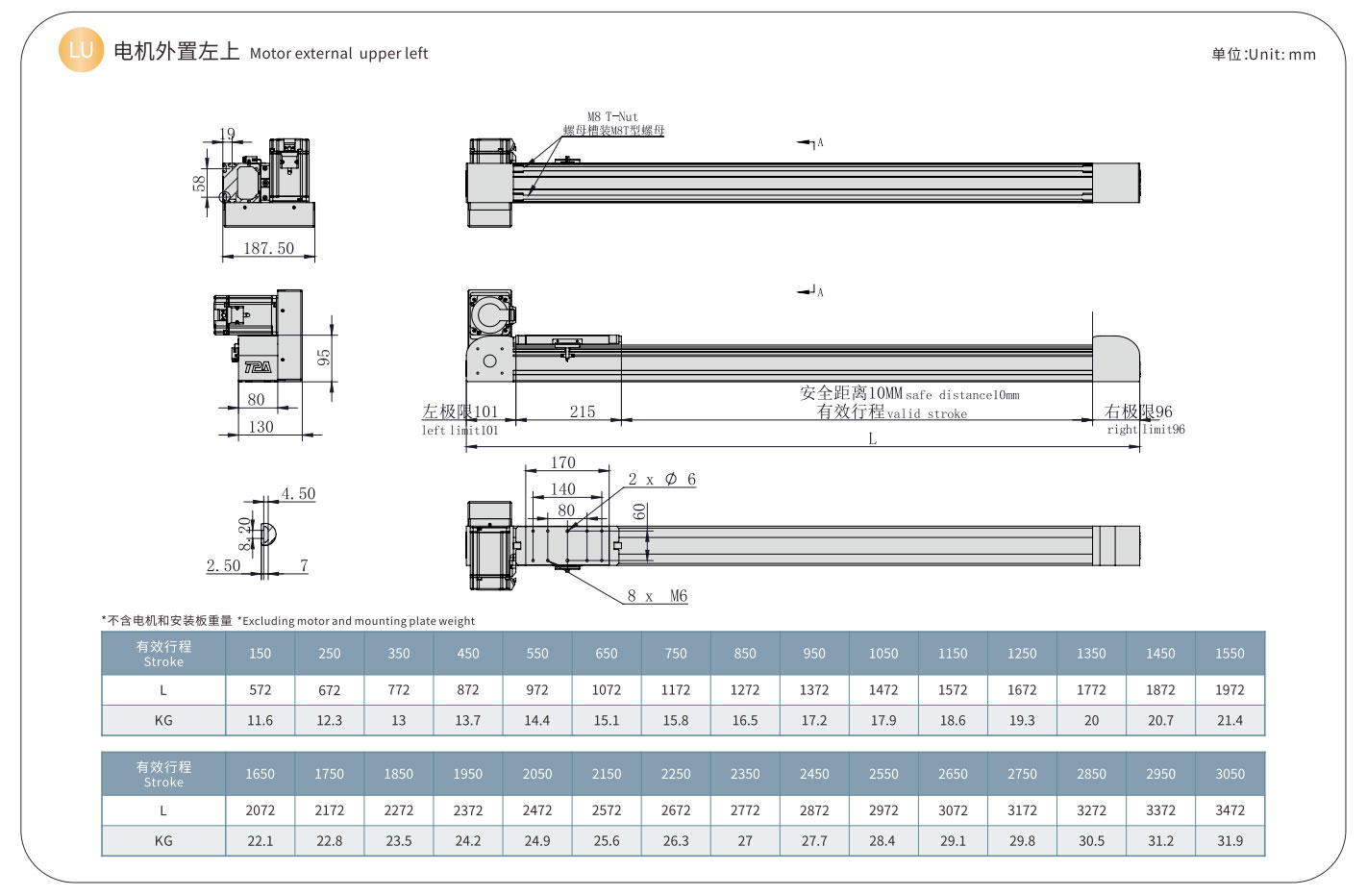

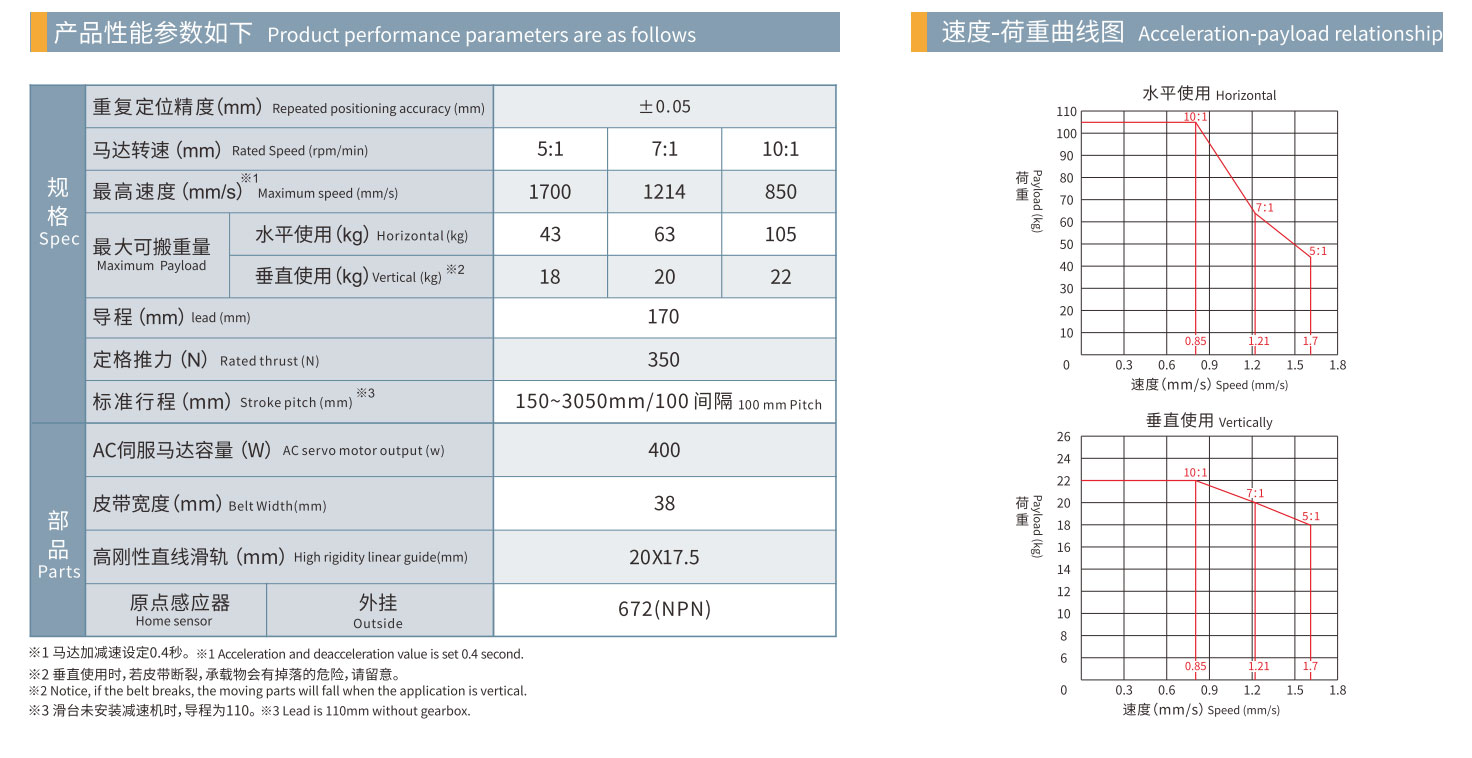

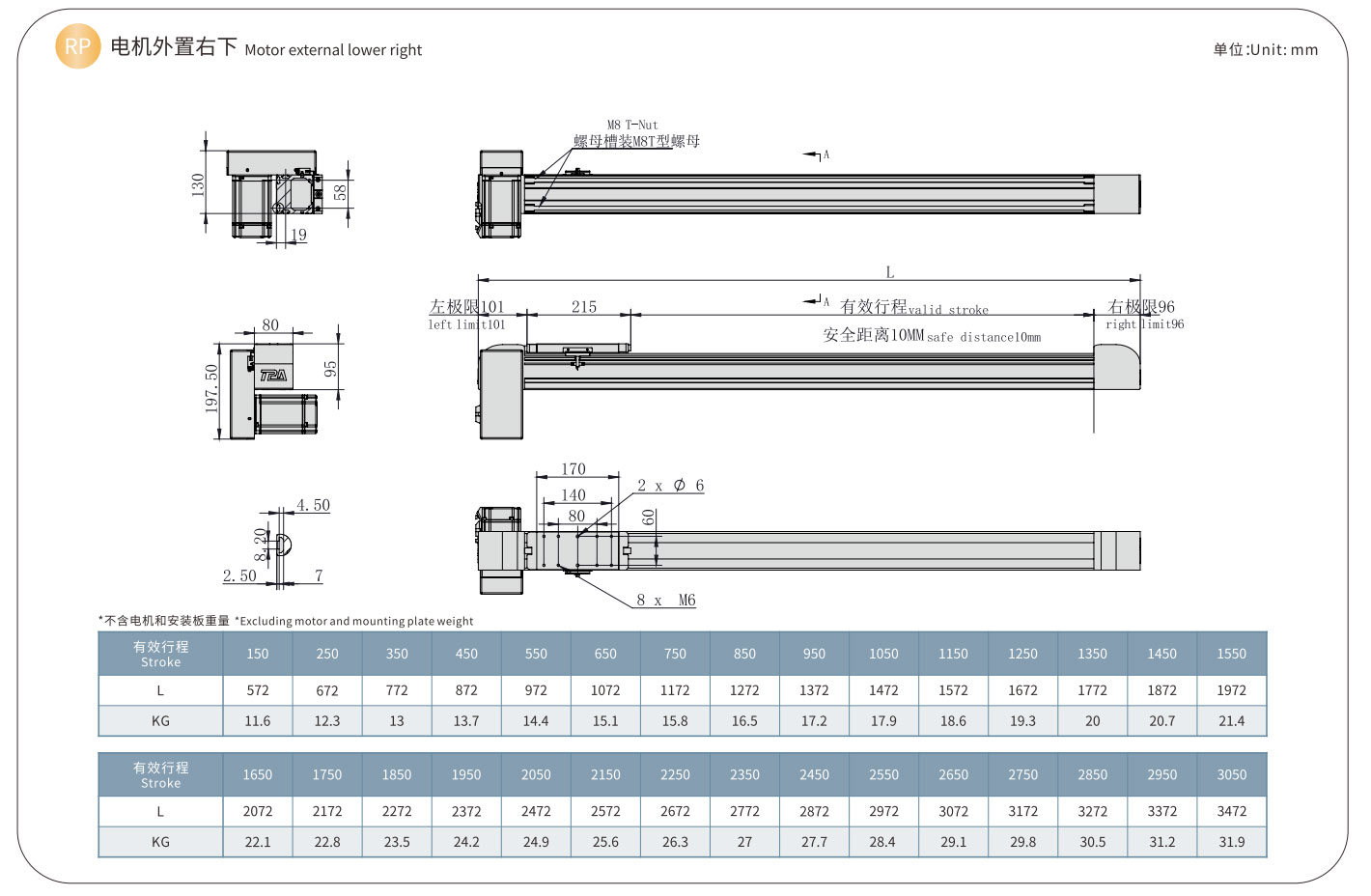

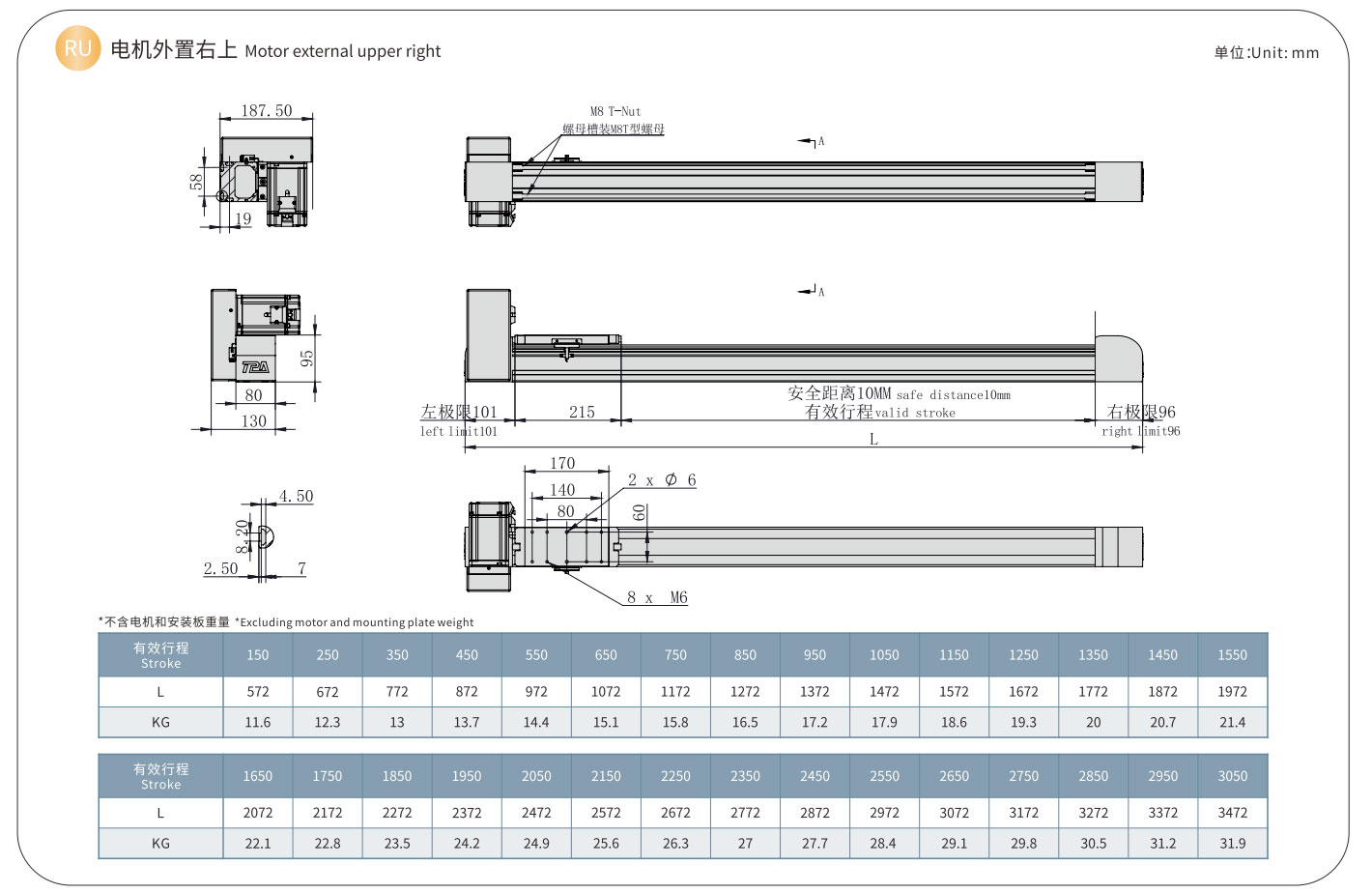

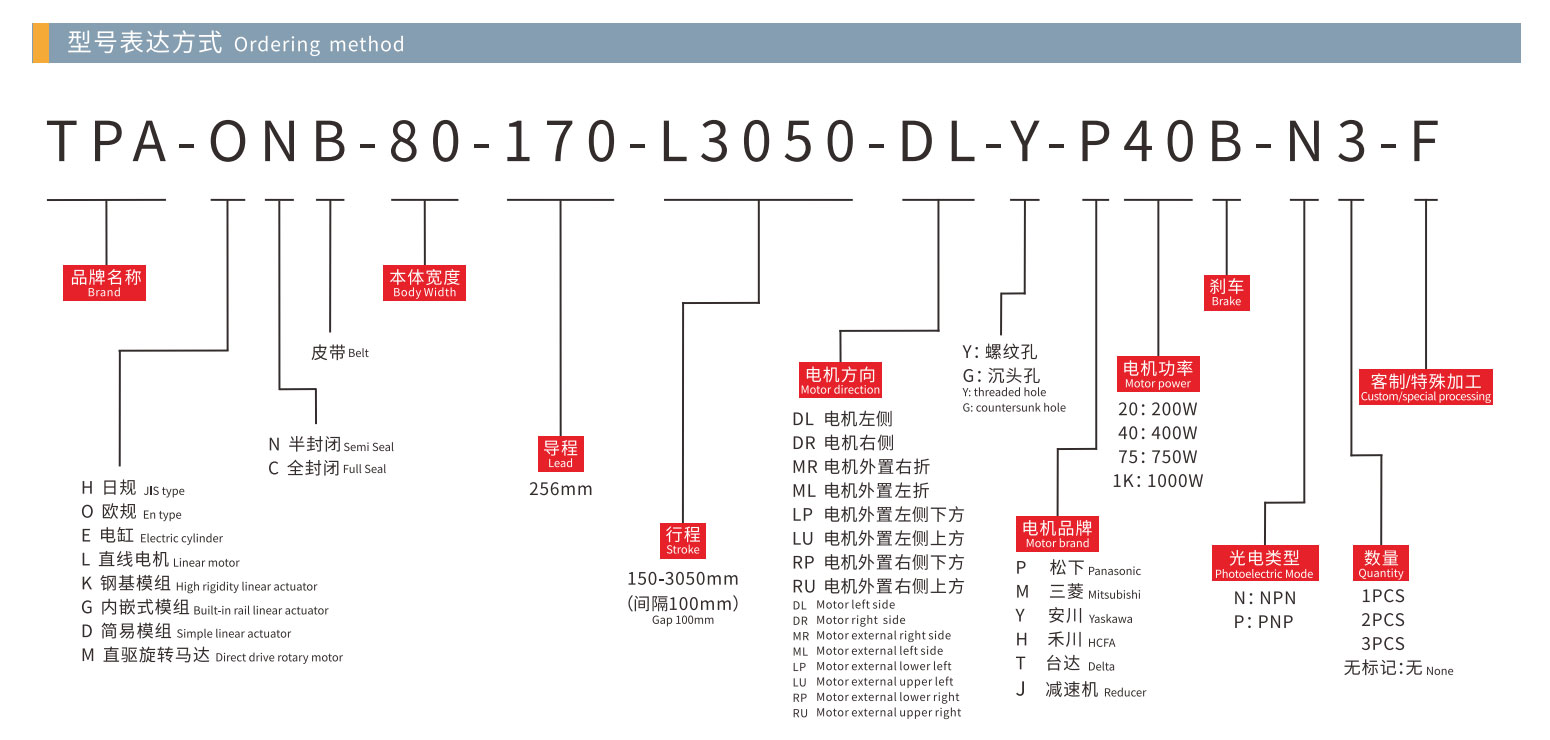

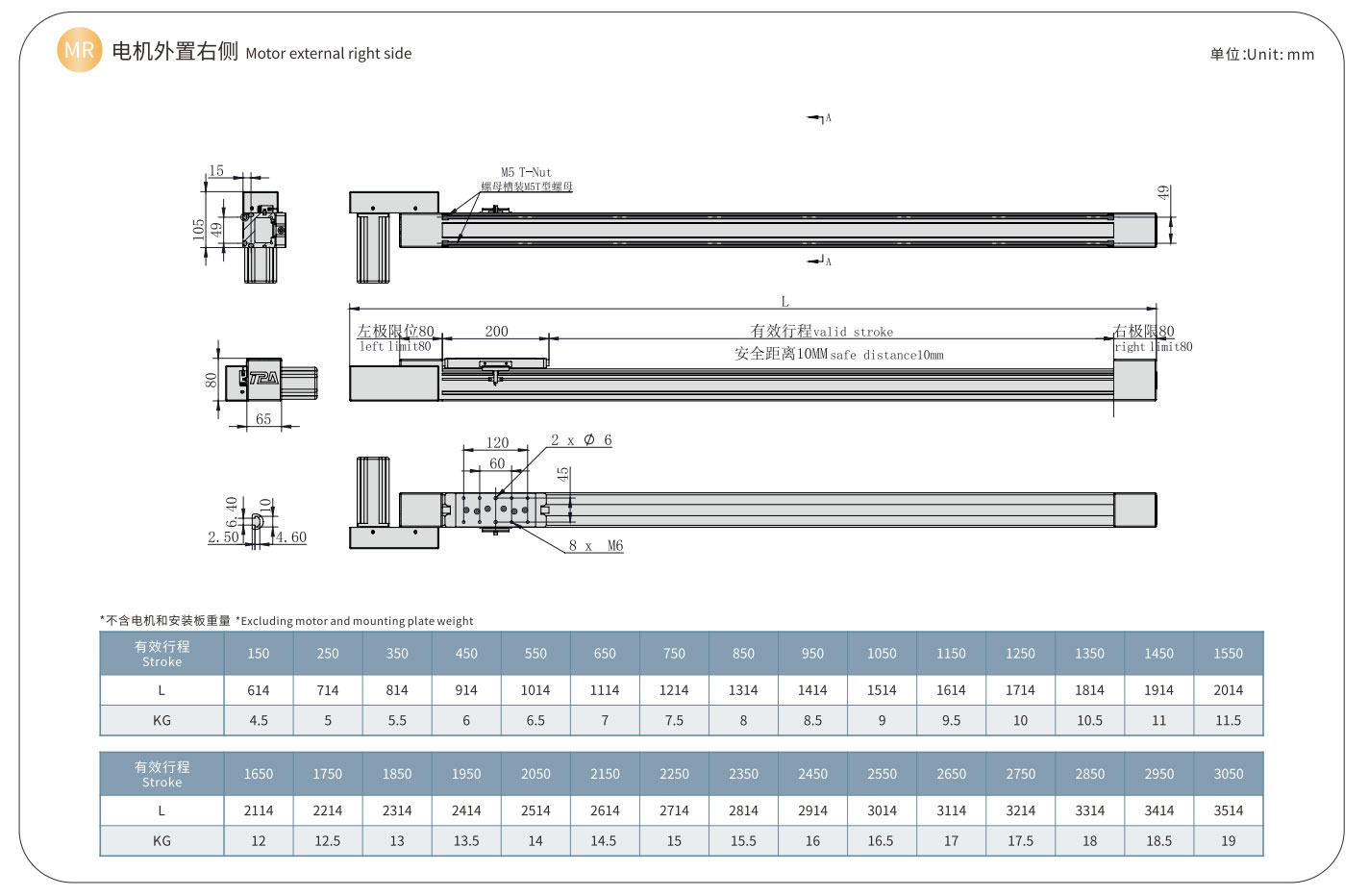

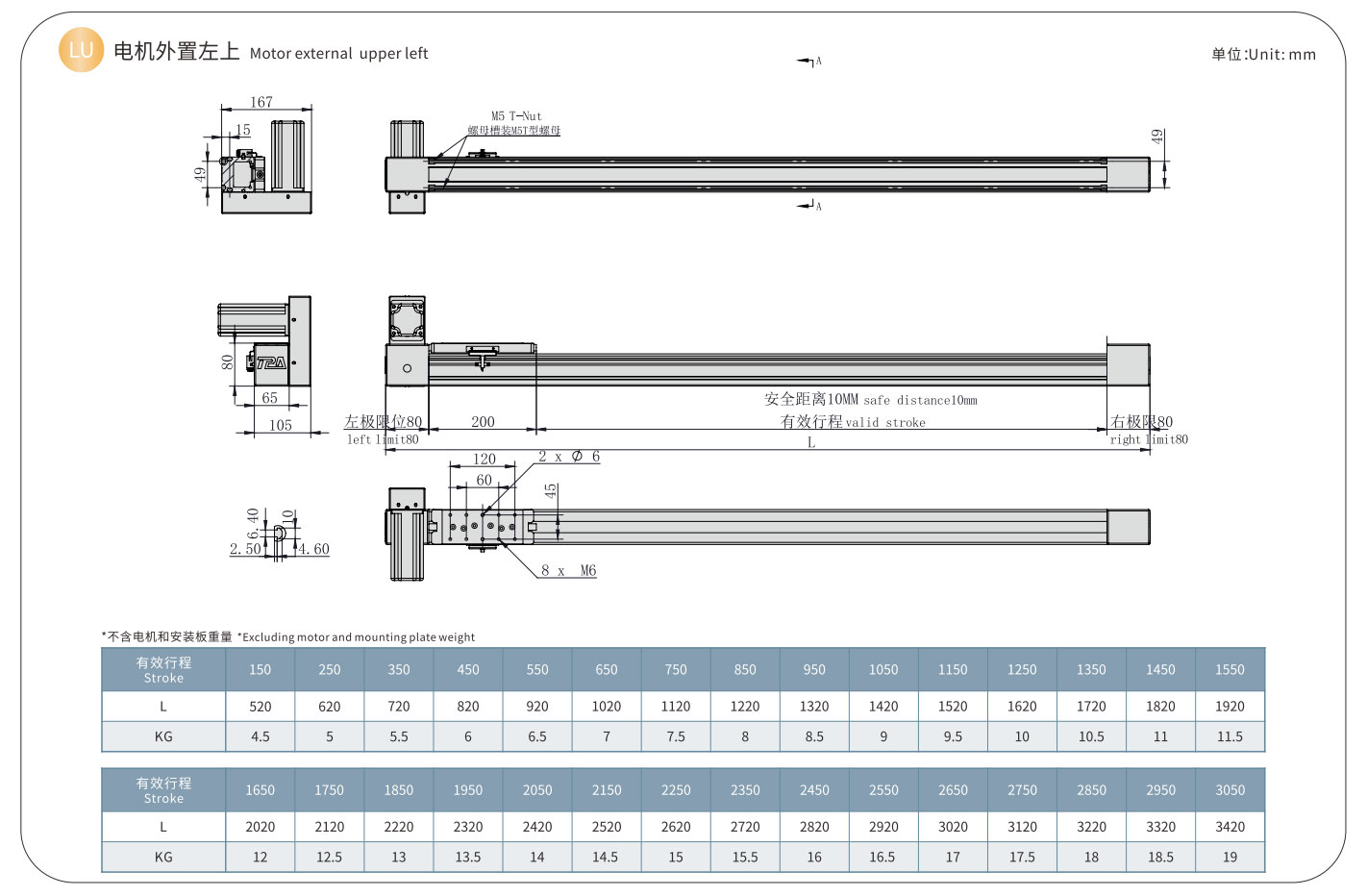

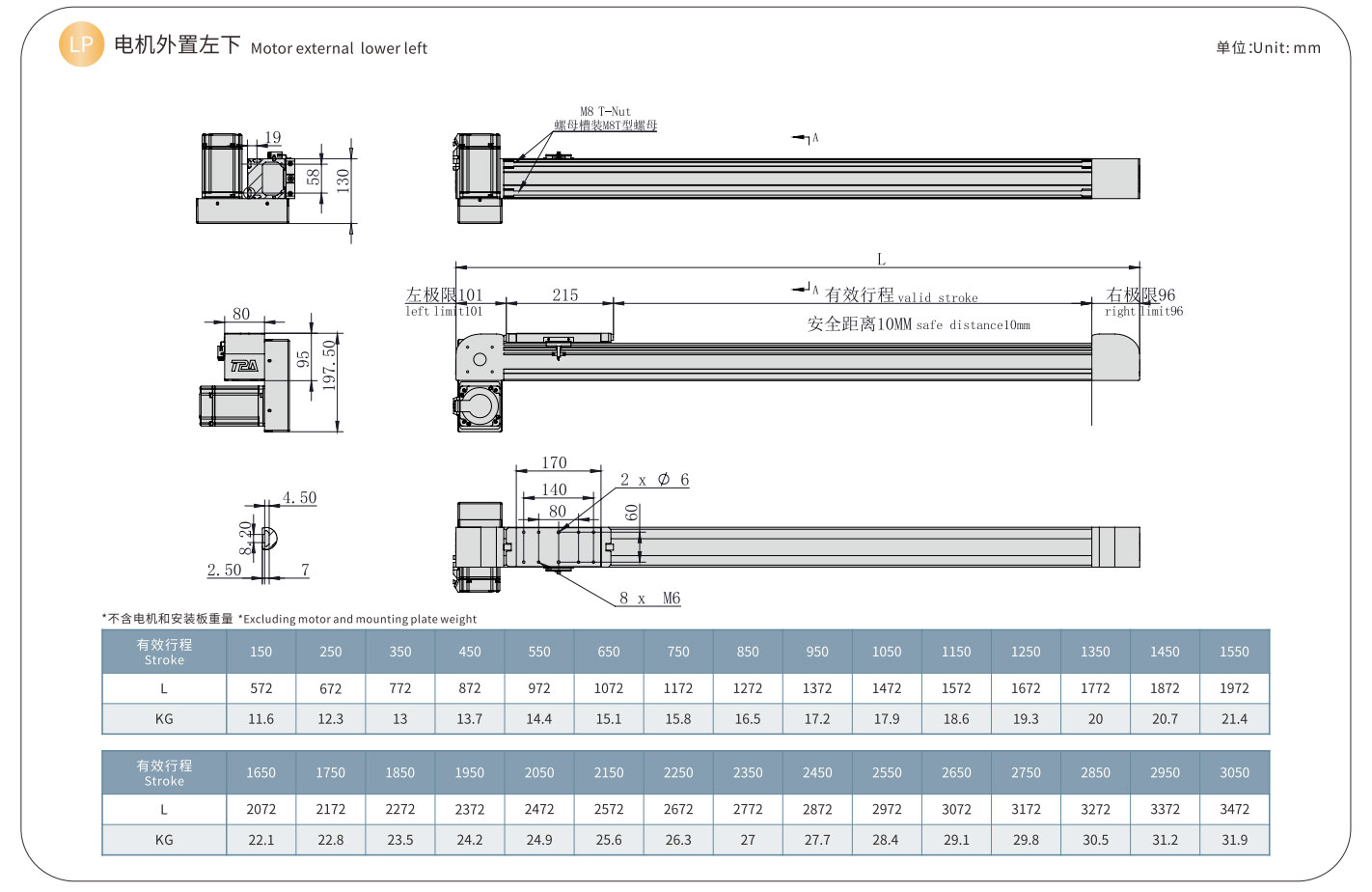

    Belt-Driven-Module-Europe-standard2023_20_07 Belt-Driven-Module-Europe-standard2023_20_10 Belt-Driven-Module-Europe-standard2023_20_03 Belt-Driven-Module-Europe-standard2023_20_05TPA-ONB-80 (1) TPA-ONB-80 (3)TPA-ONB-80 (2) TPA-ONB-80 (4) TPA-ONB-80 (5) TPA-ONB-80 (6)

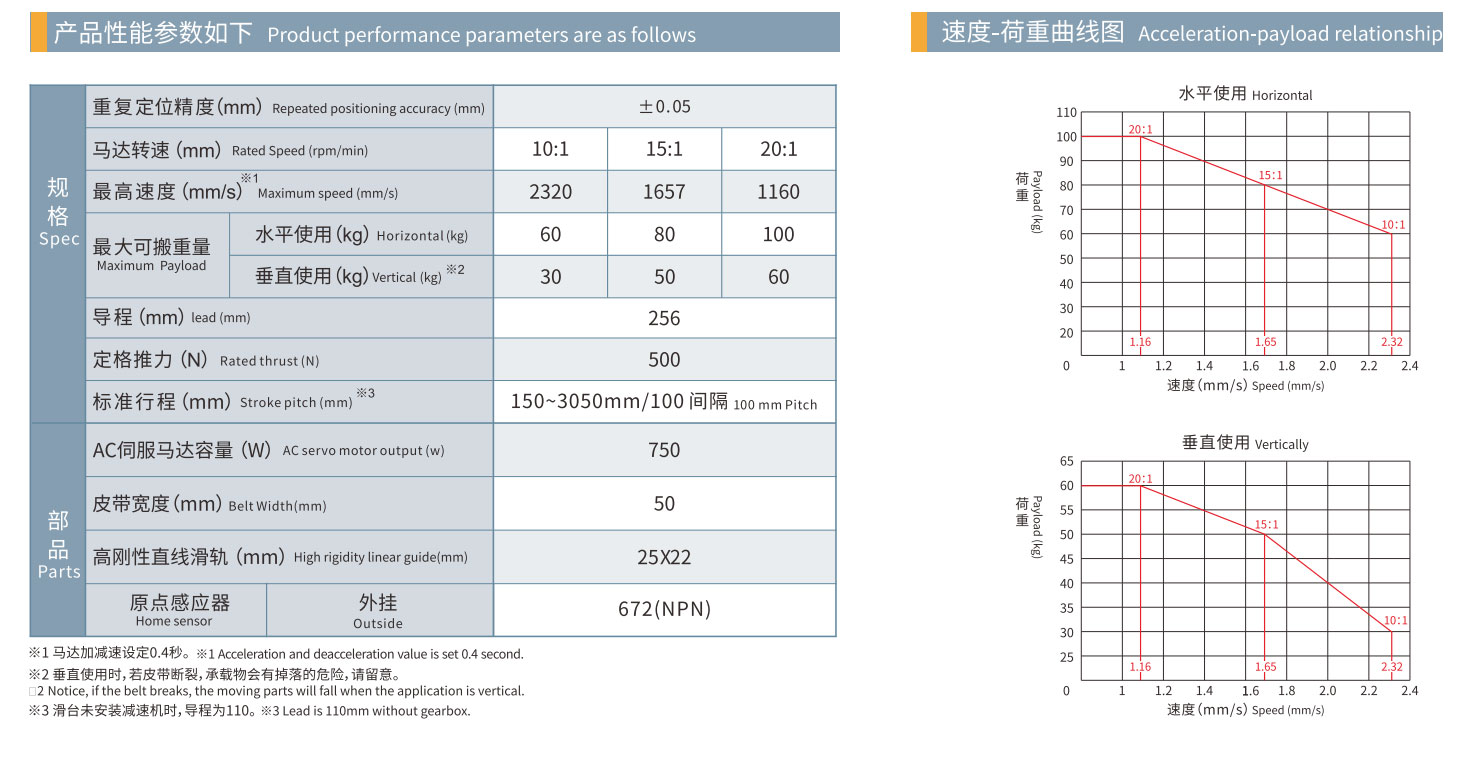

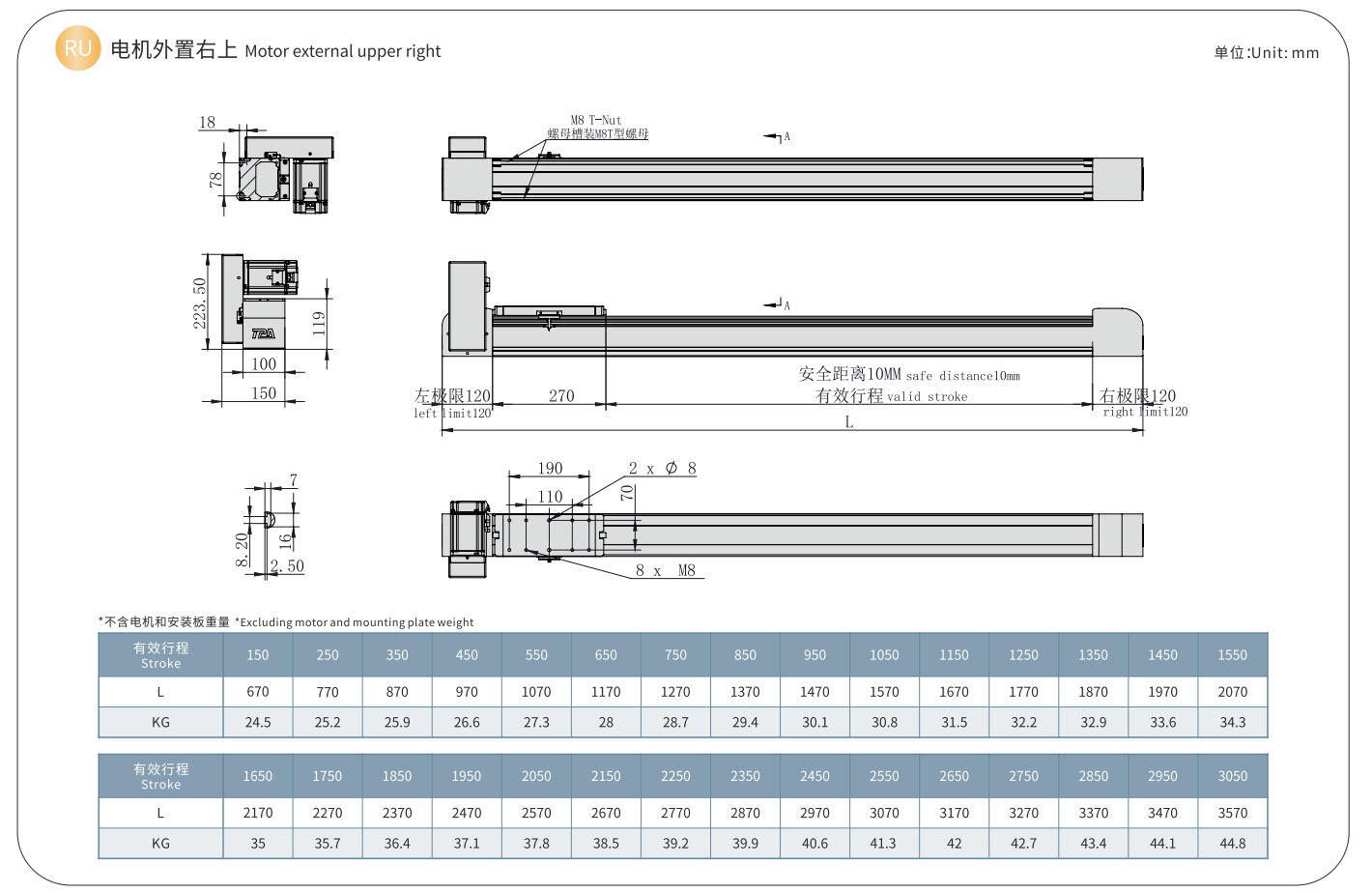

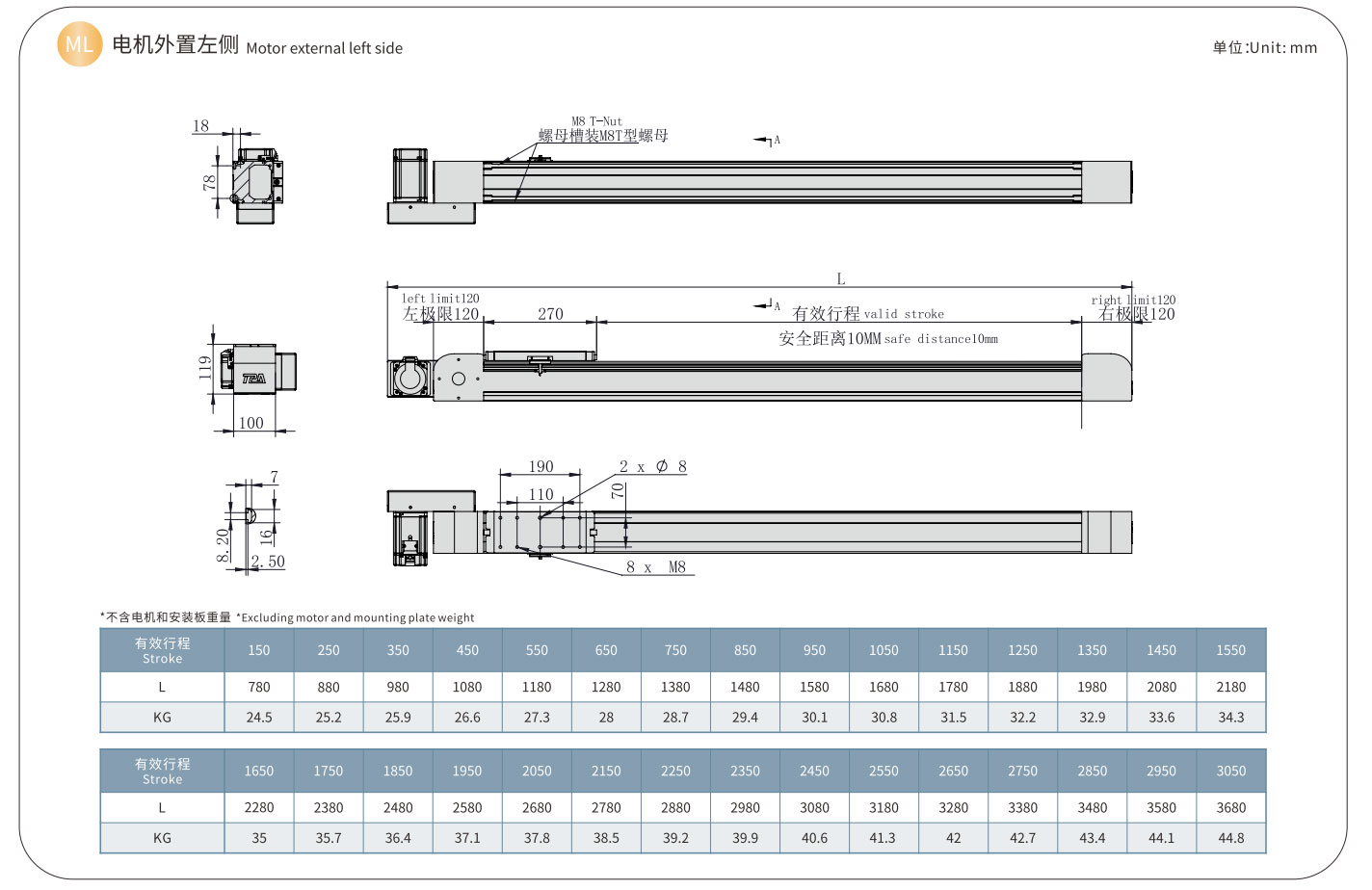

    Belt-Driven-Module-Europe-standard2023_23_07 Belt-Driven-Module-Europe-standard2023_23_10 Belt-Driven-Module-Europe-standard2023_23_03Belt-Driven-Module-Europe-standard2023_23_05TPA-ONB-100 (1) TPA-ONB-100 (3)TPA-ONB-100 (2) TPA-ONB-100 (4) TPA-ONB-100 (5) TPA-ONB-100 (6)

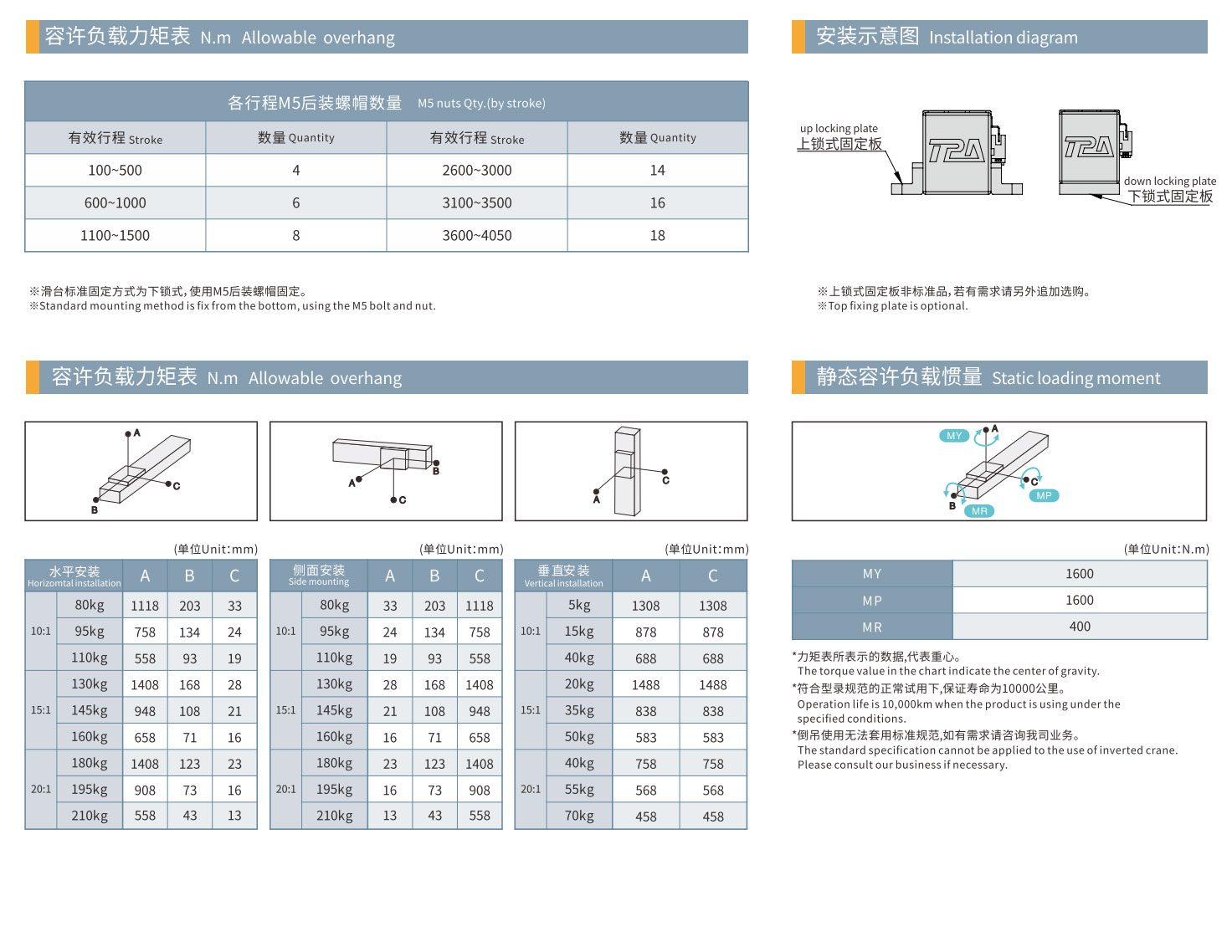

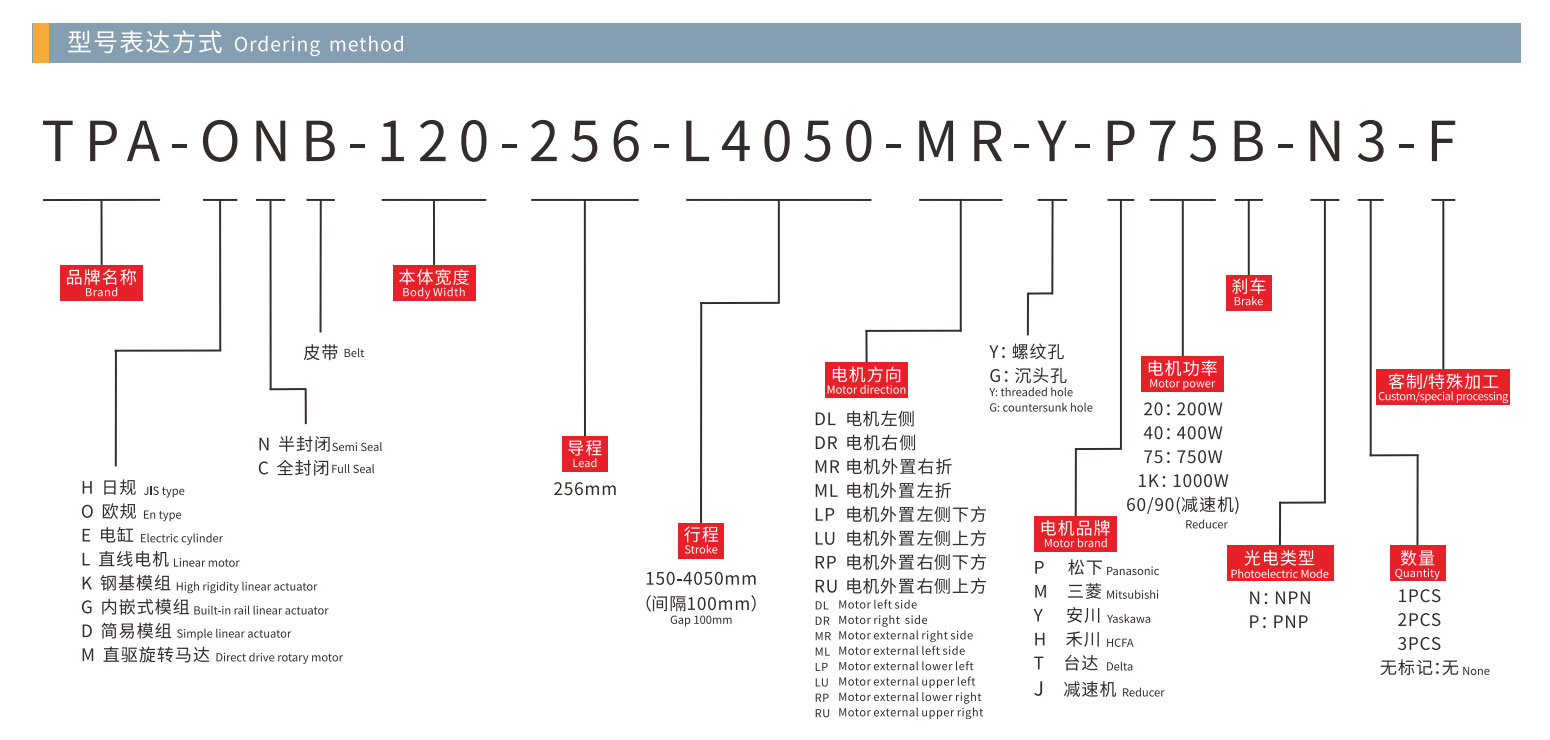

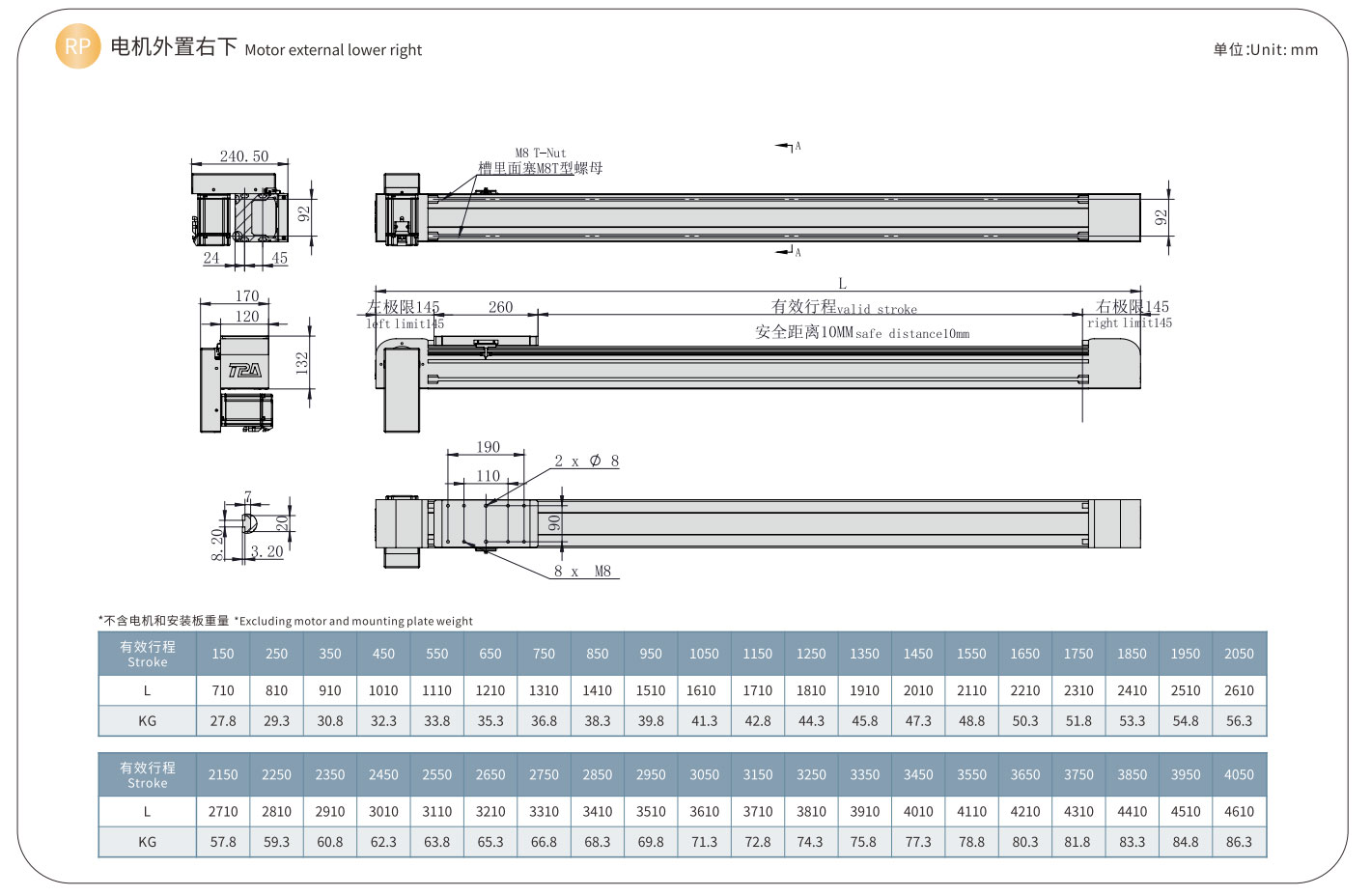

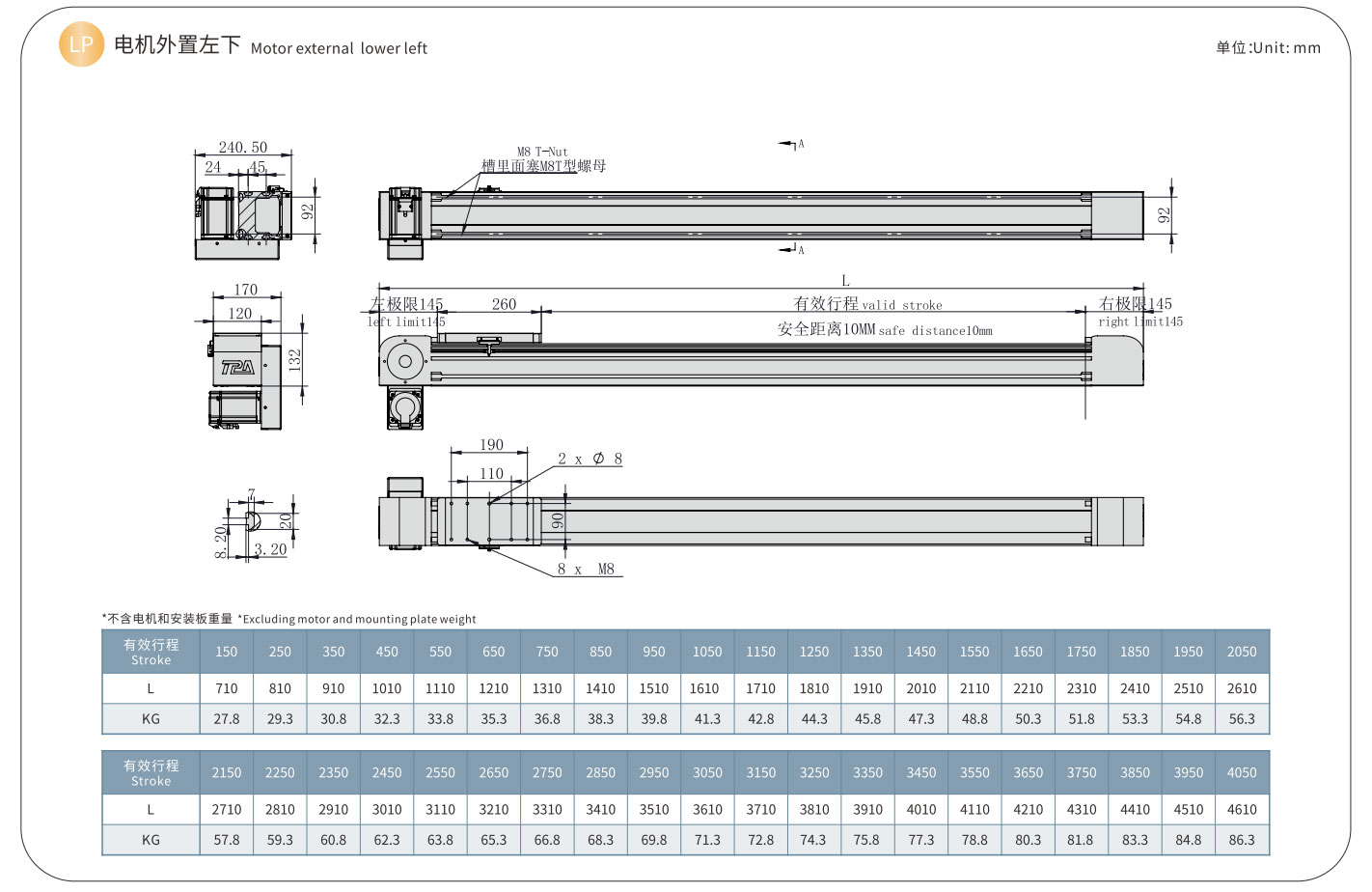

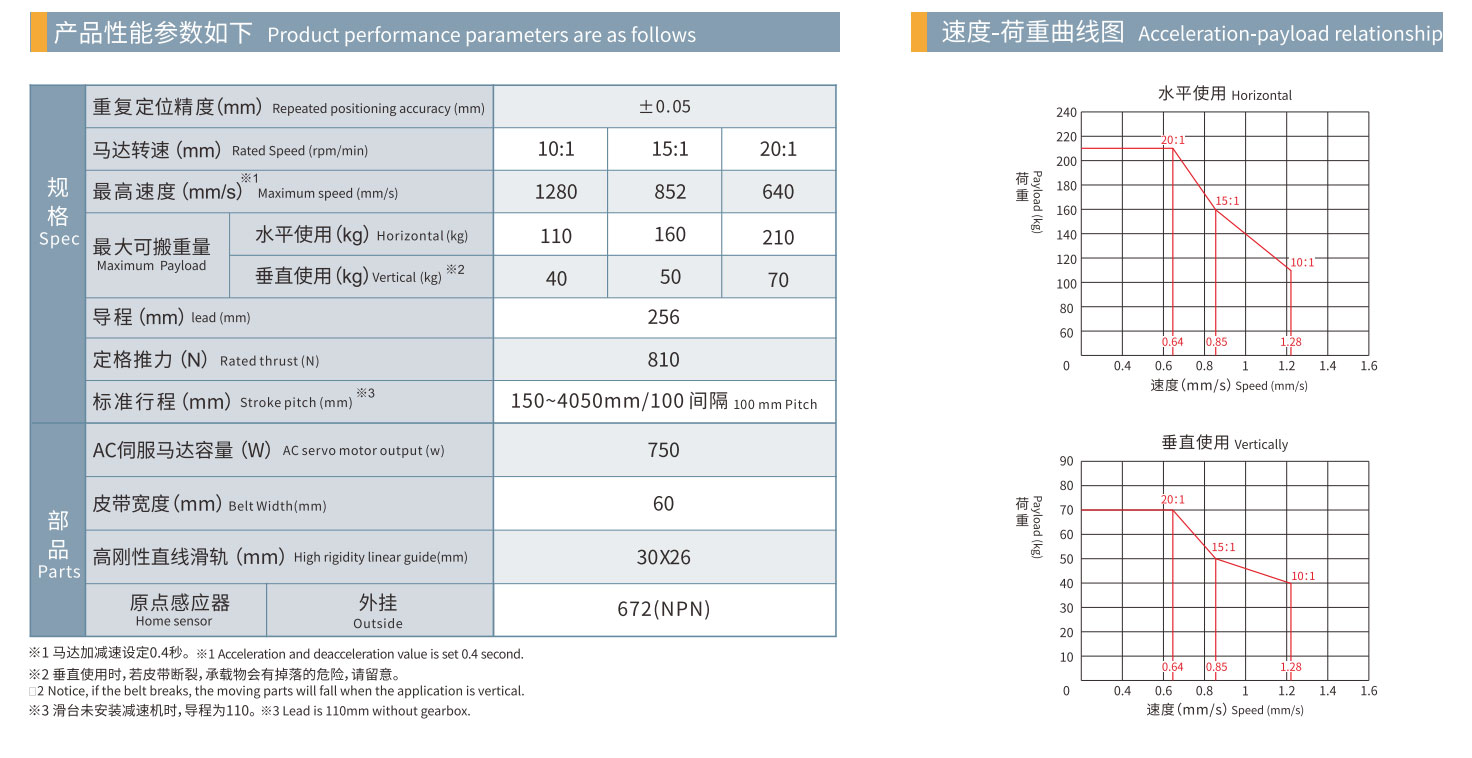

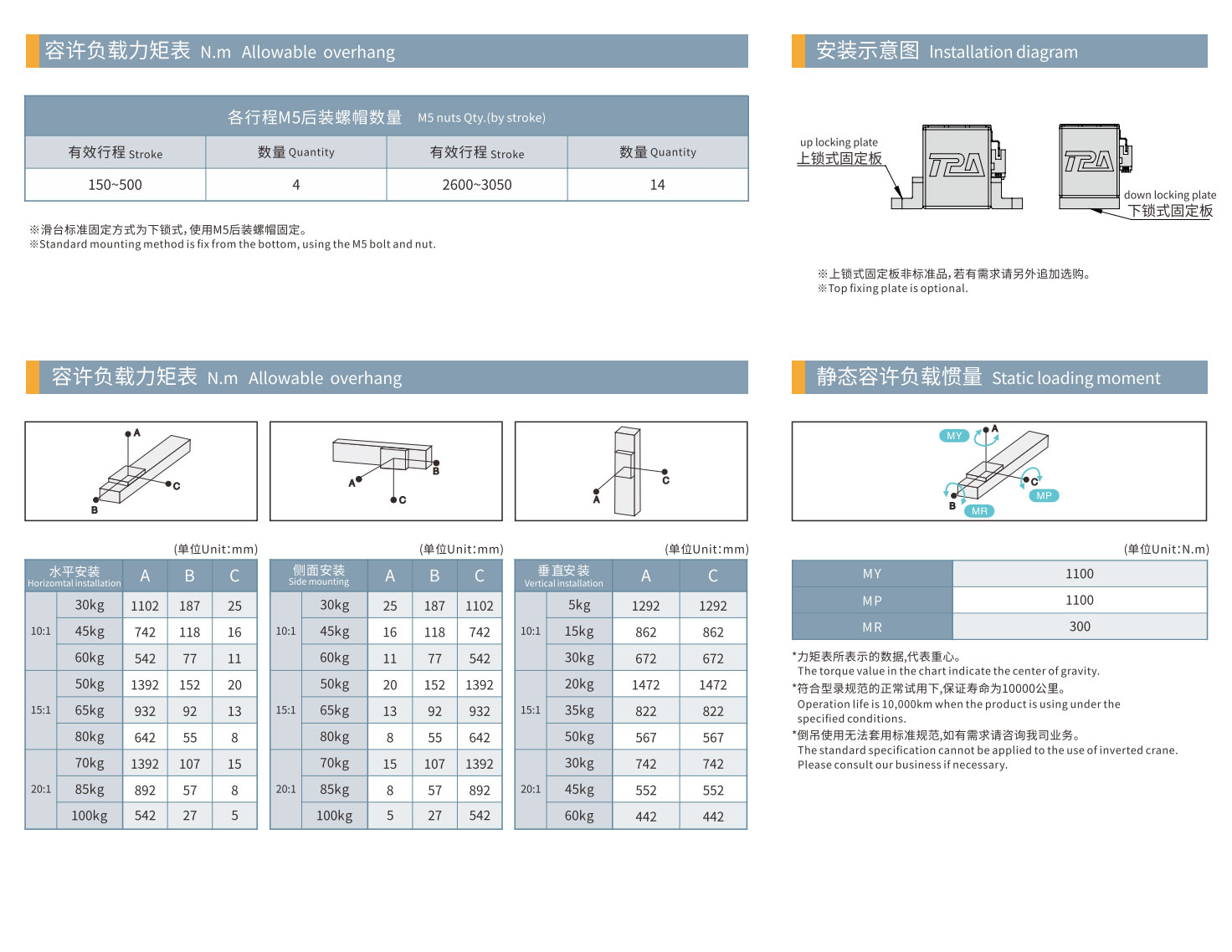

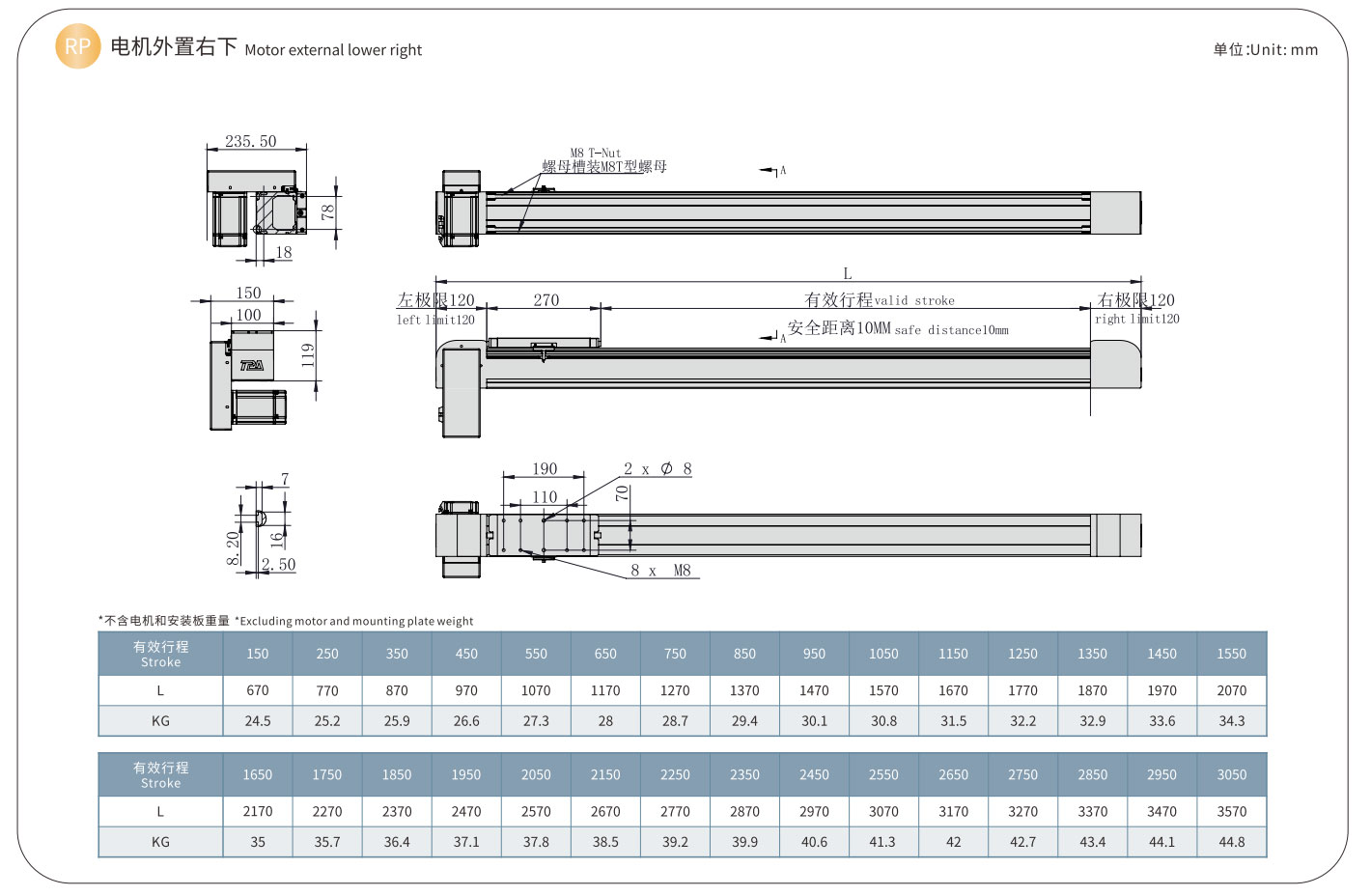

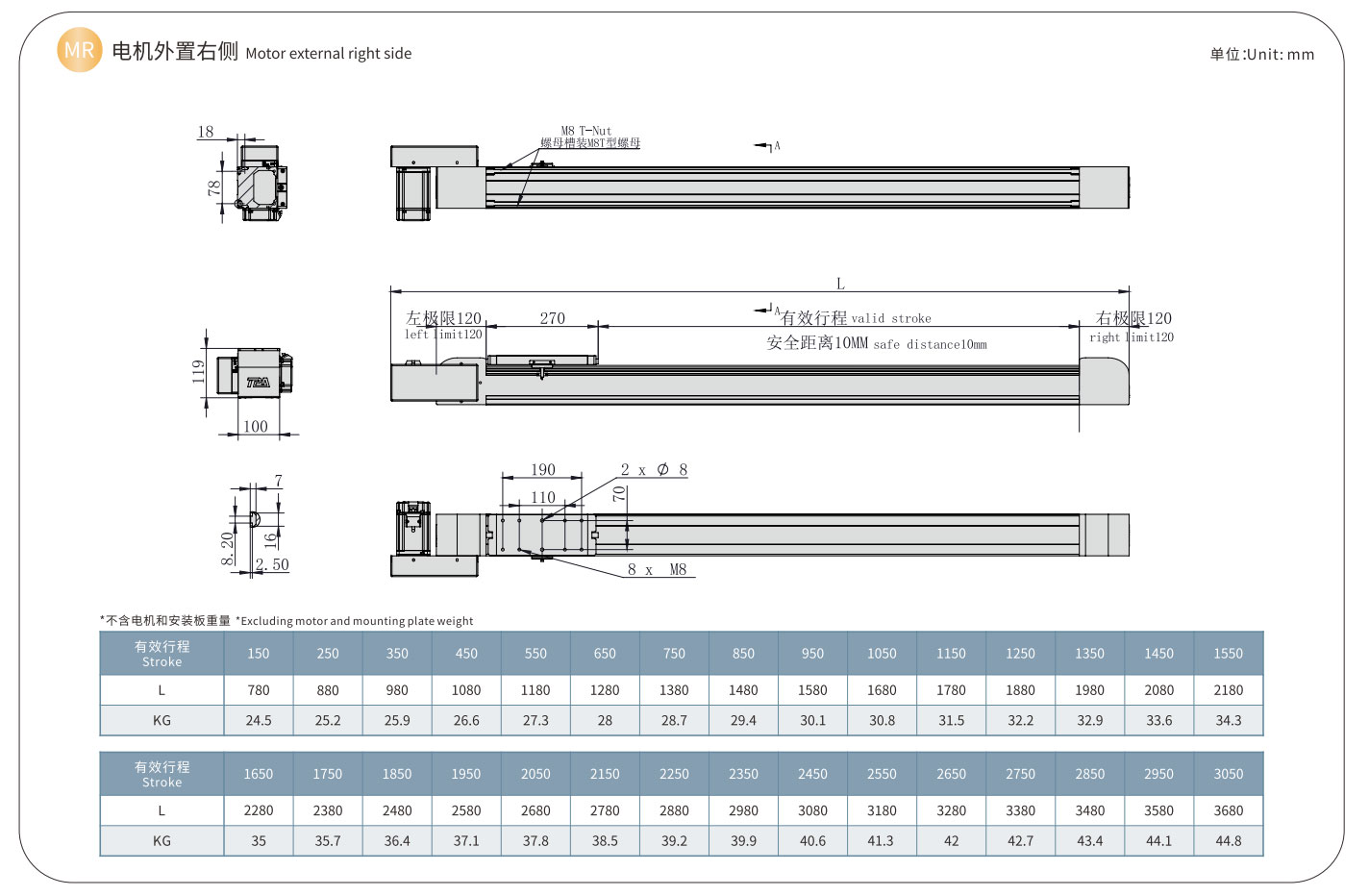

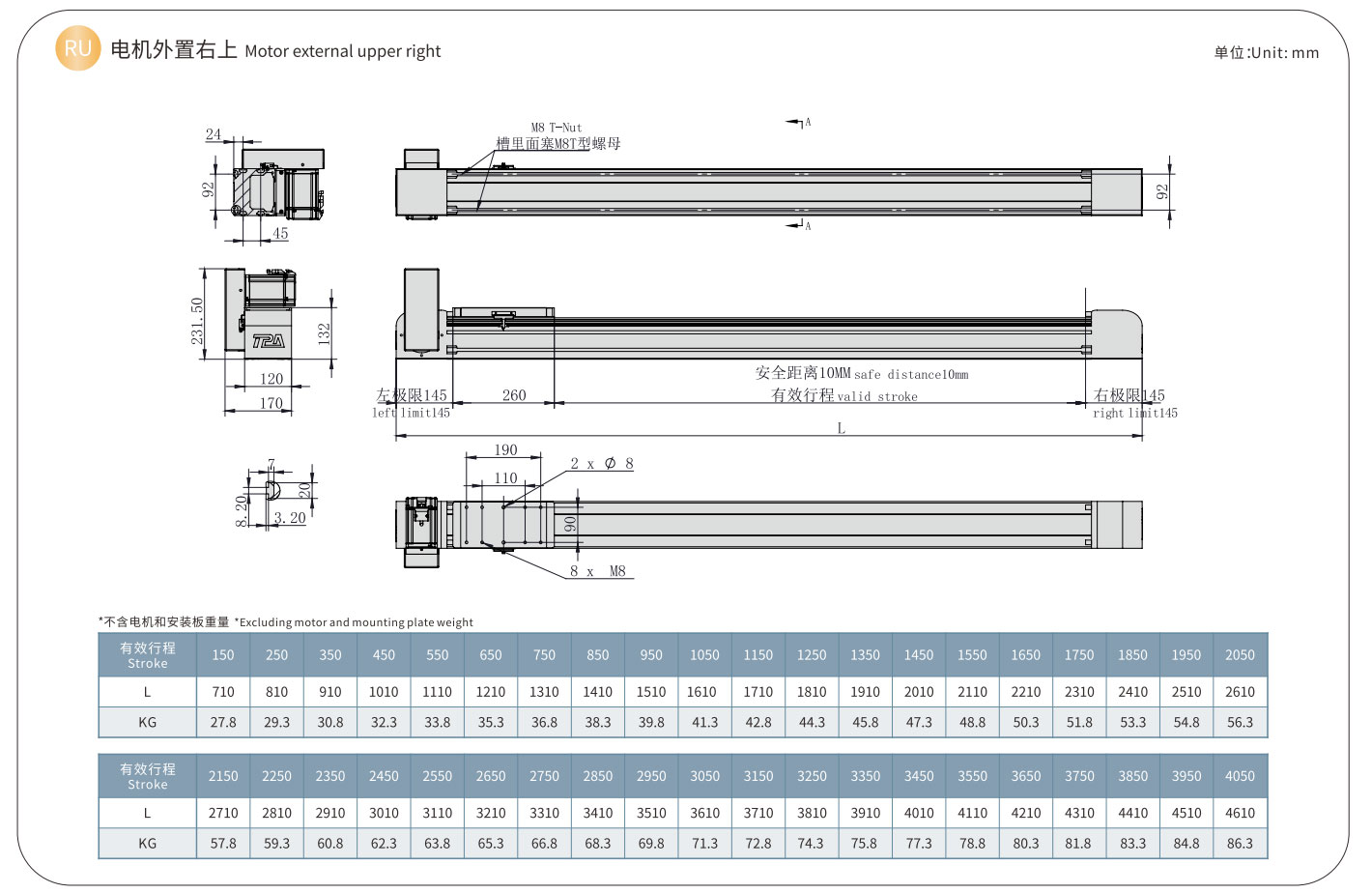

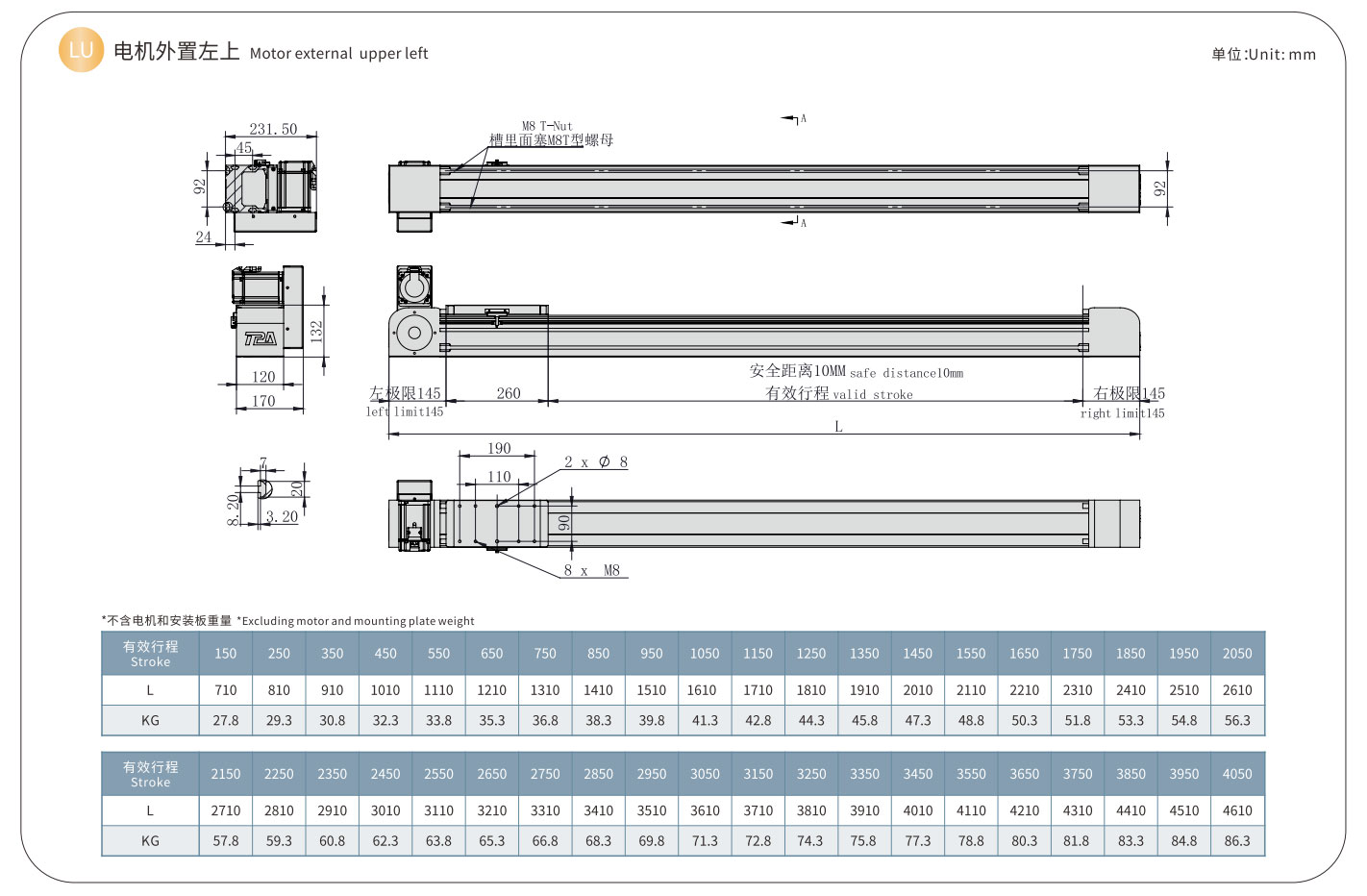

    Belt-Driven-Module-Europe-standard2023_26_07 Belt-Driven-Module-Europe-standard2023_26_10 Belt-Driven-Module-Europe-standard2023_26_03 Belt-Driven-Module-Europe-standard2023_26_05TPA-ONB-120 (1) TPA-ONB-120 (3)TPA-ONB-120 (2) TPA-ONB-120 (4) TPA-ONB-120 (5) TPA-ONB-120 (6)

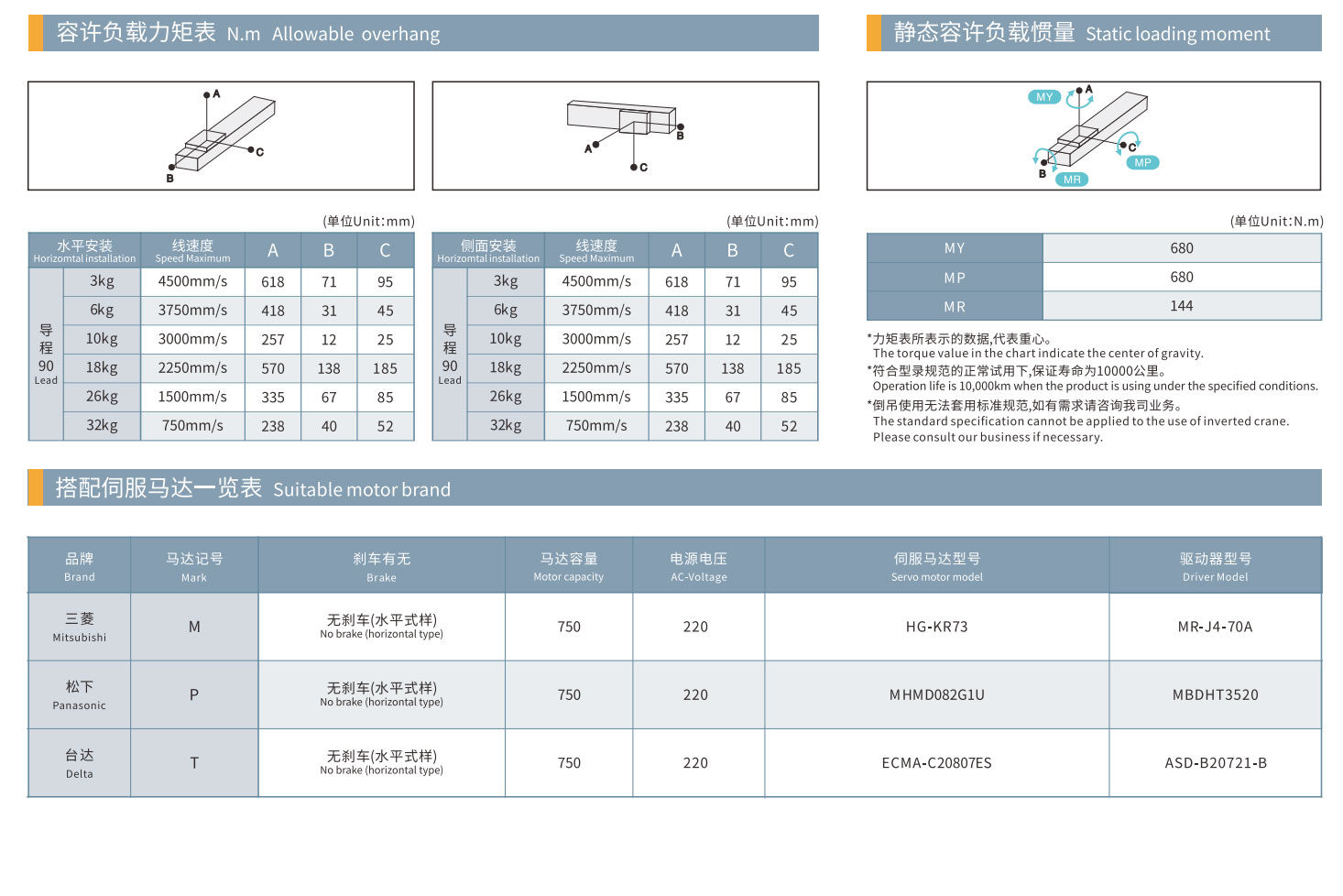

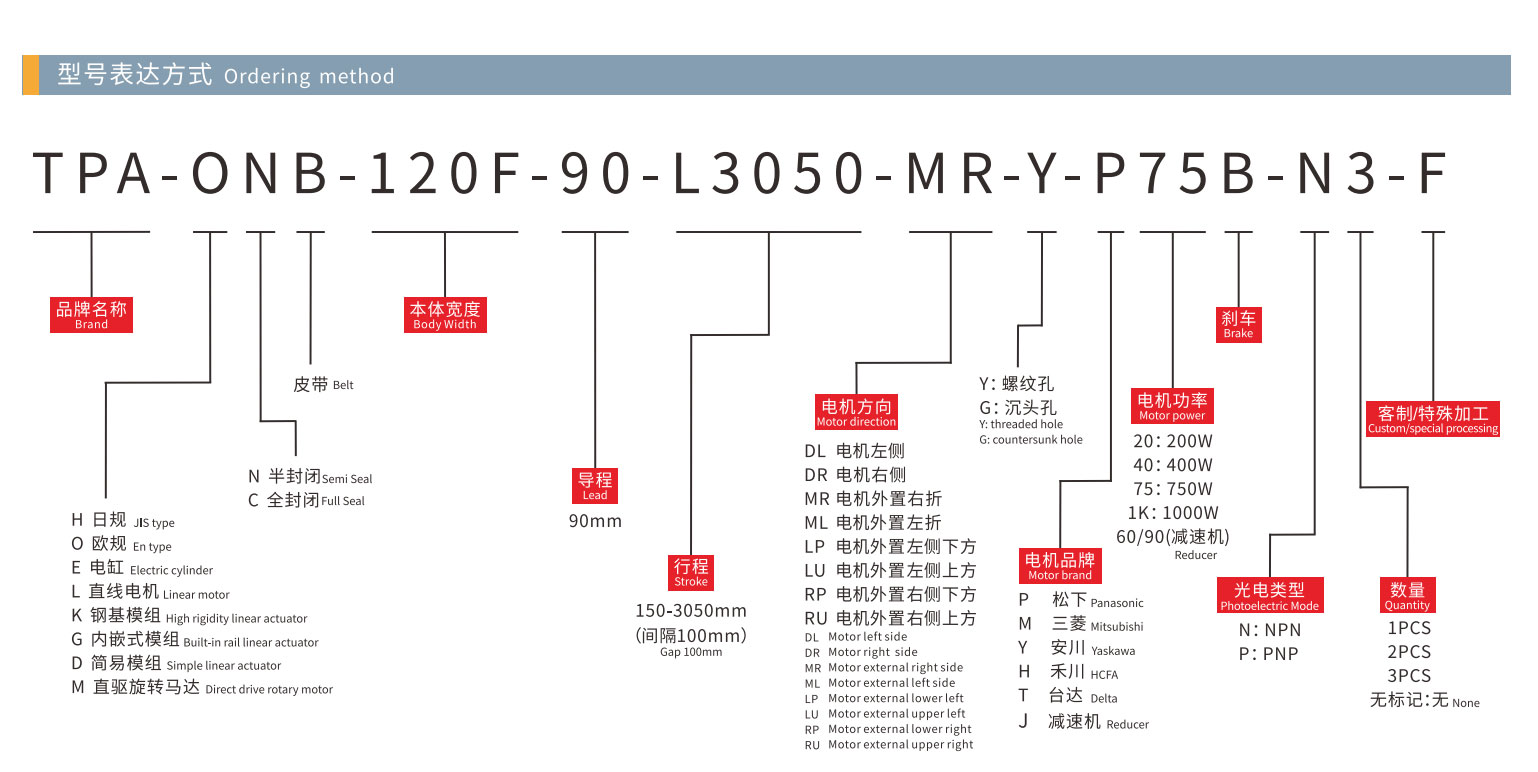

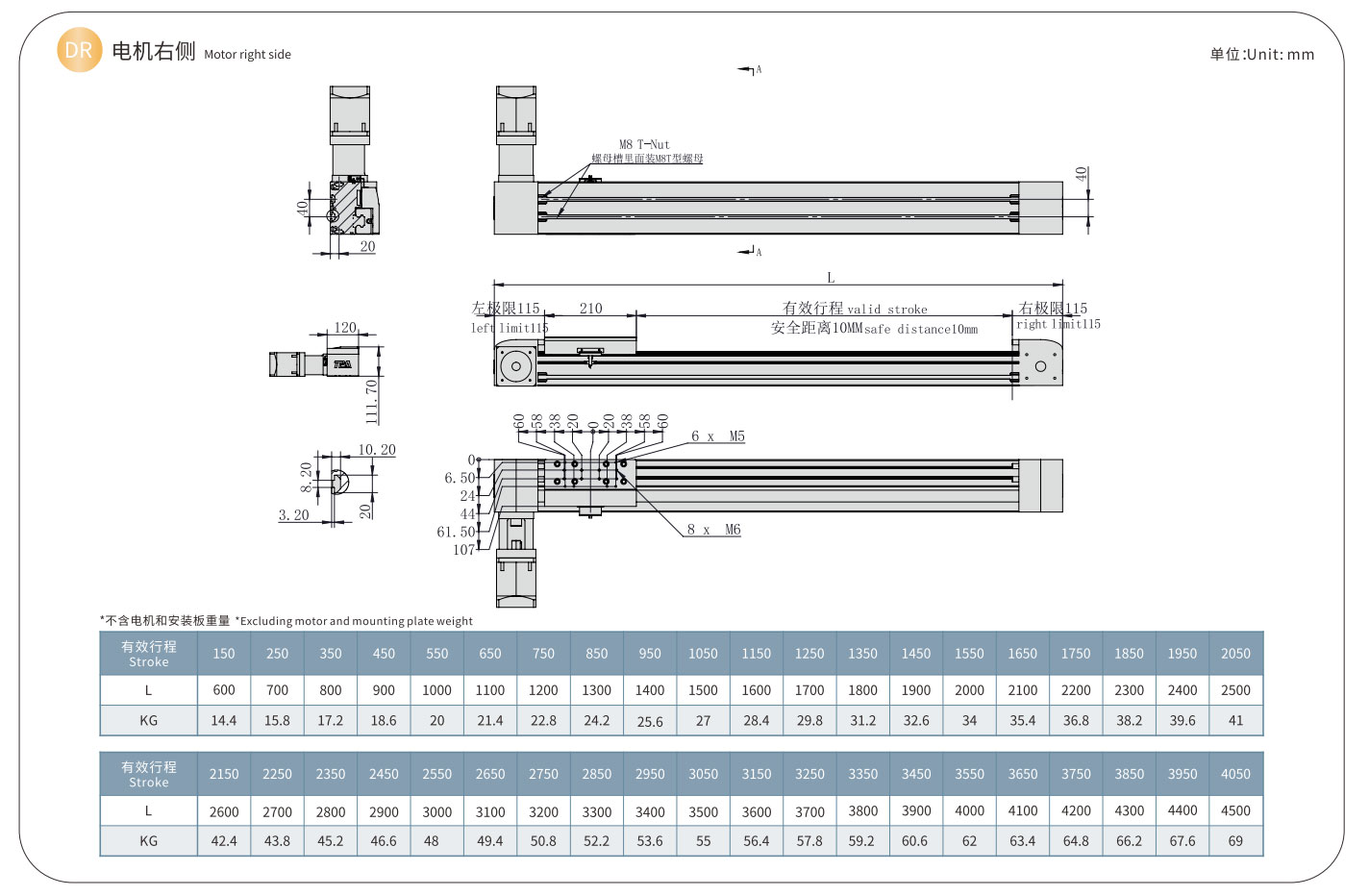

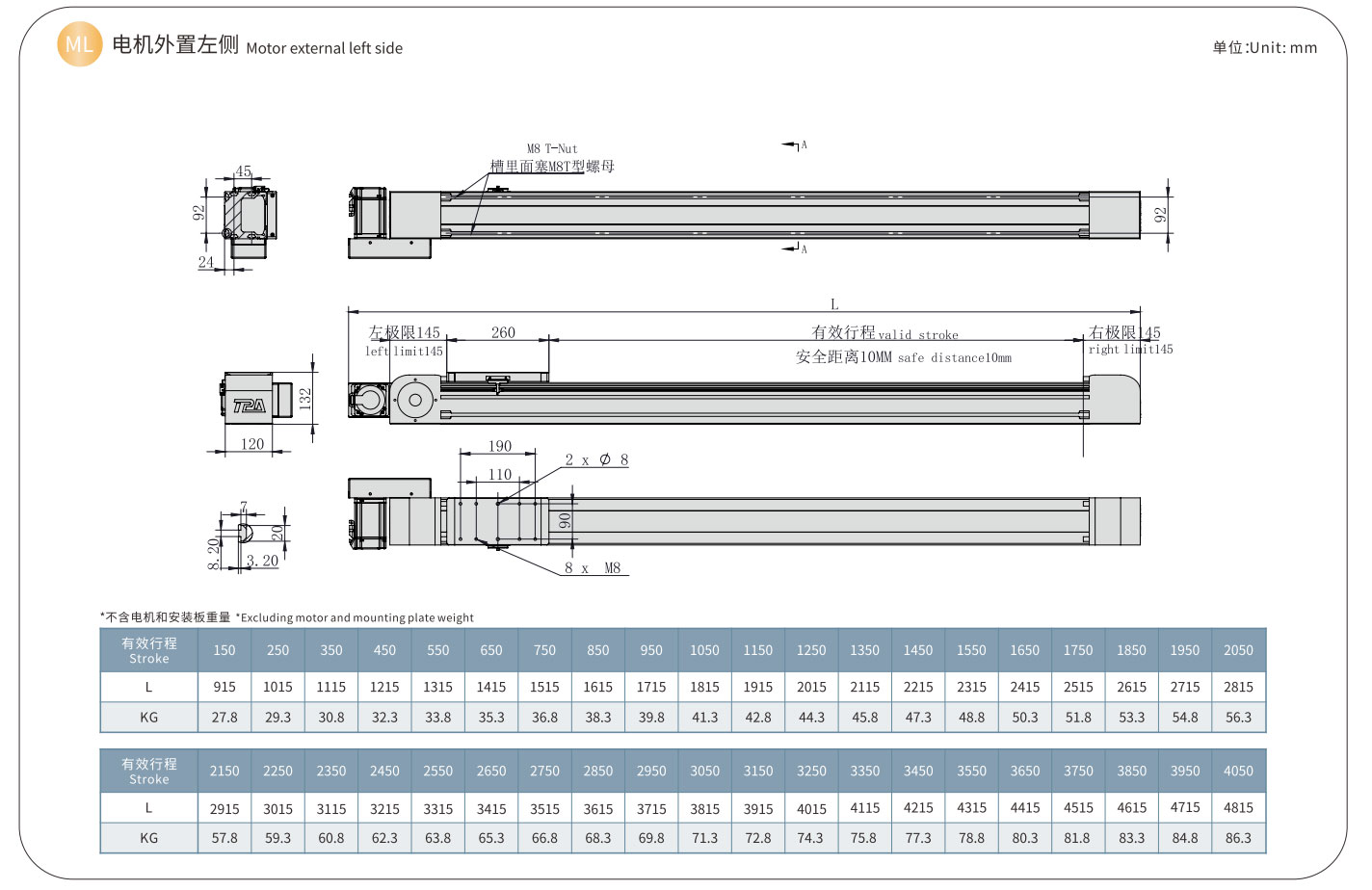

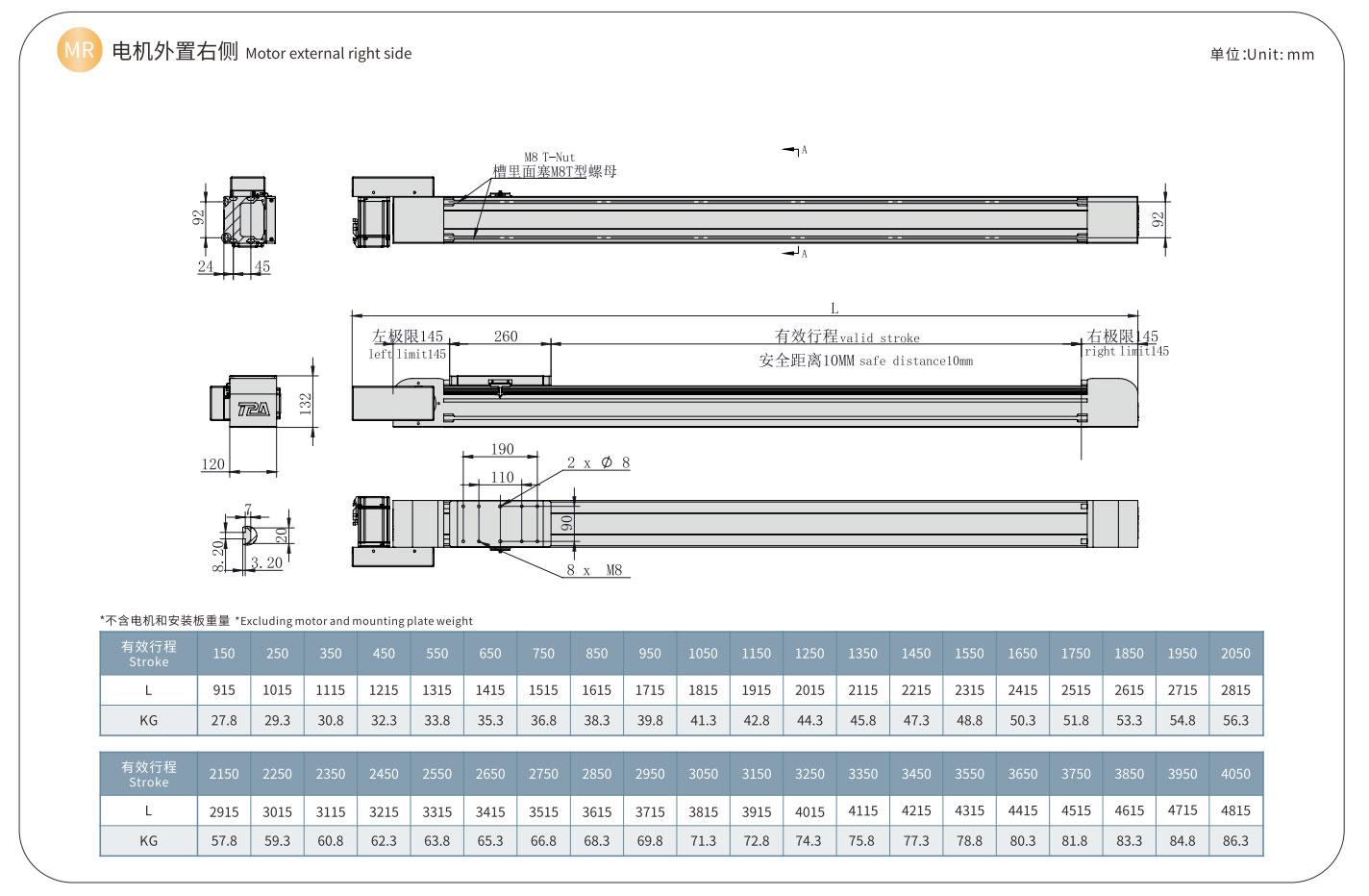

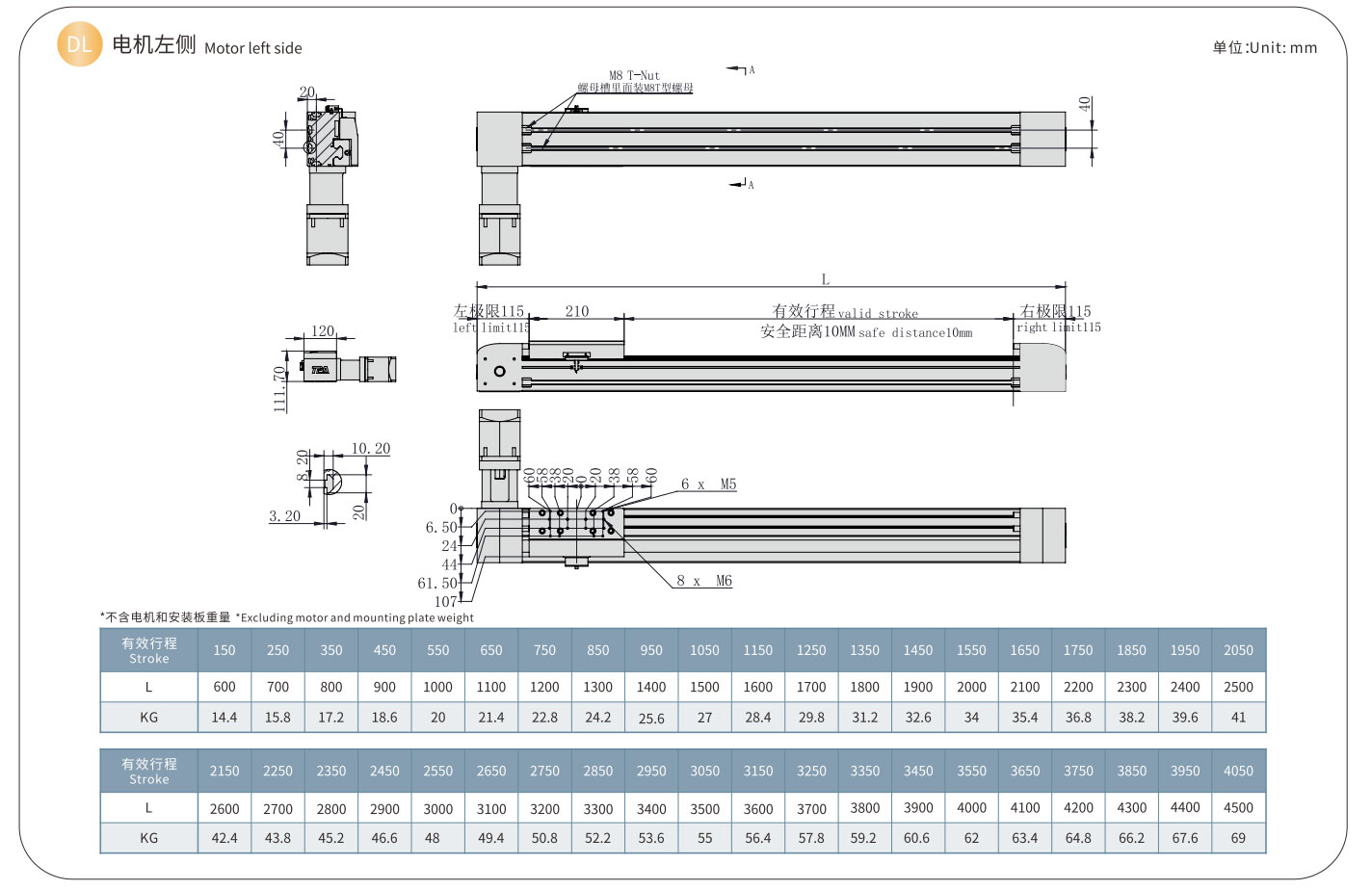

    Belt-Driven-Module-Europe-standard2023_32_07 Belt-Driven-Module-Europe-standard2023_32_09 Belt-Driven-Module-Europe-standard2023_32_03 Belt-Driven-Module-Europe-standard2023_32_05TPA-ONB-120F (1) TPA-ONB-120F (2)

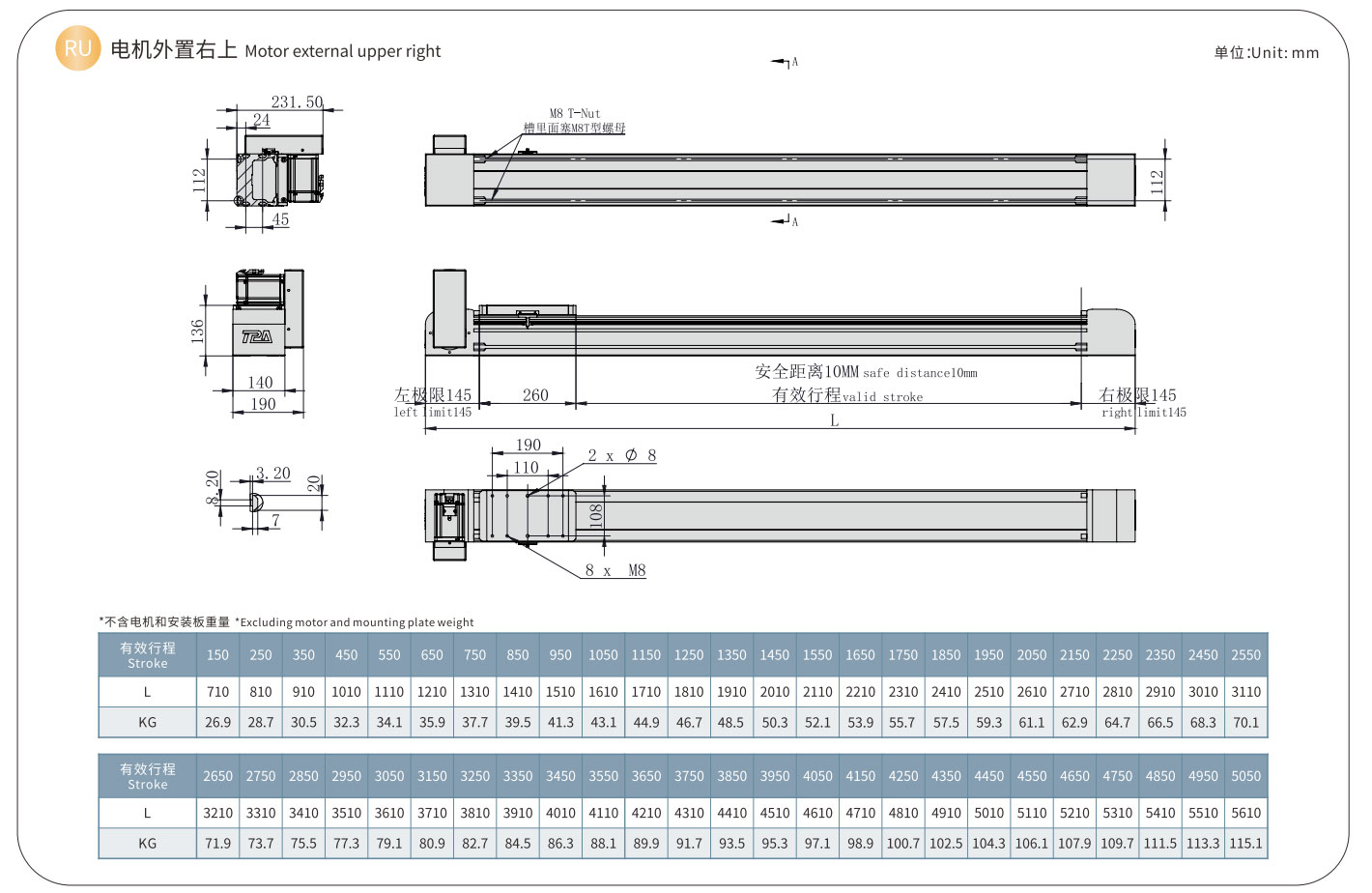

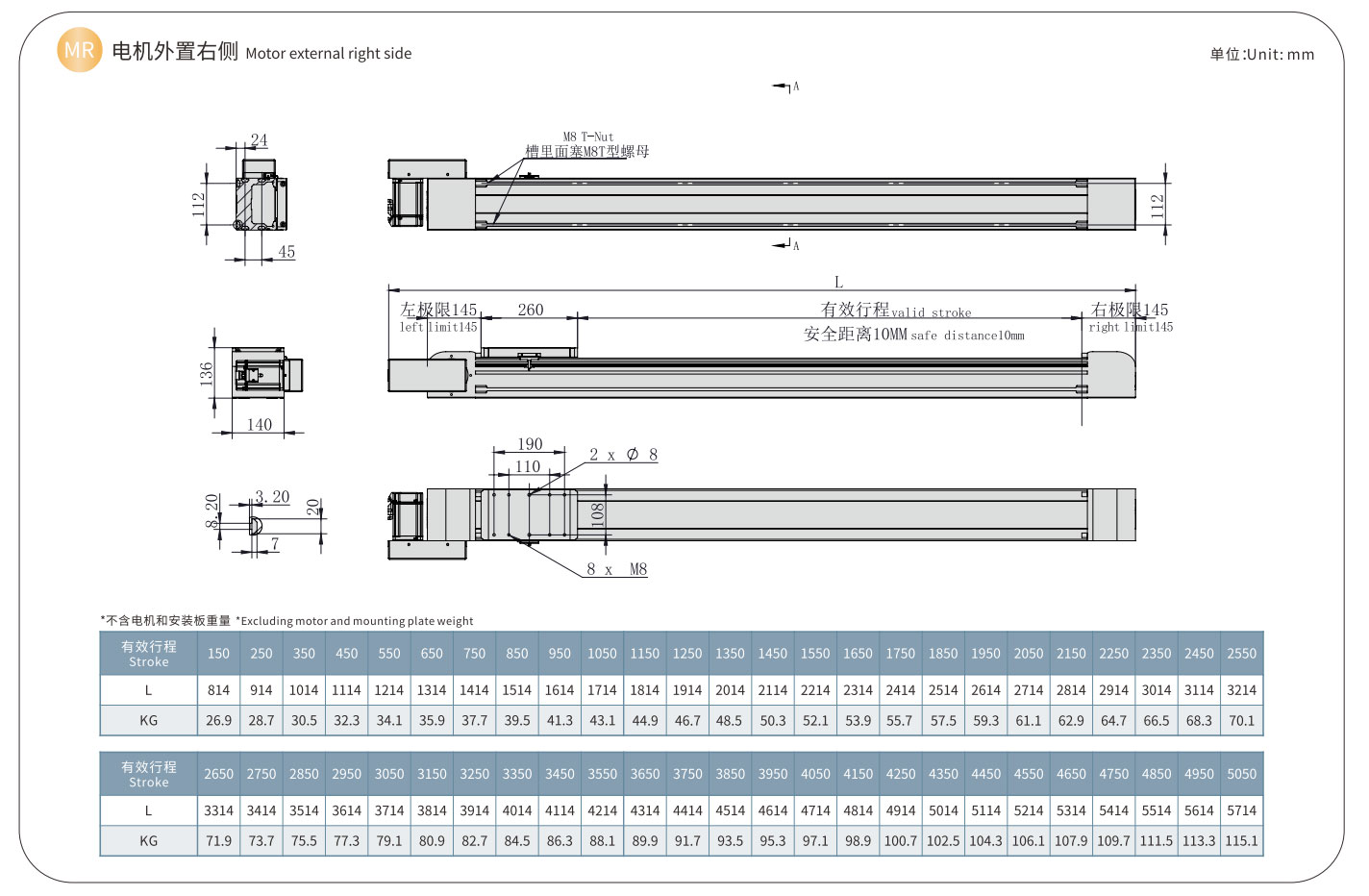

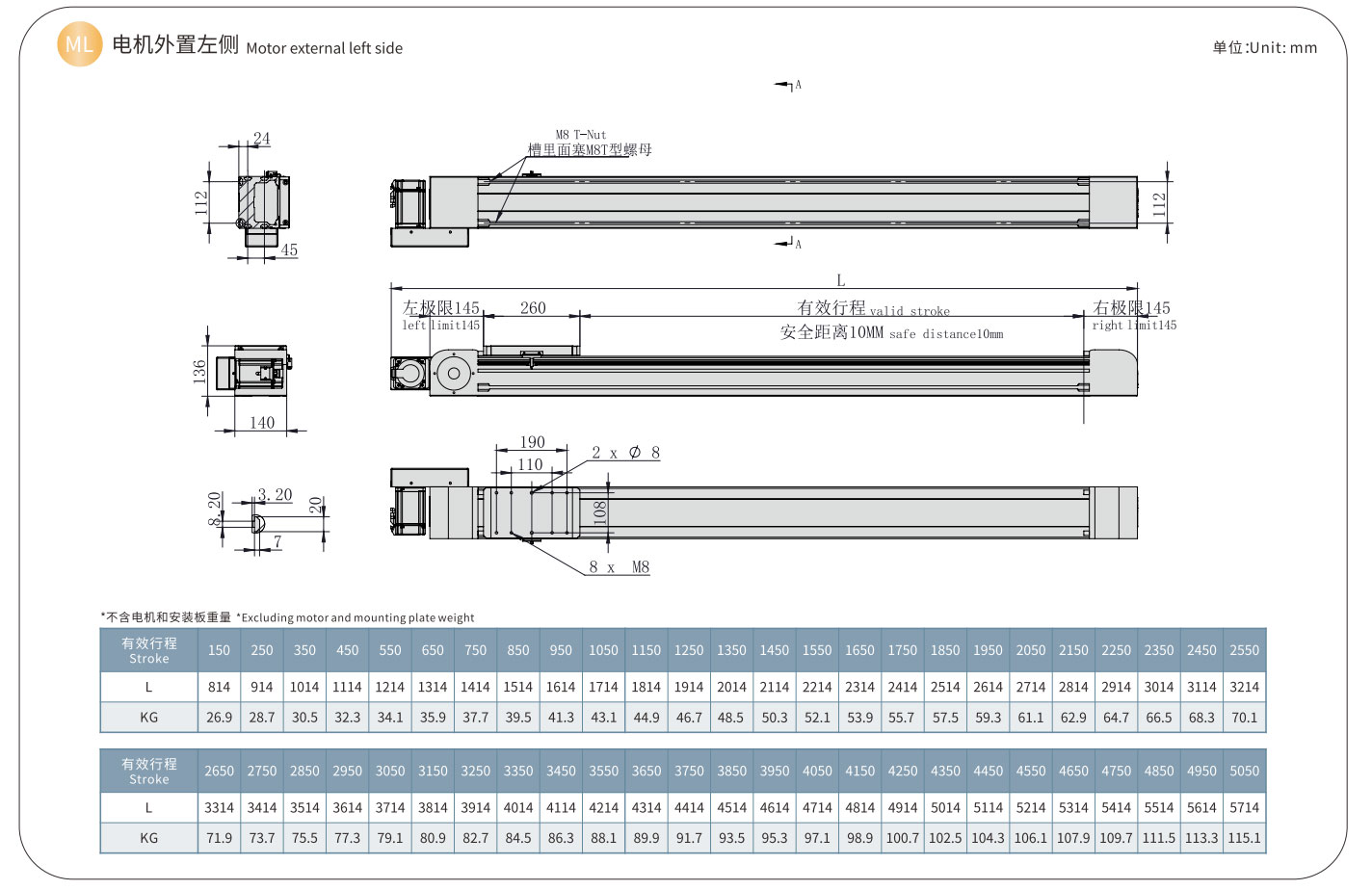

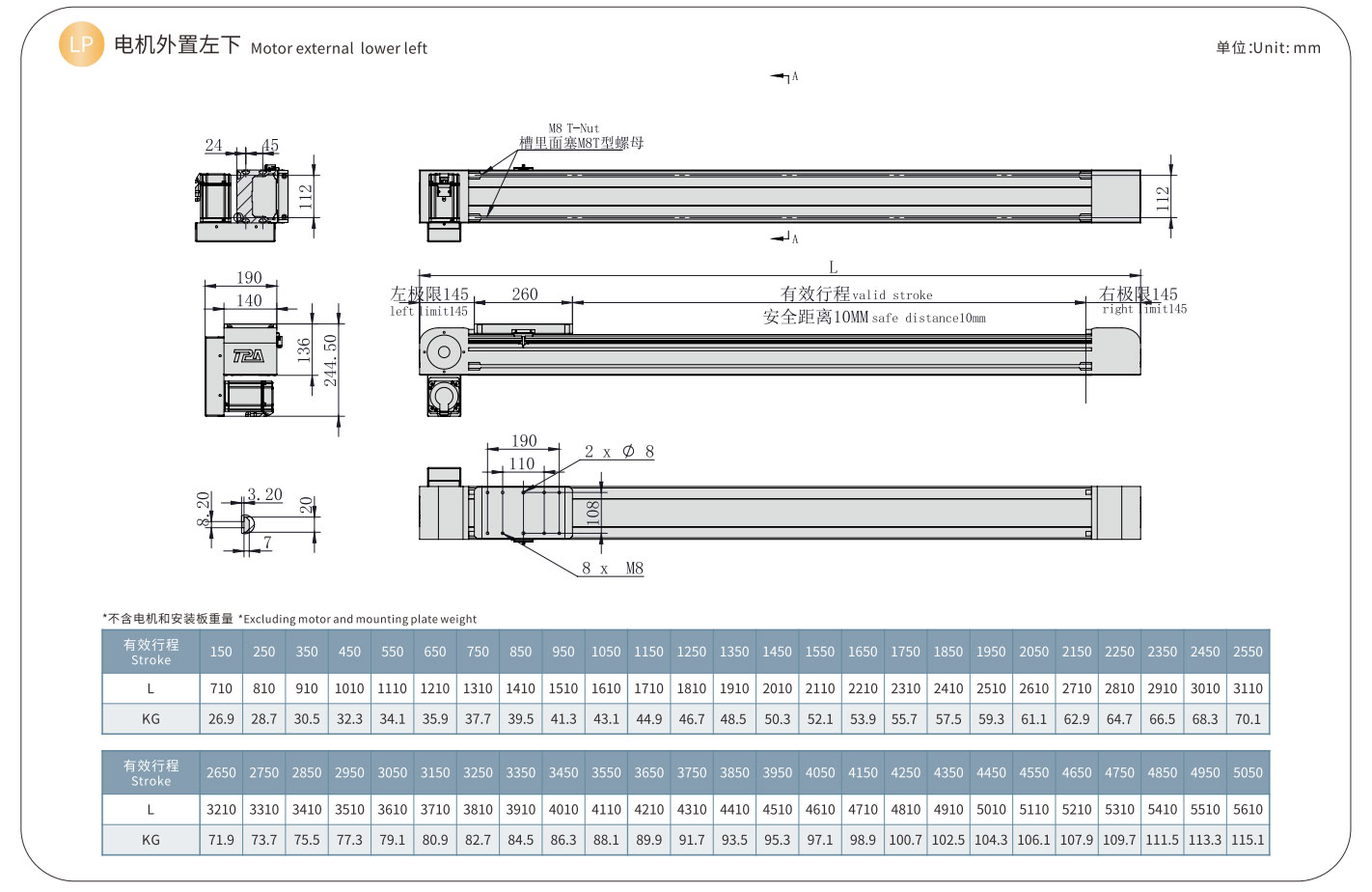

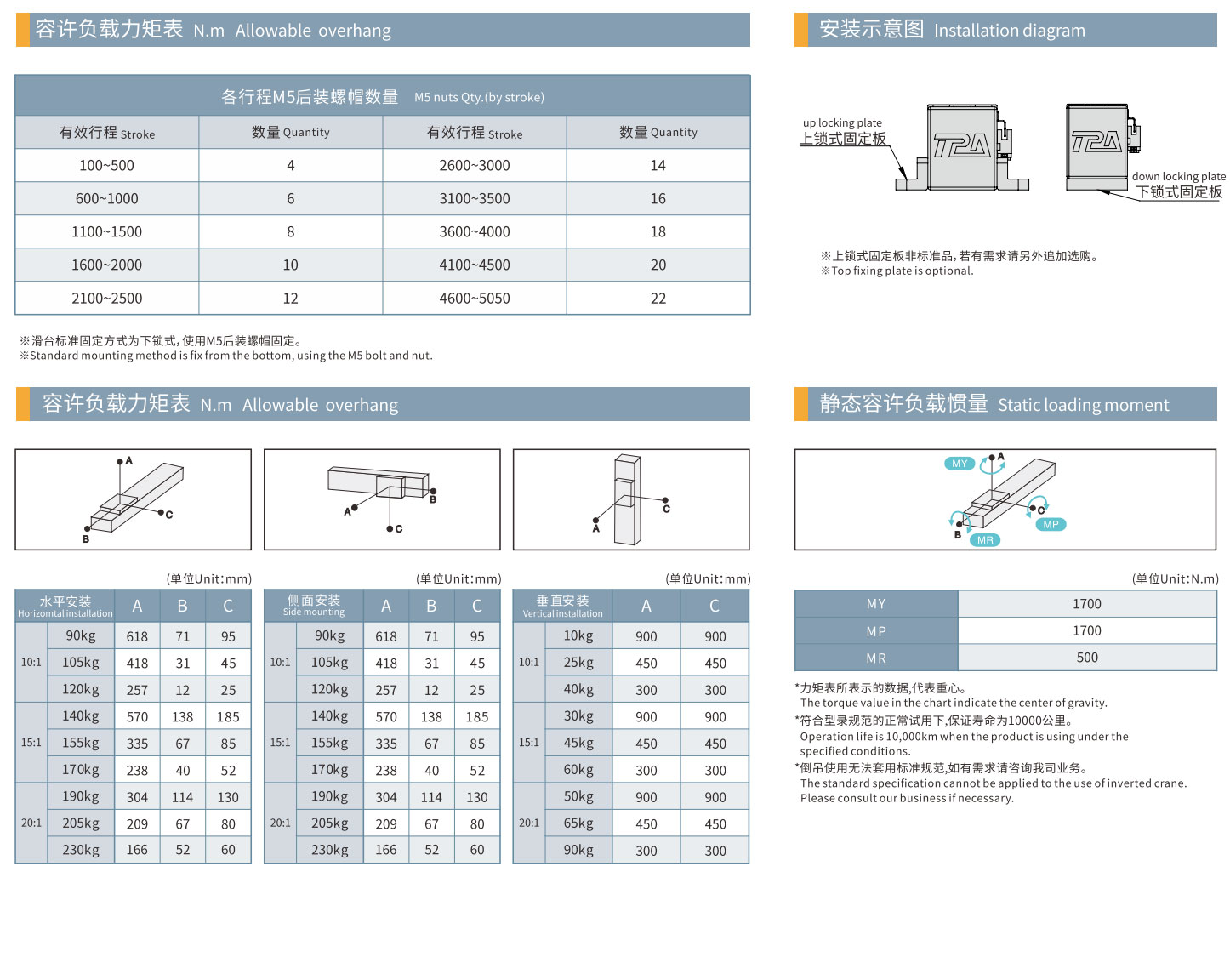

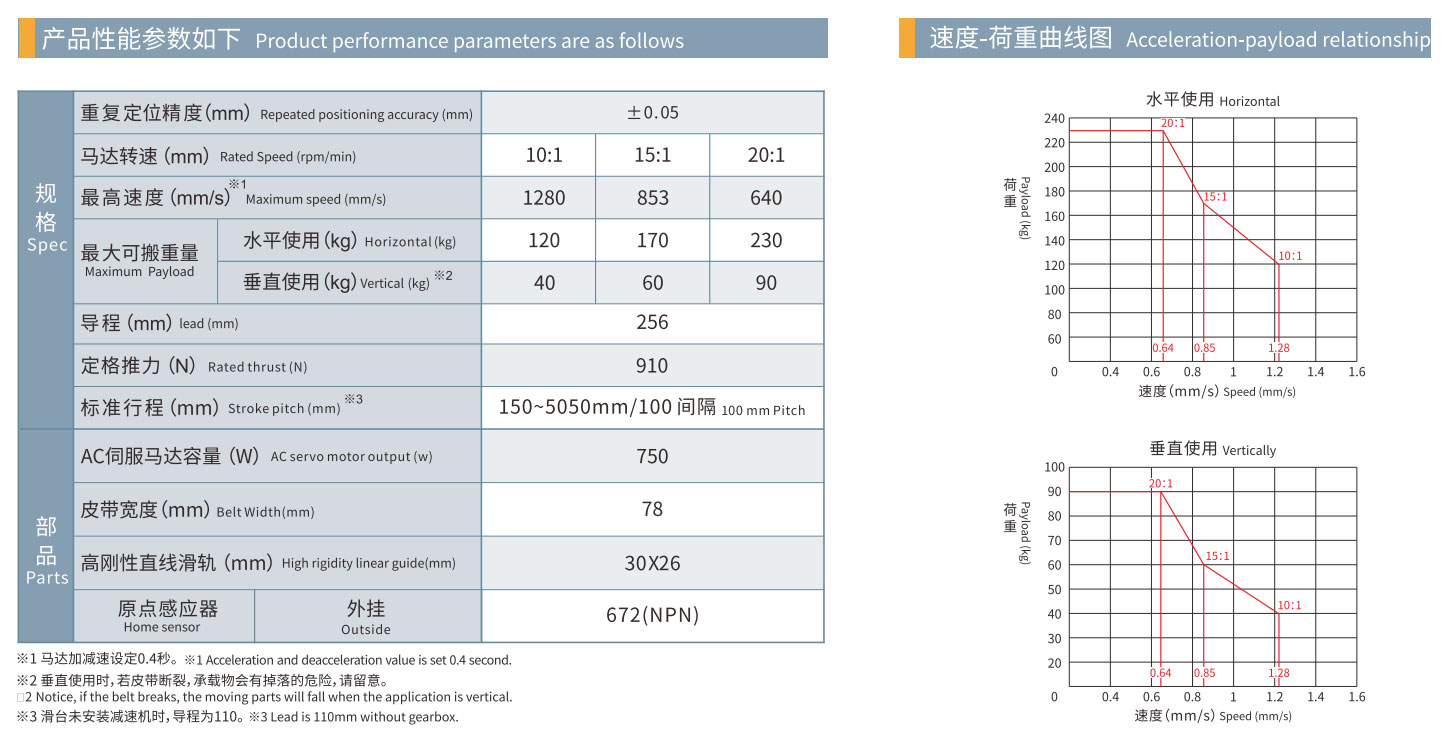

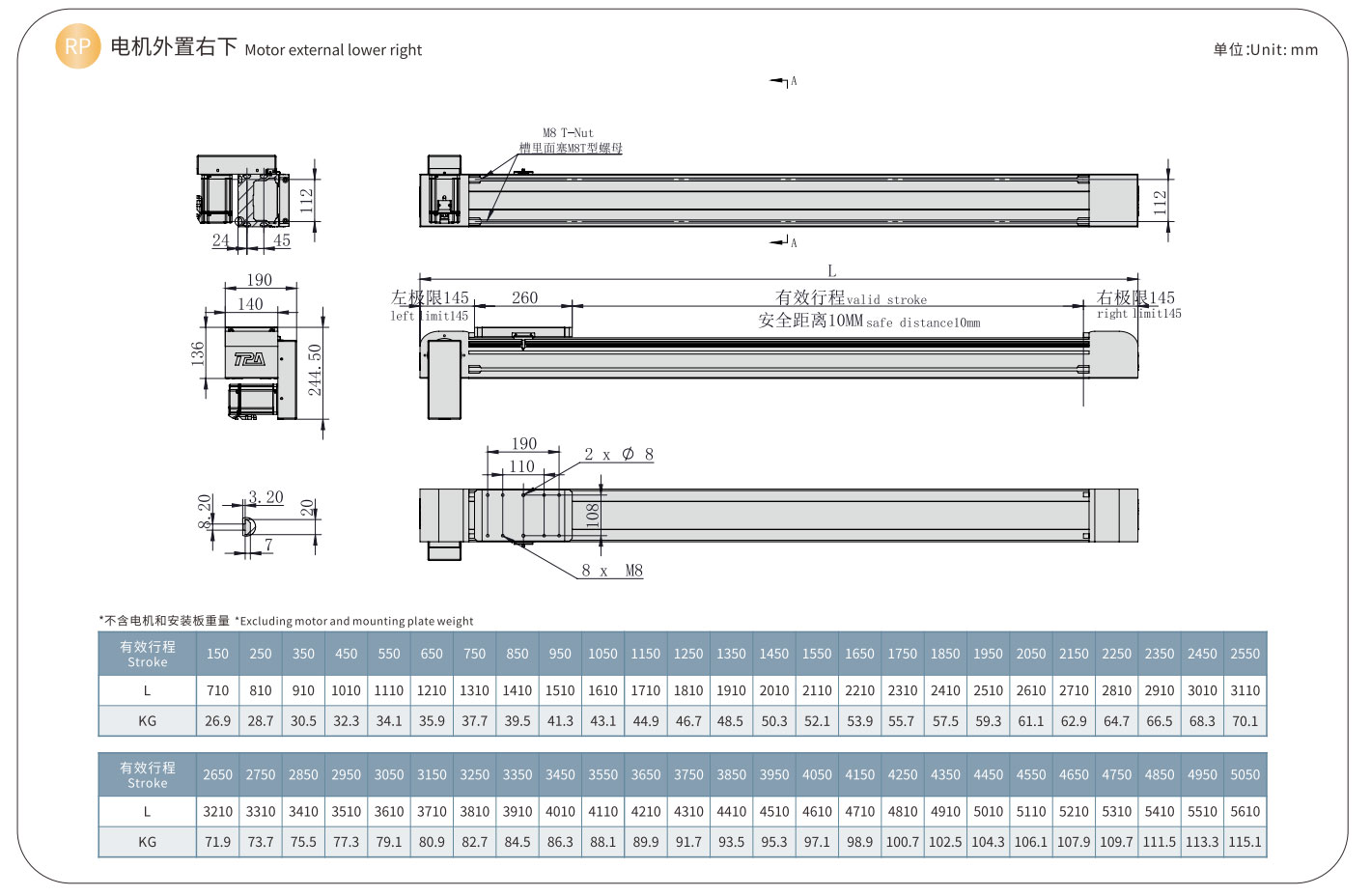

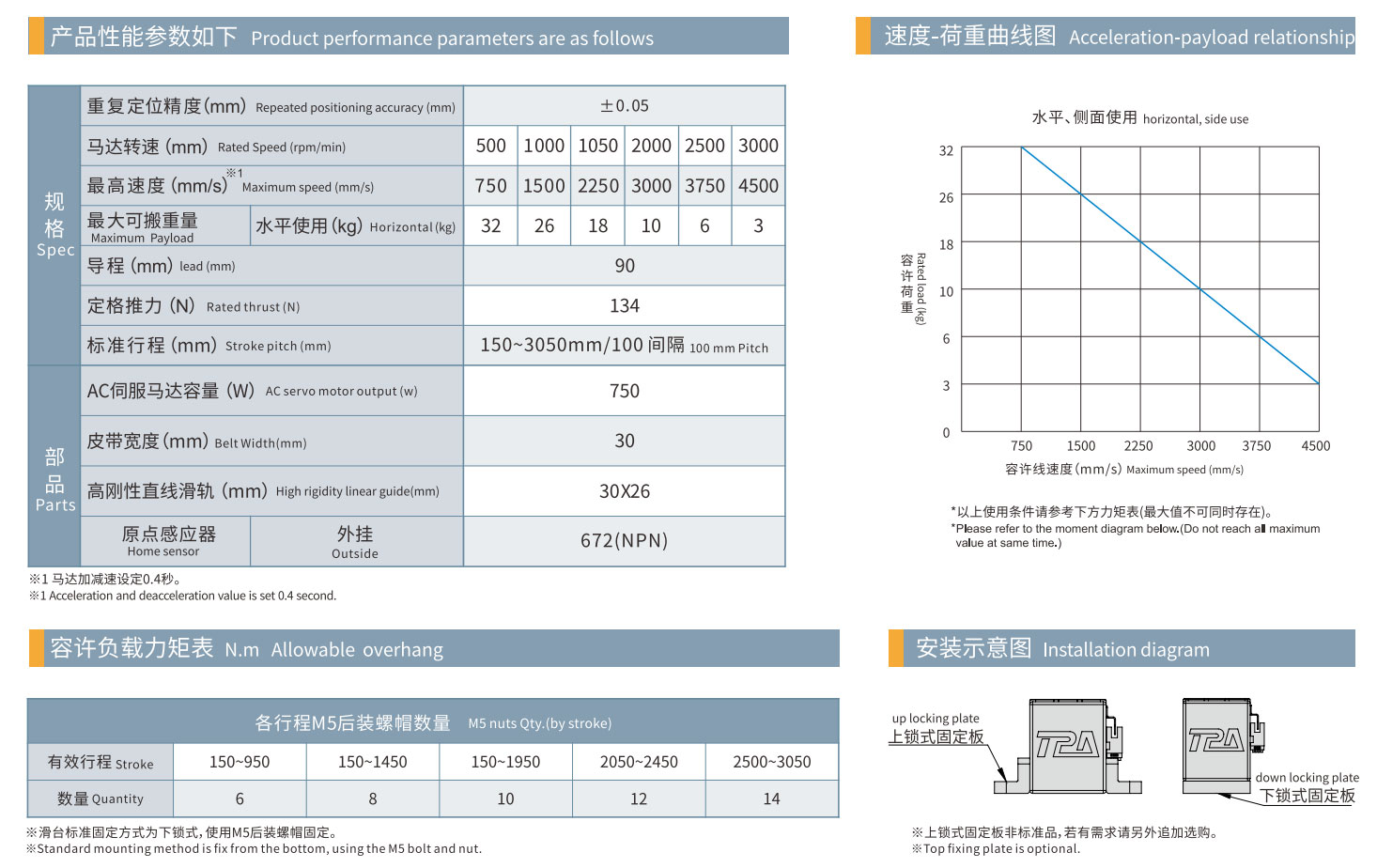

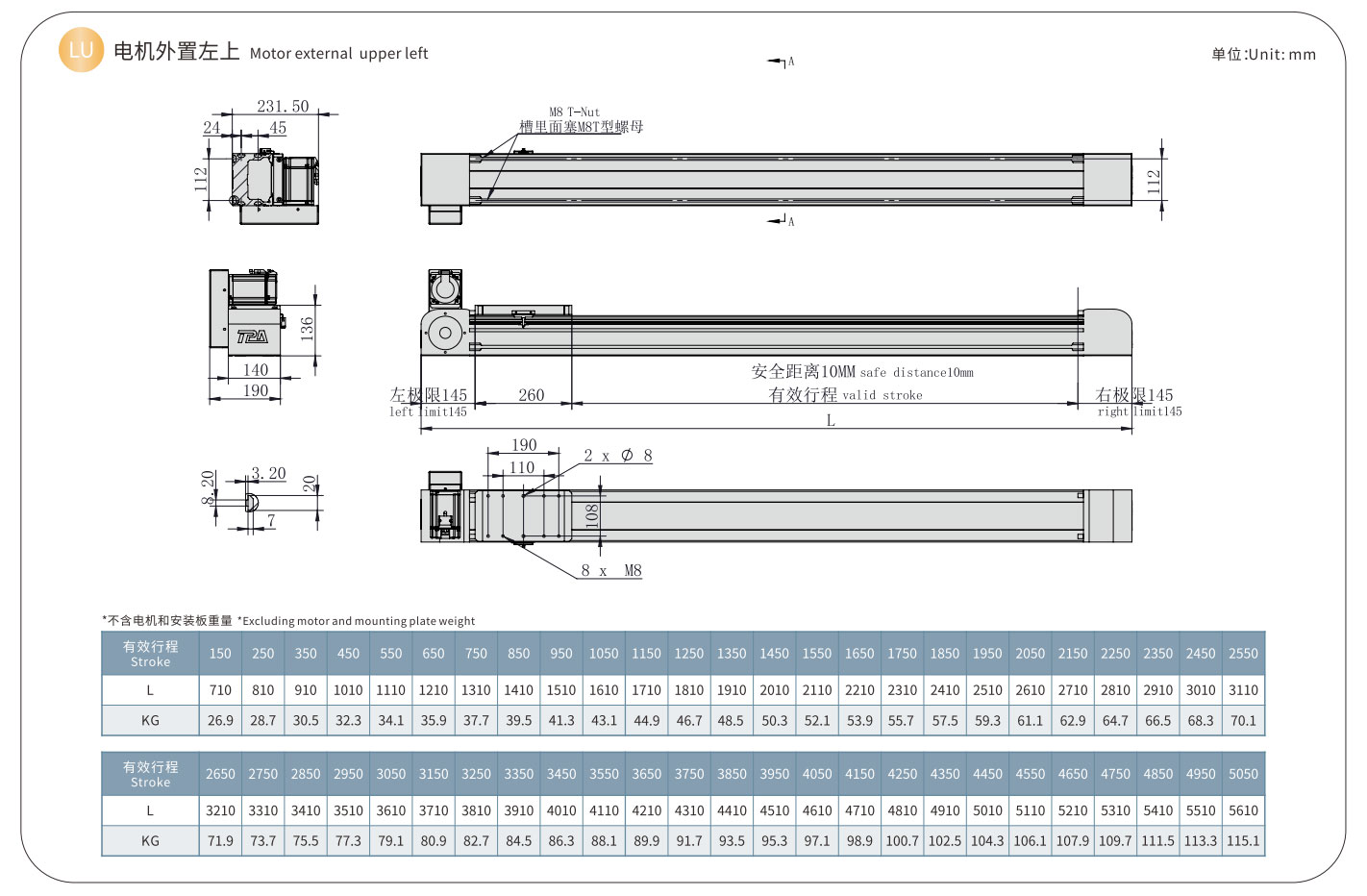

    Belt-Driven-Module-Europe-standard2023_29_07 Belt-Driven-Module-Europe-standard2023_29_10 Belt-Driven-Module-Europe-standard2023_29_03 Belt-Driven-Module-Europe-standard2023_29_05TPA-ONB-140 (1) TPA-ONB-140 (3)TPA-ONB-140 (2) TPA-ONB-140 (4) TPA-ONB-140 (5) TPA-ONB-140 (6)

  • ( Unit:mm )
