HNB Series Electric Belt Driven Linear Actuators

Model Selector

  • Series:
    HNB-65S HNB-85S HNB-85D HNB-105D HNB-110D HNB-120D HNB-140D HNB-175D HNB-202D HNB-220D HNB-270D
  • Load Type:
    Single Rail, Single Slider
  • Belt Lead:
    90mm 45mm
  • Repeated Positioning Accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper Motor Reduction Box
  • Motor Power:
    100W 200W 400W 750W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None

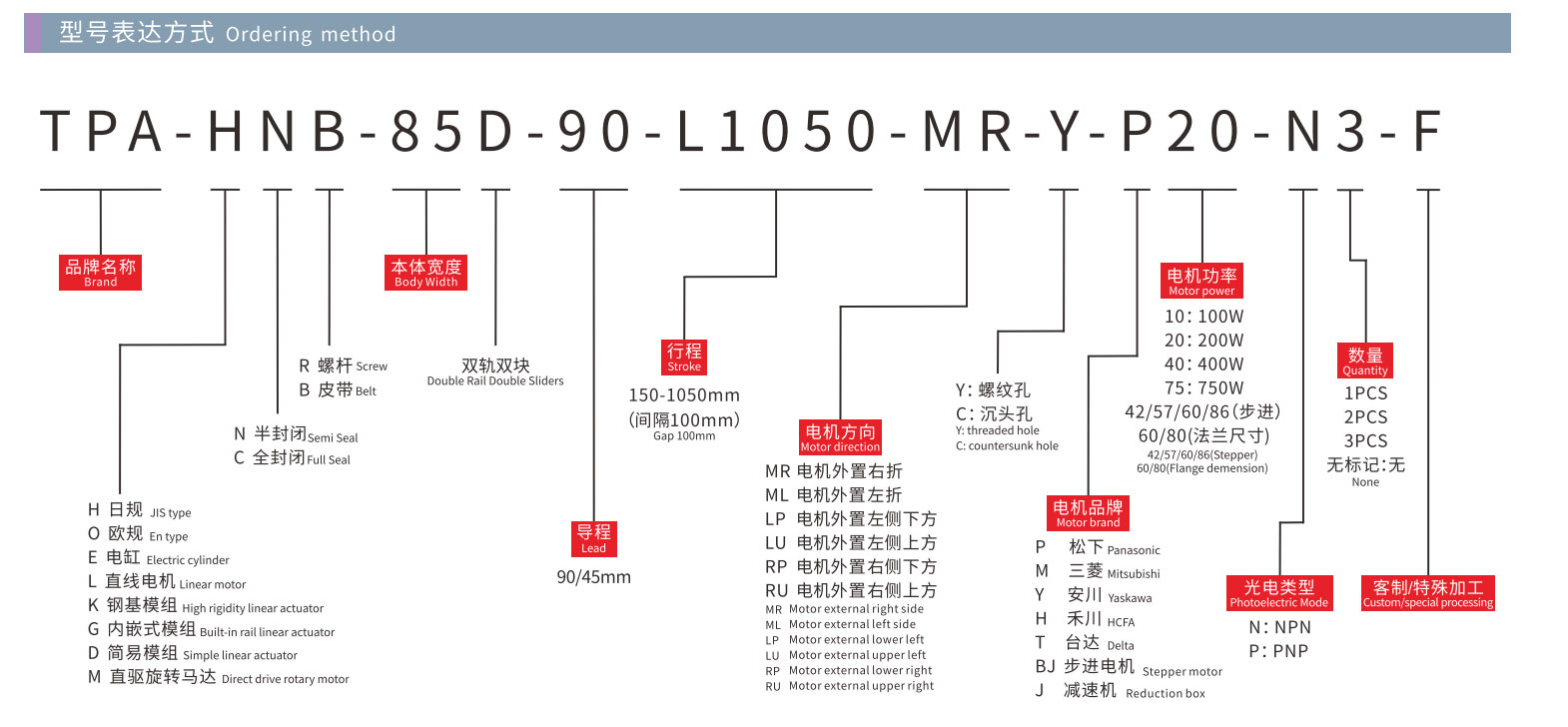

  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Single Rail, Single Slider
  • Belt Lead:
    90mm 45mm
  • Repeated Positioning Accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper Motor Reduction Box
  • Motor Power:
    100W 200W 400W 750W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Belt Lead:
    90mm 45mm
  • Repeated Positioning Accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper Motor Reduction Box
  • Motor Power:
    100W 200W 400W 750W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Belt Lead:
    90mm 45mm
  • Repeated Positioning Accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper Motor Reduction Box
  • Motor Power:
    100W 200W 400W 750W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Belt Lead:
    90mm 45mm
  • Repeated Positioning Accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper Motor Reduction Box
  • Motor Power:
    100W 200W 400W 750W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Belt Lead:
    110mm 55mm
  • Repeated Positioning Accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper Motor Reduction Box
  • Motor Power:
    100W 200W 400W 750W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Belt Lead:
    120mm 60mm
  • Repeated Positioning Accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper Motor Reduction Box
  • Motor Power:
    200W 400W 750W 1000W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Belt Lead:
    140mm 70mm
  • Repeated Positioning Accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper Motor Reduction Box
  • Motor Power:
    200W 400W 750W 1000W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Belt Lead:
    140mm 70mm
  • Repeated Positioning Accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper Motor Reduction Box
  • Motor Power:
    400W 750W 1000W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Belt Lead:
    140mm 70mm
  • Repeated Positioning Accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper Motor Reduction Box
  • Motor Power:
    400W 750W 1000W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Load Type:
    Double Rail,Double Sliders
  • Belt Lead:
    140mm 70mm
  • Repeated Positioning Accuracy:
    ±0.04mm
  • Stroke:
    150mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm
  • Motor Direction:
    Motor External Right Side Motor External Left Side Motor External Lower Left Motor External Upper Left Motor External Lower Right Motor External Upper Right
  • Mounting Hole:
    Threaded Hole Countersunk Hole
  • Motor Brand :
    Panasonic Mitsubishi Yaskawa HCFA Delta Stepper Motor Reduction Box
  • Motor Power:
    400W 750W 1000W
  • Photoelectric Mode:
    NPN x3 pcs PNP x3 pcs None
  • Model:

    TPA-?-??-?-?-?-??-?

  • Product Detail

    HNB-65S

    HNB-85S

    HNB-85D

    HNB-105D

    HNB-110D

    HNB-120D

    HNB-140D

    HNB-175D

    HNB-202D

    HNB-220D

    HNB-270D

    HNB series belt linear actuator has a unique semi-closed design, two high-strength rigid guide rails, to providing higher torque and speed, TPA ROBOT can provide up to 200 kinds of HNB belt-driven actuators of different widths and lengths to meet customer requirements for load and travel. The maximum speed can reach 6000mm/s, and engineer can easily create satisfactory Cartesian robot or gantry robots to meet the automation needs of various industries.

    In addition to providing high torque, high speed, and long stroke linear slide actuator, we also cleverly designed the way that the flange plate is placed outside, which allows our linear actuators to provide up to 8 installation methods to adapt to various automation environments.

    HNB-65S

    HNB-65S

    HNB-85D

    HNB-85D

    HNB-85S

    HNB-85S

    HNB-105D

    HNB-105D

    HNB-110D

    HNB-110D

    HNB-120D

    HNB-120D

    HNB-140D

    HNB-140D

    HNB-175D

    HNB-175D

    HNB-202D

    HNB-202D

    HNB-220D

    HNB-220D

    HNB-270D

    HNB-270D

  • Features

    Repeated Positioning Accuracy: ±0.04mm
    Max Payload: 140kg
    Stroke: 100 – 3050mm
    Max Speed: 7000mm/s

    aboyt

    1. Flat design, lighter overall weight, lower combination height and better rigidity.

    2. The structure is optimized, the precision is better, and the error caused by assembling multiple accessories is reduced.

    3. The assembly is time-saving, labor-saving and convenient. There is no need to remove the aluminum cover to install the coupling or module.

    4. Maintenance is simple, both sides of the module are equipped with oil injection holes, and the cover does not need to be removed.

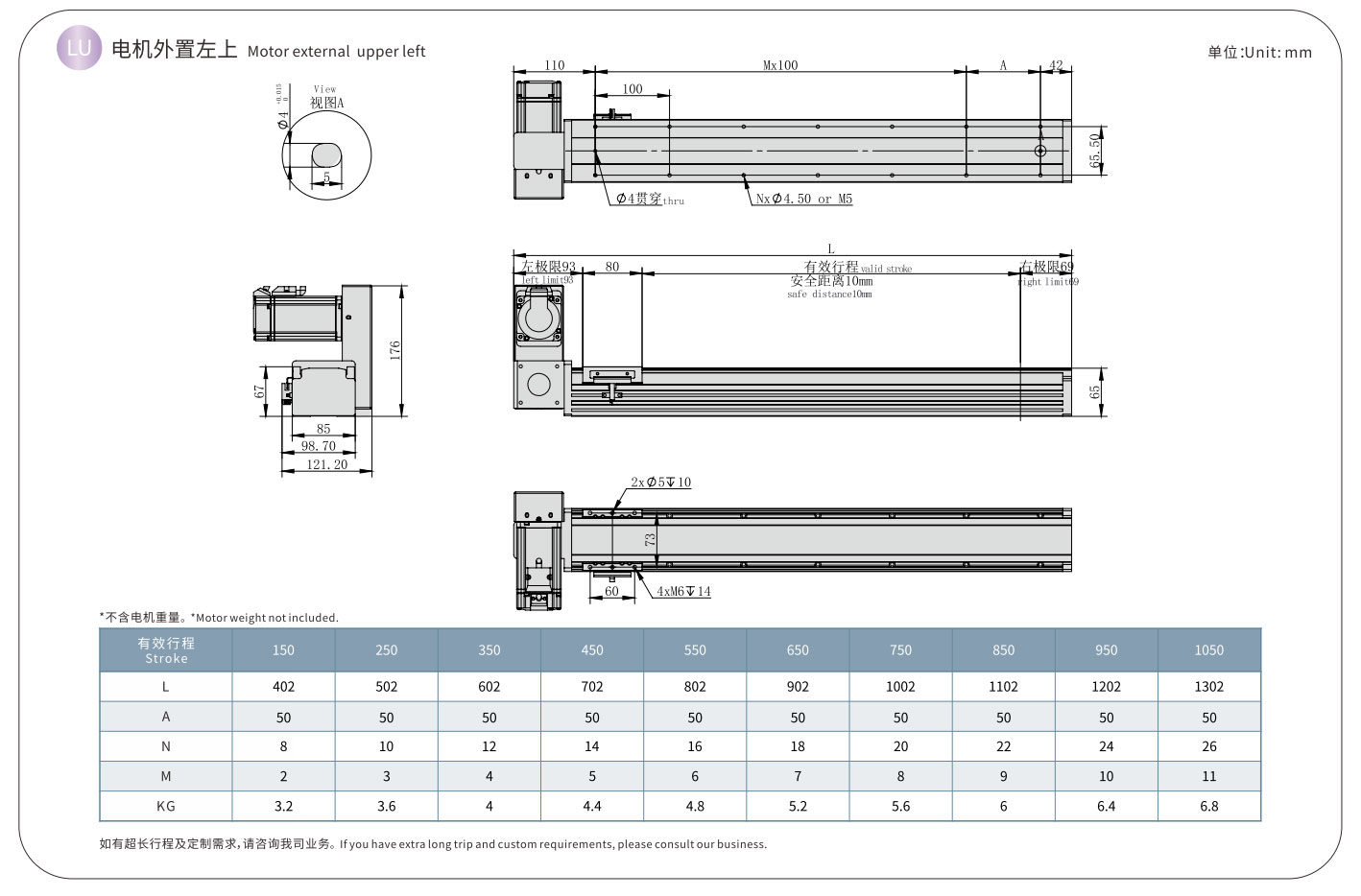

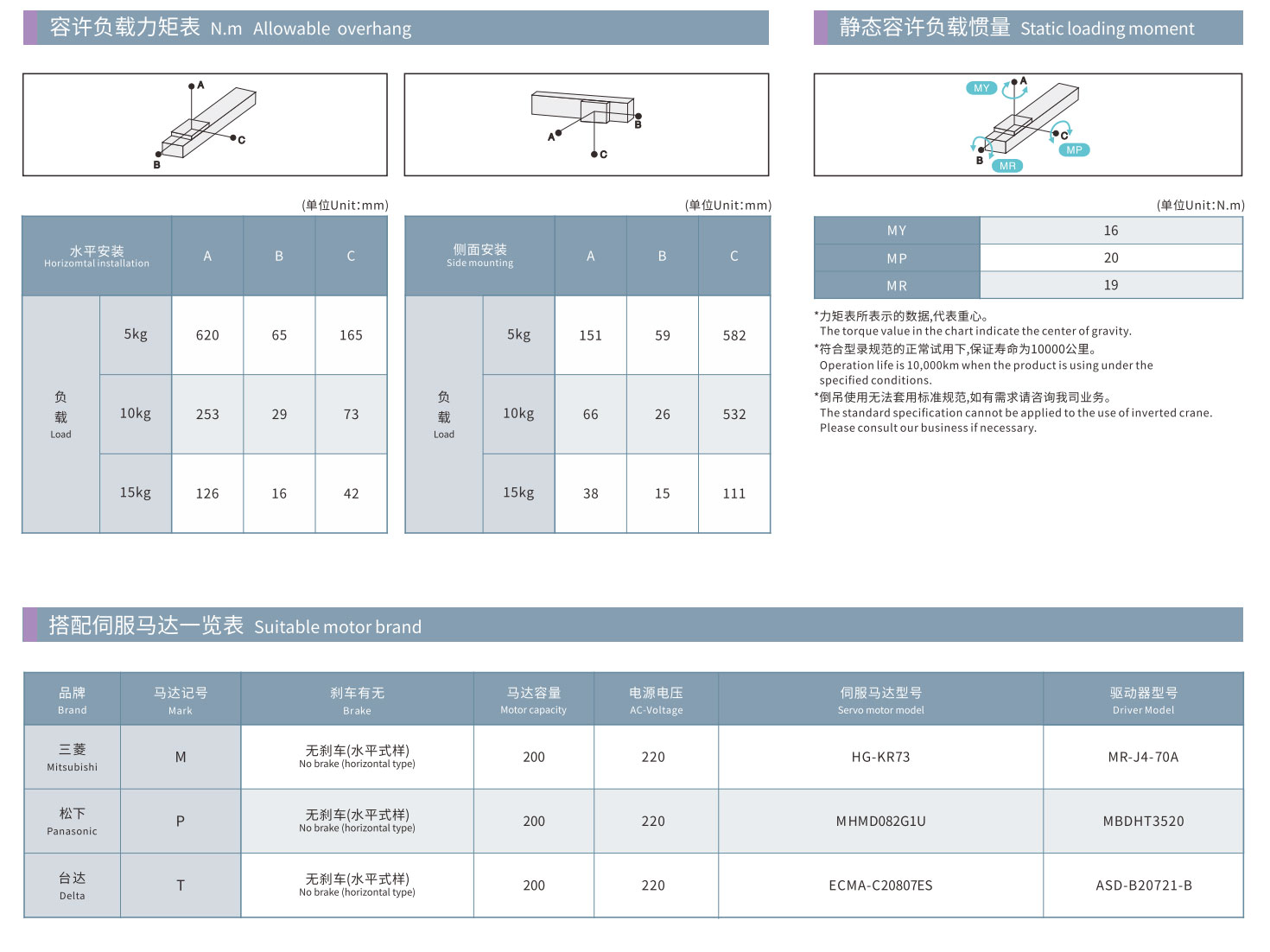

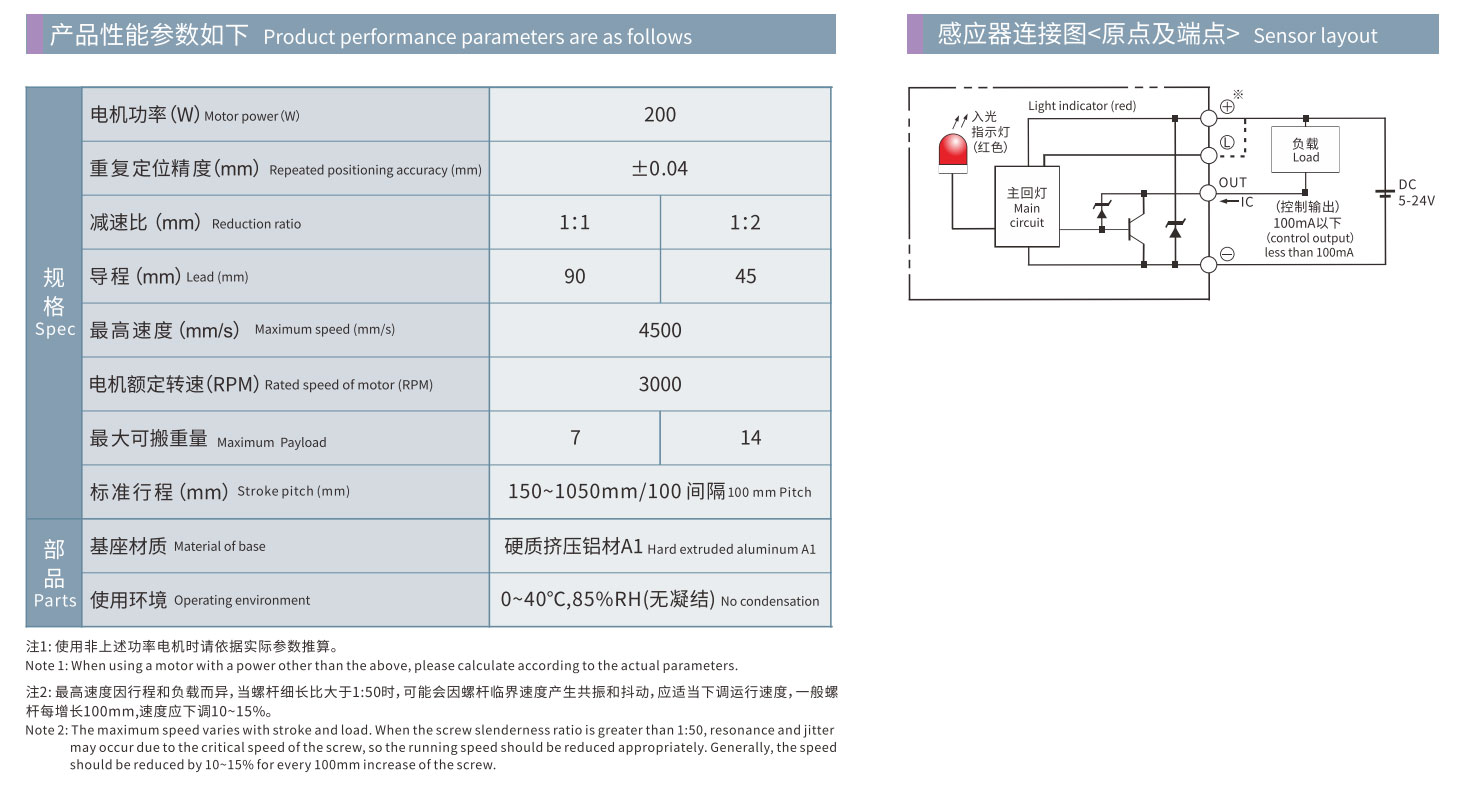

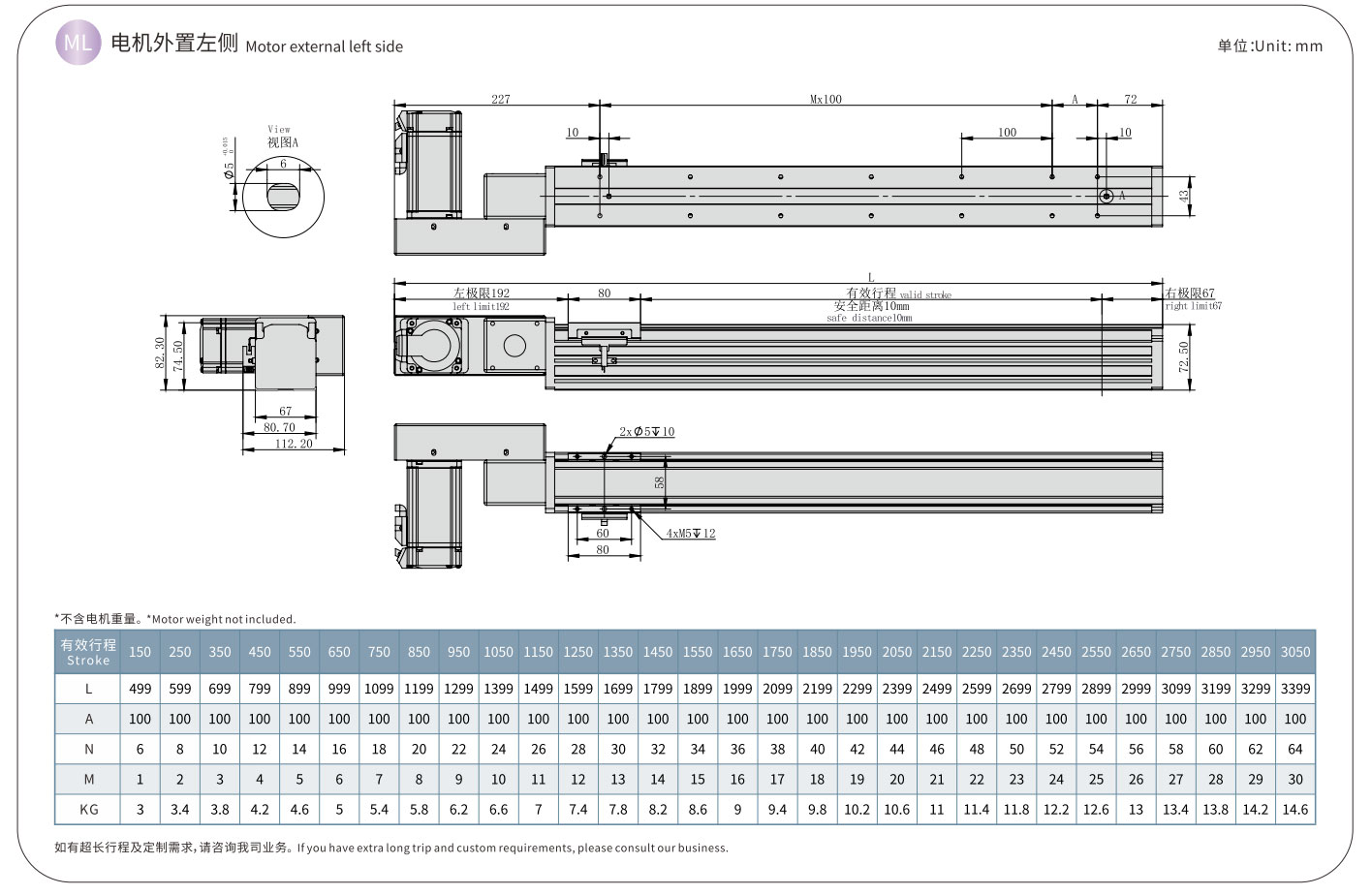

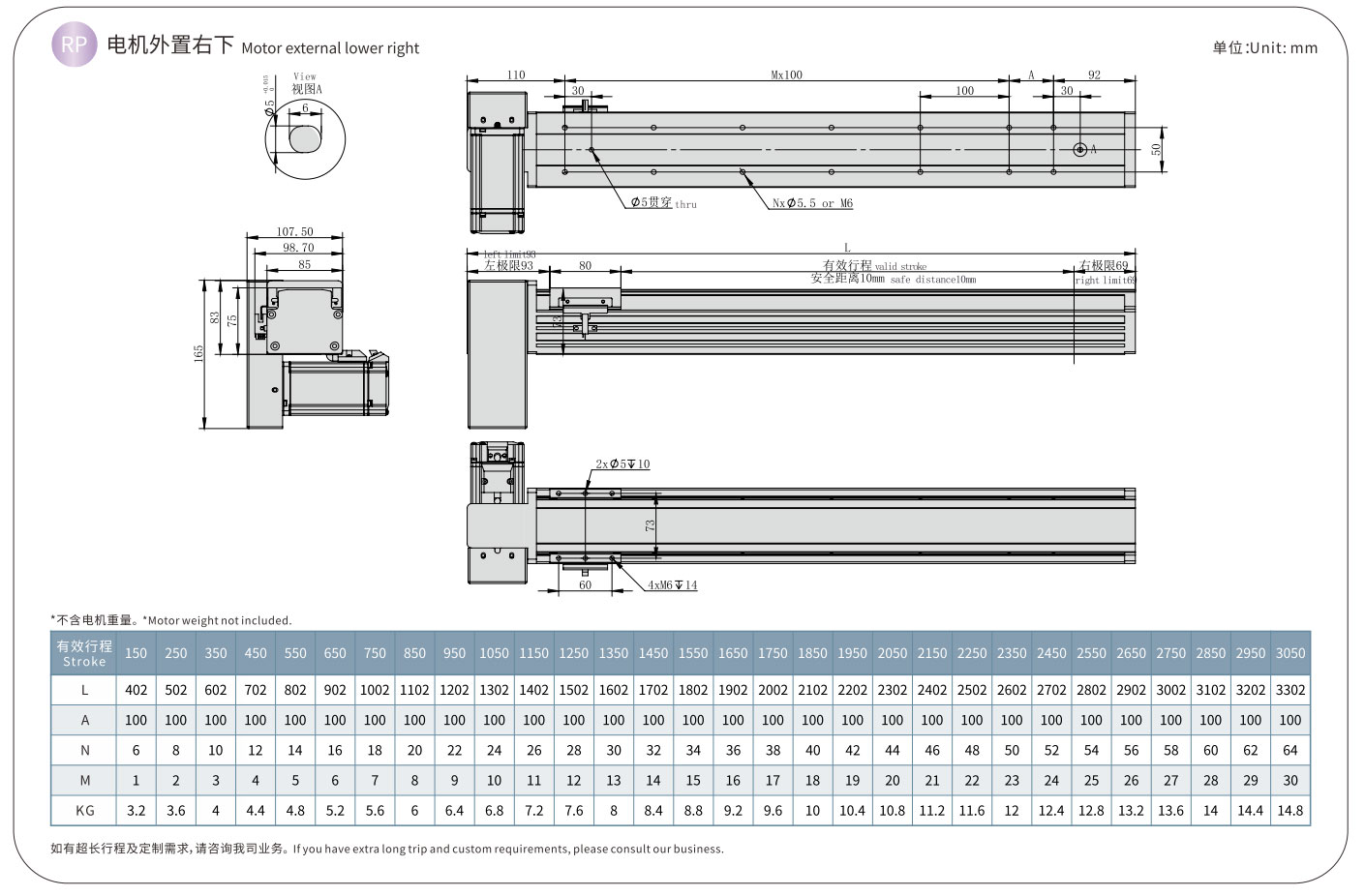

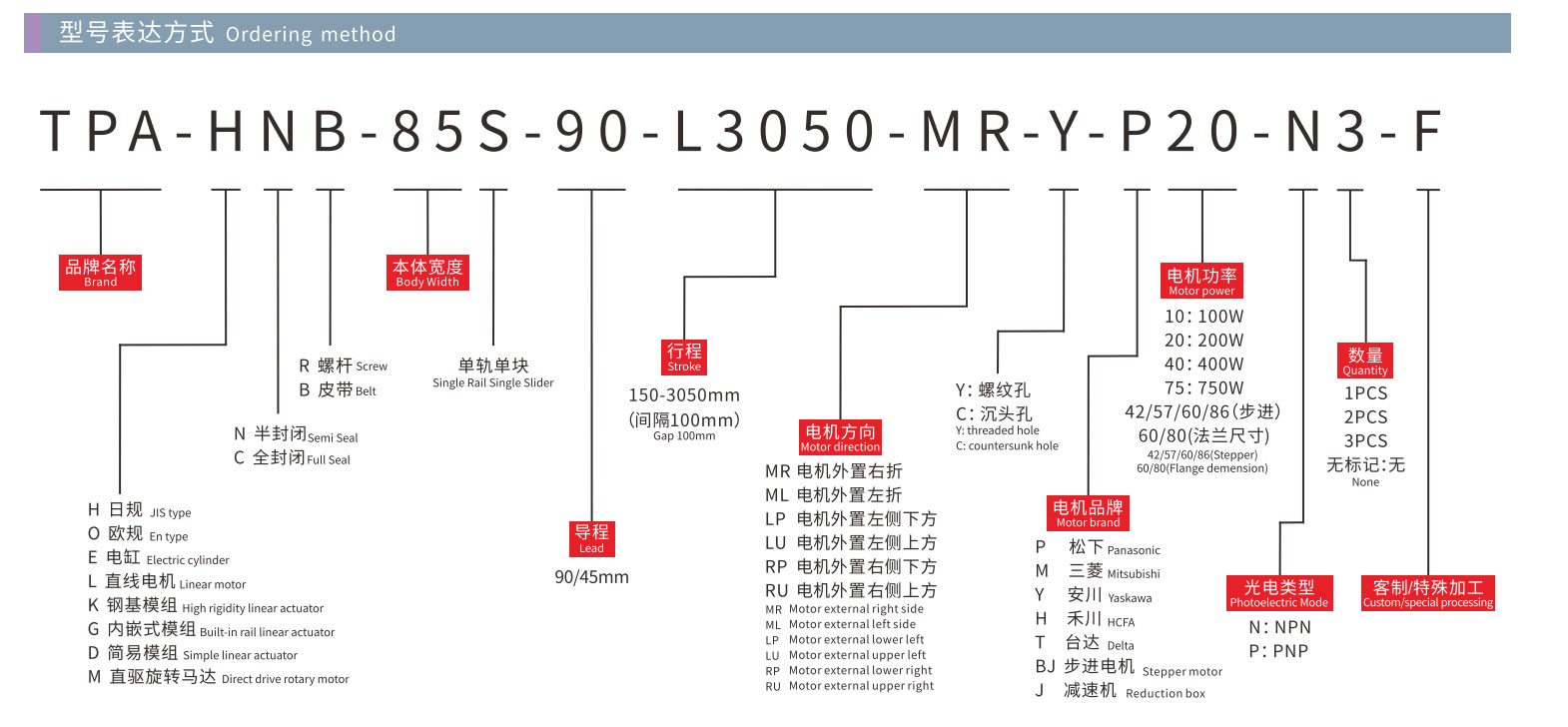

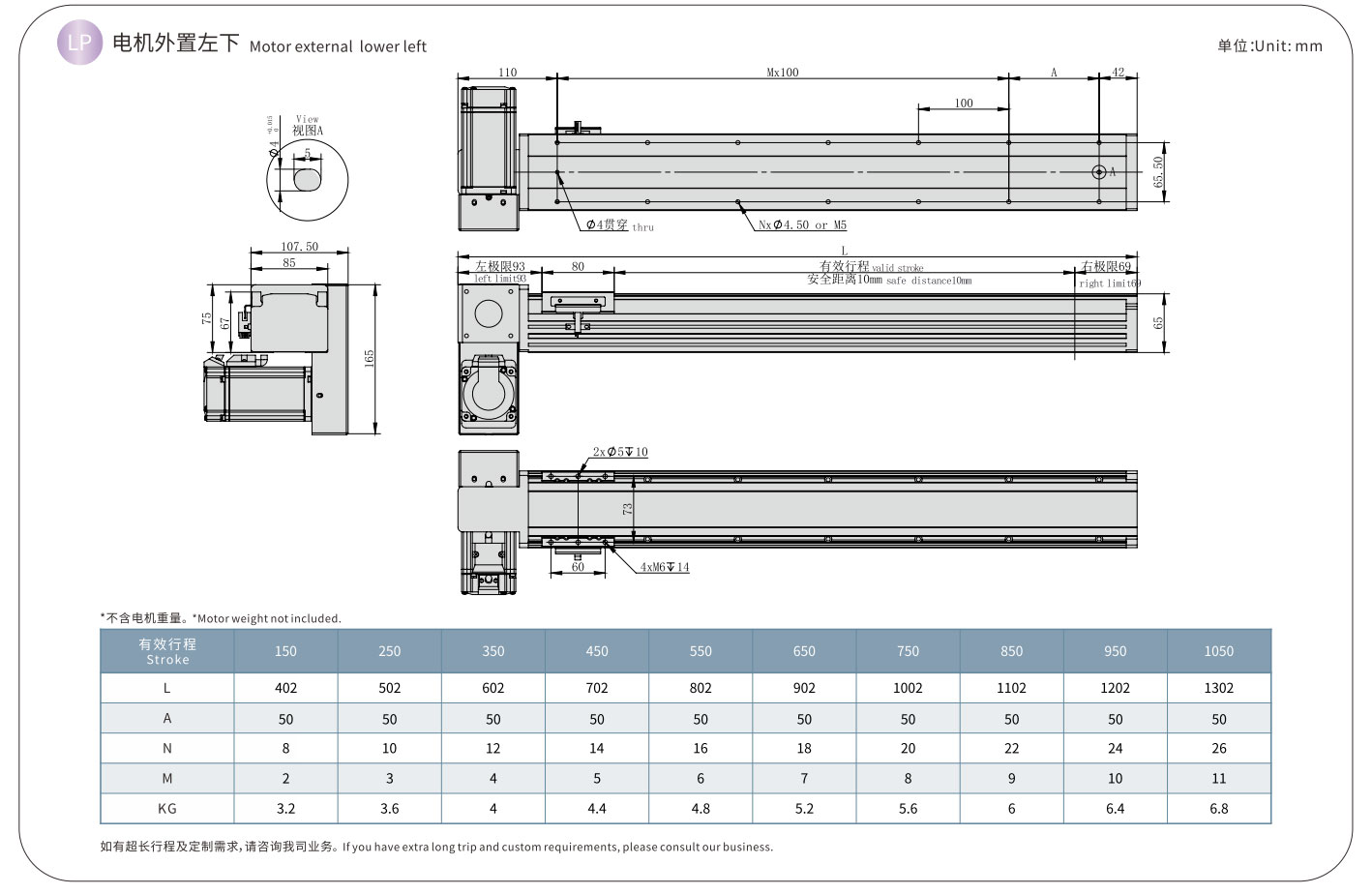

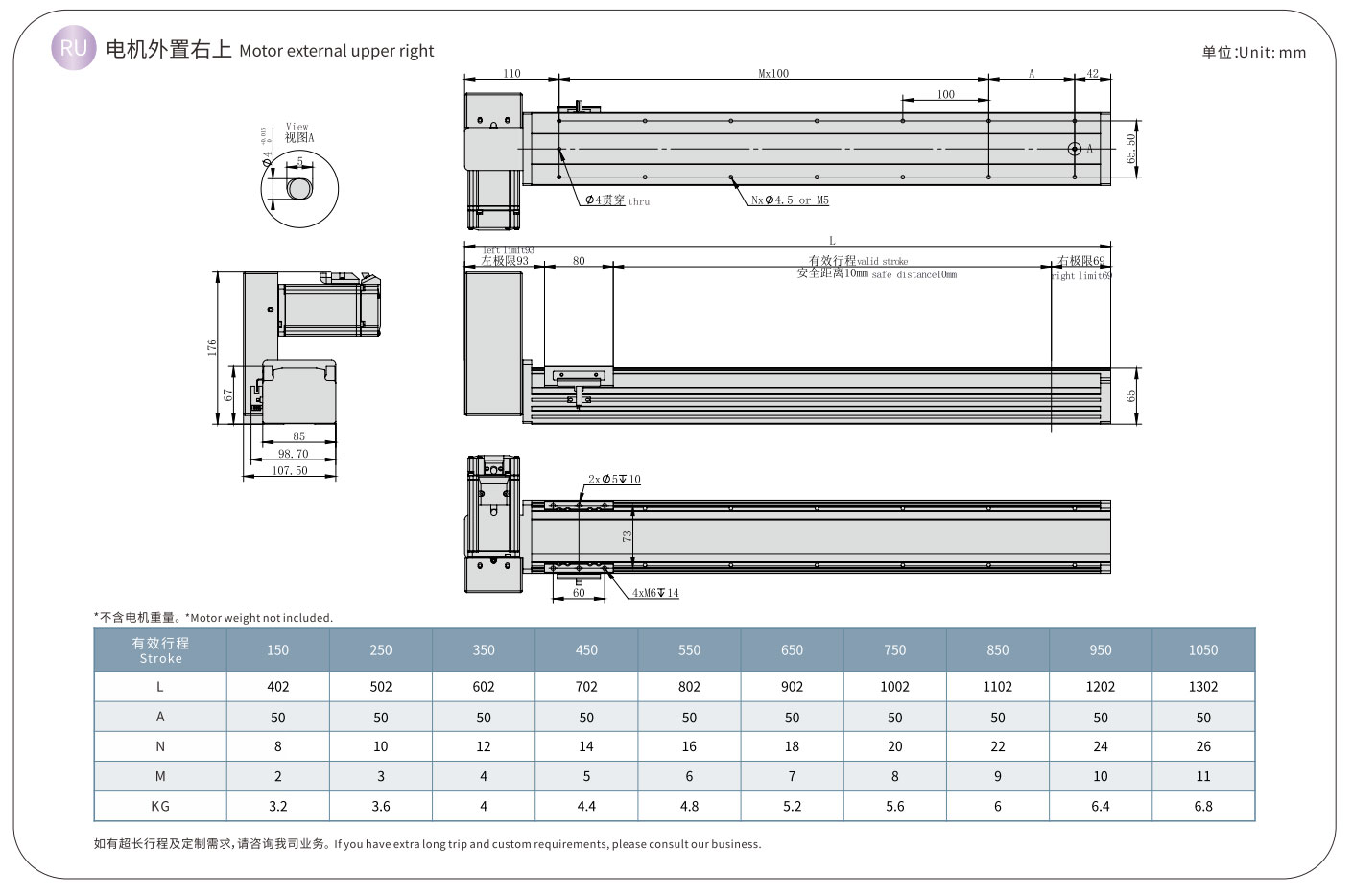

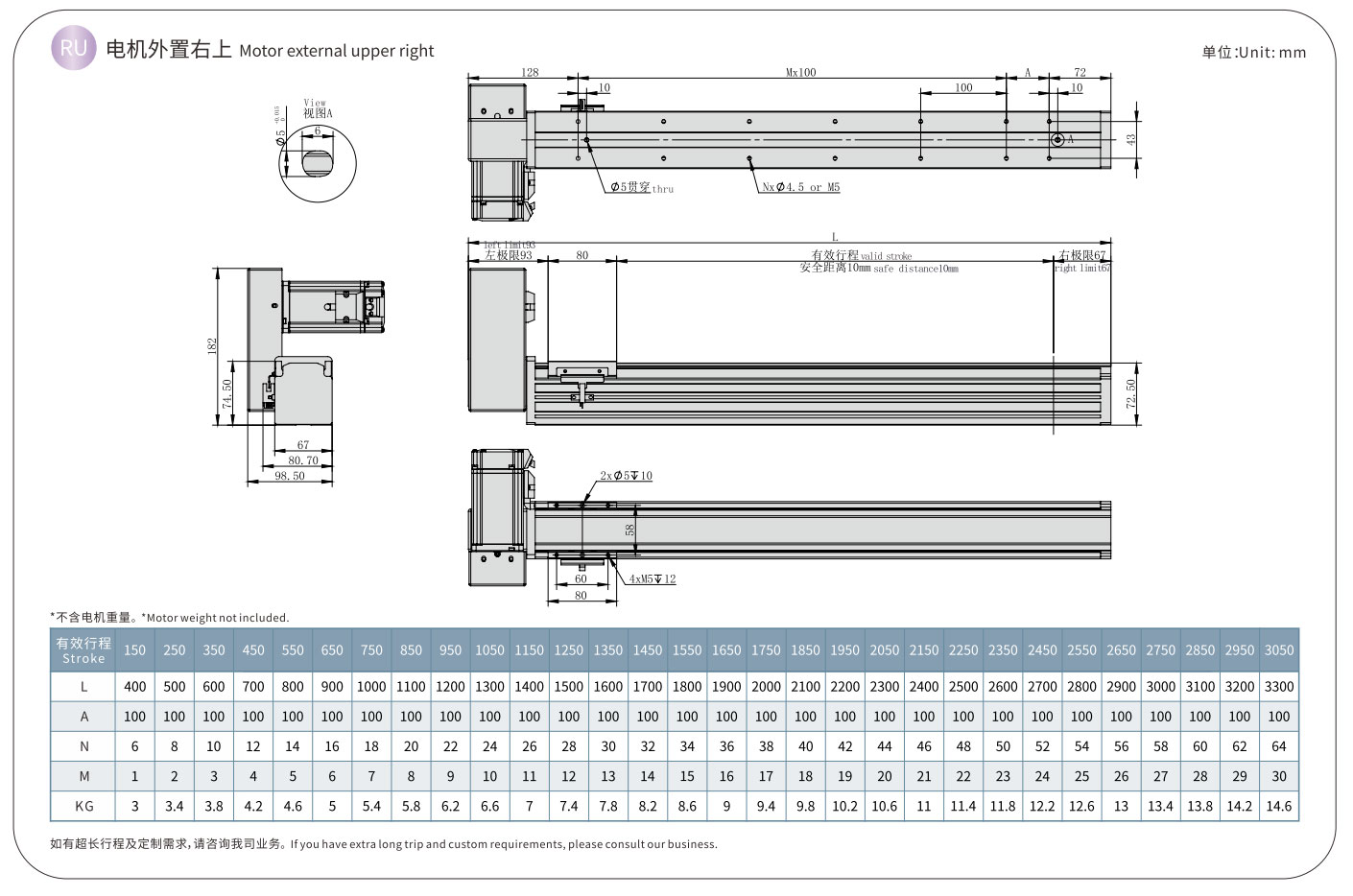

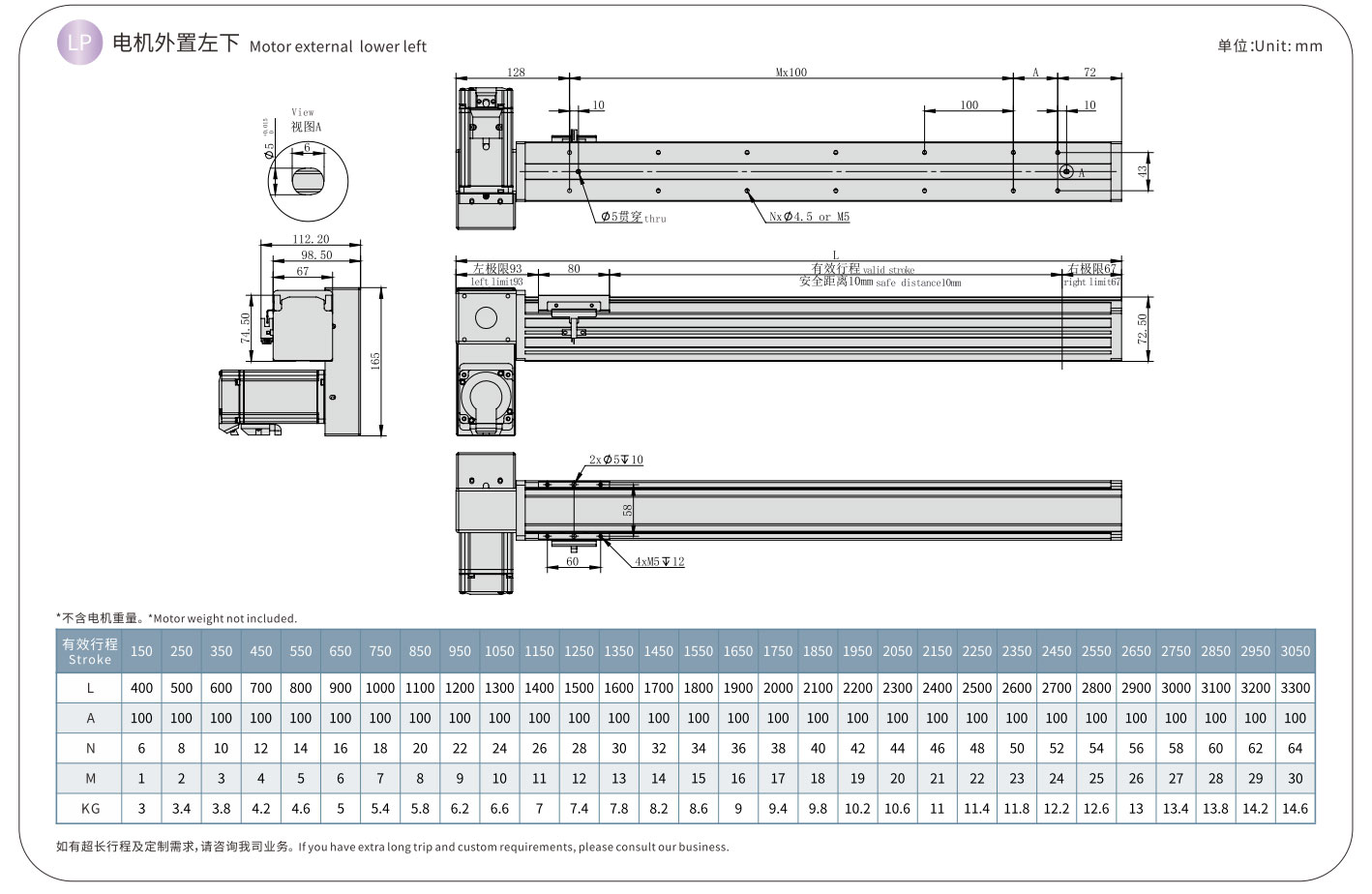

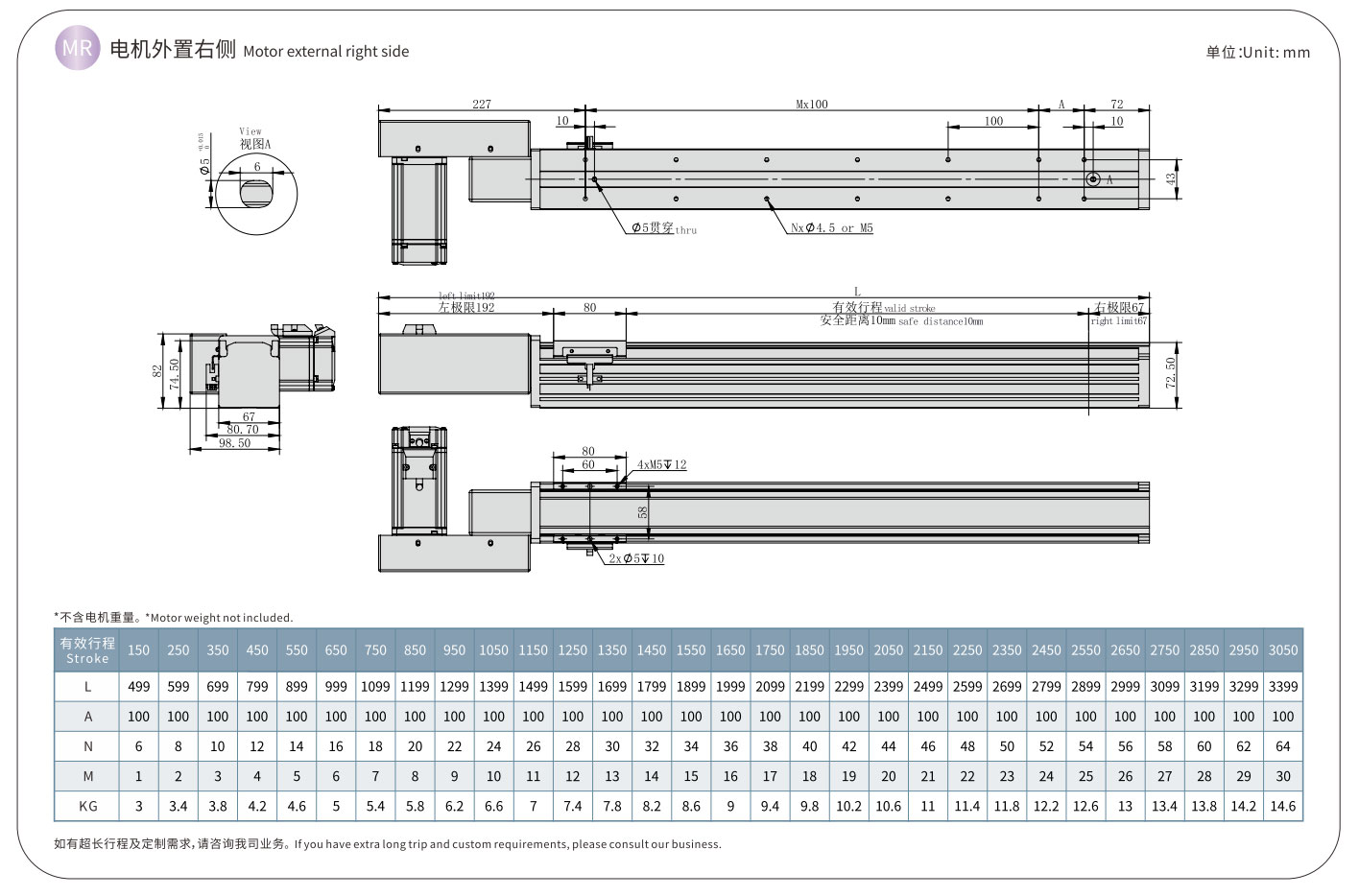

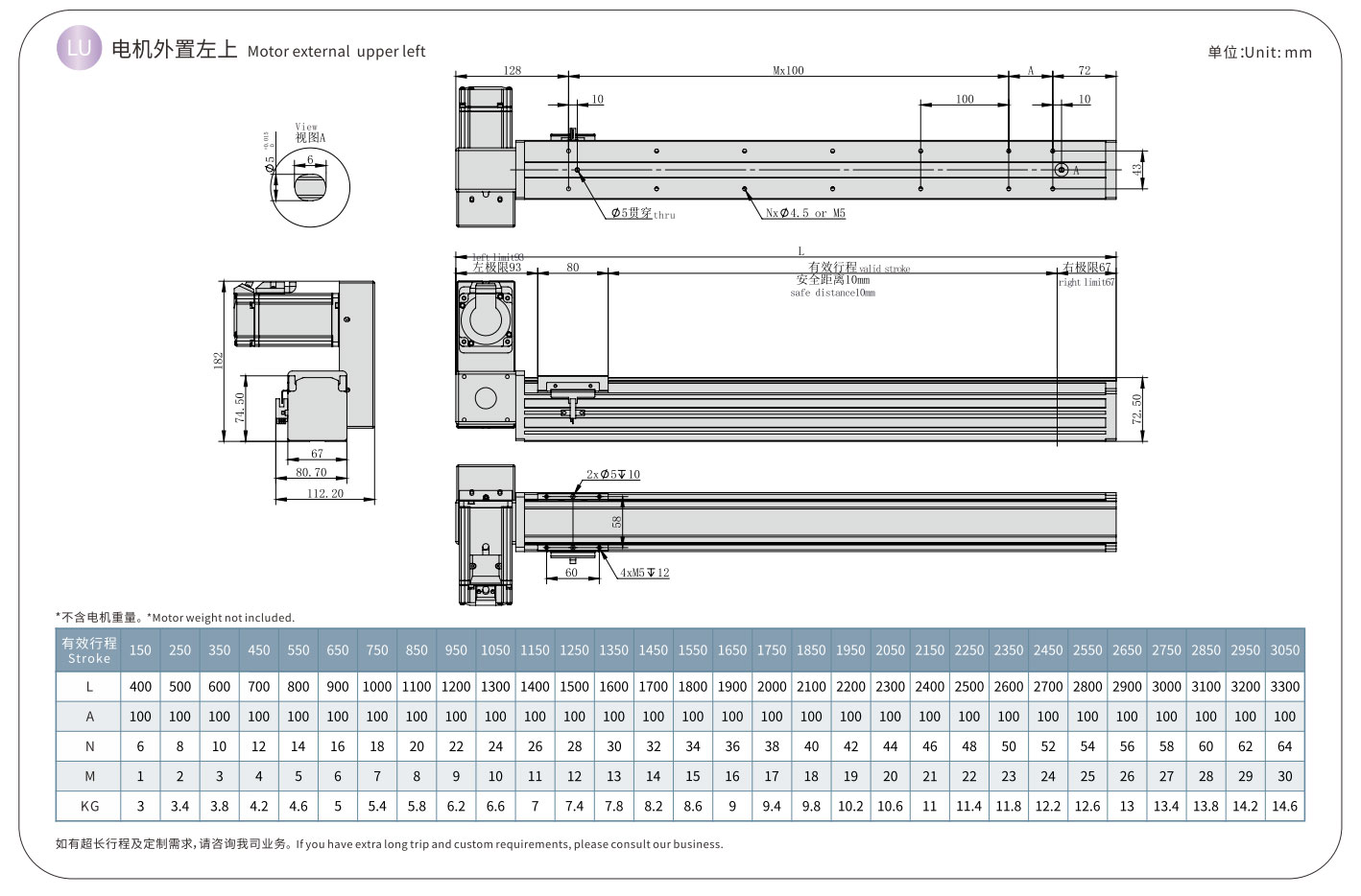

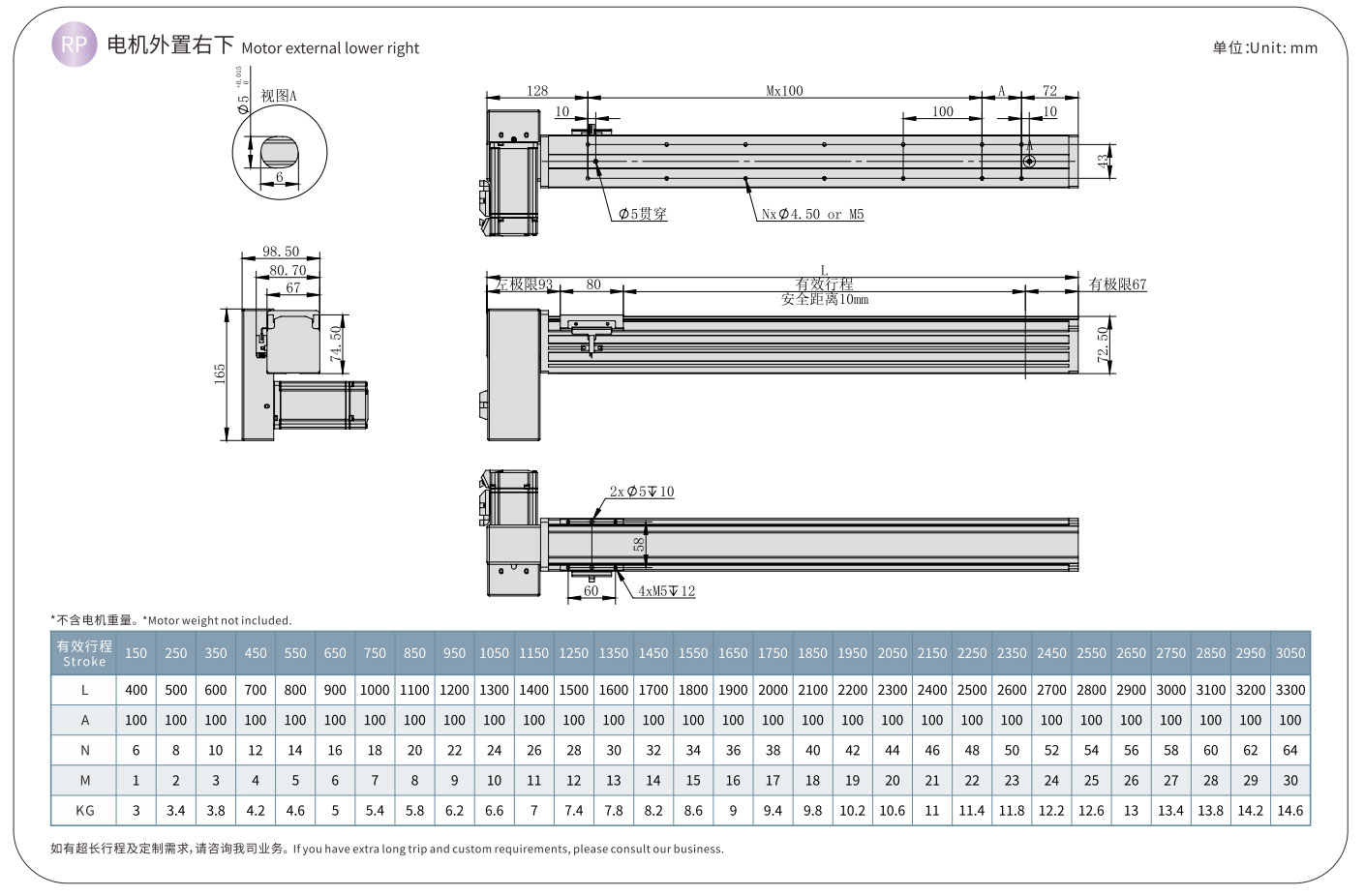

  • General-module-Asia-Standard-&-Multi-axis-series-2023_59_07 General-module-Asia-Standard-&-Multi-axis-series-2023_59_10 General-module-Asia-Standard-&-Multi-axis-series-2023_59_03 General-module-Asia-Standard-&-Multi-axis-series-2023_59_05TPA-HNB-65S (1) TPA-HNB-65S (2) TPA-HNB-65S (3) TPA-HNB-65S (5) TPA-HNB-65S (6) TPA-HNB-65S (7)

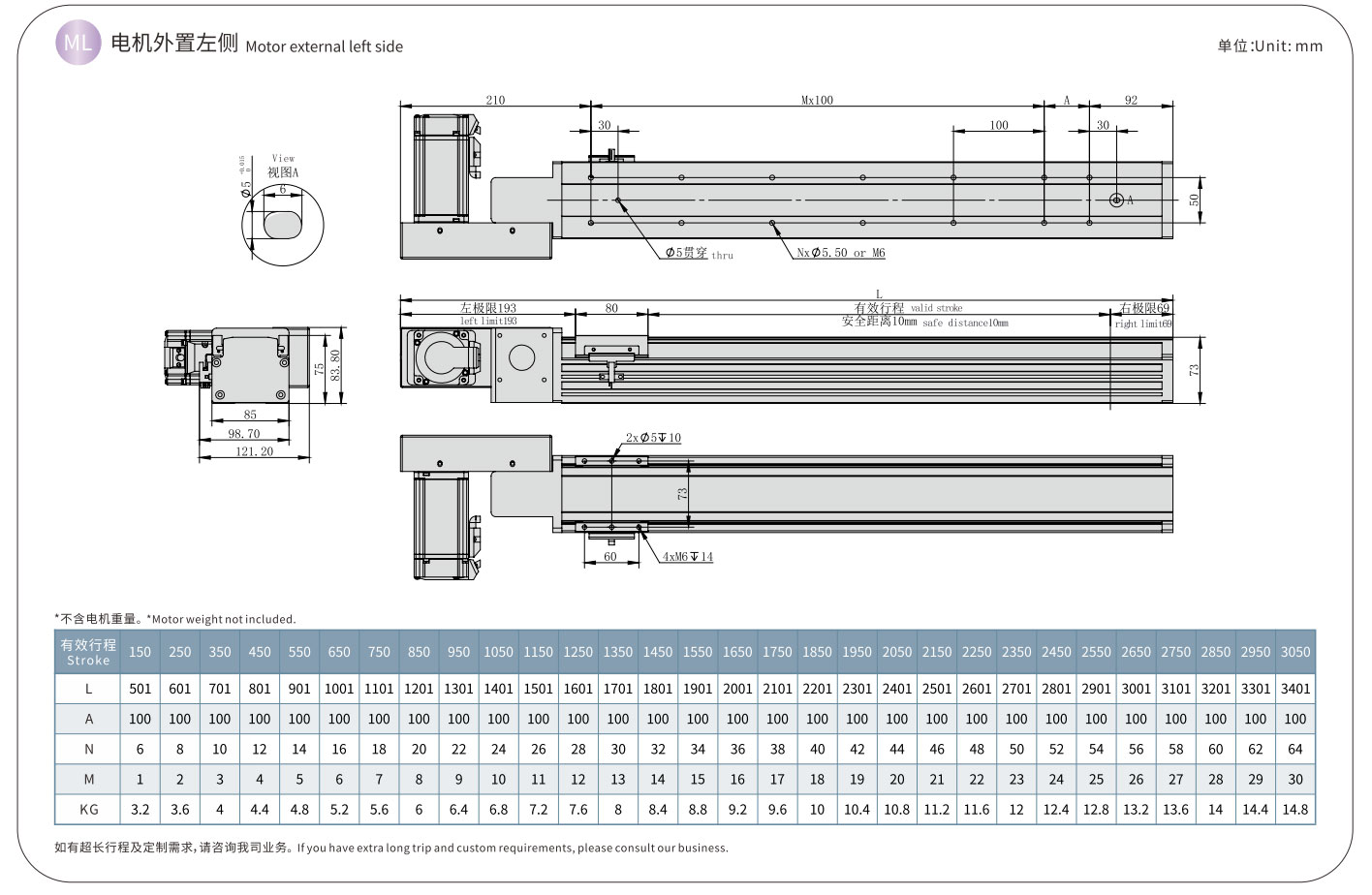

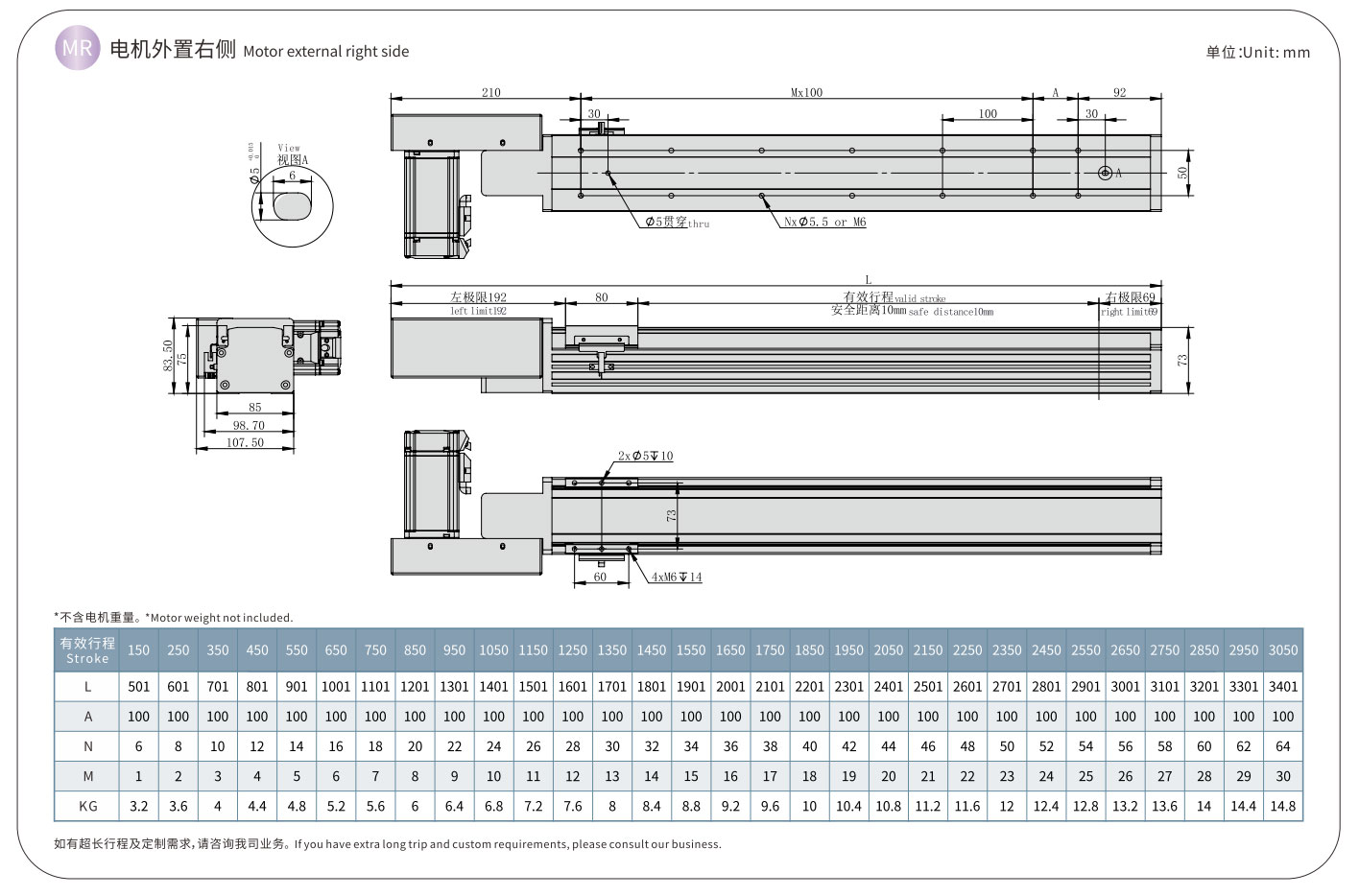

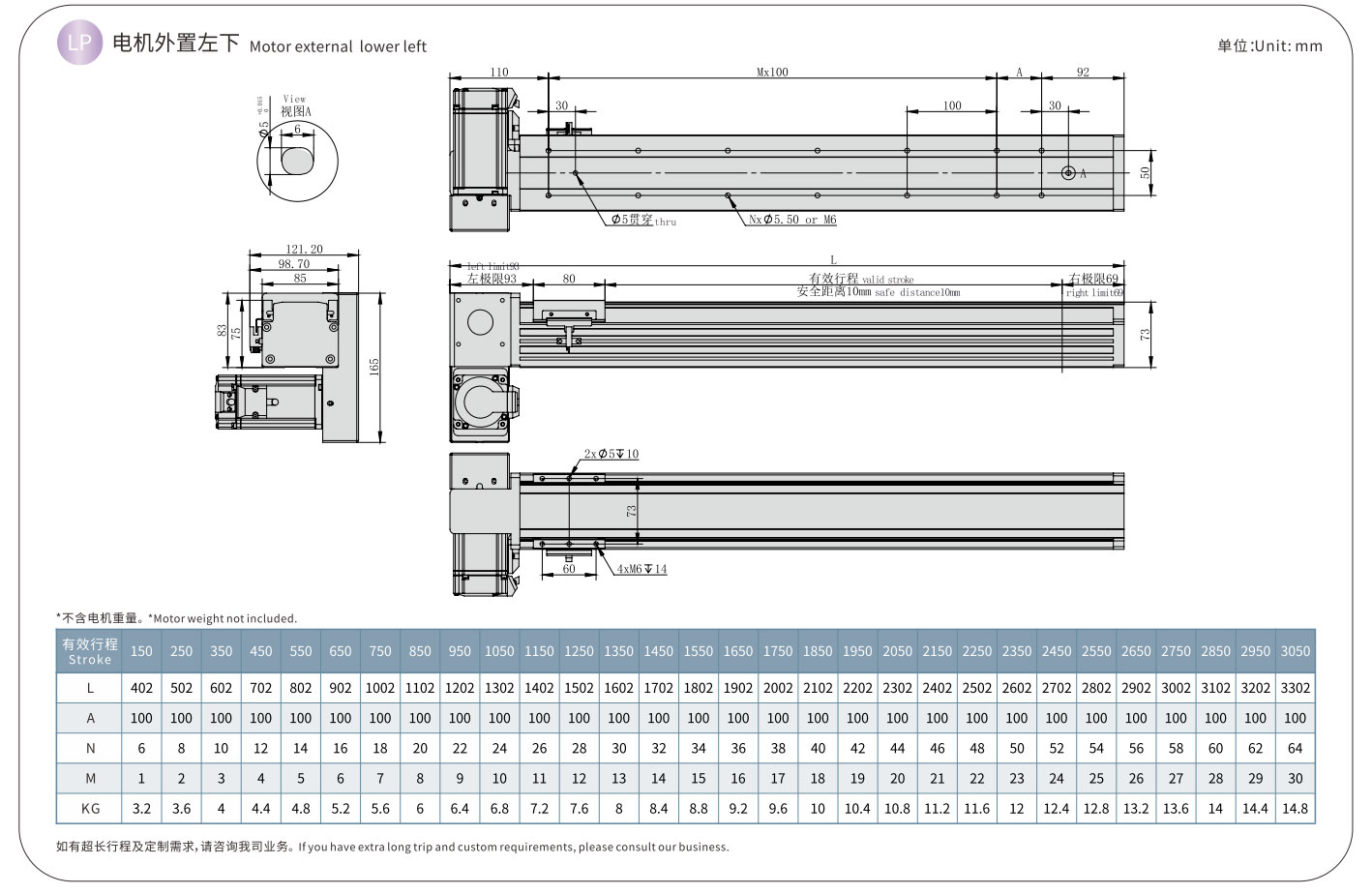

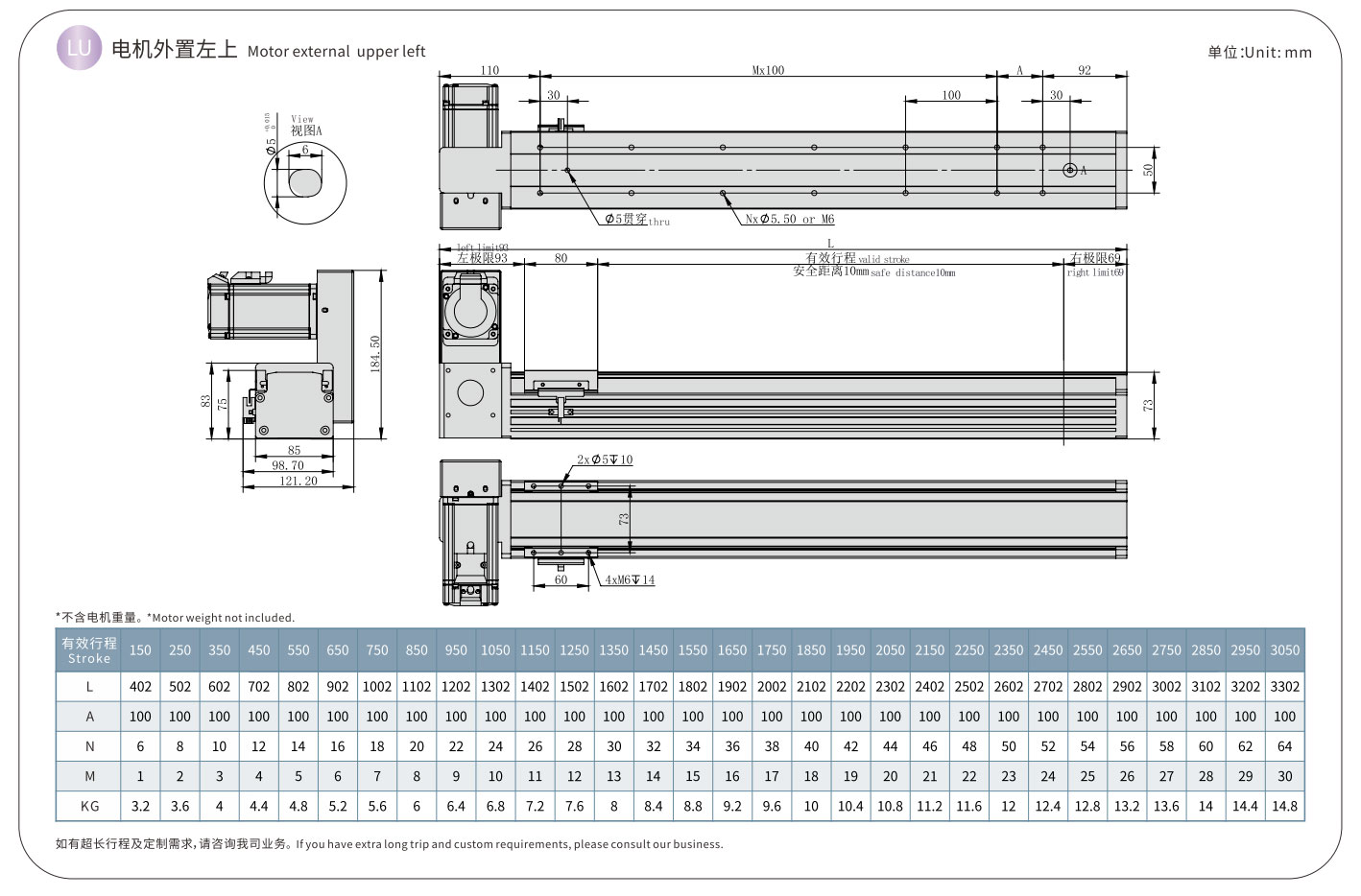

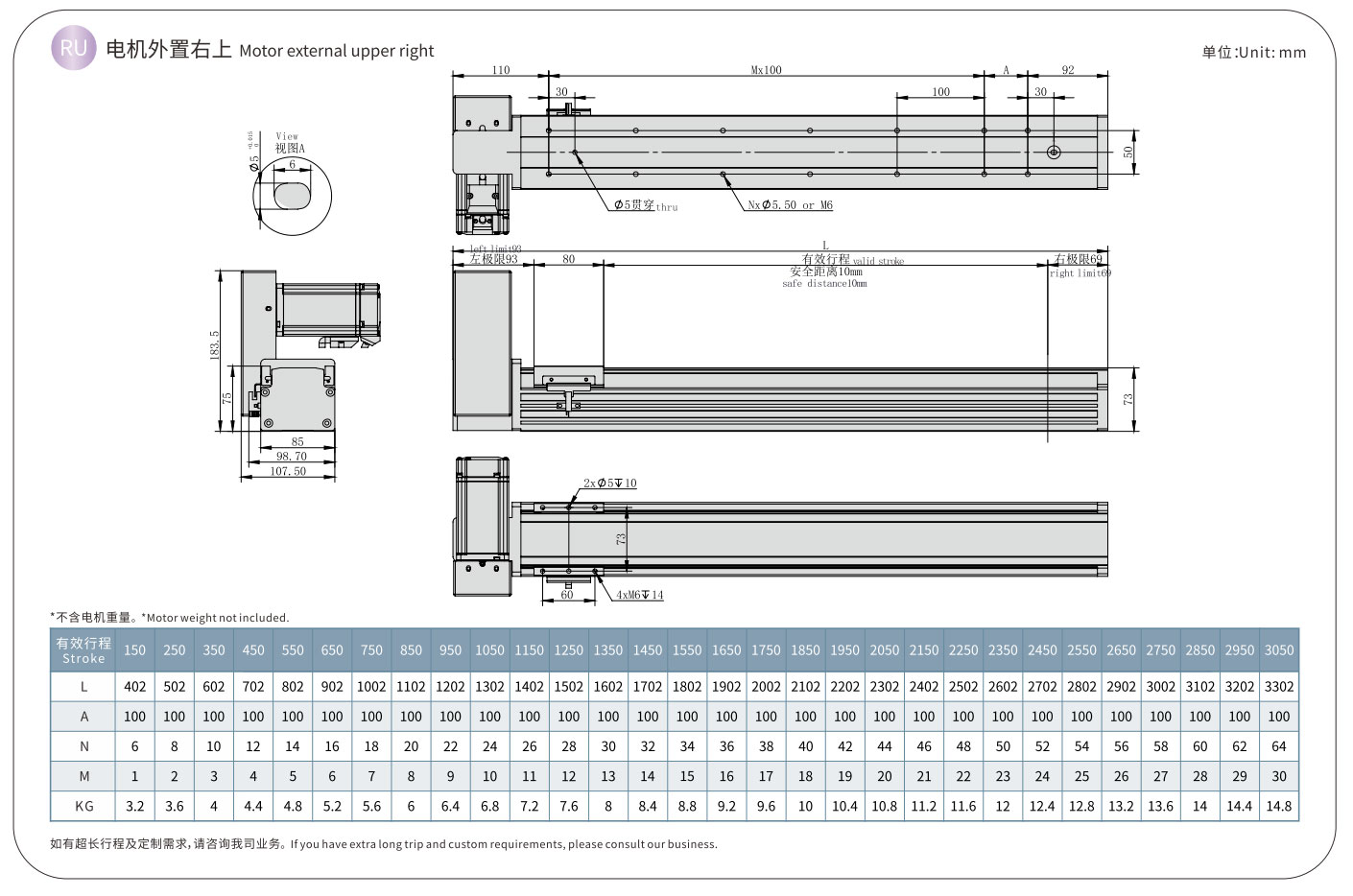

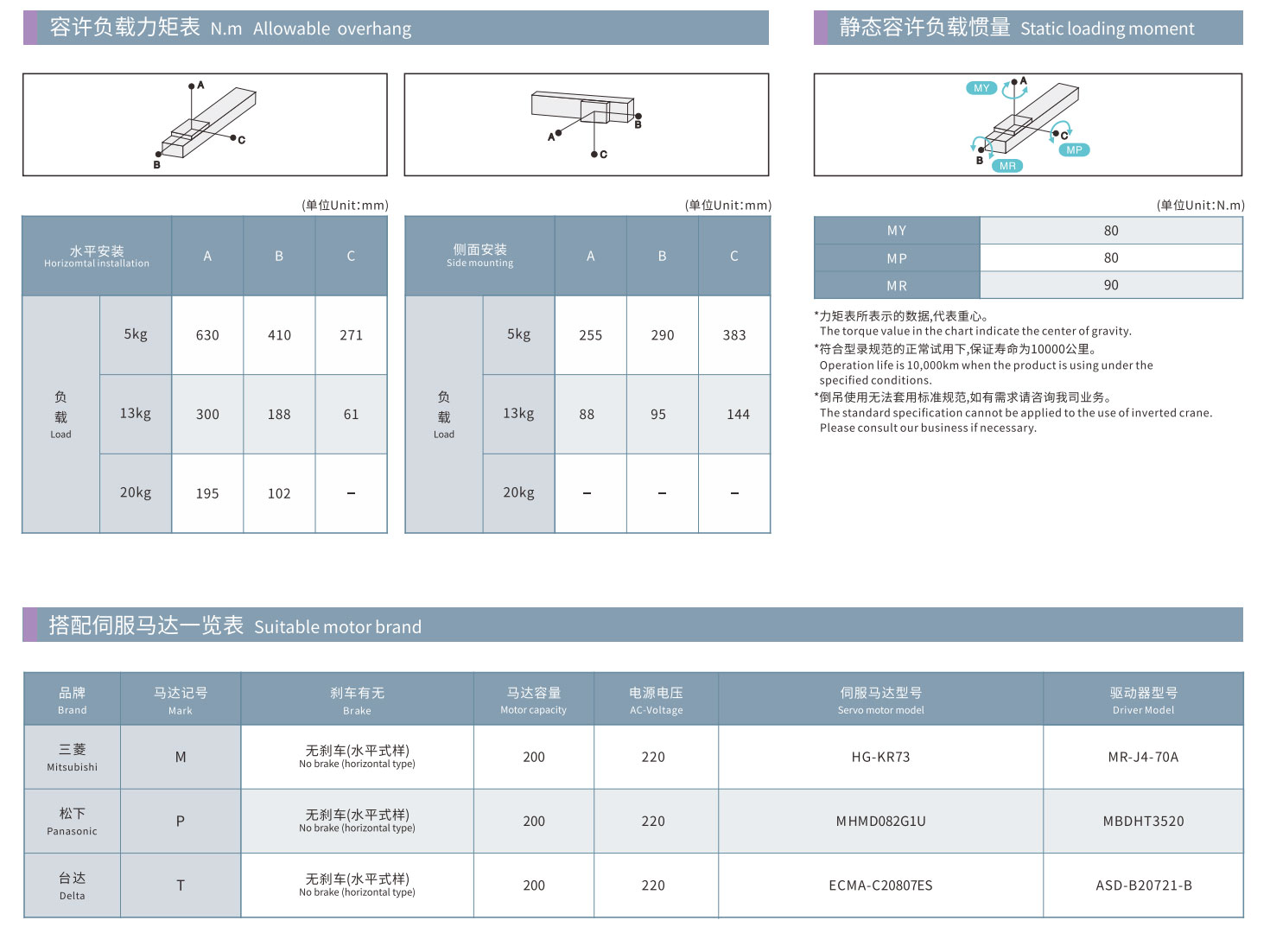

    General-module-Asia-Standard-&-Multi-axis-series-2023_62_07 General-module-Asia-Standard-&-Multi-axis-series-2023_62_10 General-module-Asia-Standard-&-Multi-axis-series-2023_62_03 General-module-Asia-Standard-&-Multi-axis-series-2023_62_05TPA-HNB-85S (1) TPA-HNB-85S (2) TPA-HNB-85S (4)TPA-HNB-85S (3) TPA-HNB-85S (5) TPA-HNB-85S (6)

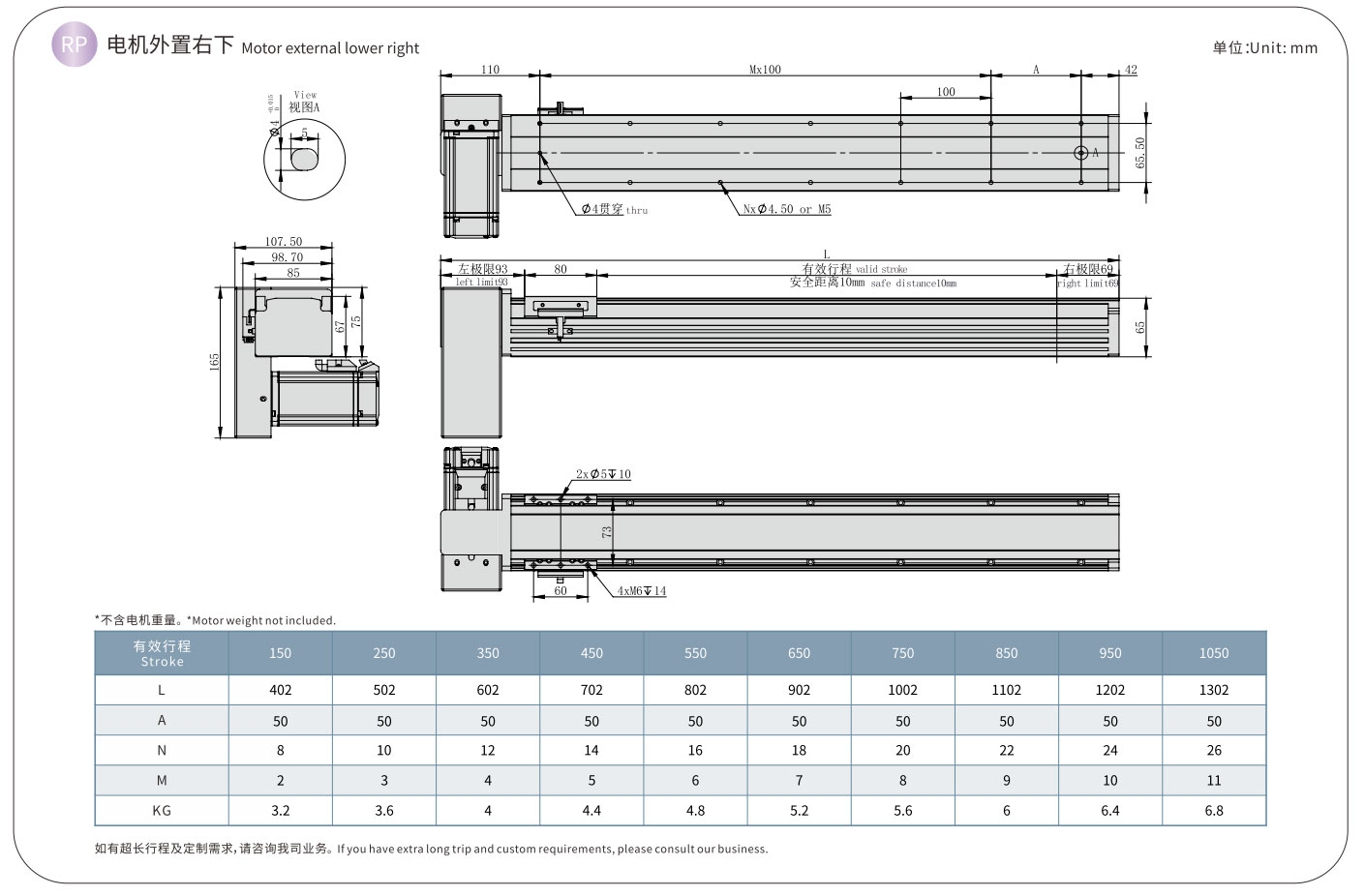

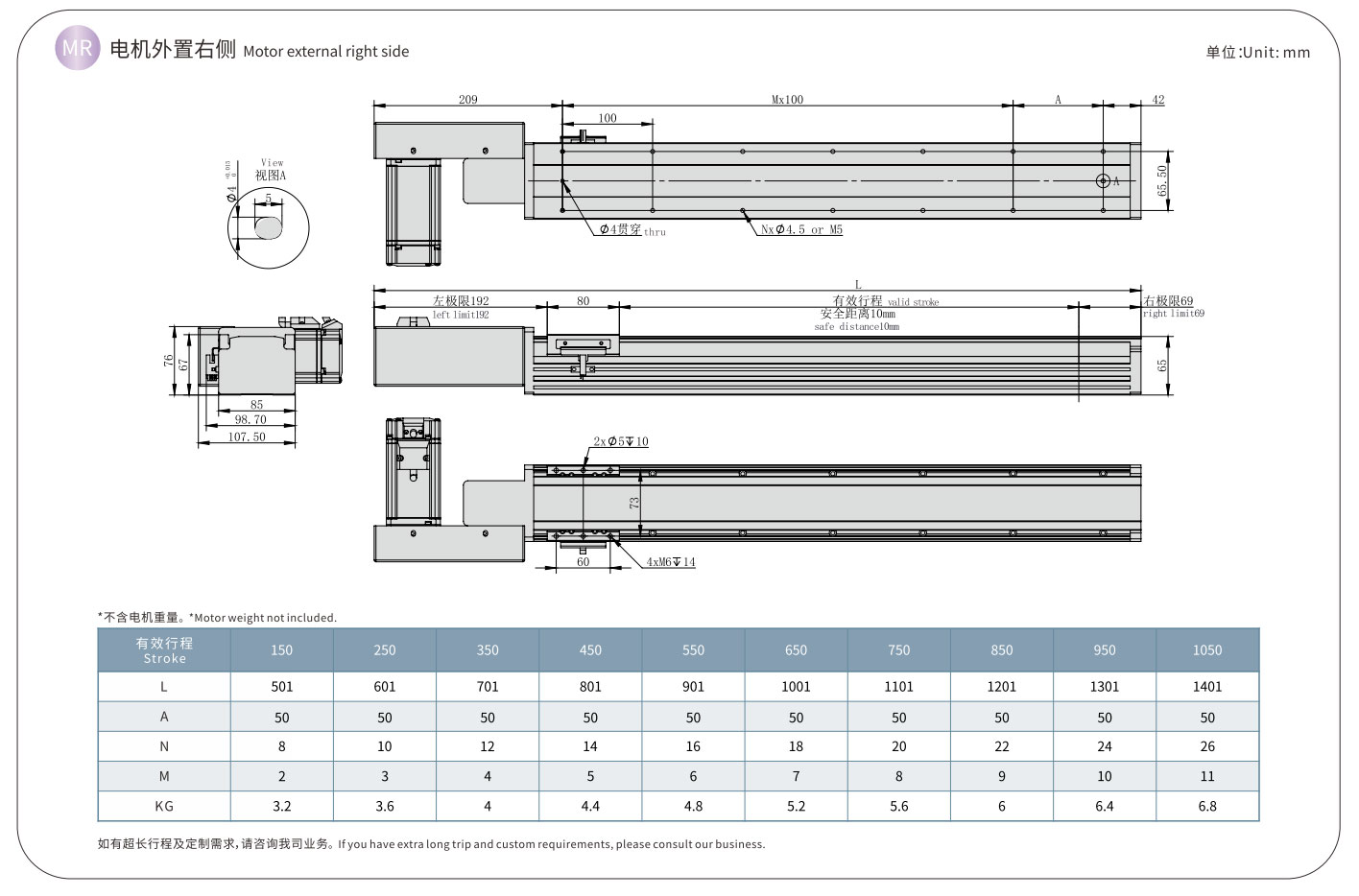

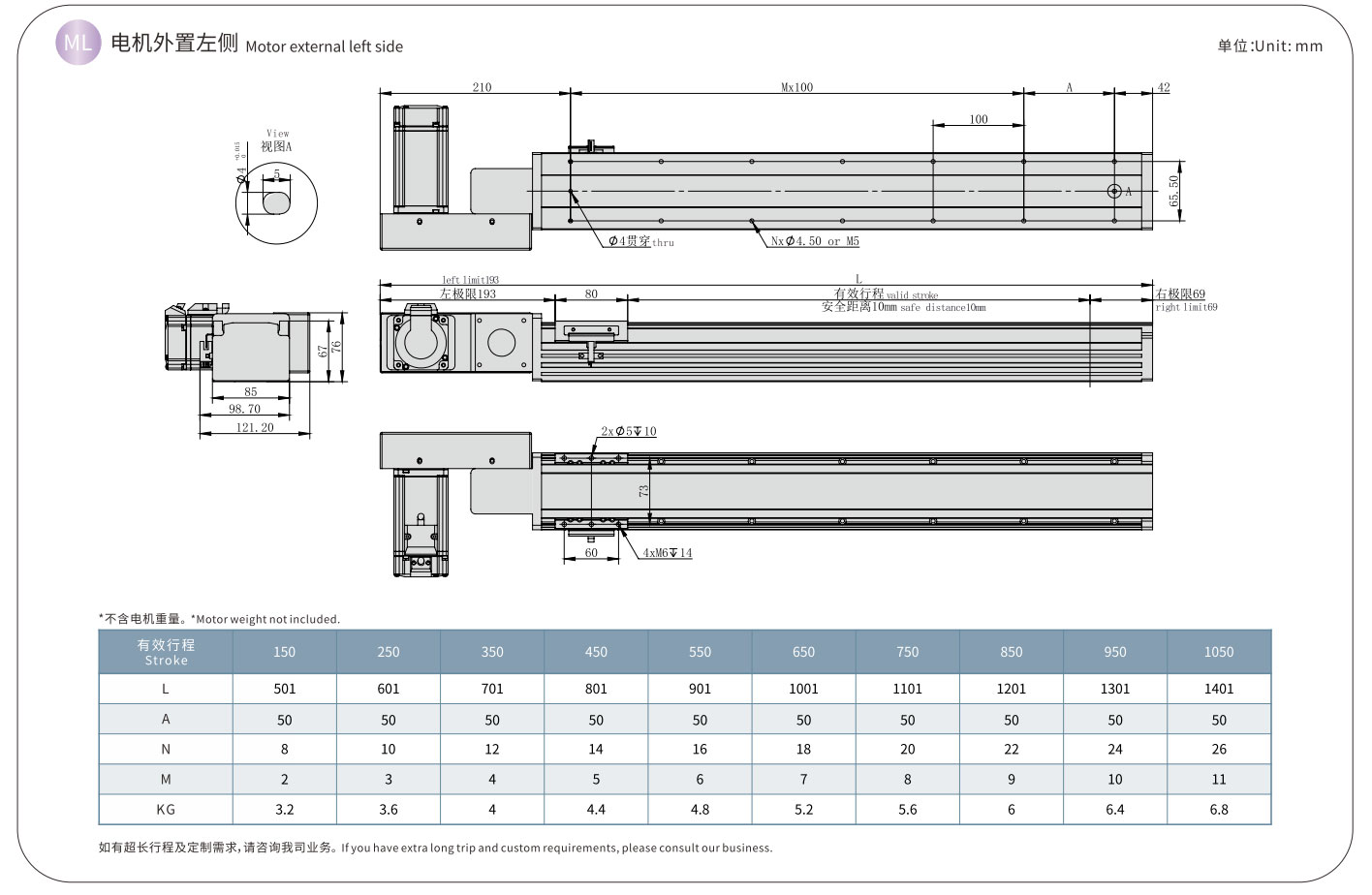

    General-module-Asia-Standard-&-Multi-axis-series-2023_65_07 General-module-Asia-Standard-&-Multi-axis-series-2023_65_10 General-module-Asia-Standard-&-Multi-axis-series-2023_65_03 General-module-Asia-Standard-&-Multi-axis-series-2023_65_05TPA-HNB-85D (1) TPA-HNB-85D (2) TPA-HNB-85D (4)TPA-HNB-85D (3) TPA-HNB-85D (5) TPA-HNB-85D (6)

    General-module-Asia-Standard-&-Multi-axis-series-2023_68_07 General-module-Asia-Standard-&-Multi-axis-series-2023_68_10General-module-Asia-Standard-&-Multi-axis-series-2023_68_03 General-module-Asia-Standard-&-Multi-axis-series-2023_68_05TPA-HNB-105D (1) TPA-HNB-105D (2) TPA-HNB-105D (4)TPA-HNB-105D (3) TPA-HNB-105D (5) TPA-HNB-105D (6)

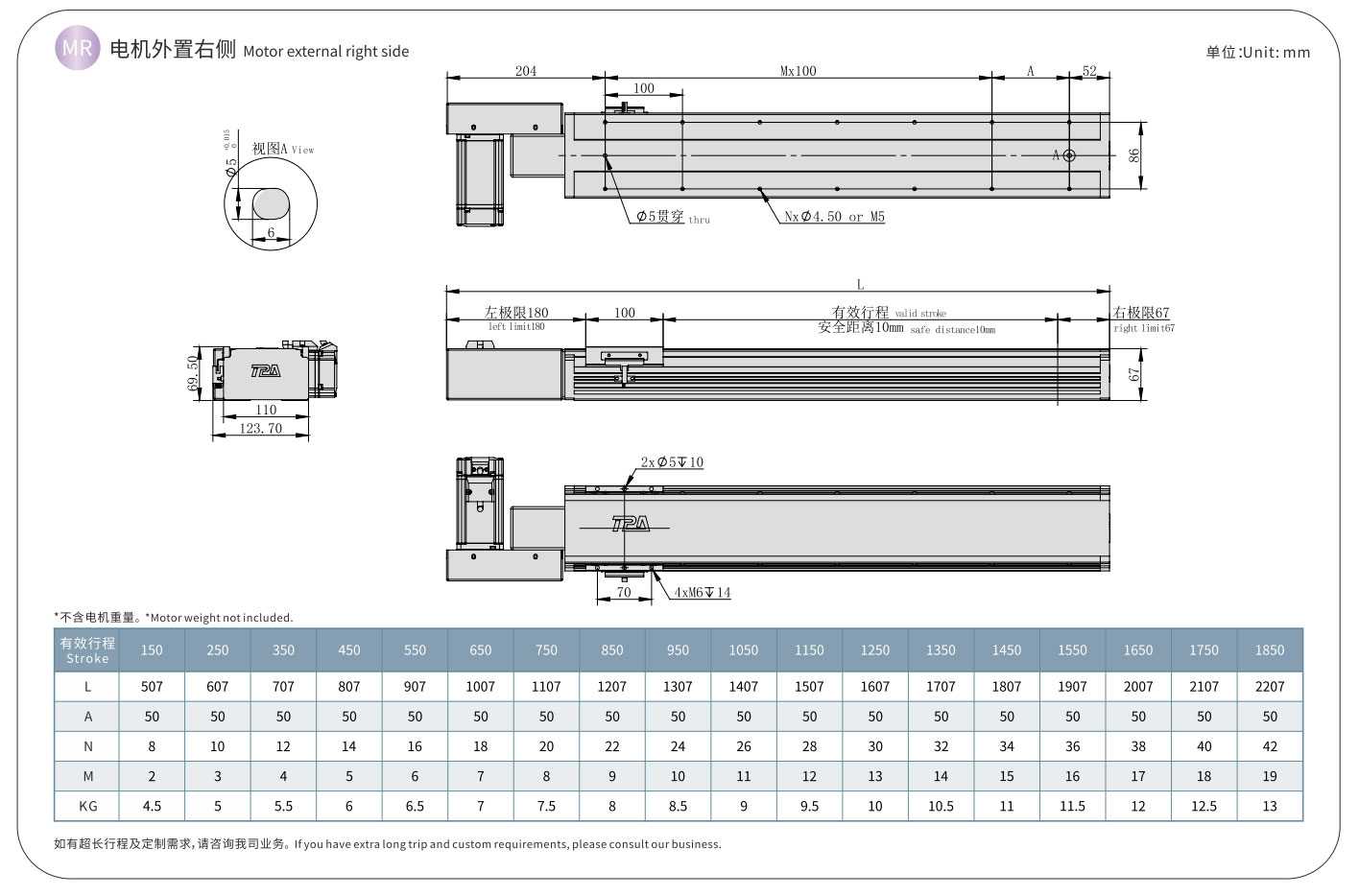

    General-module-Asia-Standard-&-Multi-axis-series-2023_71_07 General-module-Asia-Standard-&-Multi-axis-series-2023_71_10 General-module-Asia-Standard-&-Multi-axis-series-2023_71_03 General-module-Asia-Standard-&-Multi-axis-series-2023_71_05TPA-HNB-110D (1) TPA-HNB-110D (2) TPA-HNB-110D (4)TPA-HNB-110D (3) TPA-HNB-110D (5) TPA-HNB-110D (6)

    General-module-Asia-Standard-&-Multi-axis-series-2023_74_07 General-module-Asia-Standard-&-Multi-axis-series-2023_74_10 General-module-Asia-Standard-&-Multi-axis-series-2023_74_03 General-module-Asia-Standard-&-Multi-axis-series-2023_74_05TPA-HNB-120D (1) TPA-HNB-120D (2) TPA-HNB-120D (4)TPA-HNB-120D (3) TPA-HNB-120D (5) TPA-HNB-120D (6)

    General-module-Asia-Standard-&-Multi-axis-series-2023_77_07 General-module-Asia-Standard-&-Multi-axis-series-2023_77_10 General-module-Asia-Standard-&-Multi-axis-series-2023_77_03 General-module-Asia-Standard-&-Multi-axis-series-2023_77_05TPA-HNB-140D (1) TPA-HNB-140D (2) TPA-HNB-140D (4)TPA-HNB-140D (3) TPA-HNB-140D (5) TPA-HNB-140D (6)

    General-module-Asia-Standard-&-Multi-axis-series-2023_80_07 General-module-Asia-Standard-&-Multi-axis-series-2023_80_10 General-module-Asia-Standard-&-Multi-axis-series-2023_80_03 General-module-Asia-Standard-&-Multi-axis-series-2023_80_05TPA-HNB-175D (1) TPA-HNB-175D (2) TPA-HNB-175D (4)TPA-HNB-175D (3) TPA-HNB-175D (5) TPA-HNB-175D (6)

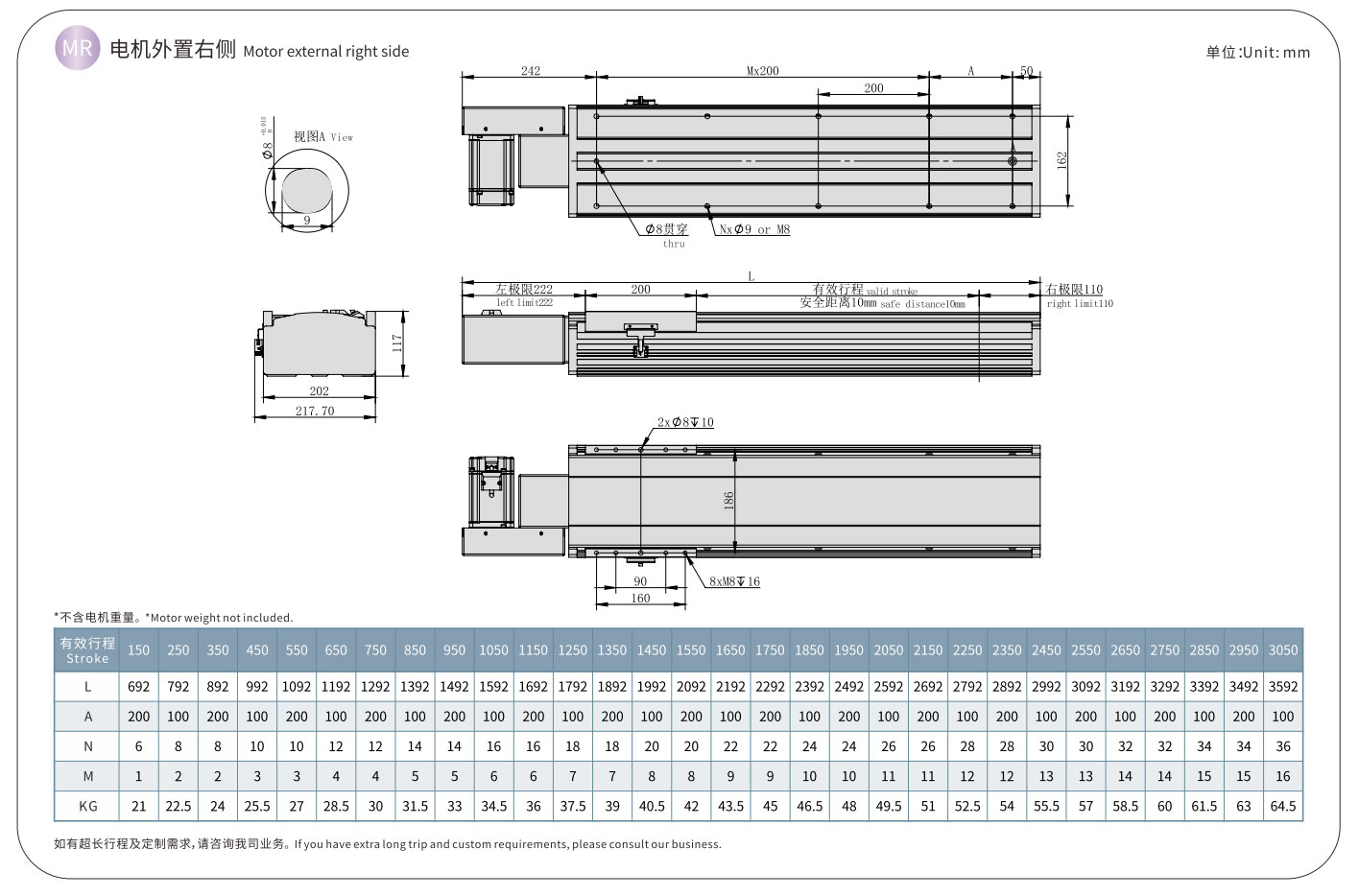

    General-module-Asia-Standard-&-Multi-axis-series-2023_83_07 General-module-Asia-Standard-&-Multi-axis-series-2023_83_10 General-module-Asia-Standard-&-Multi-axis-series-2023_83_03 General-module-Asia-Standard-&-Multi-axis-series-2023_83_05TPA-HNB-202D (1) TPA-HNB-202D (2) TPA-HNB-202D (4)TPA-HNB-202D (3) TPA-HNB-202D (5) TPA-HNB-202D (6)

    General-module-Asia-Standard-&-Multi-axis-series-2023_86_07 General-module-Asia-Standard-&-Multi-axis-series-2023_86_10 General-module-Asia-Standard-&-Multi-axis-series-2023_86_03 General-module-Asia-Standard-&-Multi-axis-series-2023_86_05TPA-HNB-220D (1) TPA-HNB-220D (2) TPA-HNB-220D (4)TPA-HNB-220D (3) TPA-HNB-220D (5) TPA-HNB-220D (6)

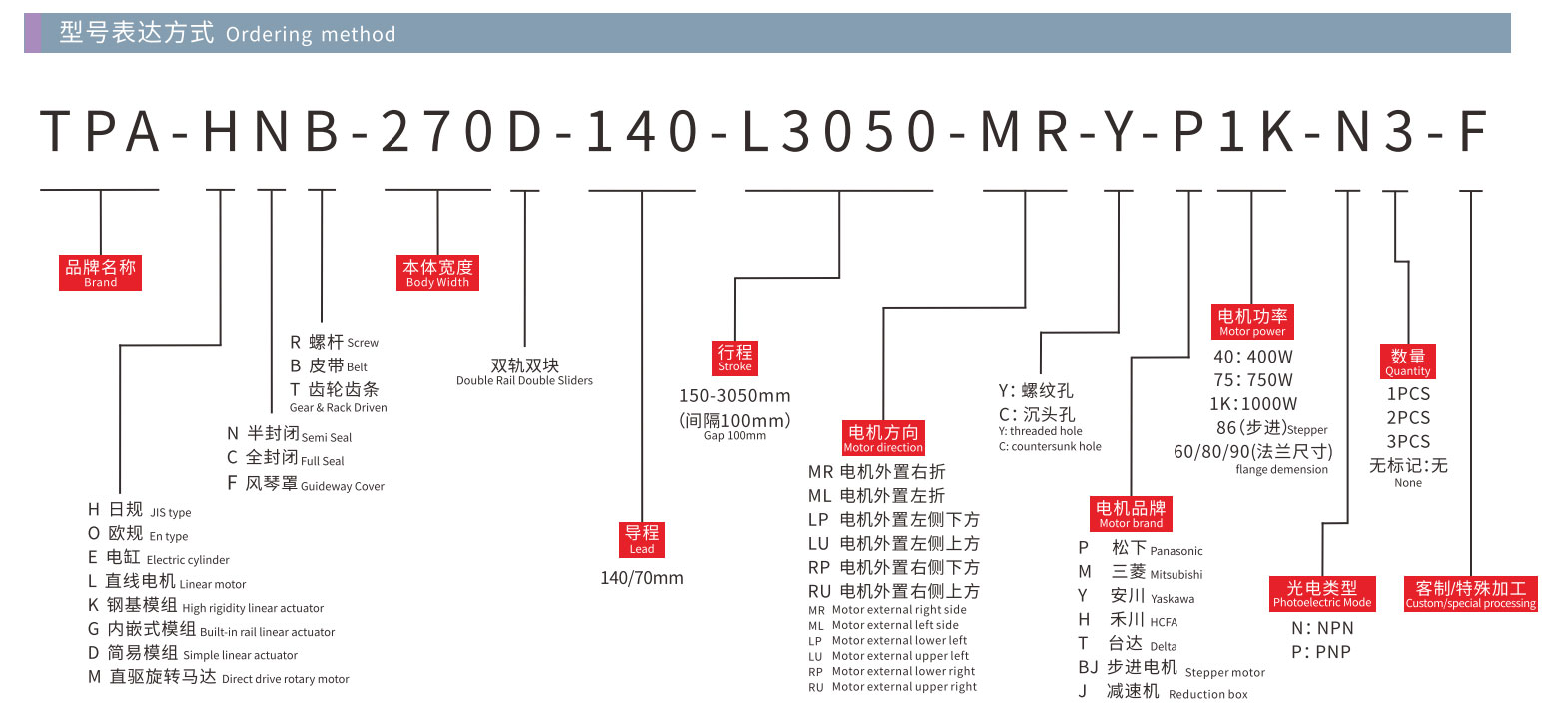

    General-module-Asia-Standard-&-Multi-axis-series-2023_89_07 General-module-Asia-Standard-&-Multi-axis-series-2023_89_10 General-module-Asia-Standard-&-Multi-axis-series-2023_89_03 General-module-Asia-Standard-&-Multi-axis-series-2023_89_05TPA-HNB-270D (1) TPA-HNB-270D (2) TPA-HNB-270D (4)TPA-HNB-270D (3) TPA-HNB-270D (5) TPA-HNB-270D (6)

  • ( Unit:mm )
